AWS Elastic Beanstalk
Developer Guide (API Version 2010-12-01)

The AWS Toolkit for Visual Studio

Visual Studio provides templates for different programming languages and application types. You can start with any of these templates. The AWS Toolkit for Visual Studio also provides three project templates that bootstrap development of your application: AWS Console Project, AWS Web Project, and AWS Empty Project. For this example, you'll create a new ASP.NET Web Application.

To create a new ASP.NET Web Application project

  1. In Visual Studio, on the File menu, click New and then click Project.

  2. In the New Project dialog box, click Installed Templates, click Visual C#, and then click Web. Click ASP.NET Empty Web Application, type a project name, and then click OK.

To run a project

Do one of the following:

  1. Press F5.

  2. Select Start Debugging from the Debug menu.

Test Locally

Visual Studio makes it easy for you to test your application locally. To test or run ASP.NET web applications, you need a web server. Visual Studio offers several options, such as Internet Information Services (IIS), IIS Express, or the built-in Visual Studio Development Server. To learn about each of these options and to decide which one is best for you, go to Web Servers in Visual Studio for ASP.NET Web Projects .

Create an Elastic Beanstalk Environment

After testing your application, you are ready to deploy it to Elastic Beanstalk.

Note

Configuration file needs to be part of the project to be included in the archive. Alternatively, instead of including the configuration files in the project, you can use Visual Studio to deploy all files in the project folder. In Solution Explorer, right-click the project name, and then click Properties. Click the Package/Publish Web tab. In the Items to deploy section, select All Files in the Project Folder in the drop-down list.

To deploy your application to Elastic Beanstalk using the AWS Toolkit for Visual Studio

  1. In Solution Explorer, right-click your application and then select Publish to AWS.

  2. In the Publish to AWS wizard, enter your account information.

    1. For AWS account to use for deployment, select your account or select Other to enter new account information.

    2. For Region, select the region where you want to deploy your application. For information about this product's regions, go to Regions and Endpoints in the Amazon Web Services General Reference. If you select a region that is not supported by Elastic Beanstalk, then the option to deploy to Elastic Beanstalk will become unavailable.

    3. Click Deploy new application with template and select Elastic Beanstalk. Then click Next.


                Publish to AWS Wizard 1
  3. On the Application page, enter your application details.

    1. For Name, type the name of the application.

    2. For Description, type a description of the application. This step is optional.

    3. The version label of the application automatically appears in the Deployment version label

    4. Select Deploy application incrementally to deploy only the changed files. An incremental deployment is faster because you are updating only the files that changed instead of all the files. If you choose this option, an application version will be set from the Git commit ID. If you choose to not deploy your application incrementally, then you can update the version label in the Deployment version label box.


                Publish to Beanstalk Wizard 2
    5. Click Next.

  4. On the Environment page, describe your environment details.

    1. Select Create a new environment for this application.

    2. For Name, type a name for your environment.

    3. For Description, characterize your environment. This step is optional.

    4. Select the Type of environment that you want.

      You can select either Load balanced, auto scaled or a Single instance environment. For more information, see Environment Types.

      Note

      For single-instance environments, load balancing, autoscaling, and the health check URL settings don't apply.

    5. The environment URL automatically appears in the Environment URL once you move your cursor to that box.

    6. Click Check availability to make sure the environment URL is available.

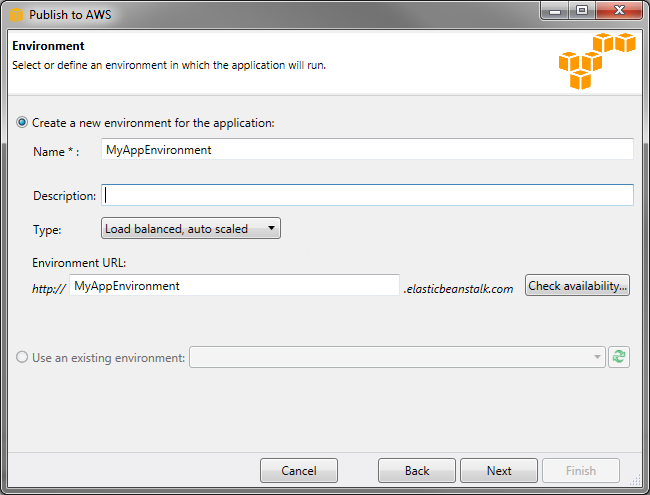

                Publish to Beanstalk Wizard 3
    7. Click Next.

  5. On the AWS Options page, configure additional options and security information for your deployment.

    1. For Container Type, select 64bit Windows Server 2012 running IIS 8 or 64bit Windows Server 2008 running IIS 7.5.

    2. For Instance Type, select Micro.

    3. For Key pair, select Create new key pair. Type a name for the new key pair—in this example, we use myuswestkeypair—and then click OK. A key pair enables remote-desktop access to your Amazon EC2 instances. For more information on Amazon EC2 key pairs, see Using Credentials in the Amazon Elastic Compute Cloud User Guide.

    4. Select an instance profile.

      If you do not have an instance profile, select Create a default instance profile. For information about using instance profiles with Elastic Beanstalk, see Managing Elastic Beanstalk Instance Profiles.

    5. If you have a custom VPC that you would like to use with your environment, click Launch into VPC. You can configure the VPC information on the next page. For more information about Amazon VPC, go to Amazon Virtual Private Cloud (Amazon VPC). For a list of supported nonlegacy container types, see Why are some container types marked legacy?.


                Publish to Beanstalk Wizard 4
    6. Click Next.

  6. If you selected to launch your environment inside a VPC, the VPC Options page appears; otherwise, the Additional Options page appears. Here you'll configure your VPC options.

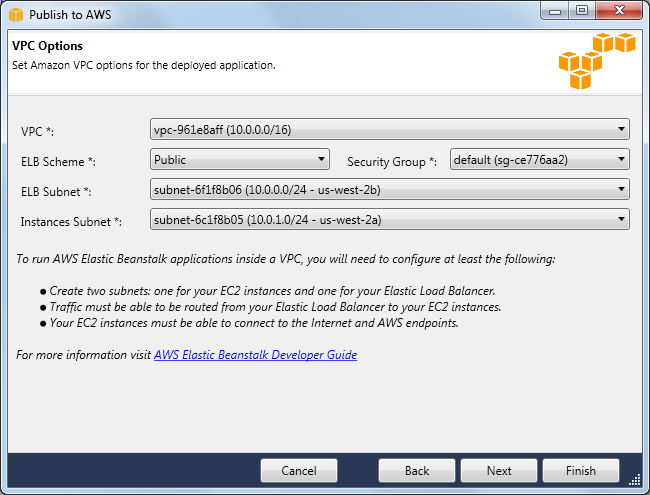

            VPC options for load-balanced, autoscaled environment

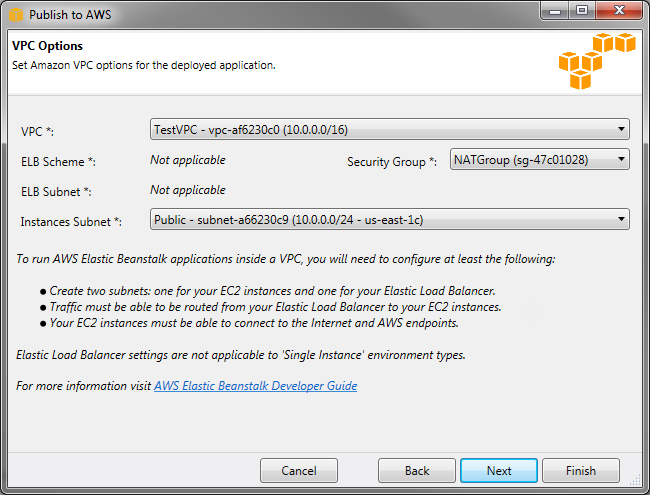

            VPC options for single-instance environment
    1. Select the VPC ID of the VPC in which you would like to launch your environment.

    2. For a load-balanced, autoscaled environment, select private for ELB Scheme if you do not want your elastic load balancer to be available to the Internet.

      For a single-instance environment, this option is not applicable because the environment doesn't have a load balancer. For more information, see Environment Types.

    3. For a load-balanced, autoscaled environment, select the subnets for the elastic load balancer and the EC2 instances. If you created public and private subnets, make sure the elastic load balancer and the EC2 instances are associated with the correct subnet. By default, Amazon VPC creates a default public subnet using 10.0.0.0/24 and a private subnet using 10.0.1.0/24. You can view your existing subnets in the Amazon VPC console at https://console.aws.amazon.com/vpc/.

      For a single-instance environment, your VPC only needs a public subnet for the instance. Selecting a subnet for the load balancer is not applicable because the environment doesn't have a load balancer. For more information, see Environment Types.

    4. For a load-balanced, autoscaled environment, select the security group you created for your instances, if applicable. For more information, see Create a Security Group for Your Instances.

      For a single-instance environment, you don't need a NAT device. Select the default security group. Elastic Beanstalk assigns an Elastic IP address to the instance that lets the instance access the Internet.

    5. Click Next.

  7. On the Application Options page, configure your application options.

    1. For Target framework, select .NET Framework 4.0.

    2. Elastic Load Balancing uses a health check to determine whether the Amazon EC2 instances running your application are healthy. The health check determines an instance's health status by probing a specified URL at a set interval. You can override the default URL to match an existing resource in your application (e.g., /myapp/index.aspx) by entering it in the Application health check URL box. For more information about application health checks, see Health Check.

    3. Type an email address if you want to receive Amazon Simple Notification Service (Amazon SNS) notifications of important events affecting your application.

    4. The Application Environment section lets you specify environment variables on the Amazon EC2 instances that are running your application. This setting enables greater portability by eliminating the need to recompile your source code as you move between environments.

    5. Select the application credentials option you want to use to deploy your application.


                Publish to Beanstalk Wizard 6
    6. Click Next.

  8. If you have previously set up an Amazon RDS database, the Amazon RDS DB Security Group page appears. If you want to connect your Elastic Beanstalk environment to your Amazon RDS DB Instance, then select one or more security groups. Otherwise, go on to the next step. When you're ready, click Next.

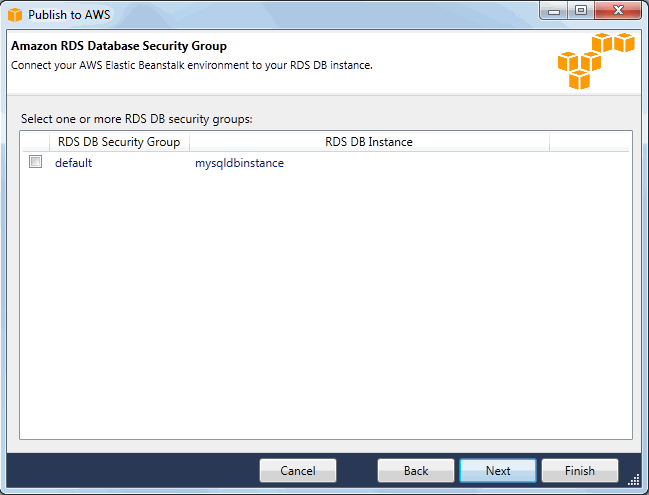

            Publish to Beanstalk Wizard 7
  9. Review your deployment options. If everything is as you want, click Deploy.


            Publish to Beanstalk Wizard 8

    Your ASP.NET project will be exported as a web deploy file, uploaded to Amazon S3, and registered as a new application version with Elastic Beanstalk. The Elastic Beanstalk deployment feature will monitor your environment until it becomes available with the newly deployed code. On the env:<environment name> tab, you will see status for your environment.


            Environment Status

Terminating an Environment

To avoid incurring charges for unused AWS resources, you can terminate a running environment using the AWS Toolkit for Visual Studio.

Note

You can always launch a new environment using the same version later.

To terminate an environment

  1. Expand the Elastic Beanstalk node and the application node in AWS Explorer. Right-click your application environment and select Terminate Environment.

  2. When prompted, click Yes to confirm that you want to terminate the environment. It will take a few minutes for Elastic Beanstalk to terminate the AWS resources running in the environment.

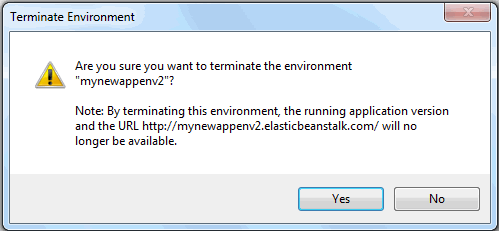

            Elastic Beanstalk Terminate Environment Dialog Box

    Note

    When you terminate your environment, the CNAME associated with the terminated environment becomes available for anyone to use.
