Concatenation pipeline architecture

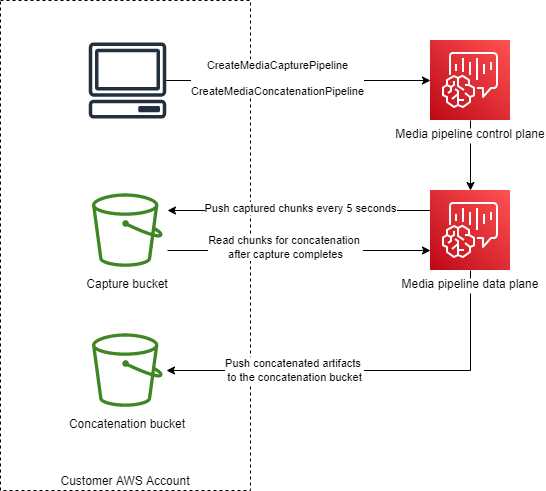

The following diagram shows the architecture of a media concatenation pipeline.

In the diagram, on receiving a CreateMediaCapturePipeline request, the media pipeline control plane starts a media capture pipeline in the media pipeline data plane. The data plane then pushes captured chunks to the capture bucket every 5 seconds. On receiving a CreateMediaConcatenationPipeline request, the media pipeline control plane waits for the specified media capture pipeline to finish, then starts a media concatenation pipeline in the media pipeline data plane. The data plane then reads the captured chunks in the bucket and pushes the concatenated artifacts to the concatenation bucket.
