AWS IoT Greengrass
Developer Guide

AWS IoT Device Tester for AWS IoT Greengrass User Guide

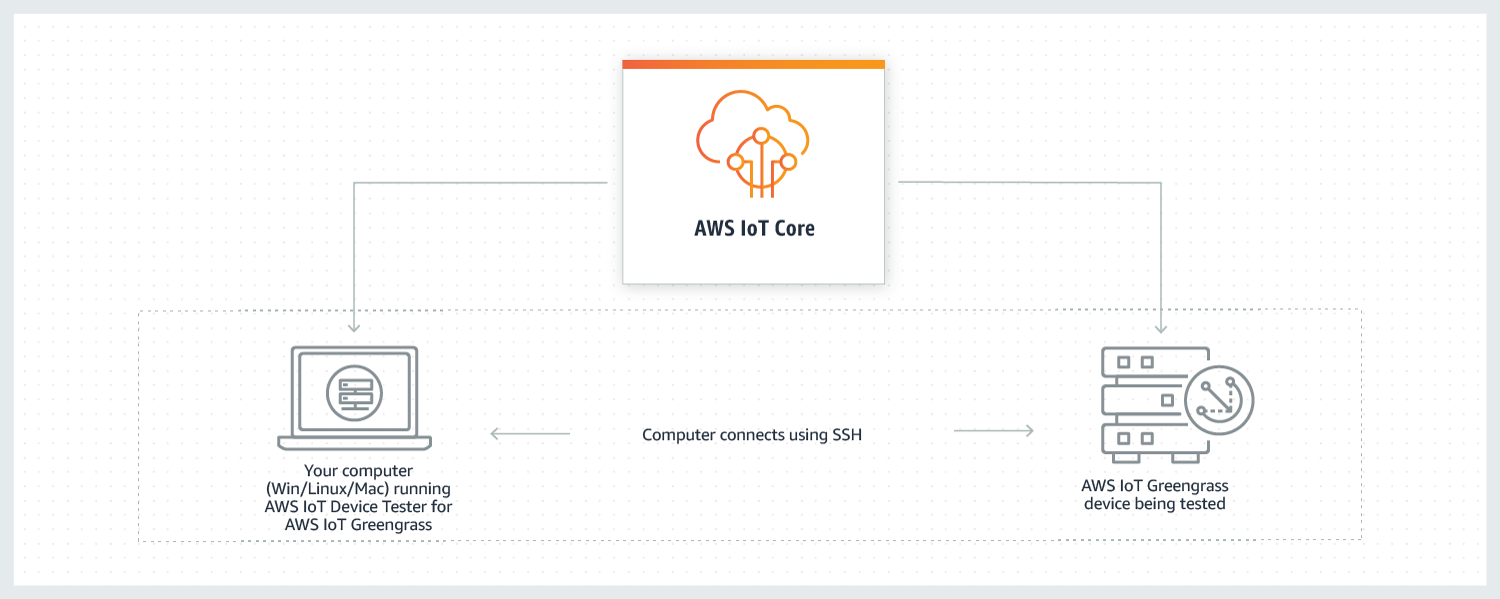

AWS IoT Device Tester (IDT) allows you to test that AWS IoT Greengrass works locally on your device and can communicate with the AWS IoT Cloud. The components of AWS IoT Device Tester include:

  • Test Manager, which runs on the host computer (Windows, macOS, or Linux) that is connected to the device to be tested. It executes test cases and aggregates results. It also provides a command line interface to manage test execution.

  • Test Cases, which contains test logic and sets up the resources required for tests.

AWS IoT Device Tester organizes tests using the concepts of test suites, test groups, and individual tests.

A test suite consists of groups of tests that are related to AWS IoT Greengrass or Amazon FreeRTOS. You should run a suite of tests to ensure that a product works as expected on devices.

A test group consists of individual tests that are related to the feature being tested.

A test consists of individual executables and configurations used to run a test to ensure the functionality of a portion of a feature.

AWS IoT Device Tester for AWS IoT Greengrass verifies that the combination of your Linux device’s CPU architecture, kernel configuration, and drivers work with AWS IoT Greengrass. For more information about the tests AWS IoT Device Tester runs, see Test Group Descriptions.

AWS IoT Device Tester for AWS IoT Greengrass Versions

The following tabs provide information about the versions of AWS IoT Device Tester for AWS IoT Greengrass. By downloading the software, you agree to the AWS IoT Device Tester License agreement. Each version of AWS IoT Greengrass has a corresponding version of AWS IoT Device Tester. Newer versions of AWS IoT Device Tester are added to this page with each new release of AWS IoT Greengrass. For more information, see the AWS IoT Device Tester for AWS IoT Greengrass User Guide.

IDT for AWS IoT Greengrass
IDT for AWS IoT Greengrass

IDT v1.3.1 for AWS IoT Greengrass v1.9.1, v1.9.0, v1.8.2, v1.8.1, and v1.8.0

  • IDT for AWS IoT Greengrass: Linux

  • IDT for AWS IoT Greengrass: macOS

  • IDT for AWS IoT Greengrass: Windows

Release Notes:

  • Added support for Greengrass v1.9.1

For previous versions of IDT, see Previous IDT Versions for AWS IoT Greengrass.

Prerequisites

This section describes the prerequisites for AWS IoT Device Tester for AWS IoT Greengrass.

Download the Latest Version of AWS IoT Device Tester for AWS IoT Greengrass

Download the latest version of AWS IoT Device Tester from AWS IoT Device Tester for AWS IoT Greengrass Versions. The software should be extracted into a location on the file system where you have read and write permissions. Due to a path length limitation, on Microsoft Windows, extract AWS IoT Device Tester into a root directory like C:\ or D:\.

Create and Configure an AWS Account

If you don't have an AWS account, follow the instructions on the AWS web page to create one. Choose Create an AWS Account and follow the prompts.

Create an IAM User in Your AWS Account

When you create an AWS account, a root user that has access to all resources in your account is created for you. It is a best practice to create another user for everyday tasks. To create an IAM user, follow the instructions in Creating an IAM User in Your AWS Account. For more information about the root user, see The AWS Account Root User.

Create and Attach an IAM Policy to Your AWS Account

IAM policies grant your IAM user access to AWS resources.

To create an IAM policy

  1. Browse to the IAM console.

  2. In the navigation pane, choose Policies, and then choose Create Policy.

  3. Choose the JSON tab and copy and paste the policy template located in the Permissions Policy Template into the editor window.

  4. Choose Review policy.

  5. In Name, enter a name for your policy. In Description, enter an optional description. Choose Create Policy.

After you create an IAM policy, you must attach it to your IAM user.

To attach an IAM policy to your IAM user

  1. Browse to the IAM console.

  2. In the navigation pane, choose Users. Find and select your IAM user.

  3. Choose Add permissions, and then choose Attach existing policies directly. Find and select your IAM policy, choose Next: Review, and then choose Add Permissions.

Install the AWS Command Line Interface (CLI)

You need to use the AWS CLI to perform some operations. If you don't have the AWS CLI installed, follow the instructions in Install the AWS CLI.

Configure the AWS IoT Greengrass Service Role

Important

This step is not required for AWS IoT Device Tester v1.1 for AWS IoT Greengrass version 1.7.1 or later. In those versions, AWS IoT Device Tester creates the service role for you.

To successfully deploy an AWS IoT Greengrass group, AWS IoT Greengrass requires permissions to perform actions on your behalf. Follow these instructions to create and associate the service role.

To create the AWS IoT Greengrass service role

  1. Use the following AWS CLI command on your host computer to create a service role.

    aws iam create-role --role-name GreengrassServiceRole --assume-role-policy-document '{ "Version": "2012-10-17", "Statement": [{ "Effect": "Allow", "Principal": { "Service": "greengrass.amazonaws.com" }, "Action": "sts:AssumeRole" }] }'

    This command generates a service role ARN that you use when you associate your AWS IoT Greengrass service role with your AWS account.

  2. Use the following AWS CLI command to attach the AWSGreengrassResourceAccessRolePolicy to your AWS IoT Greengrass service role.

    aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/service-role/AWSGreengrassResourceAccessRolePolicy --role-name GreengrassServiceRole
  3. Use the following AWS CLI command to associate your AWS IoT Greengrass service role with your AWS account.

    aws greengrass associate-service-role-to-account --role-arn <your-greengrass-service-role-arn>

Verify AWS IoT Greengrass Dependencies on the Device Under Test

Before AWS IoT Device Tester can test your devices, make sure that you have set up your device to run AWS IoT Greengrass as described in Getting Started with AWS IoT Greengrass. For information about supported platforms, see Supported Platforms.

Configure the AWS IoT Greengrass Software

AWS IoT Device Tester tests your device for compatibility with a specific version of AWS IoT Greengrass. AWS IoT Device Tester provides two options for testing AWS IoT Greengrass on your devices:

  • Download and use a version of the AWS IoT Greengrass Core software. AWS IoT Device Tester installs the software for you.

  • Use a version of the AWS IoT Greengrass Core software already installed on your device.

Note

Each version of AWS IoT Greengrass has a corresponding AWS IoT Device Tester version. You must download the version of AWS IoT Device Tester that corresponds to the version of AWS IoT Greengrass you are using.

Download the AWS IoT Greengrass Core Software and Configure AWS IoT Device Tester to Use It

You can download the AWS IoT Greengrass Core software from the AWS IoT Greengrass Core Software downloads page.

  1. Find the correct architecture and Linux distribution, and then choose Download.

  2. Copy the tar.gz file to the <device-tester-extract-location>/products/greengrass/ggc.

Note

Do not change the name of the AWS IoT Greengrass tar.gz file.

Use an Existing Installation of AWS IoT Greengrass with AWS IoT Device Tester

Configure AWS IoT Device Tester to test the AWS IoT Greengrass Core software installed on your device by adding the greengrassLocation attribute to the device.json file in the <device_tester_extract_location>/configs folder. For example:

"greengrassLocation" : "<path-to-greengrass-on-device>"

For more information about the device.json file, see Device Configuration.

On Linux devices, the default location of the AWS IoT Greengrass Core software is /greengrass.

Note

Your device should have a clean install of the AWS IoT Greengrass Core software (that is, an install in which the AWS IoT Greengrass Core software was never started).

Configure Your Host Computer to Access Your Device Under Test

AWS IoT Device Tester runs on your host computer and must be able to use SSH to connect to your device. You must create an SSH key and authorize your key to sign in to your device under test.

The following instructions for creating an SSH key are written with the assumption that you are using OpenSSL. If you are using another SSL implementation, refer to the documentation.

Create an SSH Key

AWS IoT Device Tester uses an SSH key to authenticate with your device under test. You can use the Open SSH ssh-keygen command to create an SSH key pair. If you already have an SSH key pair on your host computer, it is a best practice to create a new one to allow AWS IoT Device Tester to sign in to your device under test.

Note

Windows does not come with an installed SSH client. For information about installing an SSH client on Windows, see Download SSH Client Software.

The ssh-keygen command prompts you for a name and path to store the key pair. By default, the key pair files are named id_rsa (private key) and id_rsa.pub (public key). On macOS and Linux, the default location of these files is ~/.ssh/. On Windows, the default location is C:\Users\<user-name>\.ssh.

When prompted, enter a key phrase to protect your SSH key. For more information, see Generate a New SSH Key.

Adding Authorized SSH Keys to Your Device Under Test

AWS IoT Device Tester must use your SSH private key to sign in to your device under test. To authorize your SSH private key to sign in to your device under test, use the ssh-copy-id command from your host computer. This command adds your public key into the ~/.ssh/authorized_keys file on your device under test. For example:

$ ssh-copy-id <remote-ssh-user>@<remote-device-ip>

Where remote-ssh-user is the user name used to sign in to your device under test and remote-device-ip is the IP address of the device under test to run tests against. For example:

ssh-copy-id pi@192.168.1.5

When prompted, enter the password for the user name you specified in the ssh-copy-id command.

ssh-copy-id assumes the public key is named id_rsa.pub and is stored the default location (on macOS and Linux, ~/.ssh/ and on Windows, C:\Users\<user-name>\.ssh). If you gave the public key a different name or stored it in a different location, you must specify the fully qualified path to your SSH public key using the -i option to ssh-copy-id (for example, ssh-copy-id -i ~/my/path/myKey.pub). For more information about creating SSH keys and copying public keys, see SSH-COPY-ID.

Root Access

AWS IoT Device Tester performs operations on various directories and files in a device under test. Some of these operations require root access. To automate these operations, AWS IoT Device Tester must be able to run commands with sudo without being prompted for a password.

Follow these steps on the device under test to allow sudo access without being prompted for a password.

Note

user and user name refer to the SSH user used by AWS IoT Device Tester to access the device under test.

To add the user to the sudo group

  1. Run sudo usermod -aG sudo <username>

  2. Sign out and then sign back in for changes to take effect.

Setting Configuration to Run the AWS IoT Greengrass Qualification Suite

Before you run tests, you must configure settings for logging, AWS credentials, and devices on your host computer.

Configure Your AWS Credentials

You must configure your IAM user credentials in the <device_tester_extract_location>/configs/config.json. You can specify your credentials in one of two ways:

  • Environment variables

  • Credentials file

Configure AWS Credentials with Environment Variables

Environment variables are variables maintained by the operating system and used by system commands. AWS IoT Device Tester can use the AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY environment variables to store your AWS credentials. The way you set environment variables depends on the operating system you are running.

To set environment variables on Windows

  1. From the Windows 10 desktop, open the Power User Task Menu. To open the menu, move your mouse cursor to the bottom-left corner of the screen (the Start menu icon) and right-click.

  2. From the Power User Task Menu, choose System, and then choose Advanced System Settings.

    Note

    In Windows 10, you might need to scroll to Related settings and choose System info. In System, choose Advanced system settings.

    In System Properties, choose the Advanced tab, and then choose the Environment Variables button.

  3. Under User variables for <user-name>, choose New to create an environment variable. Enter a name and a value for each environment variable.

To set environment variables on macOS and Linux

  • Open ~/.bash_profile in any text editor and add the following lines:

    export AWS_ACCESS_KEY_ID="<your-aws-access-key-id>" export AWS_SECRET_ACCESS_KEY="<your-aws-secret-key>"

    Replace the items in angle brackets (< & >) with your AWS access key ID and AWS secret key.

After you set your environment variables, close your command line window or terminal and reopen it so the new values take effect.

To configure your AWS credentials using environment variables, set the AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY. In the config.json file, set the method attribute to environment:

{ "awsRegion": "us-west-2", "auth": { "method": "environment" } }

Configure AWS Credentials with a Credentials File

Create a credentials file that contains your credentials. AWS IoT Device Tester uses the same credentials file as the AWS CLI. For more information, see Configuration and Credential Files. You must also specify a named profile. For more information, see Named Profiles.

The following is an example JSON snippet that shows how to specify AWS credentials using a credentials file in the config.json file:

{ "awsRegion": "us-west-2", "auth": { "method": "file", "credentials": { "profile": "default" } } }

Device Configuration

In addition to AWS credentials, AWS IoT Device Tester needs information about the devices that tests are run on (for example, IP address, login information, operating system, and CPU architecture).

You can provide this information using the device.json template located in <device_tester_extract_location>/configs/device.json:

[ { "id": "<pool-id>", "sku": "<sku>", "features": [ { "name": "os", "value": "linux | ubuntu" }, { "name": "arch", "value": "x86_64 | armv7l | aarch64" } ], "hsm": { "p11Provider": "</path/to/pkcs11ProviderLibrary>", "slotLabel": "<slot-label>", "slotUserPin": "<pin>", "privateKeyLabel": "<key-label>", "openSSLEngine": "</path/to/openssl/engine>" }, "kernelConfigLocation": "", "greengrassLocation": "", "devices": [ { "id": "<device-id>", "connectivity": { "protocol": "ssh", "ip": "<ip-address>", "auth": { "method": "pki", "credentials": { "user": "<user>", "privKeyPath": "</path/to/private/key>" } } } } ] } ]

All fields that contain values are required as described here:

id

A user-defined alphanumeric ID that uniquely identifies a pool of devices. Devices that belong to a pool must be of the same type. When you run a suite of tests, devices in the pool are used to parallelize the workload.

sku

An alphanumeric value that uniquely identifies the device under test. The SKU is used to track qualified boards.

Note

If you want to list your board in the AWS Partner Device Catalog, the SKU you specify here must match the SKU that you use in the listing process.

features

An array that contains the device's supported features.

  • Required features: os, arch.

  • Supported OS/architecture combinations:

    • Linux, x86_64

    • Linux, ARMv7l

    • Linux, AArch64

    • Ubuntu, x86_64

hsm

An array that contains configuration information for testing with AWS IoT Greengrass hardware security integration. For more information, see Hardware Security Integration.

hsm.p11Provider

The absolute path to the PKCS#11 implementation's libdl-loadable library.

hsm.slotLabel

The slot label used to identify the hardware module.

hsm.slotUserPin

The user pin used to authenticate the AWS IoT Greengrass core to the module.

hsm.privateKeyLabel

The label used to identify the key in the hardware module.

hsm.openSSLEngine

The absolute path to the OpenSSL engine's .so file that enables PKCS#11 support on OpenSSL. This is used by the AWS IoT Greengrass OTA update agent.

devices.id

A user-defined unique identifier for the device being tested.

connectivity.protocol

The communication protocol used to communicate with this device. Supported values are:

  • ssh

  • serial (Amazon FreeRTOS only)

connectivity.ip

The IP address of the device being tested.

connectivity.auth.method

The authorization method used to access a device over the given connectivity protocol. Supported values are:

  • pki

connectivity.auth.credentials.user

The user name for signing in to the device being tested.

connectivity.auth.credentials.privKeyPath

The full path to the private key used to sign in to the device being tested.

greengrassLocation

(Optional) The location of AWS IoT Greengrass Core software on your devices. Use this attribute to tell AWS IoT Device Tester to use the version of the AWS IoT Greengrass Core software installed on your devices.

kernelConfigLocation

(Optional) The path to the kernel configuration file. AWS IoT Device Tester uses this file to check if the devices have the required kernel features enabled. If not specified, AWS IoT Device Tester uses one of the following paths: /proc/config.gz or /boot/config-<kernel-version>.

Running the Test Suite

After you set the required configuration, you can start the tests.

The following example command line shows you how to run the qualification tests for a device pool (a set of identical devices). You can find these commands in the <devicetester-extract-location>/bin directory.

Use the following command to run all test groups in a specified suite:

devicetester_[linux | mac | win_x86-64] run-suite --suite-id GGQ_1 --pool-id <pool-id>

Use the following command to run a specific test group:

devicetester_[linux | mac | win_x86-64] run-suite --suite-id GGQ_1 --group-id <group-id> --pool-id <pool-id>

suite-id and pool-id are optional if you are running a single test suite on a single device pool (that is, you have only one device pool defined in your device.json file).

AWS IoT Device Tester Commands

The AWS IoT Device Tester commands can be used for the following operations:

help

Lists information about the specified command.

list-groups

Lists the groups in a given test suite.

list-suites

Lists the available test suites.

run-suite

Runs a suite of tests on a pool of devices.

Results and Logs

This section describes how to view and interpret AWS IoT Device Tester result reports and logs.

Viewing Results

After AWS IoT Device Tester executes the qualification test suite, it generates two reports. These reports can be found in <devicetester-extract-location>/results/<execution-id>/. Both reports capture the results from the qualification test suite execution.

The awsiotdevicetester_report.xml is the qualification test report that you submit to AWS to list your device in the AWS Partner Device Catalog. The report contains the following elements:

  • The AWS IoT Device Tester version.

  • The AWS IoT Greengrass version that was tested.

  • The SKU and the device name specified in the device.json file.

  • The features of the device specified in the device.json file.

  • The aggregate summary of test case results.

  • A breakdown of test case results by libraries that were tested based on the device features (for example, LRA, shadow, MQTT, and so on).

The GGQ_Result.xml report is in standard junit.xml format. You can integrate it into CI/CD platforms like Jenkins, Bamboo, and so on. The report contains the following elements:

  • Aggregate summary of test case results.

  • Breakdown of test case results by AWS IoT Greengrass functionality that was tested (for example, LRA, shadow, MQTT, and so on).

Interpreting AWS IoT Device Tester Results

The report section in awsiotdevicetester_report.xml or GGQ_Report.xml lists the tests that were run and the results.

The first XML tag <testsuites> contains the summary of the test execution. For example:

<testsuites name="GGQ results" time="2299" tests="28" failures="0" errors="0" disabled="0">

Attributes used in the <testsuites> tag

name

The name of the test suite.

time

The time (in seconds) it took to run the qualification suite.

tests

The number of test cases executed.

failures

The number of test cases that were run, but did not pass.

errors

The number of test cases that AWS IoT Device tester couldn't execute.

disabled

This attribute is not used and can be ignored.

The GGQ_Report.xml file contains an <awsproduct> tag that contains information about the product being tested and the product features that were validated after running a suite of tests.

Attributes used in the <awsproduct> tag

name

The name of the product being tested.

version

The version of the product being tested.

features

The features validated. Features marked as required are required to submit your board for qualification. The following snippet shows how this information appears in the GGQ_Report.xml file:

<feature name="aws-iot-greengrass-no-container" value="supported" type="required">< /feature>

Features marked as optional are not required for qualification. The following snippets show optional features:

<feature name="aws-iot-greengrass-container" value="supported" type="optional"></feature>
 <feature name="aws-iot-greengrass-hsi" value="not-supported" type="optional"></feature>

If there are no test case failures or errors for the required features, your device meets the technical requirements to run AWS IoT Greengrass and can interoperate with AWS IoT services. If you want to list your device in the AWS Partner Device Catalog, you can use this report as qualification evidence.

In the event of test case failures or errors, you can identify the test case that failed by reviewing the <testsuites> XML tags. The <testsuite> XML tags inside the <testsuites> tag show the test case result summary for a test group. For example:

<testsuite name="combination" package="" tests="1" failures="0" time="161" disabled="0" errors="0" skipped="0">

The format is similar to the <testsuites> tag, but with a skippedattribute that is not used and can be ignored. Inside each <testsuite> XML tag, there are <testcase> tags for each executed test case for a test group. For example:

<testcase classname="Security Combination (IPD + DCM) Test Context" name="Security Combination IP Change Tests sec4_test_1: Should rotate server cert when IPD disabled and following changes are made:Add CIS conn info and Add another CIS conn info" attempts="1"></testcase>>

Attributes used in the <testcase> tag

name

The name of the test case.

attempts

The number of times AWS IoT Device Tester executed the test case.

When a test case fails or an error occurs, <failure> or <error> tags are added to the <testcase> tag with information for troubleshooting. For example:

<testcase classname="mcu.Full_MQTT" name="AFQP_MQTT_Connect_HappyCase" attempts="1"> <failure type="Failure">Reason for the test case failure</failure> <error>Reason for the test case execution error</error> </testcase>
Viewing Logs

AWS IoT Device Tester generates logs from test execution in <devicetester-extract-location>/results/<execution-id>/logs. Two sets of logs are generated:

test_manager.log

Logs generated from the Test Manager component of AWS IoT Device Tester. For example, logs related to configuration, test sequencing, and report generation are here.

<test_case_id>.log (for example, ota.log)

Logs of the test group, including logs from the device under test. When a test case fails, a tar.gz file that contains the logs of the device under test for the test case is created (for example, ota_prod_test_1_ggc_logs.tar.gz).

Testing Infrastructure

In addition to the devices being tested, other resources (for example, AWS IoT things, AWS IoT Greengrass groups, Lambda functions, and so on) must be created to facilitate the qualification process.

To create these resources, AWS IoT Device Tester uses the AWS credentials configured in the config.json to make API calls on your behalf. These resources are provisioned at various times during a test.

Error Codes

The following table lists the error codes generated by AWS IoT Device Tester for AWS IoT Greengrass.

Error Code Error Code Name Possible Root Cause Troubleshooting

101

InternalError

An internal error occurred.

Contact AWS Developer Support.

102

TimeoutError

The test case cannot be completed in a limited time range. This can happen if:

  • There is a slow network connection between the test machine and device (for example, if you are using a VPN network).

  • A slow network delays the communication between the device and cloud.

  • The timeout field in test configuration files (test.json) has been mistakenly modified.

  • Check the network connection and speed.

  • Make sure that you did not modify any file under the /test directory.

  • Try running the failed test group with "--group-id" flag manually.

103

PlatformNotSupportError

Incorrect OS/architecture combination specified in device.json.

Change your configuration to one of the supported combinations:

  • Linux, x86_64

  • Linux, ARM7l

  • Linux, AArch64

  • Ubuntu, x86_64

For more information, see Device Configuration.

104

VersionNotSupportError

The AWS IoT Greengrass Core software version is not supported by the version of AWS IoT Device Tester you are using.

Use the device_tester_bin version command to find the supported version of the AWS IoT Greengrass Core software. For example, if you are using macOS, use: ./devicetester_mac_x86_64 version.

To find the version of AWS IoT Greengrass Core software you are using:

  • If you are running tests with preinstalled AWS IoT Greengrass Core software, use SSH to connect to your AWS IoT Greengrass core device and run: <path-to>;/greengrass/ggc/core/greengrassd --version

  • If you are running tests with a different version of the AWS IoT Greengrass Core software, go to the devicetester_greengrass_<os>products/greengrass/gcc directory. The AWS IoT Greengrass Core software version is part of the .zip file name.

You can test a different version of the AWS IoT Greengrass Core software. For more information, see Getting Started with AWS IoT Greengrass.

105

LanguageNotSupportError

AWS IoT Device Tester only supports Python for AWS IoT Greengrass libraries and SDKs.

Make sure:

  • The SDK package under devicetester_greengrass_<os>/products/greengrass/ggsdk is the Python SDK.

  • The contents of the bin folder under devicetester_greengrass_<os>/resources/run.runtimefarm have not been changed.

106

ValidationError

Some fields in device.json or config.json are invalid.

Check the error message on the right side of the error code in the report.

  • Invalid private key path: Specify the correct path to your private key. For more information, see Device Configuration.

  • Invalid AWS Region: Specify a valid AWS Region in your config.json file. For more information about AWS Regions, see Regions and Endpoints.

  • AWS credentials: Set valid AWS credentials on your test machine (through environment variables or ~/.aws/credentials). Verify that the auth field is configured correctly.

107

SSHConnectionFailed

The test machine cannot connect to the configured device.

Verify the following fields in your device.json file are correct:

  • ip

  • user

  • privKeyPath

For more information, see Device Configuration.

108

RunCommandError

A test case failed to execute a command on the device under test.

Verify that root access is allowed for the configured user in device.json.

A password is required by some devices when executing commands with root access. Make sure root access is allowed without a password. For more information, consult the documentation for your device.

Try running the failing command manually on your device to see if an error occurs.

109

PermissionDeniedError

No root access.

Set root access for the configured user on your device.

110

CreateFileError

Unable to create a file.

Check your device's disk space and directory permissions.

111

CreateDirError

Unable to create a directory.

Check your device's disk space and directory permissions.

112

InvalidPathError

The path to the AWS IoT Greengrass Core software is incorrect.

Verify that the path in the error message is valid. Do not to edit any files under the /test directory.

113

InvalidFileError

A file is invalid.

Verify that the file in the error message is valid.

114

ReadFileError

The specified file cannot be read.

Verify the following:

  • File permissions are correct.

  • limits.config allows enough files to be open.

  • The file specified in the error message exists and is valid.

If you are testing on macOS, increase the open files limit. The default limit is 256, which is enough for testing.

115

FileNotFoundError

A required file was not found.

Verify the following:

  • The SDK package exists under devicetester_greengrass_<os>/products/greengrass/ggsdk.

  • The files under devicetester_greengrass_<os>/tests have not been modified.

116

OpenFileFailed

Unable to open the specified file.

Verify the following:

  • The file specified in the error message exists and is valid.

  • limits.config allows enough files to be open.

If you are testing on macOS, increase the open files limit. The default limit is 256, which is enough for testing.

117

WriteFileFailed

Failed to write file (can be the DUT or test machine).

Try to manually create a file in the directory specified in the error message.

118

FileCleanUpError

A test case failed to remove the specified file or directory or to umount the specified file on the remote device.

If the binary file is still running, the file might be locked. End the process and delete the specified file.

119

InvalidInputError

Invalid configuration.

Verify your suite.json file is valid.

120

InvalidCredentialError

Invalid AWS credentials.

Verify your AWS credentials. Because this error can also be caused by network problems, check your network connection and rerun the test group.

121

AWSSessionError

Failed to create an AWS session.

This error can occur if AWS credentials are invalid or the internet connection is unstable. Try using the AWS CLI to call an AWS API operation.

123

AWSApiCallError

An AWS API error occurred.

This error might be due to a network issue. Check your network before retrying the test group.

124

IpNotExistError

IP address is not included in connectivity information.

Check your internet connection. Make sure that you are not using CTRL+C to interrupt the test. You can use the AWS IoT Greengrass console to check the connectivity information for the AWS IoT Greengrass core thing that is being used by the test. If there are 10 endpoints included in the connectivity information, you can remove some or all of them and rerun the test. For more information, see Connectivity Information.

125

OTAJobNotCompleteError

An OTA job did not complete.

Check your internet connection and retry the OTA test group.

126

CreateGreengrassServiceRoleError

One of the following occurred:

  • An error occurred while creating a role.

  • An error occurred while attaching a policy to the AWS IoT Greengrass service role.

  • The policy associated with the service role is invalid.

  • An error occurred when associating a role with an AWS account.

Configure the AWS IoT Greengrass service role. For more information, see Configure the AWS IoT Greengrass Service Role.

127

InvalidHSMConfiguration

The provided HSM/PKCS configuration is incorrect.

In your device.json file, provide the configuration required to interact with the HSM using PKCS#11.

Troubleshooting

We recommend the following troubleshooting workflow:

  1. Read the console output.

  2. Look in the GGQ_Result.xml file.

  3. Investigate one of the following problem areas:

    • Device configuration

    • Device interface

Troubleshooting Device Configuration

When you use AWS IoT Device Tester, you must get the correct configuration files in place before you execute the binary. If you are getting parsing and configuration errors, your first step is to locate and use a configuration template appropriate for your environment.

If you are still having issues, see the following debugging process.

Where Do I Look?

Start by looking in the GGQ_Report.xml file in the /results/<uuid> directory. This file contains all of the test cases that were run and error snippets for each failure. To get all of the execution logs, look under /results/<uuid>/<test-case-id>.log for each test group.

Parsing Errors

Occasionally, a typo in a JSON configuration can lead to parsing errors. Most of the time, the issue is a result of omitting a bracket, comma, or quote from your JSON file. AWS IoT Device Tester performs JSON validation and prints debugging information. It prints the line where the error occurred, the line number, and the column number of the syntax error. This information should be enough to help you fix the error, but if you still cannot locate the error, you can perform validation manually in your IDE, a text editor such as Atom or Sublime, or through an online tool like JSONLint.

Required Parameter Missing Error

Because new features are being added to AWS IoT Device Tester, changes to the configuration files might be introduced. Using an old configuration file might break your configuration. If this happens, the <test_case_id>.log file under /results/<uuid>/logs explicitly lists all missing parameters. AWS IoT Device Tester also validates your JSON configuration file schemas to ensure that the latest supported version has been used.

Could Not Start Test Error

You might encounter errors that point to failures during test start. There are several possible causes, so do the following:

  • Make sure that the pool name you included in your execution command actually exists. The pool name is referenced directly from your device.json file.

  • Make sure that the devices in your pool have correct configuration parameters.

Permission Denied Errors

AWS IoT Device Tester performs operations on various directories and files in a device under test. Some of these operations require root access. To automate these operations, AWS IoT Device Tester must be able to run commands with sudo without typing a password.

Follow these steps to allow sudo access without typing a password.

Note

user and username refer to the SSH user used by AWS IoT Device Tester to access the device under test.

  1. Use sudo usermod -aG sudo <ssh-username> to add your SSH user to the sudo group

  2. Sign out and then sign in for changes to take effect.

  3. Open /etc/sudoers file and then add the following line to the end of the file: <ssh-username> ALL=(ALL) NOPASSWD: ALL

    Note

    As a best practice, we recommend that you use sudo visudo when you edit /etc/sudoers.

SSH Connection Errors

When AWS IoT Device Tester cannot connect to a device under test, connection failures are logged in /results/<uuid>/logs/<test-case-id>.log. SSH failure messages appear at the top of this log file because connecting to a device under test is one of the first operations that AWS IoT Device Tester performs.

Most Windows setups use the PuTTy terminal application to connect to Linux hosts. This application requires that standard PEM private key files are converted into a proprietary Windows format called PPK. When AWS IoT Device Tester is configured in your device.json file, use PEM files only. If you use a PPK file, AWS IoT Device Tester cannot create an SSH connection with the AWS IoT Greengrass device and cannot run tests.

Command Not Found Errors While Testing OTA

You need an older version of the OpenSSL library (libssl1.0.0) to run OTA tests on AWS IoT Greengrass devices. Most current Linux distributions use libssl version 1.0.2 or later (v1.1.0). These versions are not compatible with OTA.

For example, on a Raspberry Pi, run the following commands to install the required version of libssl:

  1. wget http://ftp.us.debian.org/debian/pool/main/o/openssl/libssl1.0.0_1.0.2l-1~bpo8+1_armhf.deb

  2. sudo dpkg -i libssl1.0.0_1.0.2l-1~bpo8+1_armhf.deb

Logging

AWS IoT Device Tester logs are placed in a single location. From the root AWS IoT Device Tester directory, the files are:

  • ./results/<uuid>

  • GGQ_Report.xml

  • awsiotdevicetester_report.xml

  • logs/<test_case_id>.log

The <test_case_id>.log and GGQ_Report.xml are the most important logs to examine. Use the results.xml file to get specific error messages about the tests that failed. You can then use the <test_case_id>.log to investigate the problem.

Console Errors

When AWS IoT Device Tester is run, failures are reported to console with brief messages. For information about the error, look in <test_case_id>.log.

Log Errors

The <test_case_id>.log file is located in the /results/<uuid>/logs directory. Each test execution has a unique test ID that is used to create the <uuid> directory. Individual test group logs are under the <uuid> directory. Use the console to look up the test group that failed and then open the log file for that test case in the /results/<uuid>/logs directory.

The information in this file includes:

  • Full build and flash command output.

  • Test execution output.

  • Verbose AWS IoT Device Tester console output.

Addressing Test Timeout Issues

If timeout errors occur when running tests, you can specify a timeout multiplier that is applied to the default timeout value of each test case. If no timeout multiplier is provided, the default value is 1.0. A timeout multiplier must be greater than or equal to 1.0. To increase test case timeouts, use the --timeout-multiplier parameter of the run-suite command.

For example:

./devicetester_linux run-suite --suite-id GGQ_1 --pool-id DevicePool1 --timeout-multiplier 2.0

For more information, run run-suite --help.
