Local debug console

The local debug console component (aws.greengrass.LocalDebugConsole) provides a local dashboard that displays information about your AWS IoT Greengrass core devices and its components. You can use this dashboard to debug your core device and manage local components.

Important

We recommend that you use this component in only development environments, not production environments. This component provides access to information and operations that you typically won't need in a production environment. Follow the principle of least privilege by deploying this component to only core devices where you need it.

Versions

This component has the following versions:

  • 2.3.x

  • 2.2.x

  • 2.1.x

  • 2.0.x

Type

This component is a plugin component (aws.greengrass.plugin). The Greengrass nucleus runs this component in the same Java Virtual Machine (JVM) as the nucleus. The nucleus restarts when you change this component's version on the core device.

This component uses the same log file as the Greengrass nucleus. For more information, see Monitor AWS IoT Greengrass logs.

For more information, see Component types.

Operating system

This component can be installed on core devices that run the following operating systems:

  • Linux

  • Windows

Requirements

This component has the following requirements:

  • You use a user name and password to sign in to the dashboard. The username, which is debug, is provided for you. You must use the AWS IoT Greengrass CLI to create a temporary password that authenticates you with the dashboard on a core device. You must be able to use the AWS IoT Greengrass CLI to use the local debug console. For more information, see the Greengrass CLI requirements. For more information about how to generate the password and sign in, see Local debug console component usage.

  • The local debug console component is supported to run in a VPC.

Dependencies

When you deploy a component, AWS IoT Greengrass also deploys compatible versions of its dependencies. This means that you must meet the requirements for the component and all of its dependencies to successfully deploy the component. This section lists the dependencies for the released versions of this component and the semantic version constraints that define the component versions for each dependency. You can also view the dependencies for each version of the component in the AWS IoT Greengrass console. On the component details page, look for the Dependencies list.

2.4.1 – 2.4.2

The following table lists the dependencies for versions 2.4.1 to 2.4.2 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.10.0 <2.13.0 Hard
Greengrass CLI >=2.10.0 <2.13.0 Hard
2.4.0

The following table lists the dependencies for version 2.4.0 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.10.0 <2.12.0 Hard
Greengrass CLI >=2.10.0 <2.12.0 Hard
2.3.0 and 2.3.1

The following table lists the dependencies for version 2.3.0 and 2.3.1 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.10.0 <2.12.0 Hard
Greengrass CLI >=2.10.0 <2.12.0 Hard
2.2.9

The following table lists the dependencies for version 2.2.9 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.12.0 Hard
Greengrass CLI >=2.1.0 <2.12.0 Hard
2.2.8

The following table lists the dependencies for version 2.2.8 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.11.0 Hard
Greengrass CLI >=2.1.0 <2.11.0 Hard
2.2.7

The following table lists the dependencies for version 2.2.7 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.10.0 Hard
Greengrass CLI >=2.1.0 <2.10.0 Hard
2.2.6

The following table lists the dependencies for version 2.2.6 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.9.0 Hard
Greengrass CLI >=2.1.0 <2.9.0 Hard
2.2.5

The following table lists the dependencies for version 2.2.5 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.8.0 Hard
Greengrass CLI >=2.1.0 <2.8.0 Hard
2.2.4

The following table lists the dependencies for version 2.2.4 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.7.0 Hard
Greengrass CLI >=2.1.0 <2.7.0 Hard
2.2.3

The following table lists the dependencies for version 2.2.3 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.6.0 Hard
Greengrass CLI >=2.1.0 <2.6.0 Hard
2.2.2

The following table lists the dependencies for version 2.2.2 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.5.0 Hard
Greengrass CLI >=2.1.0 <2.5.0 Hard
2.2.1

The following table lists the dependencies for version 2.2.1 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.4.0 Hard
Greengrass CLI >=2.1.0 <2.4.0 Hard
2.2.0

The following table lists the dependencies for version 2.2.0 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.3.0 Hard
Greengrass CLI >=2.1.0 <2.3.0 Hard
2.1.0

The following table lists the dependencies for version 2.1.0 of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.1.0 <2.2.0 Hard
Greengrass CLI >=2.1.0 <2.2.0 Hard
2.0.x

The following table lists the dependencies for version 2.0.x of this component.

Dependency Compatible versions Dependency type
Greengrass nucleus >=2.0.3 <2.1.0 Soft
Greengrass CLI >=2.0.3 <2.1.0 Soft

For more information about component dependencies, see the component recipe reference.

Configuration

This component provides the following configuration parameters that you can customize when you deploy the component.

v2.1.x - v2.4.x
httpsEnabled

(Optional) You can enable HTTPS communication for the local debug console. If you enable HTTPS communication, the local debug console creates a self-signed certificate. Web browsers show security warnings for websites that use self-signed certificates, so you must manually verify the certificate. Then, you can bypass the warning. For more information, see Usage.

Default: true

port

(Optional) The port at which to provide the local debug console.

Default: 1441

websocketPort

(Optional) The websocket port to use for the local debug console.

Default: 1442

bindHostname

(Optional) The hostname to use for the local debug console.

If you run the AWS IoT Greengrass Core software in a Docker container, set this parameter to 0.0.0.0, so you can open the local debug console outside the Docker container.

Default: localhost

Example: Configuration merge update

The following example configuration specifies to open the local debug console on non-default ports and disable HTTPS.

{ "httpsEnabled": false, "port": "10441", "websocketPort": "10442" }
v2.0.x
port

(Optional) The port at which to provide the local debug console.

Default: 1441

websocketPort

(Optional) The websocket port to use for the local debug console.

Default: 1442

bindHostname

(Optional) The hostname to use for the local debug console.

If you run the AWS IoT Greengrass Core software in a Docker container, set this parameter to 0.0.0.0, so you can open the local debug console outside the Docker container.

Default: localhost

Example: Configuration merge update

The following example configuration specifies to open the local debug console on non-default ports.

{ "port": "10441", "websocketPort": "10442" }

Usage

To use the local debug console, create a session from the Greengrass CLI. When you create a session, the Greengrass CLI provides a user name and temporary password that you can use to sign in to the local debug console.

Follow these instructions to open the local debug console on your core device or on your development computer.

v2.1.x - v2.4.x

In versions 2.1.0 and later, the local debug console uses HTTPS by default. When HTTPS is enabled, the local debug console creates a self-signed certificate to secure the connection. Your web browser shows a security warning when you open the local debug console because of this self-signed certificate. When you create a session with the Greengrass CLI, the output includes the certificate's fingerprints, so you can verify that the certificate is legitimate and the connection is secure.

You can disable HTTPS. For more information, see Local debug console configuration.

To open the local debug console
  1. (Optional) To view the local debug console on your development computer, you can forward the console's port over SSH. However, you must first enable the AllowTcpForwarding option in your core device's SSH configuration file. This option is enabled by default. Run the following command on your development computer to view the dashboard at localhost:1441 on your development computer.

    ssh -L 1441:localhost:1441 -L 1442:localhost:1442 username@core-device-ip-address
    Note

    You can change the default ports from 1441 and 1442. For more information, see Local debug console configuration.

  2. Create a session to use the local debug console. When you create a session, you generate a password that you use to authenticate. The local debug console requires a password to increase security, because you can use this component to view important information and perform operations on the core device. The local debug console also creates a certificate to secure the connection if you enable HTTPS in the component configuration. HTTPS is enabled by default.

    Use the AWS IoT Greengrass CLI to create the session. This command generates a random 43-character password that expires after 8 hours. Replace /greengrass/v2 or C:\greengrass\v2 with the path to the AWS IoT Greengrass V2 root folder.

    Linux or UnixWindows
    Linux or Unix
    sudo /greengrass/v2/bin/greengrass-cli get-debug-password
    Windows
    C:\greengrass\v2\bin\greengrass-cli get-debug-password

    The command output looks like the following example if you have configured the local debug console to use HTTPS. You use the certificate fingerprints to verify that the connection is secure when you open the local debug console.

    Username: debug Password: bEDp3MOHdj8ou2w5de_sCBI2XAaguy3a8XxREXAMPLE Password expires at: 2021-04-01T17:01:43.921999931-07:00 The local debug console is configured to use TLS security. The certificate is self-signed so you will need to bypass your web browser's security warnings to open the console. Before you bypass the security warning, verify that the certificate fingerprint matches the following fingerprints. SHA-256: 15 0B 2C E2 54 8B 22 DE 08 46 54 8A B1 2B 25 DE FB 02 7D 01 4E 4A 56 67 96 DA A6 CC B1 D2 C4 1B SHA-1: BC 3E 16 04 D3 80 70 DA E0 47 25 F9 90 FA D6 02 80 3E B5 C1

    The debug view component creates a session that lasts for 8 hours. After that, you must generate a new password to view the local debug console again.

  3. Open and sign in to the dashboard. View the dashboard on your Greengrass core device, or on your development computer if you forward the port over SSH. Do one of the following:

    • If you enabled HTTPS in the local debug console, which is the default setting, do the following:

      1. Open https://localhost:1441 on your core device, or on your development computer if you forwarded the port over SSH.

        Your browser might show a security warning about an invalid security certificate.

      2. If your browser shows a security warning, verify the certificate is legitimate and bypass the security warning. Do the following:

        1. Find the SHA-256 or SHA-1 fingerprint for the certificate, and verify that it matches the SHA-256 or SHA-1 fingerprint that the get-debug-password command previously printed. Your browser might provide one or both fingerprints. Consult your browser's documentation to view the certificate and its fingerprints. In some browsers, the certificate fingerprint is called a thumbprint.

          Note

          If the certificate fingerprint doesn't match, go to Step 2 to create a new session. If the certificate fingerprint still doesn't match, your connection might be insecure.

        2. If the certificate fingerprint matches, bypass your browser's security warning to open the local debug console. Consult your browser's documentation to bypass the browser security warning.

      3. Sign in to the website using the user name and password that the get-debug-password command printed earlier.

        The local debug console opens.

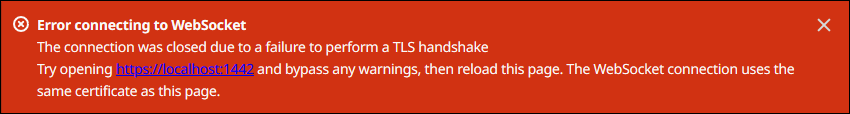

      4. If the local debug console shows an error that says it can't connect to the WebSocket due to a failed TLS handshake, you must bypass the self-signed security warning for the WebSocket URL.


                          The WebSocket TLS handshake error in the local debug
                            console.

        Do the following:

        1. Open https://localhost:1442 in the same browser where you opened the local debug console.

        2. Verify the certificate and bypass the security warning.

          Your browser might show an HTTP 404 page after you bypass the warning.

        3. Open https://localhost:1441 again.

          The local debug console shows information about the core device.

    • If you disabled HTTPS in the local debug console, do the following:

      1. Open http://localhost:1441 on your core device, or open it on your development computer if you forwarded the port over SSH.

      2. Sign in to the website using the user name and password that the get-debug-password command previously printed.

        The local debug console opens.

v2.0.x
To open the local debug console
  1. (Optional) To view the local debug console on your development computer, you can forward the console's port over SSH. However, you must first enable the AllowTcpForwarding option in your core device's SSH configuration file. This option is enabled by default. Run the following command on your development computer to view the dashboard at localhost:1441 on your development computer.

    ssh -L 1441:localhost:1441 -L 1442:localhost:1442 username@core-device-ip-address
    Note

    You can change the default ports from 1441 and 1442. For more information, see Local debug console configuration.

  2. Create a session to use the local debug console. When you create a session, you generate a password that you use to authenticate. The local debug console requires a password to increase security, because you can use this component to view important information and perform operations on the core device.

    Use the AWS IoT Greengrass CLI to create the session. This command generates a random 43-character password that expires after 8 hours. Replace /greengrass/v2 or C:\greengrass\v2 with the path to the AWS IoT Greengrass V2 root folder.

    Linux or UnixWindows
    Linux or Unix
    sudo /greengrass/v2/bin/greengrass-cli get-debug-password
    Windows
    C:\greengrass\v2\bin\greengrass-cli get-debug-password

    The command output looks like the following example.

    Username: debug Password: bEDp3MOHdj8ou2w5de_sCBI2XAaguy3a8XxREXAMPLE Password will expire at: 2021-04-01T17:01:43.921999931-07:00

    The debug view component creates a session lasts for 4 hours, and then you must generate a new password to view the local debug console again.

  3. Open http://localhost:1441 on your core device, or open it on your development computer if you forwarded the port over SSH.

  4. Sign in to the website using the user name and password that the get-debug-password command previously printed.

    The local debug console opens.

Local log file

This component uses the same log file as the Greengrass nucleus component.

Linux
/greengrass/v2/logs/greengrass.log
Windows
C:\greengrass\v2\logs\greengrass.log
To view this component's logs
  • Run the following command on the core device to view this component's log file in real time. Replace /greengrass/v2 or C:\greengrass\v2 with the path to the AWS IoT Greengrass root folder.

    Linux
    sudo tail -f /greengrass/v2/logs/greengrass.log
    Windows (PowerShell)
    Get-Content C:\greengrass\v2\logs\greengrass.log -Tail 10 -Wait

Changelog

The following table describes the changes in each version of the component.

Version

Changes

2.4.2

Bug fixes and improvements
  • General bug fixes and improvements.

2.4.1

Version updated for Greengrass nucleus version 2.12.0 release.

2.4.0

New features
  • Adds stream manager debugging console.

2.3.1

Version updated for Greengrass nucleus version 2.11.0 release.

2.3.0

Version updated for Greengrass nucleus version 2.10.0 release.
New features
  • Includes PubSub and AWS IoT Core MQTT debug client.

2.2.7

Version updated for Greengrass nucleus version 2.9.0 release.

2.2.6

Version updated for Greengrass nucleus version 2.8.0 release.

2.2.5

Version updated for Greengrass nucleus version 2.7.0 release.

2.2.4

Version updated for Greengrass nucleus version 2.6.0 release.

2.2.3

Bug fixes and improvements
  • Fixes an issue that prevented startup when the component couldn't decrypt the keystore that holds the SSL private key.

  • Version updated for Greengrass nucleus version 2.5.0 release.

2.2.2

Version updated for Greengrass nucleus version 2.4.0 release.

2.2.1

Version updated for Greengrass nucleus version 2.3.0 release.

2.2.0

Version updated for Greengrass nucleus version 2.2.0 release.

2.1.0

New features
  • Uses HTTPS to secure your connection to the local debug console. HTTPS is enabled by default.

Bug fixes and improvements
  • You can dismiss flashbar messages in the configuration editor.

2.0.3

Initial version.
