Implement the AWS.SendCommand operation

The AWS.SendCommand operation allows managed integrations for AWS IoT Device Management to send commands initiated by the end user via the AWS customer to your resource server. Your resource server may support multiple types of devices, where each type has its own response model. Command execution is an asynchronous process where managed integrations for AWS IoT Device Management sends a request for command execution with a `traceId`, which your connector will include in a command response sent back to managed integrations via the `SendConnectorEvent` API. managed integrations for AWS IoT Device Management expects the resource server to return a response acknowledging that command was received, but not necessarily indicating that command was executed.

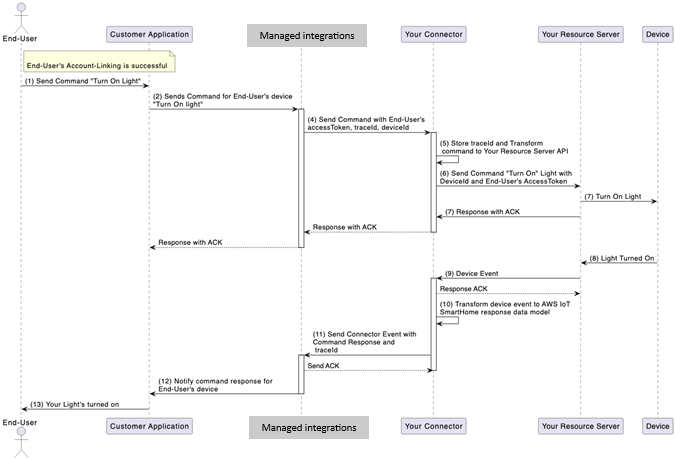

The following diagram illustrates the command execution flow with an example where the end user tries to turn on the lights of their house:

Device command execution workflow
Device command execution workflow

  1. An end user sends a command to turn on a light using the AWS customer's application.

  2. The customer relays the command information to managed integrations for AWS IoT Device Management with the end user's device information.

  3. Managed integrations generates "traceId" that your connector will use while sending command responses back to service.

  4. managed integrations for AWS IoT Device Management sends the command request to your connector, using the AWS.SendCommand operation interface.

    1. The payload defined by this interface consists of the device identifier, device commands formulated as Matter endpoints/clusters/commands, the end user's access token, and other required parameters.

  5. Your connector stores the traceId to be included in the command response.

    1. Your connector translates Managed integrations command request into your resource server's appropriate format.

  6. Your connector gets UserId from the provided end user's access token and associates it with the command.

    1. The UserId may be either retrieved from you resource server using a separate call or extracted from the access token in case of JWT and similar tokens.

    2. Implementation depends on your resource server and access token details.

  7. Your connector calls the resource server to "Turn On" end user's light.

  8. The resource server interacts with the device.

    1. The connector relays to managed integrations for AWS IoT Device Management that the resource server has delivered the command, responding with an ACK as the initial, synchronous command response.

    2. Managed integrations then relays it back to customer application.

  9. After the device turns on the light, that device event is captured by your resource server.

  10. Your resource server sends the device event to connector.

  11. Your connector transforms the device event generated by resource server into managed integrations DEVICE_COMMAND_RESPONSE event operation type.

  12. Your connector calls the SendConnectorEvent API with operation as "DEVICE_COMMAND_RESPONSE".

    1. It attaches the traceId provided by managed integrations for AWS IoT Device Management in the initial request.

  13. Managed integrations notifies the customer about end user's device state change.

  14. Customer notifies the end user that the device's light has turned on.

    Note

    Your resource server configuration determines the logic for handling failed device command request and response messages. This includes message retry attempts using the same referenceId for the command.

C2C connector requirements for device command execution

The following list outlines the requirements for your C2C connector to facilitate a successful device command execution.

  • The C2C connector Lambda can process AWS.SendCommand operation request messages from managed integrations for AWS IoT Device Management.

  • Your C2C connector must keep track of commands sent to your resource server and map it with appropriate `traceId`.

  • You can call managed integrations for AWS IoT Device Management service API's via SigV4 using AWS credentials of AWS account used for registering the C2C connector.

  1. Managed integrations sends command to connector (Refer to step 4 in prior diagram).

    1. /Send-Command
{
     "header": {
          "auth": {
              "token": "ashriu32yr97feqy7afsaf",
              "type": "OAuth2.0"
          }
     },
     "payload": {
          "operationName": "AWS.SendCommand",
          "operationVersion": "1.0",
          "connectorId": "Your-Connector-Id",
          "connectorDeviceId": "Your_Device_Id",
          "traceId": "traceId-3241u78123419",
          "endpoints": [{
              "id": "1",
              "clusters": [{
                  "id": "0x0202",
                  "commands": [{
                      "0xff01":
                          {
                              "0x0000": "3”
                  		}
                  }]
              }]
          }]
     }
  }

  2. C2C connector ACK command (Refer to step 7 in prior diagram where connector sends ACK to the managed integrations for AWS IoT Device Management Service).

    1. {
     "header":{
          "responseCode":200
     },
     "payload":{
          "responseMessage": "Successfully received send-command request for connector 'Your-Connector-Id' and connector-device-id 'Your_Device_Id'"
     }
  }

  3. Connector sends Device Command Response event (Refer to step 11 in prior diagram).

    1. AWS-API: /SendConnectorEvent
URI: POST /connector-event/{Your-Connector-Id}

{
   "UserId": "End-User-Id",
   "Operation": "DEVICE_COMMAND_RESPONSE",
   "OperationVersion": "1.0",
   "StatusCode": 200,
   "Message": “Example message”,
   "ConnectorDeviceId": "Your_Device_Id",
   "TraceId": "traceId-3241u78123419",
   "MatterEndpoint": {
        "id": "1",
        "clusters": [{
            "id": "0x0202",
            "attributes": [
                {
                    "0x0000": “3”
                }
            ],
            "commands": [
                "0xff01":
                {
                    "0x0000": "3”
                }
 		]
        }]
    }
}
    Note

    Device state changes as a result of a command execution will not be reflected in managed integrations for AWS IoT Device Management until the corresponding DEVICE_COMMAND_RESPONSE event has been received through the SendConnectorEvent API. This means that until managed integrations receives the event from prior step 3, regardless of whether or not your connector invocation response denotes success, the device state will not be updated.

Interpreting matter 'endpoints' included in AWS.SendCommand request

Managed integrations will use the device capabilities reported during device discovery to determine what commands a device can accept. Every device capability is modeled through AWS implementations of the Matter Data Model; thus, all incoming commands will be derived from the `commands` field within a given cluster. It is your connector’s responsibility to parse the `endpoints` field, determining the corresponding Matter command, and translating it such that correct command reaches the device. Typically, this means translating the Matter data model into the related API requests.

After the command has been executed, your connector then determines which `attributes` defined by the AWS implementations of the Matter Data Model have changed as a result. These changes are then reported to managed integrations for AWS IoT Device Management via API DEVICE_COMMAND_RESPONSE events sent with the SendConnectorEvent API.

Consider the `endpoints` field included in the following example AWS.SendCommand payload:

          "endpoints": [{
              "id": "1",
              "clusters": [{
                  "id": "0x0202",
                  "commands": [{
                      "0xff01":
                          {
                              "0x0000": "3”
                  		}
                  }]
              }]
          }]
From this object, the connector can determine the following:

  1. Set the endpoint and cluster information:

    1. Set the endpoint id to "1".

      Note

      If a device defines multiple endpoints such that a single cluster (such as On/Off) can control multiple capabilities (i.e. turn a light on/off as well as turning a strobe on/off), this id is used to route the command to the correct capability.

    2. Set the cluster id to "0x0202" (Fan Control cluster).

  2. Set the command information:

    1. Set the command identifier to "0xff01" (Update State command defined by AWS).

    2. Update the included attribute identifiers with the values provided in the request.

  3. Update the attribute:

    1. Set the attribute identifier to "0x0000" (FanMode attribute of the Fan Control Cluster).

    2. Set the attribute value to "3" (High fan speed).

Managed integrations has defined two “custom” command types that are not strictly defined by AWS implementations of the Matter Data Model: The ReadState and UpdateState commands. To get and set Matter defined cluster attributes, managed integrations will send your connector an AWS.SendCommand request with command IDs pertaining to UpdateState (id: 0xff01) or ReadState (id: 0xff02), with corresponding parameters of attributes that must be either updated or read. These commands can be invoked for ANY device type for attributes that are set as mutable (updatable) or retrievable (readable) from the corresponding AWS implementation of the Matter Data Model.
