Send device events with the SendConnectorEvent API

Device initiated events overview

While the SendConnectorEvent API is used to asynchronously respond to AWS.SendCommand and AWS.DiscoverDevices operations, it is also used to notify managed integrations of any device-initiated events. Device initiated events can be defined as any event generated by a device without a user initiated command. These device events may include, but are not limited to, device state changes, motion detection, battery levels, and more. You can send these events back to managed integrations using the SendConnectorEvent API with operation DEVICE_EVENT.

The following section uses a smart camera installed at a home as an example to further explain the working flow of these events:

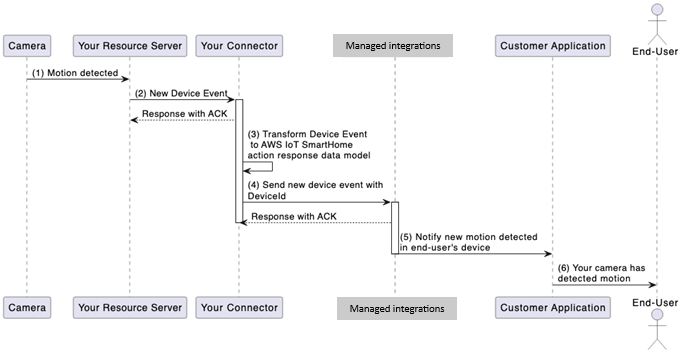

Device event workflow

1. Your camera detects motion for which it generates an event that is sent to your resource server.

2. Your resource server processes the event and sends it to your C2C connector.

3. Your connector translates this event to the managed integrations for AWS IoT Device Management DEVICE_EVENT interface.

4. Your C2C connector sends this device event to managed integrations using the SendConnectorEvent API with Operation set to "DEVICE_EVENT".

5. Managed integrations identifies the relevant customer, and relays this event back to the customer.

6. The customer receives this event and displays it to user via user identifier.

For more information on the SendConnectorEvent API operation, see SendConnectorEvent in the managed integrations for AWS IoT Device Management API Reference Guide.

Device initiated events requirements

The following are some requirements for device-initiated events.

• Your C2C connector resource should be able to receive asynchronous device events from your resource server

• Your C2C connector resource should be able to call managed integrations for AWS IoT Device Management service API's via SigV4 using AWS credentials of the AWS account used for registering the C2C connector.

The following example demonstrates a connector sending a device-originated event via the SendConnectorEvent API:

AWS-API: /SendConnectorEvent
URI: POST /connector-event/{Your-Connector-Id}

{
   "UserId": "Your-End-User-ID",
   "Operation": "DEVICE_EVENT",
   "OperationVersion": "1.0",
   "StatusCode": 200,
   "Message": None,
   "ConnectorDeviceId": "Your_Device_Id",
   "MatterEndpoint": {
        "id": "1",
        "clusters": [{
            "id": "0x0202",
            "attributes": [
                {
                    "0x0000": "3"
                }
            ]
        }]
    }]
}

From the following example, we see the following:

• This is coming from the device endpoint with ID equal to 1.

• The device capability this event relates to has a cluster ID of 0x0202, pertaining to the Fan Control matter cluster.

• The attribute that has changed has the ID of 0x000, pertaining to the Fan Mode Enum within the cluster. It has updated to value 3, pertaining to the value of High.

• Since connectorId is a parameter returned by the cloud service on creation, Connectors must query using GetCloudConnector and filter by lambdaARN. The lambda's own ARN is queried using Lambda.get_function_url_config API. This allows the CloudConnectorId to be dynamically accessed in the lambda, and not statically configured as earlier.
