CORA Dashboard

Introduction

The CORA (Cost Optimization Recommended Actions) Dashboard provides FinOps professionals, executives, and engineering leads with a comprehensive visualization of data from the AWS Cost Optimization Hub.

AWS Cost Optimization Hub offers customers a range of Usage Optimization and Rate Optimization aggregated from AWS Compute Optimizer and AWS Billing Console services

Usage Optimizations include:

• Rightsizing suggestions

• Idle resource detection

• Migration and Upgrade recommendations

Rate Optimization consist of:

• Savings Plans Recommendations

• Reserved Instances recommendations

This dashboard leverages the AWS Data Export of Cost Optimization Recommendations and enables additional capabilities:

• Visualization of saving opportunities across multiple AWS Organizations (Payer Accounts) in one place.

• Tracking of savings opportunities over time including daily updates and historical view.

• Enablement of integration with customer business unit information to connect savings with workload owners (business units, teams, etc.)

Using the RLS (Row-Level Security) mechanism, this dashboard can be shared within your organization, allowing owners to track and take actions locally to maximize cost savings.

Demo Dashboard

Get more familiar with Dashboard using the live, interactive demo dashboard following this link

Prerequisites

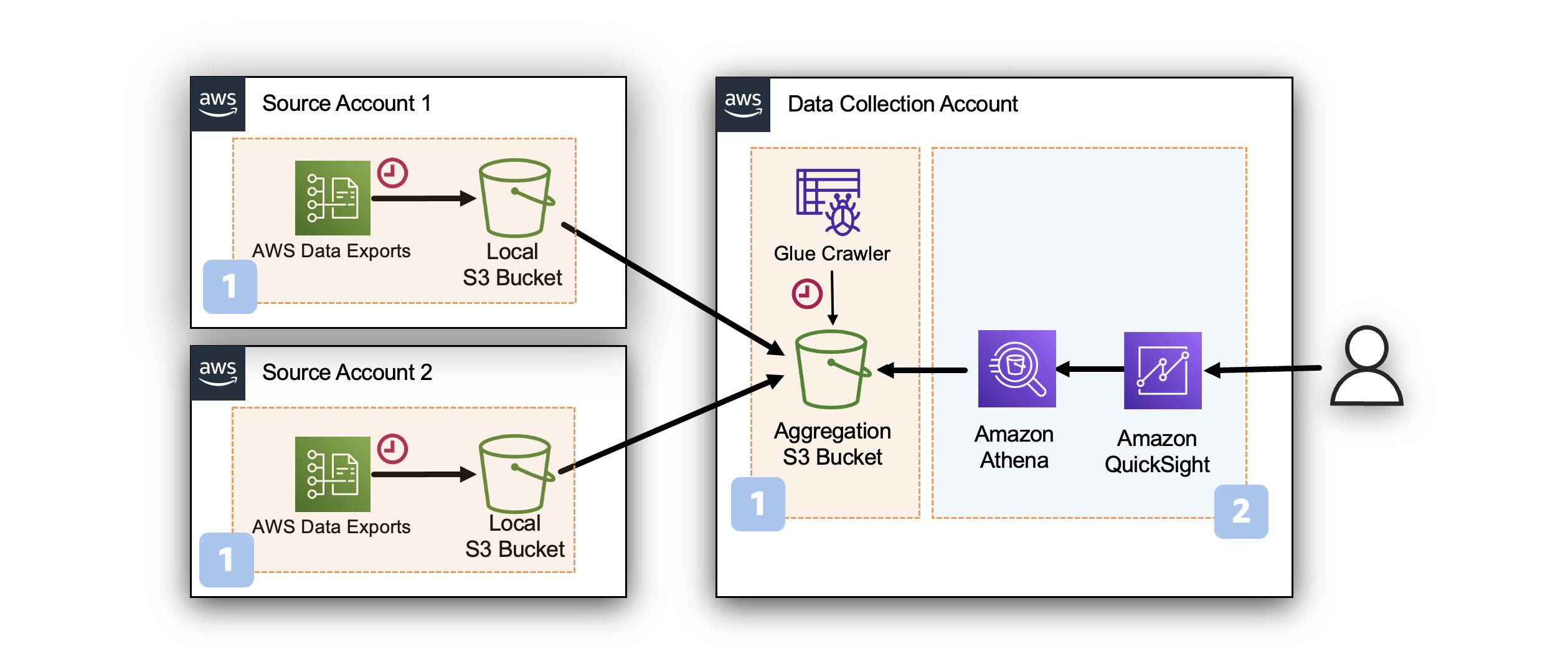

Before installing CORA Dashboard you need to enable COH Data Export and consolidate it from your Management (Payer) Accounts in Data Collection Account.

1. Create COH Data Export following the steps in Data Export page and return to this page once completed.

2. Enable AWS Cost Optimization Hub.

Deployment

CloudFormation

Note

Prerequisite: To install this dashboard using CloudFormation, you need to install Foundational Dashboards CFN with version v4.0.0 or above as described here

1. Log in to to your Data Collection Account.

2. Click the Launch Stack button below to open the pre-populated stack template in your CloudFormation.



1. You can change Stack name for your template if you wish.

2. Leave Parameters values as it is.

3. Review the configuration and click Create stack.

4. You will see the stack will start in CREATE_IN_PROGRESS. Once complete, the stack will show CREATE_COMPLETE

5. You can check the stack output for dashboard URLs.

   Note

   Troubleshooting: If you see error "No export named cid-CidExecArn found" during stack deployment, make sure you have completed prerequisite steps.

Command Line

Alternative method to install dashboards is the cid-cmd tool.

1. Log in to to your Data Collection Account.

2. Open up a command-line interface with permissions to run API requests in your AWS account. We recommend to use CloudShell.

3. In your command-line interface run the following command to download and install the CID CLI tool:

   pip3 install --upgrade cid-cmd

4. In your command-line interface run the following command to deploy the dashboard:

   cid-cmd deploy --dashboard-id cora

   Please follow the instructions from the deployment wizard. More info about command line options are in the Readme or cid-cmd --help.

Update

Please note that dashboards are not updated with update of CloudFormation Stack. When new version of the dashboard template is released, you can update your dashboard by running the following command in your command-line interface:

cid-cmd update --dashboard-id cora

Usage Guide

The dashboard has several tabs and we recommend starting with the Summary. Here you can see the biggest recommendation categories, the potential savings they represent along with effort required for each resource and the number of resources.

We recommend first estimate your Rightsizing, Upgrade, Migration and Stop-Idle opportunities. Typically it takes time to implement these recommendations especially in the scale. We recommend you proceed with commitment (reserved instances and savings plan) for the volume that take into account your rightsizing plan.

Using Cost Allocation Tags

The dashboard also utilizes Cost Allocation Tags.

• Use the FinopsException tag to exclude workloads from the view if they are not eligible for cost optimization recommendations.

• Configure Name as Cost Allocation tag to have this visibility on the dashboard by default.

• Use TagName to specify a tag that you are interested in for GroupBy.

Difference with UI

The AWS Cost Optimization Hub Console UI displays opportunities in a Donut chart with a special deduplication. Commitment savings are shown accounting for the potential impact of implementing rightsizing recommendations. However, the Data Export of Cost Optimization do not have data for this level of adjustment.

The dashboard deduplicates recommendations by resource ID. Please note that dashboard shows recommendations for Rate Optimization and Usage Optimization deduplicated separately. But Rate Optimization are NOT taking into account the results of Usage Optimization (Rightsizing, Stop, Upgrade and such).

You can see discrepancies between the Donut Chart in the AWS Cost Optimization Hub Console and the data this service exported for analysis. The Console shows Rate Optimization savings adjusted to the results of Usage Optimization and thus can be more realistic. Please note that when using Dashboard you need to estimate the results of Usage Optimization and readjust the forecast of Rate Optimization accordingly.

Authors

• Iakov Gan, Senior Solution Architect

Feedback & Support

Follow Feedback & Support guide
