AWS End User Computing (EUC) Dashboard

Introduction

The End User Computing (EUC) Dashboard provides a unified view of your AWS EUC environment through an intuitive QuickSight interface. Key capabilities include:

  • Operational visibility into Amazon WorkSpaces and Amazon AppStream 2.0 usage patterns

  • Cost optimization insights and spending analytics

  • Performance monitoring with CloudWatch metrics integration

  • WorkSpaces Logon statistics

  • Resource utilization tracking and trending

  • Recommendations for environment optimization

This solution helps teams make data-driven decisions to optimize costs, improve operational efficiency, and enhance the end-user experience across their EUC estate.

EUC Dashboard Screenshot

The dashboard has six tabs:

  • Summary:

    • Break down of EUC services costs for last 3 months.

    • Top Spending accounts for each service.

    • High level summary of your EUC estate.

Insights
  • Amazon WorkSpaces Insights:

    • In-dept break down of WorkSpaces costs for entire environment, additional insights not available in the Cost Usage Report including:

      • Protocol

      • Operating Systems

    • Daily Cost breakdown.

    • WorkSpaces Monthly usage.

    • WorkSpaces Cost Breakdown.

    • Workspaces Software bundle information.

Insights
Insights
  • Amazon WorkSpaces Usage:

    • WorkSpaces User connections.

    • Top10 Daily usage.

    • Directory cost breakdown.

    • WorkSpaces daily usage and Hours used.

    • WorkSpaces Logon information

      • Last Logon

      • Low Usage

      • AlwaysOn WorkSpaces Logon information

      • Never Logged on

  • Amazon WorkSpaces Metrics:

    • This tab is additional will breaks down Cloudwatch CPU/Memory utilization of WorkSpaces.

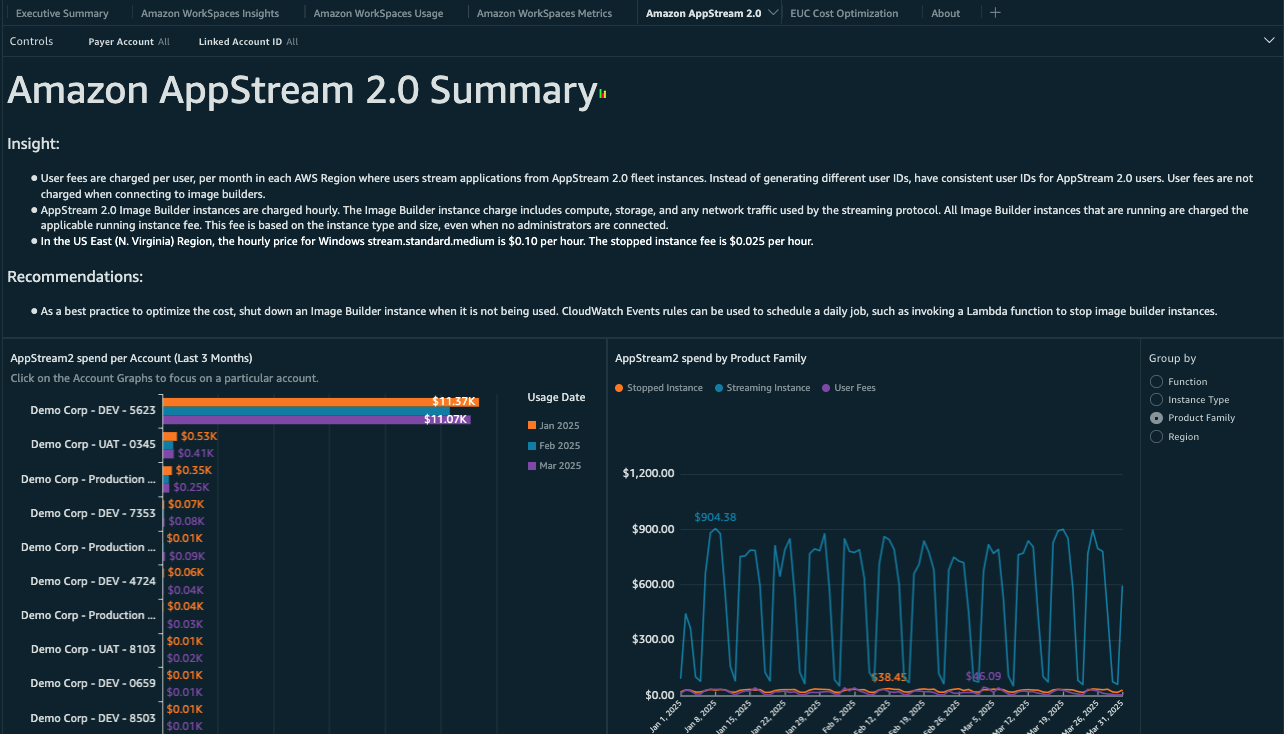

AppStream 2.0 Highlights
  • Amazon AppStream 2.0

    • Detail overview of AppStream 2.0 environment.

  • EUC Cost Optimization

    • Cost saving opportunities in your EUC environment.

Architecture

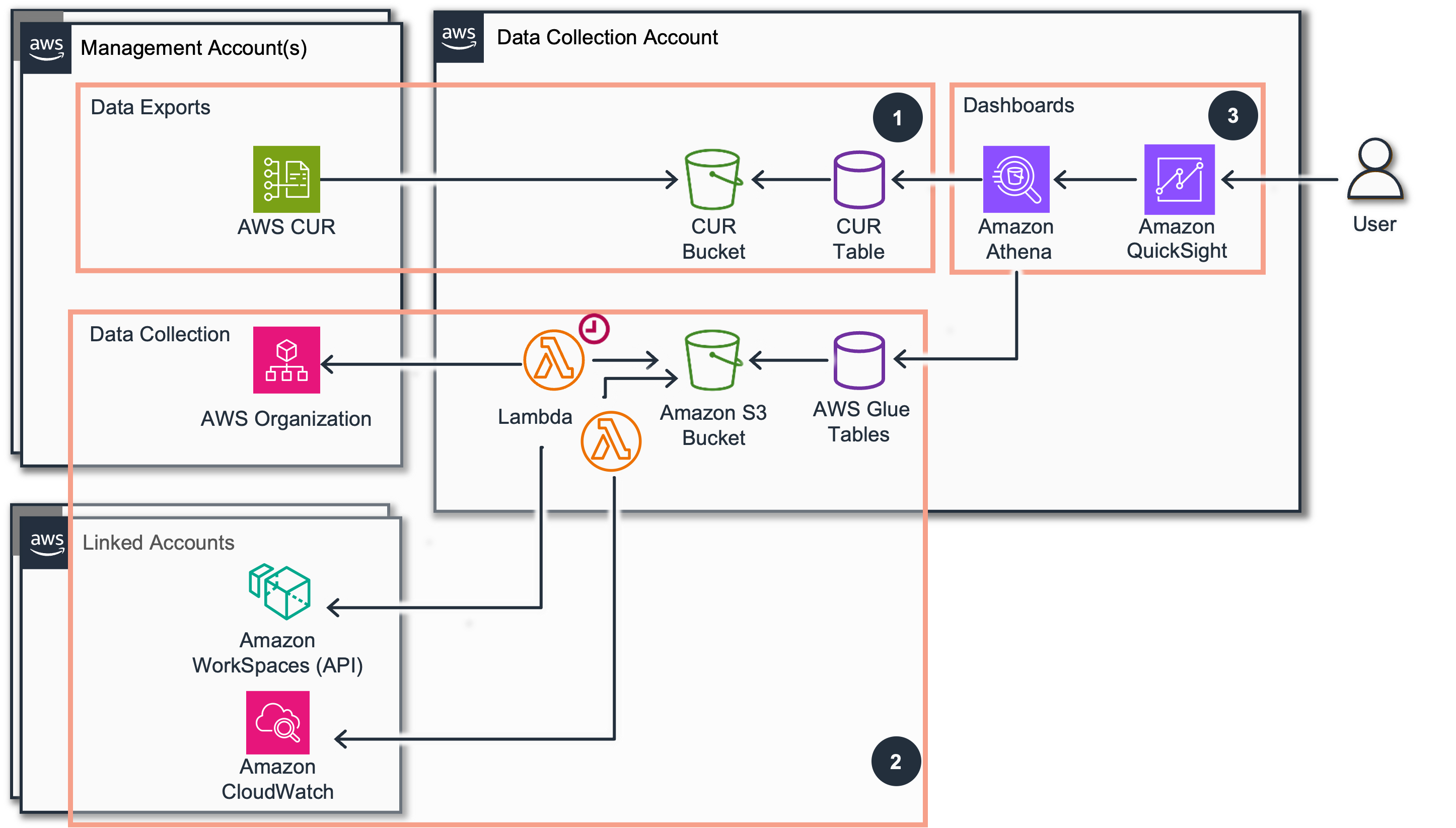

Image of Amazon EUC Dashboard architecture
  1. The EUC Dashboard is depended on AWS Data Exports service delivers Cost & Usage Report (CUR2) daily to an Amazon S3 Bucket in the Management Account.

  2. The EUC Dashboard also requires Data Collection lab for the Amazon Lambda to capture WorkSpaces data and CloudWatch metrics and copies Export data to a dedicated Data Collection Account automatically. EUC Dashboard can be configured during setup to use AWS Organizations (all linked accounts) or specific linked accounts to capture this data.

Prerequisites

  1. Deploy one or more of the foundational dashboards: CUDOS, Cost Intelligence, or KPI Dashboard. This will enable CUR and will enable required QuickSight and Athena resources needed for this dashboard.

  2. Deploy or Update the Data Collection Lab and make sure the following modules are enabled. Version 3.2.0 or higher required.

    • Include Inventory Collector Module (Mandatory) - This enables the collection of WorkSpaces environmental information using the WorkSpaces API.

    • Include WorkSpaces Utilization Data Collection Module (Optional) - This enables the collection of Cloudwatch metrics for WorkSpaces. Please see Visualizing WorkSpaces Cloudwatch Metric section below to configure this.

    • EUC Module Settings (Optional) - You can choose to scan all linked accounts in an organization or specify accounts that have WorkSpaces deployed, provide a comma-separated list of account IDS in the field to only scan these accounts. Leaving blank will scan all accounts.

Deployment

CloudFormation
Note

Prerequisite: To install this dashboard using CloudFormation, you need to install Foundational Dashboards CFN with version v4.0.0 or above as described here

  1. Log in to to your Data Collection Account.

  2. Click the Launch Stack button below to open the pre-populated stack template in your CloudFormation.

    Launch Stack button

  3. You can change Stack name for your template if you wish.

  4. Leave Parameters values as it is.

  5. Review the configuration and click Create stack.

  6. You will see the stack will start in CREATE_IN_PROGRESS. Once complete, the stack will show CREATE_COMPLETE

  7. You can check the stack output for dashboard URLs.

    Troubleshooting: If you see error "No export named cid-CidExecArn found" during stack deployment, make sure you have completed prerequisite steps.

Command Line

Alternative method to install dashboards is the cid-cmd tool.

  1. Log in to to your Data Collection Account.

  2. Open up a command-line interface with permissions to run API requests in your AWS account. We recommend to use CloudShell.

  3. In your command-line interface run the following command to download and install the CID CLI tool:

    pip3 install --upgrade cid-cmd
  4. In your command-line interface run the following command to deploy the dashboard:

    cid-cmd deploy --dashboard-id euc-dashboard

    Please follow the instructions from the deployment wizard. More info about command line options are in the Readme or cid-cmd --help.

  5. Select the EUC Dashboard and hit enter

  6. Follow any instructions in the command line tool

  7. EUC Dashboard will deploy with a link

Visualizing WorkSpaces Cloudwatch Metric (Optional)

In the EUC Dashboard, to view the WorkSpaces Cloudwatch metrics in the WorkSpaces Metrics tab, follow these steps:

  • During Deployment, make sure you selected yes for the Include WorkSpaces Utilization Data Collection Module parameter.

  • Go to the Amazon Athena Query Editor.

  • Select the database that has the views for CID. By default it can be CUR 1 cid_cur cur or CID 2 cid_data_export cur2 database.

  • Run the following query to update eucdashboard-metrics view in Amazon Athena, replacing the cur table name based on version of cur running.

CREATE OR REPLACE VIEW "euc_metrics_view" AS WITH workspace_metrics AS ( SELECT m."WorkspaceId" , m."UserName" , CAST(parse_datetime(m.timestamp, 'yyyy-MM-dd HH:mm:ss') AS timestamp) cw_timestamp , m."State" , m."BundleId" , m."DirectoryId" , m."ComputerName" , m."RunningMode" , m."RootVolumeSizeGib" , m."UserVolumeSizeGib" , m."accountid" , m."region" , m."CPUUsage" , m."MemoryUsage" , m."InSessionLatency" , m."UserVolumeDiskUsage" , m."RootVolumeDiskUsage" , m."UpTime" , CAST(parse_datetime(w.lastconnected, 'MM/dd/yy HH:mm:ss') AS timestamp) lastconnected FROM ("optimization_data"."workspaces_metrics_data" m LEFT JOIN "optimization_data"."inventory_workspaces_data" w ON (m."WorkspaceId" = w."WorkspaceId")) ) SELECT wi."WorkspaceId" , wi."UserName" , wi.cw_timestamp , wi."State" , wi."BundleId" , wi."DirectoryId" , wi."ComputerName" , wi."RunningMode" , wi."RootVolumeSizeGib" , wi."UserVolumeSizeGib" , wi."accountid" , wi."region" , wi."CPUUsage" , wi."MemoryUsage" , wi."InSessionLatency" , wi."UserVolumeDiskUsage" , wi."RootVolumeDiskUsage" , wi."UpTime" , wi.lastconnected , split_part(billing_period, '-', 1) year , split_part(billing_period, '-', 2) month , bill_billing_period_start_date billing_period , date_trunc('day', CAST(line_item_usage_start_date AS timestamp)) usage_date , bill_payer_account_id payer_account_id , line_item_usage_account_id linked_account_id , line_item_line_item_type charge_type , line_item_product_code , product['product_name'] product_product_name , product['product_family'] product_product_family , line_item_usage_type , line_item_operation , line_item_line_item_description , product_instance_type , product['operating_system'] product_operating_system , product['group'] product_group , product['region_code'] product_region_code , product['bundle_description'] product_bundle_description , product['bundle_group'] product_bundle_group , product_instance_family , product['resource_type'] product_resource_type , pricing_unit , split_part(line_item_resource_id, '/', 2) resource_id , split_part(line_item_resource_id, ':', 6) resource_type , split_part(line_item_resource_id, 'directory/', 2) resource_directory_id , CAST(line_item_unblended_cost AS DECIMAL(18, 6)) line_item_unblended_cost , CAST(line_item_usage_amount AS DECIMAL(18, 6)) line_item_usage_amount , CAST(pricing_public_on_demand_cost AS DECIMAL(18, 6)) pricing_public_on_demand_cost , pricing_term , product['storage'] product_storage , product['running_mode'] product_running_mode , product['license'] product_license , product['group_description'] product_group_description , product['software_included'] product_software_included , line_item_resource_id , sum((CASE WHEN ("line_item_line_item_type" = 'Usage') THEN "line_item_usage_amount" ELSE 0 END)) "usage_quantity" , sum("line_item_unblended_cost") "unblended_cost" , sum((CASE WHEN ("line_item_line_item_type" = 'Usage') THEN "line_item_unblended_cost" ELSE "line_item_unblended_cost" END)) "amortized_cost" FROM (<CUR2TABLE> cur2 LEFT JOIN workspace_metrics wi ON ((split_part(cur2.line_item_resource_id, '/', 2) = wi.workspaceid) AND (cur2.line_item_usage_account_id = wi.accountid))) WHERE ((("bill_billing_period_start_date" >= ("date_trunc"('month', current_timestamp) - INTERVAL '7' MONTH)) AND (CAST("concat"("billing_period", '-01') AS date) >= ("date_trunc"('month', current_date) - INTERVAL '7' MONTH)) AND (line_item_product_code = 'AmazonWorkSpaces')) OR (line_item_product_code = 'AmazonAppStream') OR (line_item_product_code = 'AWSDirectoryService')) GROUP BY 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54

Update

Please note that dashboards are not updated with update of CloudFormation Stack. When new version of the dashboard template is released, you can update your dashboard by running the following command in your command-line interface:

cid-cmd update --dashboard-id euc-dashboard

Authors

  • Christian O’Donoghue, Senior Technical Account Manager

Contributors

  • Daniel Matlock, Technical Account Manager

  • James Gaskell, Ex-Amazonian

  • Yuriy Prykhodko, AWS Principal Technical Account Manager

  • Iakov Gan, Senior Solution Architect

  • Brian Sheppard, AWS Principal Technical Account Manager

  • Natassa Eleftheriou, Senior Technical Account Manager
