Example: Parsing Web Logs (W3C_LOG_PARSE Function)

This example uses the W3C_LOG_PARSE function to transform a string in Amazon Kinesis Data Analytics. You can use W3C_LOG_PARSE to format Apache logs quickly. For more information, see W3C_LOG_PARSE in the Amazon Kinesis Data Analytics SQL Reference.

In this example, you write log records to an Amazon Kinesis data stream. Example logs are shown following:

{"Log":"192.168.254.30 - John [24/May/2004:22:01:02 -0700] "GET /icons/apache_pba.gif HTTP/1.1" 304 0"} {"Log":"192.168.254.30 - John [24/May/2004:22:01:03 -0700] "GET /icons/apache_pbb.gif HTTP/1.1" 304 0"} {"Log":"192.168.254.30 - John [24/May/2004:22:01:04 -0700] "GET /icons/apache_pbc.gif HTTP/1.1" 304 0"} ...

You then create an Amazon Kinesis data analytics application on the console, with the Kinesis data stream as the streaming source. The discovery process reads sample records on the streaming source and infers an in-application schema with one column (log), as shown following:

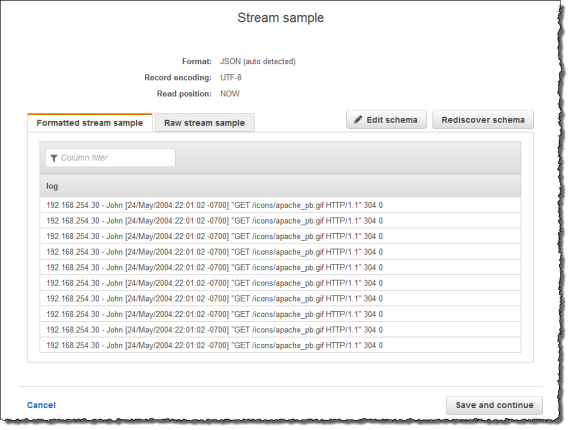

                Console screenshot showing formatted stream sample tab with the
                    in-application schema containing the log column.

Then, you use the application code with the W3C_LOG_PARSE function to parse the log, and create another in-application stream with various log fields in separate columns, as shown following:

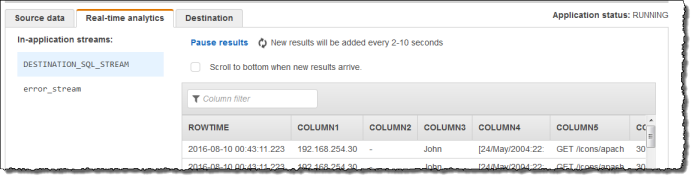

                Console screenshot showing real-time analytics tab with in-application
                    stream.

Step 1: Create a Kinesis Data Stream

Create an Amazon Kinesis data stream, and populate the log records as follows:

  1. Sign in to the AWS Management Console and open the Kinesis console at https://console.aws.amazon.com/kinesis.

  2. Choose Data Streams in the navigation pane.

  3. Choose Create Kinesis stream, and create a stream with one shard. For more information, see Create a Stream in the Amazon Kinesis Data Streams Developer Guide.

  4. Run the following Python code to populate the sample log records. This simple code continuously writes the same log record to the stream.

    import json import boto3 import random kinesis = boto3.client('kinesis') def getHighHeartRate(): data = {} data['log'] = '192.168.254.30 - John [24/May/2004:22:01:02 -0700] "GET /icons/apache_pb.gif HTTP/1.1" 304 0' return data while True: data = json.dumps(getHighHeartRate()) print(data) kinesis.put_record( StreamName="teststreamforkinesisanalyticsapps", Data=data, PartitionKey="partitionkey")

Step 2: Create the Kinesis Data Analytics Application

Create an Amazon Kinesis data analytics application as follows:

  1. Open the Kinesis Data Analytics console at https://console.aws.amazon.com/kinesisanalytics.

  2. Choose Create application, type an application name, and choose Create application.

  3. On the application details page, choose Connect streaming data.

  4. On the Connect to source page, do the following:

    1. Choose the stream that you created in the preceding section.

    2. Choose the option to create an IAM role.

    3. Choose Discover schema. Wait for the console to show the inferred schema and samples records used to infer the schema for the in-application stream created. The inferred schema has only one column.

    4. Choose Save and continue.

  5. On the application details page, choose Go to SQL editor. To start the application, choose Yes, start application in the dialog box that appears.

  6. In the SQL editor, write the application code, and verify the results as follows:

    1. Copy the following application code and paste it into the editor.

      CREATE OR REPLACE STREAM "DESTINATION_SQL_STREAM" ( column1 VARCHAR(16), column2 VARCHAR(16), column3 VARCHAR(16), column4 VARCHAR(16), column5 VARCHAR(16), column6 VARCHAR(16), column7 VARCHAR(16)); CREATE OR REPLACE PUMP "myPUMP" AS INSERT INTO "DESTINATION_SQL_STREAM" SELECT STREAM l.r.COLUMN1, l.r.COLUMN2, l.r.COLUMN3, l.r.COLUMN4, l.r.COLUMN5, l.r.COLUMN6, l.r.COLUMN7 FROM (SELECT STREAM W3C_LOG_PARSE("log", 'COMMON') FROM "SOURCE_SQL_STREAM_001") AS l(r);
    2. Choose Save and run SQL. On the Real-time analytics tab, you can see all the in-application streams that the application created and verify the data.
