Develop Hyperledger Fabric Chaincode Using Java on Amazon Managed Blockchain

Managed Blockchain networks built with Hyperledger Fabric 1.4 are based on the following components:

Managed Blockchain Dependency on Javaenv Docker Image

Managed Blockchain uses the fabric-chaincode-java package to build the hyperledger/fabric-javaenv Docker image. This image is the base layer of the Java chaincode container. It has built-in support to build the Java chaincode using Gradle or Maven at the following versions:

  • gradle@4.6

  • maven@3.5.0

You can verify this by examining the Docker file in the fabric-chaincode-java package.

The default settings support Gradle or Maven for building Java chaincode. Once the javaenv Docker image is deployed, it is used to provision all new peer nodes and instantiate Java chaincode in those peer nodes. You cannot modify these settings or update versions on the javaenv Docker image because Managed Blockchain manages these.

Installing and Running Java Chaincode

The following is a high-level summary of the steps to install and run Java Chaincode using Managed Blockchain with Hyperledger Fabric 1.4

  1. Marshall dependencies locally – This step uses Gradle and the Gradle shadow plugin to download dependencies to the client machine and package them for installation to the peer node.

  2. Install the chaincode – This step packages the Java chaincode project and copies it to the Hyperledger Fabric peer node.

  3. Instantiate the chaincode – This step uses Gradle to resolve the dependencies, access the dependency packages, and build the Java chaincode. This step also builds the Docker image of this Java chaincode, starts the chaincode container, and instantiates the first object in the ledger.

  4. Invoke and query the chaincode – After the chaincode instantiates successfully, you can send query transactions or invoke transactions to modify the ledger.

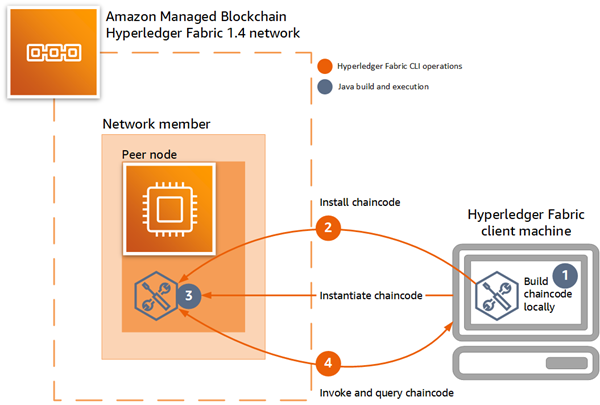

Java chaincode steps on Managed Blockchain: build, install, instantiate, and query.

Building Java Chaincode with Managed Blockchain: Step-by-step

Java chaincode can depend on other third-party packages during the Instantiate chaincode step. In a traditional installation of Hyperledger Fabric chaincode built with Java, Gradle automatically resolves dependencies by loading them locally in addition to downloading them from remote repositories. Managed Blockchain does not allow downloaded dependencies to help ensure the security and reliability of the network. For this reason, to run Java chaincode, or any chaincode, in a Managed Blockchain network , you manually download dependencies to the client machine and add them into the chaincode project.

The steps in this section demonstrate how to use Gradle to build and deploy a sample Java chaincode project with fabric-shim@1.4.6 to a Managed Blockchain network. The Gradle Shadow plugin is needed to combine all jar files into a single jar file.

Prerequisites and Assumptions

The steps below require that you have the following:

The working directory of a typical Java chaincode project using Gradle on a Hyperledger Fabric client machine looks similar to the directory structure shown in the following diagram. The src directory includes the chaincode source. The build.gradle file declares all the dependencies and defines the scripted tasks. The steps below assume this directory structure.

Java chaincode steps

Step 1: Download the Gradle Shadow plugin and add it to the chaincode project

Because Managed Blockchain peer nodes don't have internet access, the Gradle Shadow plugin needs to be downloaded manually to the client and added to the project. The plugin is downloaded from the Gradle plugin repository.

  1. Create a sub-directory in the Java chaincode working directory on the Hyperledger Fabric client machine where you want to download the plugin, and then switch to that directory. The example below uses a directory named plugin.

    mkdir plugin cd plugin
  2. Download the plugin.

    wget https://plugins.gradle.org/m2/com/github/jengelman/gradle/plugins/shadow/2.0.4/shadow-2.0.4.jar
  3. Verify that the plugin was downloaded as expected.

    ls shadow-2.0.4.jar
  4. After downloading the shadow plugin jar file, use an editor to modify the build.gradle file so that it references the local directory and plugin.

    Make sure to remove the id 'com.github.johnrengelman.shadow' version '2.0.3' entry from the plugins section.

    The following example shows an excerpt from an edited build.gradle file, with relevant sections emphasized:

    buildscript { dependencies { classpath fileTree(dir: 'plugin', include:['*.jar']) } } plugins { id 'java' } group 'org.hyperledger.fabric-chaincode-java' version '1.0-SNAPSHOT' sourceCompatibility = 1.8 repositories { mavenLocal() mavenCentral() } dependencies { compile group: 'org.hyperledger.fabric-chaincode-java', name: 'fabric-chaincode-shim', version: '1.4.6' testCompile group: 'junit', name: 'junit', version: '4.12' } apply plugin: 'com.github.johnrengelman.shadow' shadowJar { baseName = 'chaincode' version = null classifier = null manifest { attributes 'Main-Class': 'org.hyperledger.fabric.example.SimpleChaincode' } }

Step 2: Add fabric-chaincode-shim and the getDeps task to the chaincode project

Update build.gradle to add fabric-chaincode-shim as a dependency in the dependencies section. In addition, reference the task getDeps to download dependencies to the libs sub-directory on the client machine. The following example shows an excerpt from a build.gradle file with relevant sections emphasized.

buildscript { dependencies { classpath fileTree(dir: 'plugin', include:['*.jar']) } } plugins { id 'java' } group 'org.hyperledger.fabric-chaincode-java' version '1.0-SNAPSHOT' sourceCompatibility = 1.8 repositories { mavenLocal() mavenCentral() } dependencies { compile group: 'org.hyperledger.fabric-chaincode-java', name: 'fabric-chaincode-shim', version: '1.4.6' testCompile group: 'junit', name: 'junit', version: '4.12' } apply plugin: 'com.github.johnrengelman.shadow' shadowJar { baseName = 'chaincode' version = null classifier = null manifest { attributes 'Main-Class': 'org.hyperledger.fabric.example.SimpleChaincode' } } task getDeps(type: Copy) { from sourceSets.main.compileClasspath into 'libs/' }

Step 3: Build the project locally and download dependencies

Run gradle build and gradle getDeps as shown in the following examples to build the chaincode locally and download dependencies. When the gradle getDeps task runs, Gradle creates the lib sub-directory on the client machine and downloads dependencies to it.

  1. Build the project using Gradle.

    gradle build

    The command creates output similar to the following example.

    > Task :compileJava Note: /home/ec2-user/fabric-samples/chaincode/chaincode_example02/java/src/main/java/org/hyperledger/fabric/example/SimpleChaincode.java uses or overrides a deprecated API. Note: Recompile with -Xlint:deprecation for details. Deprecated Gradle features were used in this build, making it incompatible with Gradle 7.0. Use '--warning-mode all' to show the individual deprecation warnings. See https://docs.gradle.org/6.5/userguide/command_line_interface.html#sec:command_line_warnings BUILD SUCCESSFUL in 1s 2 actionable tasks: 1 executed, 1 up-to-date
  2. Download chaincode project dependencies locally.

    gradle getDeps

    The command creates output similar to the following example.

    Deprecated Gradle features were used in this build, making it incompatible with Gradle 7.0. Use '--warning-mode all' to show the individual deprecation warnings. See https://docs.gradle.org/6.5/userguide/command_line_interface.html#sec:command_line_warnings BUILD SUCCESSFUL in 1s 1 actionable task: 1 executed
  3. Verify that dependencies were downloaded to the libs sub-directory.

    ls libs animal-sniffer-annotations-1.17.jar grpc-api-1.23.0.jar jsr305-3.0.2.jar netty-transport-4.1.38.Final.jar annotations-4.1.1.4.jar grpc-context-1.23.0.jar netty-buffer-4.1.38.Final.jar opencensus-api-0.21.0.jar bcpkix-jdk15on-1.62.jar grpc-core-1.23.0.jar netty-codec-4.1.38.Final.jar opencensus-contrib-grpc-metrics-0.21.0.jar bcprov-jdk15on-1.62.jar grpc-netty-1.23.0.jar netty-codec-http2-4.1.38.Final.jar perfmark-api-0.17.0.jar checker-compat-qual-2.5.2.jar grpc-protobuf-1.23.0.jar netty-codec-http-4.1.38.Final.jar protobuf-java-3.9.0.jar classgraph-4.8.47.jar grpc-protobuf-lite-1.23.0.jar netty-codec-socks-4.1.38.Final.jar protobuf-java-util-3.5.1.jar commons-cli-1.4.jar grpc-stub-1.23.0.jar netty-common-4.1.38.Final.jar proto-google-common-protos-1.12.0.jar commons-logging-1.2.jar gson-2.7.jar netty-handler-4.1.38.Final.jar swagger-annotations-2.0.0.jar error_prone_annotations-2.3.2.jar guava-26.0-android.jar netty-handler-proxy-4.1.38.Final.jar fabric-chaincode-protos-1.4.6.jar j2objc-annotations-1.1.jar netty-resolver-4.1.38.Final.jar fabric-chaincode-shim-1.4.6.jar javax

Step 4: Add dependencies downloaded in the previous step to the project

Use a text editor to update the build.gradle file again so that it reference the dependencies in the libs sub-directory. This adds the dependencies that you downloaded in the previous step to the project.

The following example shows an excerpt from a build.gradle file with relevant sections emphasized.

buildscript { dependencies { classpath fileTree(dir: 'plugin', include:['*.jar']) } } plugins { id 'java' } group 'org.hyperledger.fabric-chaincode-java' version '1.0-SNAPSHOT' sourceCompatibility = 1.8 repositories { mavenLocal() mavenCentral() } dependencies { compile fileTree(dir:'libs',includes:['*.jar']) testCompile group: 'junit', name: 'junit', version: '4.12' } apply plugin: 'com.github.johnrengelman.shadow' shadowJar { baseName = 'chaincode' version = null classifier = null manifest { attributes 'Main-Class': 'org.hyperledger.fabric.example.SimpleChaincode' } } task getDeps(type: Copy) { from sourceSets.main.compileClasspath into 'libs/' }

Step 5: Use the Hyperledger Fabric CLI to install the chaincode on the peer node

Use the Hyperledger Fabric CLI to package the Java chaincode project and copy it to the peer node. The -l java option is required to specify that the chaincode is Java-based. The path to the Java chaincode working directory is an absolute path, which is different from chaincode written in golang.

  1. Before running the instantiatecommand, establish variables for the Hyperledger Fabric CLI Docker container as shown in the following example. Alternatively, you can configure a Docker compose file to establish these variables. For more information, see Step 3.4: Configure and Run Docker Compose to Start the Hyperledger Fabric CLI in the getting started tutorial. Replace the values with those appropriate for your Managed Blockchain network. Set CORE_PEER_ADDRESS to the endpoint of the peer node for which you want to instantiate chaincode, set CORE_PEER_LOCALMSPID to the ID of the member that owns the peer node, and set CORE_PEER_MSPCONFIGPATH as shown, which is the location of the membership service provider directory on the peer node.

    docker exec -e "CORE_PEER_TLS_ENABLED=true" \ -e "CORE_PEER_TLS_ROOTCERT_FILE=/opt/home/managedblockchain-tls-chain.pem " \ -e "CORE_PEER_ADDRESS=nd-6EAJ5VA43JGGNPXOUZP7Y47E4Y.m-K46ICRRXJRCGRNNS4ES4XUUS5A.n-MWY63ZJZU5HGNCMBQER7IN6OIU.managedblockchain.us-east-1.amazonaws.com:30003" \ -e "CORE_PEER_LOCALMSPID=m-K46ICRRXJRCGRNNS4ES4XUUS5A" \ -e "CORE_PEER_MSPCONFIGPATH=/opt/home/admin-msp"
  2. Running the Hyperledger Fabric install command on the client installs the chaincode on the peer node. The following example demonstrates an install command using the following flags.

    • The -o flag specifies the ordering service endpoint for the member.

    • The -l flag specifies that the chaincode language is java.

    • The --cafile flag specifies the location of the certificate for the ordering service that you copied when you set up the Hyperledger Fabric admin. For more information, see step 4.1 in the Getting Started tutorial.

    • The --tls flag specifies that communication with the ordering service uses TLS.

    • The -p flag specifies the location of the chaincode on the client machine. When installing Java chaincode, this must be an absolute path.

    • The -n and -v options establish the name and version of the chaincode. You'll reference this name and version when you instantiate the chaincode in the next step.

    For more information about options, see peer chaincode install in Hyperledger Fabric documentation.

    cli peer chaincode install \ -o orderer.n-MWY63ZJZU5HGNCMBQER7IN6OIU.managedblockchain.amazonaws.com:30001 \ -l java \ --cafile /opt/home/managedblockchain-tls-chain.pem \ --tls -p /opt/home/fabric-samples/chaincode/chaincode_example02/java -v MyCCVerNumber -n MyJavaChaincodeName

Step 6:Use the Hyperledger Fabric CLI to instantiate the chaincode

Running the Hyperledger Fabric CLI instantiate command directs the peer node to build the Java chaincode, create the chaincode image, start the chaincode container, and instantiate object values. Similar to a previous example, the command should have the -l java option specified.

  1. Before running the installcommand, establish variables for the Hyperledger Fabric CLI Docker container as shown in the following example. Alternatively, you can configure a Docker compose file to establish these variables. For more information, see Step 3.4: Configure and Run Docker Compose to Start the Hyperledger Fabric CLI in the getting started tutorial. Set CORE_PEER_ADDRESS to the endpoint of the peer node for which you want to instantiate chaincode, set CORE_PEER_LOCALMSPID to the ID of the member that owns the peer node, and set CORE_PEER_MSPCONFIGPATH as shown, which is the location of the membership service provider directory on the peer node.

    docker exec -e "CORE_PEER_TLS_ENABLED=true" \ -e "CORE_PEER_TLS_ROOTCERT_FILE=/opt/home/managedblockchain-tls-chain.pem" \ -e "CORE_PEER_ADDRESS=nd-6EAJ5VA43JGGNPXOUZP7Y47E4Y.m-K46ICRRXJRCGRNNS4ES4XUUS5A.n-MWY63ZJZU5HGNCMBQER7IN6OIU.managedblockchain.us-east-1.amazonaws.com:30003" \ -e "CORE_PEER_LOCALMSPID=m-K46ICRRXJRCGRNNS4ES4XUUS5A" \ -e "CORE_PEER_MSPCONFIGPATH=/opt/home/admin-msp"
  2. Running the Hyperledger Fabric CLI instantiate command on the client instantiates the chaincode on the peer. The following example demonstrates an instantiate command.

    • The -o flag specifies the ordering service endpoint for the member.

    • The -l flag specifies that the chaincode language is java.

    • The --cafile flag specifies the location of the certificate for the ordering service that you copied when you set up the Hyperledger Fabric admin. For more information, see step 4.1 in the Getting Started tutorial.

    • The --tls flag specifies that communication with the ordering service uses TLS.

    • The -C flag specifies the channel on which to instantiate the chaincode.

    • The -c flag specifies the constructor message in JSON format that initializes object values for the sample chaincode that you installed on the peer node in the previous step. a is set to a value of 100 and b is set to a value of 200.

    • The -n and -v options specify the name and version of the chaincode to be instantiated, which you established when installing the chaincode in the previous step.

    For more information about options, see peer chaincode instantiate in Hyperledger Fabric documentation.

    cli peer chaincode instantiate \ -o orderer.n-MWY63ZJZU5HGNCMBQER7IN6OIU.managedblockchain.amazonaws.com:30001 \ -l java \ --cafile /opt/home/managedblockchain-tls-chain.pem --tls \ -C my-hlf-channel-id \ -c '{"Args":["init", "a","100","b","200"]}' -v v0 -n javacc

You can verify that Gradle is using local dependencies by examining the build logs. The following example shows that, as expected, Gradle did not download jar files during build.

2020-06-26T07:42:37.371-07:00 Gradle build 2020-06-26T07:42:37.371-07:00 Starting a Gradle Daemon, 1 incompatible and 1 stopped Daemons could not be reused, use --status for details 2020-06-26T07:42:37.371-07:00 :compileJavaNote: /tmp/tmp.xANvpIqhV0/src/main/java/org/hyperledger/fabric/example/SimpleChaincode.java uses or overrides a deprecated API. 2020-06-26T07:42:37.371-07:00 Note: Recompile with -Xlint:deprecation for details. 2020-06-26T07:42:37.371-07:00 :processResources NO-SOURCE 2020-06-26T07:42:37.371-07:00 :classes 2020-06-26T07:42:37.371-07:00 :jar 2020-06-26T07:42:37.371-07:00 :assemble 2020-06-26T07:42:37.371-07:00 :check 2020-06-26T07:42:37.371-07:00 :build 2020-06-26T07:42:37.371-07:00 :shadowJar 2020-06-26T07:42:37.371-07:00 Deprecated Gradle features were used in this build, making it incompatible with Gradle 5.0. 2020-06-26T07:42:37.371-07:00 See https://docs.gradle.org/4.6/userguide/command_line_interface.html#sec:command_line_warnings 2020-06-26T07:42:37.371-07:00 BUILD SUCCESSFUL in 26s 2020-06-26T07:42:37.371-07:00 3 actionable tasks: 3 executed

If Gradle had downloaded the dependencies, the file would have references to plugin locations as shown in the following example.

2020-06-22T12:42:20.417-07:00 Gradle build 2020-06-22T12:42:20.417-07:00 Starting a Gradle Daemon, 1 incompatible and 1 stopped Daemons could not be reused, use --status for details 2020-06-22T12:42:20.417-07:00 Download https://plugins.gradle.org/m2/com/github/johnrengelman/shadow/com.github.johnrengelman.shadow.gradle.plugin/2.0.4/com.github.johnrengelman.shadow.gradle.plugin-2.0.4.pom 2020-06-22T12:42:20.417-07:00 Download https://plugins.gradle.org/m2/com/github/jengelman/gradle/plugins/shadow/2.0.4/shadow-2.0.4.pom 2020-06-22T12:42:20.417-07:00 Download https://plugins.gradle.org/m2/org/codehaus/groovy/groovy-backports-compat23/2.4.4/groovy-backports-compat23-2.4.4.pom 2020-06-22T12:42:20.417-07:00 Download https://plugins.gradle.org/m2/com/github/jengelman/gradle/plugins/shadow/2.0.4/shadow-2.0.4.jar 2020-06-22T12:42:20.417-07:00 Download https://plugins.gradle.org/m2/org/codehaus/groovy/groovy-backports-compat23/2.4.4/groovy-backports-compat23-2.4.4.jar 2020-06-22T12:42:20.417-07:00 Download https://hyperledger.jfrog.io/hyperledger/fabric-maven/org/hyperledger/fabric-chaincode-java/fabric-chaincode-shim/maven-metadata.xml 2020-06-22T12:42:20.417-07:00 Download https://hyperledger.jfrog.io/hyperledger/fabric-maven/org/hyperledger/fabric-chaincode-java/fabric-chaincode-shim/1.4.5/fabric-chaincode-shim-1.4.5.pom 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/org/hyperledger/fabric-chaincode-java/fabric-chaincode-shim/maven-metadata.xml 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/org/hyperledger/fabric-chaincode-java/fabric-chaincode-shim/1.4.6/fabric-chaincode-shim-1.4.6.pom 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/com/owlike/genson/1.5/genson-1.5.pom 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/com/owlike/genson-parent/1.5/genson-parent-1.5.pom 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/org/hyperledger/fabric-chaincode-java/fabric-chaincode-protos/1.4.6/fabric-chaincode-protos-1.4.6.pom 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/io/grpc/grpc-core/maven-metadata.xml 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/io/netty/netty-codec-http2/maven-metadata.xml 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/io/grpc/grpc-api/maven-metadata.xml 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/com/google/errorprone/error_prone_annotations/maven-metadata.xml 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/com/owlike/genson/1.5/genson-1.5.jar 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/org/hyperledger/fabric-chaincode-java/fabric-chaincode-shim/1.4.6/fabric-chaincode-shim-1.4.6.jar 2020-06-22T12:42:20.417-07:00 Download https://jcenter.bintray.com/org/hyperledger/fabric-chaincode-java/fabric-chaincode-protos/1.4.6/fabric-chaincode-protos-1.4.6.jar ... 2020-06-22T12:42:20.417-07:00 :compileJava 2020-06-22T12:42:20.417-07:00 :processResources NO-SOURCE 2020-06-22T12:42:20.417-07:00 :classes 2020-06-22T12:42:20.417-07:00 :jar 2020-06-22T12:42:20.417-07:00 :assemble 2020-06-22T12:42:20.417-07:00 :check 2020-06-22T12:42:20.417-07:00 :build 2020-06-22T12:42:20.417-07:00 :shadowJar 2020-06-22T12:42:20.417-07:00 BUILD SUCCESSFUL in 41s 2020-06-22T12:42:20.417-07:00 3 actionable tasks: 3 executed

Step 7: Invoke the sample chaincode to perform a transaction

Precede the following example command with the variable overrides for the CLI container as shown in the previous example.

The following example invokes the sample chaincode that you instantiated. The parameters are the same as the previous example, except for the JSON constructor. This constructor invokes the the sample chaincode to transfer a value of 10 from a to b.

cli peer chaincode invoke \ -o orderer.n-MWY63ZJZU5HGNCMBQER7IN6OIU.managedblockchain.amazonaws.com:30001 \ --cafile /opt/home/managedblockchain-tls-chain.pem --tls \ -C one-org-channel-java \ -c '{"Args":["invoke","a", "b", "10"]}' -n javacc

The command should print output similar to the following.

2020-06-26 23:49:43.895 UTC [chaincodeCmd] chaincodeInvokeOrQuery -> INFO 003 Chaincode invoke successful. result: status:200 message:"invoke finished successfully" payload:"a: 90 b: 210

Step 8: Invoke the sample chaincode to query

Precede the following command with the variable overrides for the CLI container as shown in the previous example.

The following example queries the ledger for the value attributed to a. The query should print 90 as output.

cli peer chaincode query \ -o orderer.n-MWY63ZJZU5HGNCMBQER7IN6OIU.managedblockchain.amazonaws.com:30001 \ --cafile /opt/home/managedblockchain-tls-chain.pem --tls \ -C one-org-channel-java \ -c '{"Args":["query","a"]}' -n javacc
