Create CloudFormation ingest stack Update AWS CloudFormation ingest stack Approve a CloudFormation ingest stack changeset Update AWS CloudFormation stacks termination protection

AMS CloudFormation ingest

The AMS AWS CloudFormation ingest change type (CT) enables you to use your existing CloudFormation templates, with some modifications, to deploy custom stacks in an AMS-managed VPC.

Topics

The AMS AWS CloudFormation ingest process involves the following:

Prepare and upload your custom CloudFormation template to an S3 bucket, or provide the template inline when creating the RFC. If you are using an S3 bucket with a presigned URL; for more information, see presign.
Submit the CloudFormation ingest change type to AMS in an RFC. For the CFN ingest change type walkthrough, see Create CloudFormation ingest stack. For CFN ingest examples, see AWS CloudFormation Ingest: Examples.
Once your stack is created, you can update it, and remediate drift on it; additionally, should the update fail, you can explicitly approve and implement the update. All of these procedures are described in this section.

For information on CFN drift detection, see New – CloudFormation Drift Detection.

Note

This change type now has a version 2.0. Version 2.0 is automated; not manually executed. This enables the CT execution to go more quickly. Two new parameters are introduced with this version: CloudFormationTemplate, which enables you to paste a custom CloudFormation template into the RFC, and VpcId, which enables CloudFormation ingest to be used with AMS multi-account landing zone.
Version 1.0 is a manual change type. This means that an AMS operator must take some action before the change type can successfully conclude. At minimum, a review is required. This version also requires the CloudFormationTemplateS3Endpoint parameter value to be a pre-signed URL.

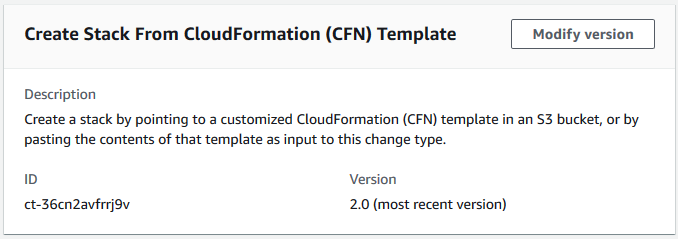

Create CloudFormation ingest stack

To create a CloudFormation ingest stack using the console

Navigate to the Create RFC page: In the left navigation pane of the AMS console click RFCs to open the RFCs list page, and then click Create RFC.
Choose a popular change type (CT) in the default Browse change types view, or select a CT in the Choose by category view.
- Browse by change type: You can click on a popular CT in the Quick create area to immediately open the Run RFC page. Note that you cannot choose an older CT version with quick create.

  To sort CTs, use the All change types area in either the Card or Table view. In either view, select a CT and then click Create RFC to open the Run RFC page. If applicable, a Create with older version option appears next to the Create RFC button.
- Choose by category: Select a category, subcategory, item, and operation and the CT details box opens with an option to Create with older version if applicable. Click Create RFC to open the Run RFC page.
On the Run RFC page, open the CT name area to see the CT details box. A Subject is required (this is filled in for you if you choose your CT in the Browse change types view). Open the Additional configuration area to add information about the RFC.

In the Execution configuration area, use available drop-down lists or enter values for the required parameters. To configure optional execution parameters, open the Additional configuration area.
When finished, click Run. If there are no errors, the RFC successfully created page displays with the submitted RFC details, and the initial Run output.
Open the Run parameters area to see the configurations you submitted. Refresh the page to update the RFC execution status. Optionally, cancel the RFC or create a copy of it with the options at the top of the page.

To create a CloudFormation ingest stack using the CLI

Use either the Inline Create (you issue a create-rfc command with all RFC and execution parameters included), or Template Create (you create two JSON files, one for the RFC parameters and one for the execution parameters) and issue the create-rfc command with the two files as input. Both methods are described here.
Submit the RFC: aws amscm submit-rfc --rfc-id ID command with the returned RFC ID.

Monitor the RFC: aws amscm get-rfc --rfc-id ID command.

To check the change type version, use this command:


aws amscm list-change-type-version-summaries --filter Attribute=ChangeTypeId,Value=CT_ID

Note

You can use any CreateRfc parameters with any RFC whether or not they are part of the schema for the change type. For example, to get notifications when the RFC status changes, add this line, --notification "{\"Email\": {\"EmailRecipients\" : [\"email@example.com\"]}}" to the RFC parameters part of the request (not the execution parameters). For a list of all CreateRfc parameters, see the AMS Change Management API Reference.

Prepare the CloudFormation template that you will use to create the stack, and upload it to your S3 bucket. For important details, see AWS CloudFormation Ingest Guidelines, Best Practices, and Limitations.

Create and submit the RFC to AMS:

Create and save the execution parameters JSON file, include the CloudFormation template parameters that you want. The following example names it CreateCfnParams.json.

Example Web application stack CreateCfnParams.json file:


{
  "Name": "cfn-ingest",
  "Description": "CFNIngest Web Application Stack",
  "VpcId": "VPC_ID",
  "CloudFormationTemplateS3Endpoint": "$S3_URL",
  "TimeoutInMinutes": 120,
  "Tags": [
   {
    "Key":   "Enviroment Type"
    "Value": "Dev",
   },
   {
    "Key":   "Application"
    "Value": "PCS",
   }
  ],
  "Parameters": [
   {
    "Name": "Parameter-for-S3Bucket-Name",
    "Value":  "BUCKET-NAME"
   },
   {
    "Name": "Parameter-for-Image-Id",
    "Value":  "AMI-ID"
   }
  ],
}

Example SNS topic CreateCfnParams.json file:


{
  "Name": "cfn-ingest",
  "Description": "CFNIngest Web Application Stack",
  "CloudFormationTemplateS3Endpoint": "$S3_URL",
  "Tags": [
    {"Key": "Enviroment Type", "Value": "Dev"}
  ],
  "Parameters": [
    {"Name": "TopicName", "Value": "MyTopic1"}
  ]
}

Create and save the RFC parameters JSON file with the following content. The following example names it CreateCfnRfc.json file:
```
{
   "ChangeTypeId": "ct-36cn2avfrrj9v",
   "ChangeTypeVersion": "2.0",
   "Title": "cfn-ingest"
}
```
Create the RFC, specifying the CreateCfnRfc file and the CreateCfnParams file:
```
aws amscm create-rfc --cli-input-json file://CreateCfnRfc.json  --execution-parameters file://CreateCfnParams.json
```
You receive the ID of the new RFC in the response and can use it to submit and monitor the RFC. Until you submit it, the RFC remains in the editing state and does not start.

Note

This change type is at version 2.0 and is automated (not manually executed). This allows the CT execution to go more quickly, and, a new parameter, CloudFormationTemplate, allows you to paste into the RFC a custom CloudFormation template. Additionally, In this version, we do not attach the default AMS security groups if the you specify your own security groups. If you do not specify your own security groups in the request, AMS will attach the AMS default security groups. In CFN Ingest v1.0, we always appended the AMS default security groups whether or not you provided your own security groups.

AMS has enabled 17 AMS Self-Provisioned services for use in this change type. For information about supported resources, see CloudFormation Ingest Stack: Supported Resources.

Note

Version 2.0 accepts an S3 endpoint that is not a presigned URL.

If you use the previous version of this CT, the CloudFormationTemplateS3Endpoint parameter value must be a presigned URL.

Example command for generating a presigned S3 bucket URL (Mac/Linux):


export S3_PRESIGNED_URL=$(aws s3 presign DASHDASHexpires-in 86400 s3://BUCKET_NAME/CFN_TEMPLATE.json)

Example command for generating a presigned S3 bucket URL (Windows):


for /f %i in ('aws s3 presign DASHDASHexpires-in 86400 s3://BUCKET_NAME/CFN_TEMPLATE.json') do set S3_PRESIGNED_URL=%i

Note

If the S3 bucket exists in an AMS account, you must use your AMS credentials for this command. For example, you may need to append --profile saml after obtaining your AMS AWS Security Token Service (AWS STS) credentials.

To learn more about AWS CloudFormation, see AWS CloudFormation. To see CloudFormation templates, open the AWS CloudFormation Template Reference.

The template is validated to ensure that it can be created in an AMS account. If it passes validation, it's updated to include any resources or configurations required for it to conform with AMS. This includes adding resources such as Amazon CloudWatch alarms in order to allow AMS Operations to monitor the stack.

The RFC is rejected if any of the following are true:

RFC JSON Syntax is incorrect or does not follow the given format.
The provided S3 bucket presigned URL is not valid.
The template is not valid AWS CloudFormation syntax.
The template does not have defaults set for all parameter values.
The template fails AMS validation. For AMS validation steps, see the information later in this topic.

The RFC fails if the CloudFormation stack fails to create due to a resource creation issue.

To learn more about CFN validation and validator, see Template Validation and CloudFormation ingest stack: CFN validator examples.

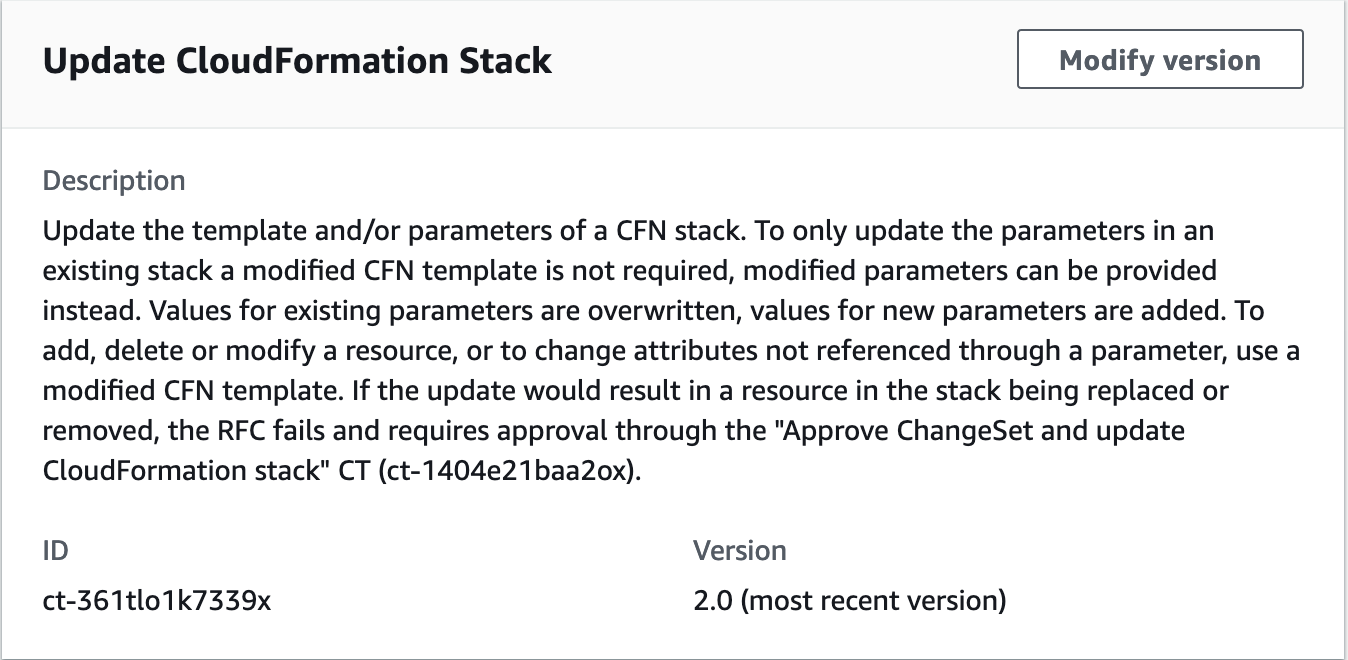

Update AWS CloudFormation ingest stack

To update a CloudFormation Ingest Stack using the console

Navigate to the Create RFC page: In the left navigation pane of the AMS console click RFCs to open the RFCs list page, and then click Create RFC.
Choose a popular change type (CT) in the default Browse change types view, or select a CT in the Choose by category view.
- Browse by change type: You can click on a popular CT in the Quick create area to immediately open the Run RFC page. Note that you cannot choose an older CT version with quick create.

  To sort CTs, use the All change types area in either the Card or Table view. In either view, select a CT and then click Create RFC to open the Run RFC page. If applicable, a Create with older version option appears next to the Create RFC button.
- Choose by category: Select a category, subcategory, item, and operation and the CT details box opens with an option to Create with older version if applicable. Click Create RFC to open the Run RFC page.
On the Run RFC page, open the CT name area to see the CT details box. A Subject is required (this is filled in for you if you choose your CT in the Browse change types view). Open the Additional configuration area to add information about the RFC.

In the Execution configuration area, use available drop-down lists or enter values for the required parameters. To configure optional execution parameters, open the Additional configuration area.
When finished, click Run. If there are no errors, the RFC successfully created page displays with the submitted RFC details, and the initial Run output.
Open the Run parameters area to see the configurations you submitted. Refresh the page to update the RFC execution status. Optionally, cancel the RFC or create a copy of it with the options at the top of the page.

To update a CloudFormation ingest stack using the CLI

Use either the Inline Create (you issue a create-rfc command with all RFC and execution parameters included), or Template Create (you create two JSON files, one for the RFC parameters and one for the execution parameters) and issue the create-rfc command with the two files as input. Both methods are described here.
Submit the RFC: aws amscm submit-rfc --rfc-id ID command with the returned RFC ID.

Monitor the RFC: aws amscm get-rfc --rfc-id ID command.

To check the change type version, use this command:


aws amscm list-change-type-version-summaries --filter Attribute=ChangeTypeId,Value=CT_ID

Note

Prepare the AWS CloudFormation template that you want to use to update the stack, and upload it to your S3 bucket. For important details, see AWS CloudFormation Ingest Guidelines, Best Practices, and Limitations.

Create and submit the RFC to AMS:

Create and save the execution parameters JSON file, include the CloudFormation template parameters that you want. This example names it UpdateCfnParams.json.

Example UpdateCfnParams.json file with inline parameter updates:


{
  "StackId": "stack-yjjoo9aicjyqw4ro2",
  "VpcId": "VPC_ID",
  "CloudFormationTemplate": "{\"AWSTemplateFormatVersion\":\"2010-09-09\",\"Description\":\"Create a SNS topic\",\"Parameters\":{\"TopicName\":{\"Type\":\"String\"},\"DisplayName\":{\"Type\":\"String\"}},\"Resources\":{\"SnsTopic\":{\"Type\":\"AWS::SNS::Topic\",\"Properties\":{\"TopicName\":{\"Ref\":\"TopicName\"},\"DisplayName\":{\"Ref\":\"DisplayName\"}}}}}",
  "TemplateParameters": [
    {
      "Key": "TopicName",
      "Value": "TopicNameCLI"
    },
    {
      "Key": "DisplayName",
      "Value": "DisplayNameCLI"
    }
  ],
  "TimeoutInMinutes": 1440
}

Example UpdateCfnParams.json file with S3 bucket endpoint containing an updated CloudFormation template:


{
  "StackId": "stack-yjjoo9aicjyqw4ro2",
  "VpcId": "VPC_ID",
  "CloudFormationTemplateS3Endpoint": "s3_url",
  "TemplateParameters": [
    {
      "Key": "TopicName",
      "Value": "TopicNameCLI"
    },
    {
      "Key": "DisplayName",
      "Value": "DisplayNameCLI"
    }
  ],
  "TimeoutInMinutes": 1080
}

Create and save the RFC parameters JSON file with the following content. This example names it UpdateCfnRfc.json file.
```
{
   "ChangeTypeId": "ct-361tlo1k7339x",
   "ChangeTypeVersion": "1.0",
   "Title": "cfn-ingest-template-update"
}
```
Create the RFC, specifying the UpdateCfnRfc file and the UpdateCfnParams file:
```
aws amscm create-rfc --cli-input-json file://UpdateCfnRfc.json  --execution-parameters file://UpdateCfnParams.json
```
You receive the ID of the new RFC in the response and can use it to submit and monitor the RFC. Until you submit it, the RFC remains in the editing state and does not start.

This change type is now at version 2.0. Changes include removing the AutoApproveUpdateForResources parameter, which was used in version 1.0 of this CT, and adding two new parameters: AutoApproveRiskyUpdates and BypassDriftCheck.
If the S3 bucket exists in an AMS account, you must use your AMS credentials for this command. For example, you may need to append --profile saml after obtaining your AMS AWS Security Token Service (AWS STS) credentials.
All Parameter values for resources in the CloudFormation template must have a value, either through a default or a custom value through the parameters section of the CT. You can override the parameter value by structuring the CloudFormation template resources to reference a Parameters key. For examples that show how to do, see CloudFormation ingest stack: CFN validator examples.

IMPORTANT: Missing parameters not supplied explicitly in the form, default to the currently set values on the existing stack or template.
For a list of which self-provisioned services you can add using AWS CloudFormation Ingest, see CloudFormation Ingest Stack: Supported Resources.

To learn more about AWS CloudFormation, see AWS CloudFormation.

The RFC is rejected if any of the following are true:

RFC JSON Syntax is incorrect or does not follow the given format.
The provided S3 bucket presigned URL is not valid.
The template is not valid AWS CloudFormation syntax.
The template does not have defaults set for all parameter values.
The template fails AMS validation. For AMS validation steps, see the information later in this topic.

The RFC fails if the CloudFormation stack fails to create due to a resource creation issue.

To learn more about CFN validation and validator, see Template Validation and CloudFormation ingest stack: CFN validator examples.

Approve a CloudFormation ingest stack changeset

To approve and update a CloudFormation ingest stack using the console

Navigate to the Create RFC page: In the left navigation pane of the AMS console click RFCs to open the RFCs list page, and then click Create RFC.
Choose a popular change type (CT) in the default Browse change types view, or select a CT in the Choose by category view.
- Browse by change type: You can click on a popular CT in the Quick create area to immediately open the Run RFC page. Note that you cannot choose an older CT version with quick create.

  To sort CTs, use the All change types area in either the Card or Table view. In either view, select a CT and then click Create RFC to open the Run RFC page. If applicable, a Create with older version option appears next to the Create RFC button.
- Choose by category: Select a category, subcategory, item, and operation and the CT details box opens with an option to Create with older version if applicable. Click Create RFC to open the Run RFC page.
On the Run RFC page, open the CT name area to see the CT details box. A Subject is required (this is filled in for you if you choose your CT in the Browse change types view). Open the Additional configuration area to add information about the RFC.

In the Execution configuration area, use available drop-down lists or enter values for the required parameters. To configure optional execution parameters, open the Additional configuration area.
When finished, click Run. If there are no errors, the RFC successfully created page displays with the submitted RFC details, and the initial Run output.
Open the Run parameters area to see the configurations you submitted. Refresh the page to update the RFC execution status. Optionally, cancel the RFC or create a copy of it with the options at the top of the page.

To approve and update a CloudFormation ingest stack using the CLI

Use either the Inline Create (you issue a create-rfc command with all RFC and execution parameters included), or Template Create (you create two JSON files, one for the RFC parameters and one for the execution parameters) and issue the create-rfc command with the two files as input. Both methods are described here.
Submit the RFC: aws amscm submit-rfc --rfc-id ID command with the returned RFC ID.

Monitor the RFC: aws amscm get-rfc --rfc-id ID command.

To check the change type version, use this command:


aws amscm list-change-type-version-summaries --filter Attribute=ChangeTypeId,Value=CT_ID

Note

Output the execution parameters JSON schema for this change type to a file in your current folder. This example names it CreateAsgParams.json:


aws amscm create-rfc --change-type-id "ct-1404e21baa2ox" --change-type-version "1.0" --title "Approve Update" --execution-parameters file://PATH_TO_EXECUTION_PARAMETERS --profile saml

Modify and save the schema as follows:


{
  "StackId": "STACK_ID",
  "VpcId": "VPC_ID",
  "ChangeSetName": "UPDATE-ef81e2bc-03f6-4b17-a3c7-feb700e78faa",
  "TimeoutInMinutes": 1080
}

Note

If there are multiple resources in a stack, and you want to delete only a subset of the stack resources, use the CloudFormation Update CT; see CloudFormation Ingest Stack: Updating. You can also submit a Management | Other | Other | Update change type and AMS engineers can help you craft the changeset, if needed.

To learn more about AWS CloudFormation, see AWS CloudFormation.

Update AWS CloudFormation stacks termination protection

The following shows this change type in the AMS console.

How it works:

Navigate to the Create RFC page: In the left navigation pane of the AMS console click RFCs to open the RFCs list page, and then click Create RFC.
Choose a popular change type (CT) in the default Browse change types view, or select a CT in the Choose by category view.
- Browse by change type: You can click on a popular CT in the Quick create area to immediately open the Run RFC page. Note that you cannot choose an older CT version with quick create.

  To sort CTs, use the All change types area in either the Card or Table view. In either view, select a CT and then click Create RFC to open the Run RFC page. If applicable, a Create with older version option appears next to the Create RFC button.
- Choose by category: Select a category, subcategory, item, and operation and the CT details box opens with an option to Create with older version if applicable. Click Create RFC to open the Run RFC page.
On the Run RFC page, open the CT name area to see the CT details box. A Subject is required (this is filled in for you if you choose your CT in the Browse change types view). Open the Additional configuration area to add information about the RFC.

In the Execution configuration area, use available drop-down lists or enter values for the required parameters. To configure optional execution parameters, open the Additional configuration area.
When finished, click Run. If there are no errors, the RFC successfully created page displays with the submitted RFC details, and the initial Run output.
Open the Run parameters area to see the configurations you submitted. Refresh the page to update the RFC execution status. Optionally, cancel the RFC or create a copy of it with the options at the top of the page.

How it works:

Use either the Inline Create (you issue a create-rfc command with all RFC and execution parameters included), or Template Create (you create two JSON files, one for the RFC parameters and one for the execution parameters) and issue the create-rfc command with the two files as input. Both methods are described here.
Submit the RFC: aws amscm submit-rfc --rfc-id ID command with the returned RFC ID.

Monitor the RFC: aws amscm get-rfc --rfc-id ID command.

To check the change type version, use this command:


aws amscm list-change-type-version-summaries --filter Attribute=ChangeTypeId,Value=CT_ID

Note

Only specify the parameters you want to change. Absent parameters retain the existing values.

INLINE CREATE:

Issue the create RFC command with execution parameters provided inline (escape quotation marks when providing execution parameters inline), and then submit the returned RFC ID. For example, you can replace the contents with something like this:


aws amscm create-rfc \
--change-type-id "ct-2uzbqr7x7mekd" \
--change-type-version "1.0" \
--title "Enable termination protection on CFN stack" \
--execution-parameters "{\"DocumentName\":\"AWSManagedServices-ManageResourceTerminationProtection\",\"Region\":\"us-east-1\",\"Parameters\":{\"ResourceId\":[\"stack-psvnq6cupymio3enl\"],\"TerminationProtectionDesiredState\":[\"enabled\"]}}"

TEMPLATE CREATE:

Output the execution parameters for this change type to a JSON file; this example names it EnableTermProCFNParams.json:


aws amscm get-change-type-version --change-type-id "ct-2uzbqr7x7mekd" --query "ChangeTypeVersion.ExecutionInputSchema" --output text > EnableTermProCFNParams.json

Modify and save the EnableTermProCFNParams file, retaining only the parameters that you want to change. For example, you can replace the contents with something like this:


{
  "DocumentName": "AWSManagedServices-ManageResourceTerminationProtection",
  "Region": "us-east-1",
  "Parameters": {
    "ResourceId": ["stack-psvnq6cupymio3enl"],
    "TerminationProtectionDesiredState": ["enabled"]
  }
}

Output the RFC template to a file in your current folder; this example names it EnableTermProCFNRfc.json:
```
aws amscm create-rfc --generate-cli-skeleton > EnableTermProCFNRfc.json
```

Modify and save the EnableTermProCFNRfc.json file. For example, you can replace the contents with something like this:


{
    "ChangeTypeId": "ct-2uzbqr7x7mekd",
    "ChangeTypeVersion": "1.0",
    "Title": "Enable termination protection on CFN instance"
}

Create the RFC, specifying the EnableTermProCFNRfc file and the EnableTermProCFNParams file:
```
aws amscm create-rfc --cli-input-json file://EnableTermProCFNRfc.json  --execution-parameters file://EnableTermProCFNParams.json
```
You receive the ID of the new RFC in the response and can use it to submit and monitor the RFC. Until you submit it, the RFC remains in the editing state and does not start.

Note

There is a related CT for Amazon EC2, EC2 stack: Updating termination protection.

To learn more about termination protection, see Protecting a stack from being deleted.

Warning Javascript is disabled or is unavailable in your browser.

To use the Amazon Web Services Documentation, Javascript must be enabled. Please refer to your browser's Help pages for instructions.

Document Conventions

Migrating workloads: Windows pre-ingestion validation

AWS CloudFormation Ingest Guidelines, Best Practices, and Limitations
