Result of this procedure

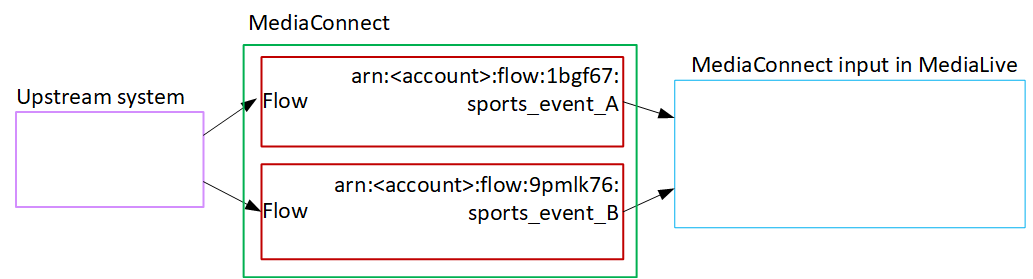

The results of this setup are illustrated in the diagram that follows. There are three main components:

  • The upstream system (purple box)

  • One or two MediaConnect flows (red boxes).

  • One MediaConnect input in MediaLive.

Each MediaConnect flows has a source that the upstream system is pushing to. Each flow also has one output for the use of MediaLive.

The MediaConnect input in MediaLive specifies the ARNs for those outputs.

The upstream system pushes the source content to the source on the AWS Elemental MediaConnect flow or flows. The flows push the content to MediaLive. At runtime of the channel, MediaLive reacts to the content that is being pushed and ingests it.
