Step 5: Create a pipeline in CodePipeline - AWS OpsWorks

Step 5: Create a pipeline in CodePipeline

Important

AWS OpsWorks Stacks is no longer accepting new customers. Existing customers will be able to use the OpsWorks console, API, CLI, and CloudFormation resources as normal until May 26, 2024, at which time they will be discontinued. To prepare for this transition, we recommend you transition your stacks to AWS Systems Manager as soon as possible. For more information, see AWS OpsWorks Stacks End of Life FAQs and Migrating your AWS OpsWorks Stacks applications to AWS Systems Manager Application Manager.

After you have a stack with a layer and at least one instance configured in AWS OpsWorks Stacks, create a pipeline in CodePipeline with AWS OpsWorks Stacks as the provider to deploy apps or Chef cookbooks to your AWS OpsWorks Stacks resources.

To create a pipeline
  1. Open the CodePipeline console at https://console.aws.amazon.com/codepipeline/.

  2. Choose Create pipeline.

  3. On the Getting started with CodePipeline page, type MyOpsWorksPipeline, or any other pipeline name that is unique to your account, and then choose Next step.

  4. On the Source Location page, select Amazon S3 from the Source provider drop-down list.

  5. In the Amazon S3 details area, type your Amazon S3 bucket path, in the format s3://bucket-name/file name. Refer to the link that you noted in step 9 of Step 3: Upload app code to an Amazon S3 bucket. In this walkthrough, the path is s3://my-appbucket/opsworks-nodejs-demo-app.zip. Choose Next step.


            AWS CodePipeline source and provider
  6. On the Build page, choose No Build from the drop-down list, and then choose Next step.

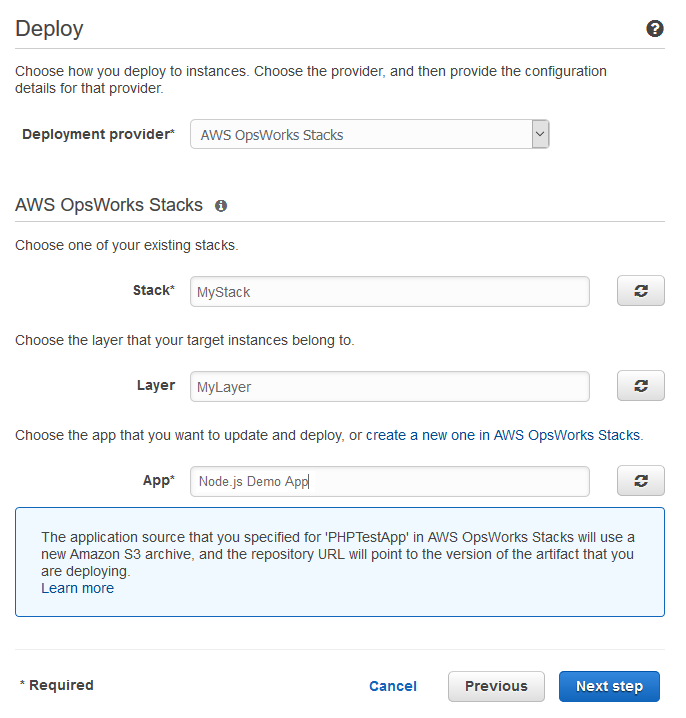

  7. On the Deploy page, choose AWS OpsWorks Stacks as the deployment provider.

  8. In the Stack field, type CodePipelineDemo, or the name of the stack that you created in Step 1: Create a stack, layer, and an instance in AWS OpsWorks Stacks.

  9. In the Layer field, type Node.js App Server, or the name of the layer that you created in Step 1: Create a stack, layer, and an instance in AWS OpsWorks Stacks.

  10. In the App field, select the app that you uploaded to Amazon S3 in Step 3: Upload app code to an Amazon S3 bucket, and then choose Next step.

  11. On the AWS Service Role page, choose Create Role.

    A new window opens with an IAM console page that describes the role that will be created for you, AWS-CodePipeline-Service. From the Policy name drop-down list, choose Create new policy. Be sure the policy document has the following content. Choose Edit to change the policy document, if required.

    { "Statement": [ { "Action": [ "s3:GetObject", "s3:GetObjectVersion", "s3:GetBucketVersioning" ], "Resource": "*", "Effect": "Allow" }, { "Action": "opsworks:*", "Resource": "*", "Effect": "Allow" } ] }

    When you are finished making changes to the policy document, choose Allow. Your changes will be displayed in the IAM console.

    Note

    If role creation fails, it might be because you already have an IAM role named AWS-CodePipeline-Service. If you have been using the AWS-CodePipeline-Service role before May 2016, the role might not have permissions to use AWS OpsWorks Stacks as a deployment provider. In this case, you must update the policy statement as shown in this step. If you see an error message, go back to the beginning of this step, and choose Use existing role instead of Create role. If you use an existing role, the role should have a policy attached that includes the permissions shown in this step. For more information about the service role and its policy statement, see Edit a Policy for an IAM Service Role.

  12. If the role creation process is successful, the IAM page will close, and you will be returned to the AWS Service Role page. Choose Next step.

  13. On the Review your pipeline page, verify the choices shown on the page, and then choose Create pipeline.

  14. When your pipeline is ready, it should start locating your source code and deploying your app to your stack automatically. This process can take several minutes.
