Business-requirements assessment template

Provide a description for the use case:

Description

Imagine that you are building an online multiplayer game. In your game, groups of 50 players join a session to play a game, which typically takes around 30 minutes to play. During the game, you have to update a specific player’s record to indicate the amount of time the player has been playing, their statistics, or whether they won the game. Users want to see earlier games they’ve played, either to view the games’ winners or to watch a replay of each game’s action.

Provide information about your users:

User	Description	Expected number
Game player	Online game player.	1 MM
Development team	Internal team that will use the game statistics to improve the game experience.	100

Provide information about the sources of data and how data will be ingested:

Source	Description	User
Online game	Game players will create profiles and start new games.	Game player
Game app	Game app will automatically collect statistics about the games, such as start and end time, number of players, position of each player, and map for the game.

Provide information about how data will be consumed:

Consumer	Description	User
Online game	Game players will view profiles and review their game statistics.	Game player
Data analytics	The game development team will extract game statistics for data analysis and to improve the user experience. Data will be exported from the data store and imported into Amazon S3 to support analytics through a Spark application.	Development team

Provide a list of entities and how they are identified:

Entity name	Description	Identifier
Game Player	Stores information such as identification, address, demographics, interests for each user (gamer).	Username
Game Instance	Provides information about each game played, including creator, start, end, and map Yplayed.	Game ID
Game User Mapping	Represents the many-to-many relationships between users and games.	Game ID AND Username

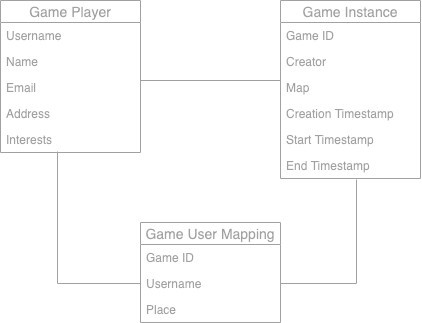

Create an ER model for the entities:

Provide high-level statistics about the entities:

Entity Name	Estimated # of records	Record size	Notes
Game Player	1 MM	< 1 KB	The game platform has about 1 MM users.
Game Instance	6 MM (100,000K/day * 60 days)	< 1 KB	On average, there are 100K games every day. We need to store the last 60 days.
Game User Mapping	300 MM (6 MM games * 50 players)	< 1 KB	On average, each game has 50 players that we need to store information about.
