Enabling AWS Resilience Hub access to your Amazon Elastic Kubernetes Service cluster - AWS Resilience Hub

Enabling AWS Resilience Hub access to your Amazon Elastic Kubernetes Service cluster

AWS Resilience Hub assesses the resiliency of an Amazon Elastic Kubernetes Service (Amazon EKS) cluster by analyzing the infrastructure of your Amazon EKS cluster. AWS Resilience Hub uses Kubernetes role-based access control (RBAC) configuration to assess other Kubernetes (K8s) workload, which are deployed as a part of the Amazon EKS cluster. For AWS Resilience Hub to query your Amazon EKS cluster for analyzing and assessing the workload, you must complete the following:

  • Create or use an existing AWS Identity and Access Management (IAM) role in the same account as the Amazon EKS cluster.

  • Enable IAM user and role access to your Amazon EKS cluster and grant additional read-only permissions to K8s resources inside the Amazon EKS cluster. For more information about enabling IAM user and role access to your Amazon EKS cluster, see Enabling IAM user and role access to your cluster - Amazon EKS.

Access to your Amazon EKS cluster using IAM entities are enabled by the AWS IAM Authenticator for Kubernetes, which runs on the Amazon EKS control plane. The Authenticator obtains the configuration information from aws-auth ConfigMap.

Note

AWS Resilience Hub queries resources inside your Amazon EKS cluster using an IAM role in your account. For AWS Resilience Hub to access resources within your Amazon EKS cluster, the IAM role used by AWS Resilience Hub must be mapped to a Kubernetes group with sufficient read-only permissions to resources inside your Amazon EKS cluster.

AWS Resilience Hub allows to access your Amazon EKS cluster resources by using one of the following IAM role options:

  • If your application is configured to use role-based access for accessing resources, the invoker role or secondary account role passed to AWS Resilience Hub while creating an application will be used for accessing your Amazon EKS cluster during assessment.

    The following conceptual diagram shows how AWS Resilience Hub accesses Amazon EKS clusters when the application is configured as a role-based application.

  • If your application is configured to use the current IAM user for accessing resource, you must create a new IAM role with the name AwsResilienceHubAssessmentEKSAccessRole in the same account as that of the Amazon EKS cluster. This IAM role will then be used for accessing your Amazon EKS cluster.

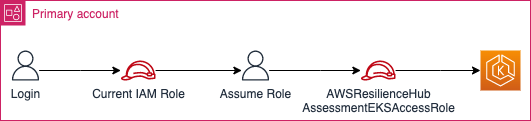

    The following conceptual diagram shows how AWS Resilience Hub accesses Amazon EKS clusters deployed in your primary account when the application is configured to use the current IAM user permissions.

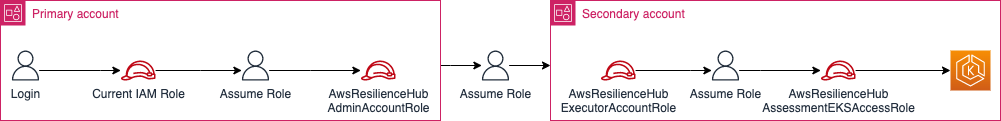

    The following conceptual diagram shows how AWS Resilience Hub accesses Amazon EKS clusters deployed on a secondary account when the application is configured to use the current IAM user permissions.
