Create a visual workflow in Amazon SageMaker Unified Studio

Use visual workflows to orchestrate data processing jobs, notebooks, and querybooks in your project repositories. With visual workflows, you can define a collection of tasks organized as a directed acyclic graph (DAG) that can run on a user-defined schedule.

Prerequisites

• Amazon SageMaker Unified Studio project created with the All capabilities project profile

• Instance with at least 4GiB memory and 4vCPUs provisioned

• Access to the Workflows page in your project

Environment status

Use a shared workflow environment to share workflows with other project members. Workflow environments must be created by project owners. To update or delete a workflow environment, you must be an owner of the project that the workflow environment is in. After a workflow environment has been created by a project owner, any project member can sync their files to share them in the environment.

Environment Statuses

Local environment	Shared environment
Active	Active
Stopping	Missing
Loading	Loading
Not Running	Creating
Failed	Failed

Create a workflow

To create a workflow, complete the following steps:

1. Navigate to Amazon SageMaker Unified Studio using the URL from your admin and log in using your SSO or AWS credentials.

2. Navigate to a project that was created with the All capabilities project profile. You can do this by using the center menu at the top of the page and choosing Browse all projects, then choosing the name of the project that you want to navigate to.

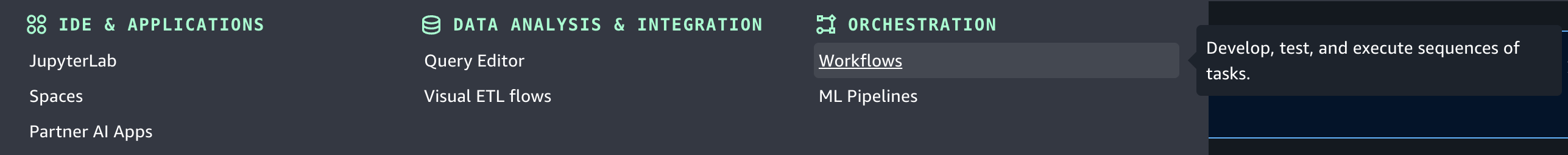

3. In the Build menu, choose Workflows. This takes you to the Workflows page.

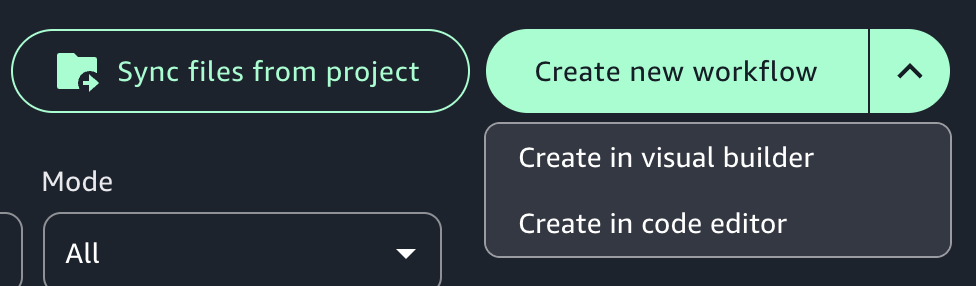

4. Choose the Create new workflow button or in the Create new workflow dropdown menu, choose Create in visual builder. This takes you to the Visual canvas workflow.



5. Provide a name to your workflow.

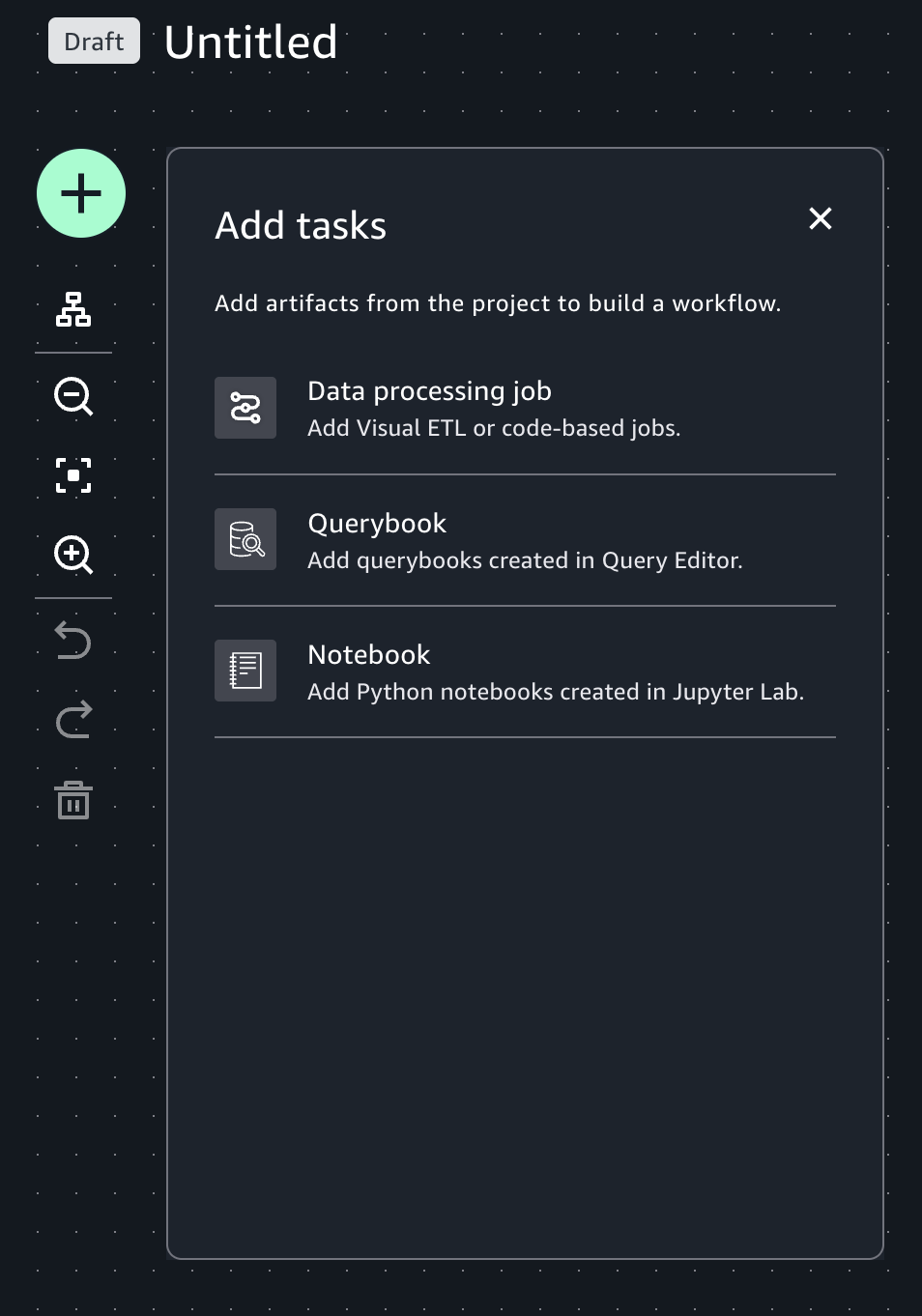

6. Choose a task from one of the three tabs: "Data processing job", "Querybook", or "Notebook". The selected task appears in the canvas. Configure the task by giving it a name and editing the prepopulated fields.



7. Click on the "+" symbol to add more tasks. You can drag the tasks to fit your workflow.

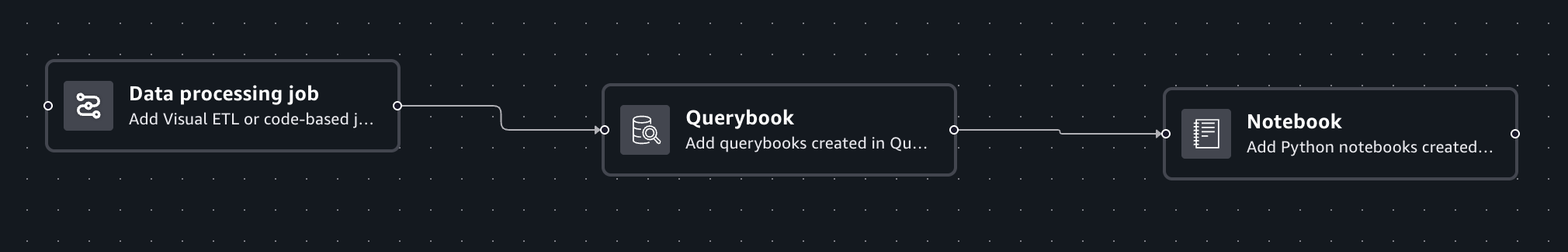

8. Complete the workflow by connecting the tasks. To connect the tasks, click the "+" symbol of one task to the "+" symbol of another task. The arrows represent the execution order and data flow.



9. Once you've created your workflow, you can configure its settings. Click on the settings gear.

   1. In the Workflow settings tab you can:

      • Edit the Workflow name if the workflow has never been saved to a project.

      • Provide an optional description to the workflow.

      • Toggle the Run on schedule button and set the Schedule status to Active or Paused.

      • Choose an option from the Schedule dropdown menu to set a schedule for your workflow or specify a CRON expression in the Start date and time in UTC and End date and time in UTC fields below.

      Once the settings are set, choose Apply to save them.

   2. In the Default parameters tab, choose Add parameter and provide a name and a default value to the parameter and choose Apply to save them.

   3. In the Tags tab, choose Add tag to create an airflow tag to your workflow and provide a name to the tag, then choose Apply to save it. Airflow tags help in filtering the workflows. This step is optional.

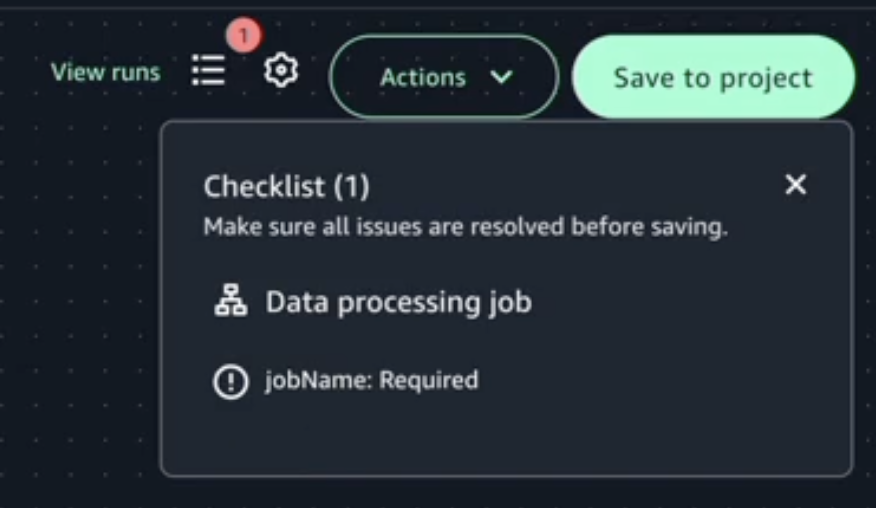

10. Choose Save to project to save the current workflow to the project. If there are any validation errors, the notifications symbol next to the settings gear will show a number next to it which indicates the number of errors. You must fix them before you can successfully save the workflow to the project.
