在 SDK 中构造电路

本节提供了定义电路、查看可用门、扩展电路以及查看每个设备支持的门的示例。它还包含有关如何手动分配qubits、指示编译器完全按照定义运行电路以及如何使用噪声模拟器构建噪声电路的说明。

当然,你也可以在 Braket 中为各种门设置脉冲电平。 QPUs有关更多信息,请参阅 Amazon Braket 上的脉冲控制

大门和电路

量子门和电路是在 Amazon Braket Python SDK 的braket.circuits类别中定义的。在 SDK 中,你可以通过调用来实例化一个新的电路对象。Circuit()

示例:定义电路

该示例首先定义了一个由四个qubits(标记为q0、、和q3)组成的样本电路 q1q2,包括标准的单量子比特 Hadamard 门和两个量子比特 CNOT 门。您可以通过调用print函数来可视化此电路,如下例所示。

# Import the circuit module from braket.circuits import Circuit # Define circuit with 4 qubits my_circuit = Circuit().h(range(4)).cnot(control=0, target=2).cnot(control=1, target=3) print(my_circuit)
T : │ 0 │ 1 │ ┌───┐ q0 : ─┤ H ├───●───────── └───┘ │ ┌───┐ │ q1 : ─┤ H ├───┼─────●─── └───┘ │ │ ┌───┐ ┌─┴─┐ │ q2 : ─┤ H ├─┤ X ├───┼─── └───┘ └───┘ │ ┌───┐ ┌─┴─┐ q3 : ─┤ H ├───────┤ X ├─ └───┘ └───┘ T : │ 0 │ 1 │

示例:定义参数化电路

在这个例子中,我们定义了一个电路,其门依赖于自由参数。我们可以指定这些参数的值来创建新电路,或者在提交电路时,在某些设备上作为量子任务运行。

from braket.circuits import Circuit, FreeParameter # Define a FreeParameter to represent the angle of a gate alpha = FreeParameter("alpha") # Define a circuit with three qubits my_circuit = Circuit().h(range(3)).cnot(control=0, target=2).rx(0, alpha).rx(1, alpha) print(my_circuit)

您可以通过向电路提供单个参数float(这是所有自由参数将采用的值)或关键字参数来指定每个参数的值,从而从参数化电路中创建一个新的非参数化电路,如下所示。

my_fixed_circuit = my_circuit(1.2) my_fixed_circuit = my_circuit(alpha=1.2) print(my_fixed_circuit)

请注意,my_circuit这是未修改的,因此您可以使用它来实例化许多具有固定参数值的新电路。

示例:修改电路中的门

以下示例定义了一个电路,其门使用控制和功率修改器。您可以使用这些修改来创建新的大门,例如受控Ry门。

from braket.circuits import Circuit # Create a bell circuit with a controlled x gate my_circuit = Circuit().h(0).x(control=0, target=1) # Add a multi-controlled Ry gate of angle .13 my_circuit.ry(angle=.13, target=2, control=(0, 1)) # Add a 1/5 root of X gate my_circuit.x(0, power=1/5) print(my_circuit)

只有本地模拟器支持门控修改器。

示例:查看所有可用的登机口

以下示例说明如何查看 Amazon Braket 中所有可用的门。

from braket.circuits import Gate # Print all available gates in Amazon Braket gate_set = [attr for attr in dir(Gate) if attr[0].isupper()] print(gate_set)

这段代码的输出列出了所有的门。

['CCNot', 'CNot', 'CPhaseShift', 'CPhaseShift00', 'CPhaseShift01', 'CPhaseShift10', 'CSwap', 'CV', 'CY', 'CZ', 'ECR', 'GPhase', 'GPi', 'GPi2', 'H', 'I', 'ISwap', 'MS', 'PRx', 'PSwap', 'PhaseShift', 'PulseGate', 'Rx', 'Ry', 'Rz', 'S', 'Si', 'Swap', 'T', 'Ti', 'U', 'Unitary', 'V', 'Vi', 'X', 'XX', 'XY', 'Y', 'YY', 'Z', 'ZZ']

通过调用该类型电路的方法,可以将这些门中的任何一个附加到电路中。例如,致电circ.h(0),在第一个门上添加哈达玛德门。qubit

注意

门已附加到位,以下示例将上一个示例中列出的所有门添加到同一个电路中。

circ = Circuit() # toffoli gate with q0, q1 the control qubits and q2 the target. circ.ccnot(0, 1, 2) # cnot gate circ.cnot(0, 1) # controlled-phase gate that phases the |11> state, cphaseshift(phi) = diag((1,1,1,exp(1j*phi))), where phi=0.15 in the examples below circ.cphaseshift(0, 1, 0.15) # controlled-phase gate that phases the |00> state, cphaseshift00(phi) = diag([exp(1j*phi),1,1,1]) circ.cphaseshift00(0, 1, 0.15) # controlled-phase gate that phases the |01> state, cphaseshift01(phi) = diag([1,exp(1j*phi),1,1]) circ.cphaseshift01(0, 1, 0.15) # controlled-phase gate that phases the |10> state, cphaseshift10(phi) = diag([1,1,exp(1j*phi),1]) circ.cphaseshift10(0, 1, 0.15) # controlled swap gate circ.cswap(0, 1, 2) # swap gate circ.swap(0,1) # phaseshift(phi)= diag([1,exp(1j*phi)]) circ.phaseshift(0,0.15) # controlled Y gate circ.cy(0, 1) # controlled phase gate circ.cz(0, 1) # Echoed cross-resonance gate applied to q0, q1 circ = Circuit().ecr(0,1) # X rotation with angle 0.15 circ.rx(0, 0.15) # Y rotation with angle 0.15 circ.ry(0, 0.15) # Z rotation with angle 0.15 circ.rz(0, 0.15) # Hadamard gates applied to q0, q1, q2 circ.h(range(3)) # identity gates applied to q0, q1, q2 circ.i([0, 1, 2]) # iswap gate, iswap = [[1,0,0,0],[0,0,1j,0],[0,1j,0,0],[0,0,0,1]] circ.iswap(0, 1) # pswap gate, PSWAP(phi) = [[1,0,0,0],[0,0,exp(1j*phi),0],[0,exp(1j*phi),0,0],[0,0,0,1]] circ.pswap(0, 1, 0.15) # X gate applied to q1, q2 circ.x([1, 2]) # Y gate applied to q1, q2 circ.y([1, 2]) # Z gate applied to q1, q2 circ.z([1, 2]) # S gate applied to q0, q1, q2 circ.s([0, 1, 2]) # conjugate transpose of S gate applied to q0, q1 circ.si([0, 1]) # T gate applied to q0, q1 circ.t([0, 1]) # conjugate transpose of T gate applied to q0, q1 circ.ti([0, 1]) # square root of not gate applied to q0, q1, q2 circ.v([0, 1, 2]) # conjugate transpose of square root of not gate applied to q0, q1, q2 circ.vi([0, 1, 2]) # exp(-iXX theta/2) circ.xx(0, 1, 0.15) # exp(i(XX+YY) theta/4), where theta=0.15 in the examples below circ.xy(0, 1, 0.15) # exp(-iYY theta/2) circ.yy(0, 1, 0.15) # exp(-iZZ theta/2) circ.zz(0, 1, 0.15) # IonQ native gate GPi with angle 0.15 applied to q0 circ.gpi(0, 0.15) # IonQ native gate GPi2 with angle 0.15 applied to q0 circ.gpi2(0, 0.15) # IonQ native gate MS with angles 0.15, 0.15, 0.15 applied to q0, q1 circ.ms(0, 1, 0.15, 0.15, 0.15)

除了预定义的门设置外,您还可以将自定义的单元门应用于电路。它们可以是单量子比特门(如以下源代码所示),也可以是应用于参数qubits定义的多量子比特门。targets

import numpy as np # Apply a general unitary my_unitary = np.array([[0, 1],[1, 0]]) circ.unitary(matrix=my_unitary, targets=[0])

示例:扩展现有电路

您可以通过添加指令来扩展现有电路。A Instruction 是一种量子指令,它描述了要在量子器件上执行的量子任务。 Instruction运算符Gate仅包括类型的对象。

# Import the Gate and Instruction modules from braket.circuits import Gate, Instruction # Add instructions directly. circ = Circuit([Instruction(Gate.H(), 4), Instruction(Gate.CNot(), [4, 5])]) # Or with add_instruction/add functions instr = Instruction(Gate.CNot(), [0, 1]) circ.add_instruction(instr) circ.add(instr) # Specify where the circuit is appended circ.add_instruction(instr, target=[3, 4]) circ.add_instruction(instr, target_mapping={0: 3, 1: 4}) # Print the instructions print(circ.instructions) # If there are multiple instructions, you can print them in a for loop for instr in circ.instructions: print(instr) # Instructions can be copied new_instr = instr.copy() # Appoint the instruction to target new_instr = instr.copy(target=[5, 6]) new_instr = instr.copy(target_mapping={0: 5, 1: 6})

示例:查看每台设备支持的大门

模拟器支持 Braket SDK 中的所有门,但是 QPU 设备支持的子集较小。你可以在设备属性中找到设备支持的门。以下显示了 ionQ 设备的示例:

# Import the device module from braket.aws import AwsDevice device = AwsDevice("arn:aws:braket:us-east-1::device/qpu/ionq/Aria-1") # Get device name device_name = device.name # Show supportedQuantumOperations (supported gates for a device) device_operations = device.properties.dict()['action']['braket.ir.openqasm.program']['supportedOperations'] print('Quantum Gates supported by {}:\n {}'.format(device_name, device_operations))
Quantum Gates supported by Aria 1: ['x', 'y', 'z', 'h', 's', 'si', 't', 'ti', 'v', 'vi', 'rx', 'ry', 'rz', 'cnot', 'swap', 'xx', 'yy', 'zz']

支持的门可能需要编译成原生门,然后才能在量子硬件上运行。当您提交电路时,AmazonBraket 会自动执行此编译。

示例:以编程方式检索设备支持的原生门的保真度

您可以在 Braket 控制台的 “设备” 页面上查看保真度信息。有时,以编程方式访问相同的信息会很有帮助。以下代码显示如何提取 QPU 的两个qubit门之间的两门保真度。

# Import the device module from braket.aws import AwsDevice device = AwsDevice("arn:aws:braket:us-west-1::device/qpu/rigetti/Ankaa-3") # Specify the qubits a=10 b=11 edge_properties_entry = device.properties.standardized.twoQubitProperties['10-11'].twoQubitGateFidelity gate_name = edge_properties_entry[0].gateName fidelity = edge_properties_entry[0].fidelity print(f"Fidelity of the {gate_name} gate between qubits {a} and {b}: {fidelity}")

程序集

程序集在单个量子任务中高效运行多个量子电路。在这一项任务中,你可以提交多达 100 个量子电路或一个包含多达 100 个不同参数集的单个参数电路。此操作最大限度地缩短了后续电路执行之间的时间,并减少了量子任务处理开销。目前,Amazon Braket Local Simulator 和设备上都支持程序集IQM。Rigetti

定义一个 ProgramSet

以下第一个代码示例演示了如何同时ProgramSet使用参数化电路和不带参数的电路来构建。

from braket.aws import AwsDevice from braket.circuits import Circuit, FreeParameter from braket.program_sets.circuit_binding import CircuitBinding from braket.program_sets import ProgramSet # Initialize the quantum device device = AwsDevice("arn:aws:braket:eu-north-1::device/qpu/iqm/Garnet") # Define circuits circ1 = Circuit().h(0).cnot(0, 1) circ2 = Circuit().rx(0, 0.785).ry(1, 0.393).cnot(1, 0) circ3 = Circuit().t(0).t(1).cz(0, 1).s(0).cz(1, 2).s(1).s(2) parameterize_circuit = Circuit().rx(0, FreeParameter("alpha")).cnot(0, 1).ry(1, FreeParameter("beta")) # Create circuit bindings with different parameters circuit_binding = CircuitBinding( circuit=parameterize_circuit, input_sets={ 'alpha': (0.10, 0.11, 0.22, 0.34, 0.45), 'beta': (1.01, 1.01, 1.03, 1.04, 1.04), }) # Creating the program set program_set_1 = ProgramSet([ circ1, circ2, circ3, circuit_binding, ])

该程序集包含四个独特的程序:circ1circ2circ3、和circuit_binding。该circuit_binding程序使用五个不同的参数绑定运行,创建了五个可执行文件。其他三个无参数程序各创建一个可执行文件。这会生成总共八个可执行文件,如下图所示。

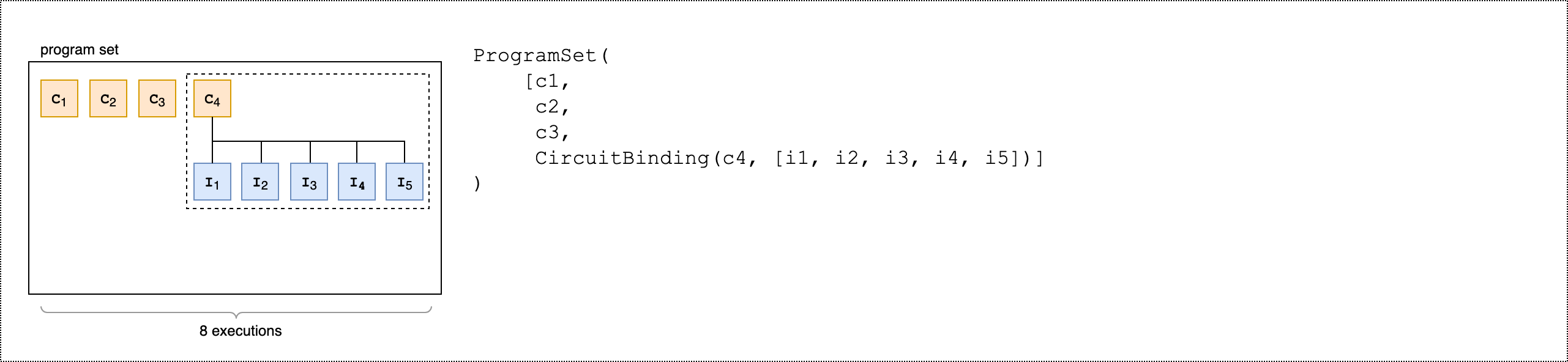

ProgramSet 包含四个电路的结构,其中 c4 CircuitBinding 用于处理五个输入集。

以下第二个代码示例演示了如何使用该product()方法将同一组可观察对象附加到程序集的每个可执行文件。

from braket.circuits.observables import I, X, Y, Z observables = [Z(0) @ Z(1), X(0) @ X(1), Z(0) @ X(1), X(0) @ Z(1)] program_set_2 = ProgramSet.product( circuits=[circ1, circ2, circuit_binding], observables=observables )

对于无参数程序,将针对每个电路测量每个可观测值。对于参数化程序,将针对每个输入集测量每个可观测值,如下图所示。

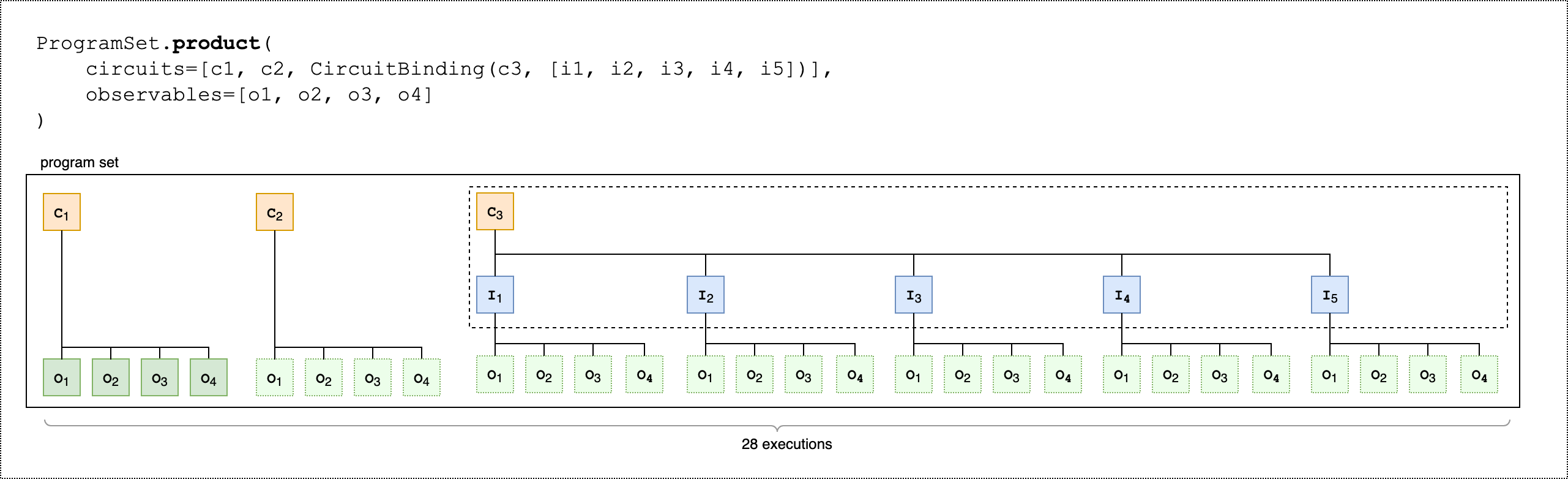

ProgramSet.product 显示了三个电路的并行执行,其中 c3 CircuitBinding 用于处理五个输入集,每个输入集有五个可观察值。

以下第三个代码示例演示了如何使用该zip()方法将单个可观察对象与中的特定参数集配对。ProgramSet

program_set_3 = ProgramSet.zip( circuits=circuit_binding, observables=observables + [Y(0) @ Y(1)] )

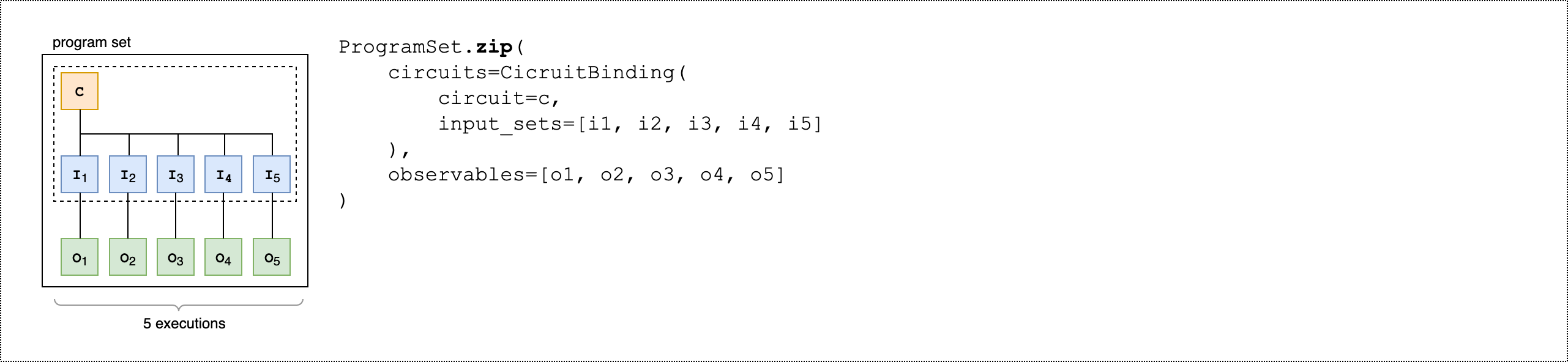

ProgramSet.zip,其中 CircuitBinding 演示了使用共享电路的五个并行执行,每个输入集都有单独的可观察对象。

取而代之的是CircuitBinding(),你可以直接压缩带有电路和输入集列表的可观察对象列表。

program_set_4 = ProgramSet.zip( circuits=[circ1, circ2, circ3], input_sets=[{}, {}, {}], observables=observables[:3] )

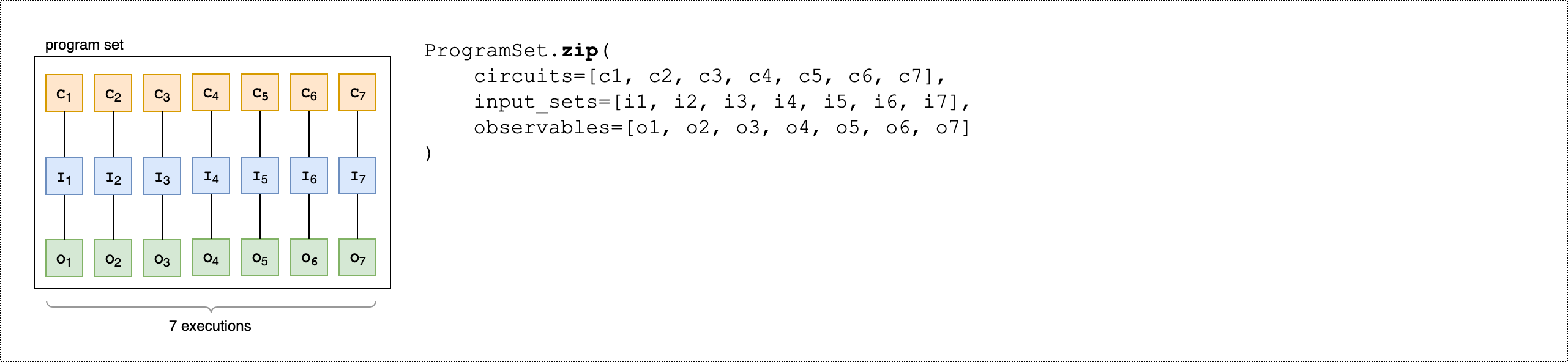

ProgramSet.zip 显示了七个电路的并行执行及其相应的单个输入集和单个可观察对象。

有关程序集的更多信息和示例,请参阅 amazon-braket-examples Github 中的程序集笔记本

检查并运行设备上设置的程序

程序集的可执行文件数量等于其唯一参数绑定电路的数量。使用以下代码示例计算电路可执行文件和镜头的总数。

# Number of shots per executable shots = 10 num_executables = program_set_1.total_executables # Calculate total number of shots across all executables total_num_shots = shots*num_executables
注意

对于节目集,您需要根据节目集中所有回路的总射击次数支付每项任务的单次费用和每枪费用。

要运行程序集,请使用以下代码示例。

# Run the program set task = device.run( program_set_1, shots=total_num_shots, )

使用Rigetti设备时,当任务部分完成和部分排队时,您的程序集可能会保持RUNNING状态。为了更快地获得结果,请考虑将您的程序集作为 Hybrid J ob 提交。

分析结果

运行以下代码来分析和测量中可执行文件的结果。ProgramSet

# Get the results from a program set result = task.result() # Get the first executbable first_program = result[0] first_executable = first_program[0] # Inspect the results of the first executable measurements_from_first_executable = first_executable.measurements print(measurements_from_first_executable)

部分测量

与其测量量子电路中的所有量子比特,不如使用部分测量来测量单个量子比特或量子比特子集。

注意

其他功能,例如中间电路测量和前馈操作,可作为实验功能提供,请参阅访问 IQM 设备上的动态电路

示例:测量量子比特的子集

以下代码示例演示了通过在贝尔状态电路中仅测量量子比特 0 来进行部分测量。

from braket.devices import LocalSimulator from braket.circuits import Circuit # Use the local state vector simulator device = LocalSimulator() # Define an example bell circuit and measure qubit 0 circuit = Circuit().h(0).cnot(0, 1).measure(0) # Run the circuit task = device.run(circuit, shots=10) # Get the results result = task.result() # Print the circuit and measured qubits print(circuit) print() print("Measured qubits: ", result.measured_qubits)

手动qubit分配

当你在量子计算机上运行量子电路时Rigetti,你可以选择使用手动qubit分配来控制qubits哪些用于你的算法。Amazon Braket 控制台Amazon Braket SDK 可帮助您检查所选量子处理单元 (QPU) 设备的最新校准数据,以便您可以为实验选择最佳校准数据。qubits

手动qubit分配使您能够更准确地运行电路并调查各个qubit特性。研究人员和高级用户可以根据最新的设备校准数据优化其电路设计,从而获得更准确的结果。

以下示例演示了如何qubits显式分配。

# Import the device module from braket.aws import AwsDevice device = AwsDevice("arn:aws:braket:us-west-1::device/qpu/rigetti/Ankaa-3") circ = Circuit().h(0).cnot(0, 7) # Indices of actual qubits in the QPU # Set up S3 bucket (where results are stored) my_bucket = "amazon-braket-s3-demo-bucket" # The name of the bucket my_prefix = "your-folder-name" # The name of the folder in the bucket s3_location = (my_bucket, my_prefix) my_task = device.run(circ, s3_location, shots=100, disable_qubit_rewiring=True)

欲了解更多信息,请参阅本笔记本上的 Amazon Braket 示例:在 GitHub QPU 设备上分配量子比特

逐字记录汇编

当你在基于门的量子计算机上运行量子电路时,你可以指示编译器完全按照定义运行你的电路,而无需进行任何修改。使用逐字编译,您可以指定要么完全按照指定方式保留整个电路,要么仅保留其中的特定部分(仅受Rigetti支持)。在为硬件基准测试或错误缓解协议开发算法时,你需要可以选择精确指定硬件上运行的栅极和电路布局。Verbatim 编译使您可以通过关闭某些优化步骤来直接控制编译过程,从而确保您的电路完全按照设计运行。

、和IQM设备支持逐字编译 RigettiIonQ,并且需要使用本机门。使用逐字编译时,建议检查设备的拓扑结构,以确保在连接时调用门,qubits并且电路使用硬件支持的本机门。以下示例说明如何以编程方式访问设备支持的原生门列表。

device.properties.paradigm.nativeGateSet

对于Rigetti,必须通过设置disableQubitRewiring=True为与逐字编译一起使用来关闭qubit重新布线。disableQubitRewiring=False如果在编译中使用逐字记录框时设置,则量子电路验证失败且无法运行。

如果为电路启用了逐字编译并在不支持逐字编译的 QPU 上运行,则会生成错误,表示任务因不支持的操作而导致任务失败。随着越来越多的量子硬件原生支持编译器功能,该功能将扩展到包括这些设备。使用以下代码查询时,支持逐字编译的设备将其列为支持的操作。

from braket.aws import AwsDevice from braket.device_schema.device_action_properties import DeviceActionType device = AwsDevice("arn:aws:braket:us-west-1::device/qpu/rigetti/Ankaa-3") device.properties.action[DeviceActionType.OPENQASM].supportedPragmas

使用逐字记录汇编不会产生任何额外费用。对于在 Braket QPU 设备、笔记本实例和按需模拟器上执行的量子任务,您需要继续按照 Amazon Braket 定价页面上指定的当前费率付费。有关更多信息,请参阅 Verbatim 编译示例笔记本。

注意

如果您使用 OpenQasm 为IonQ设备编写电路,并且希望将电路直接映射到物理量子比特,则需要使用,因#pragma braket verbatim为 OpenQasm 会完全忽略该disableQubitRewiring标志。

噪声模拟

要实例化本地噪声模拟器,你可以按如下方式更改后端。

# Import the device module from braket.aws import AwsDevice device = LocalSimulator(backend="braket_dm")

您可以通过两种方式构建噪音电路:

  1. 自下而上地建造嘈杂的电路。

  2. 采用现有的无噪音电路,并在整个过程中注入噪音。

以下示例显示了使用具有去极化噪声和自定义 Kraus 通道的基本电路的方法。

import scipy.stats import numpy as np # Bottom up approach # Apply depolarizing noise to qubit 0 with probability of 0.1 circ = Circuit().x(0).x(1).depolarizing(0, probability=0.1) # Create an arbitrary 2-qubit Kraus channel E0 = scipy.stats.unitary_group.rvs(4) * np.sqrt(0.8) E1 = scipy.stats.unitary_group.rvs(4) * np.sqrt(0.2) K = [E0, E1] # Apply a two-qubit Kraus channel to qubits 0 and 2 circ = circ.kraus([0, 2], K)
from braket.circuits import Noise # Inject noise approach # Define phase damping noise noise = Noise.PhaseDamping(gamma=0.1) # The noise channel is applied to all the X gates in the circuit circ = Circuit().x(0).y(1).cnot(0, 2).x(1).z(2) circ_noise = circ.copy() circ_noise.apply_gate_noise(noise, target_gates=Gate.X)

运行电路的用户体验与以前相同,如以下两个示例所示。

示例 1

task = device.run(circ, shots=100)

示例 2

task = device.run(circ_noise, shots=100)

有关更多示例,请参阅 Braket 入门噪声模拟器示例
