Account lifecycle - Innovation Sandbox on AWS

Account lifecycle

This section describes how an account statuses and OU location changes throughout its lifecycle.

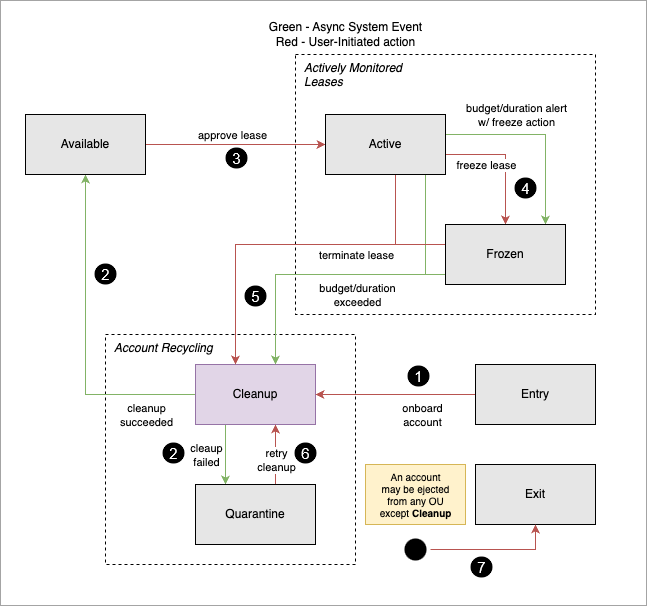

sandbox account ou lifecycle
Account lifecycle

  1. The account is onboarded into the solution from the Entry OU. This is a manual action performed by an administrator that sends the account to clean-up. This sanitizes the account to ensure no previously existing resources make it into the sandbox environment.

  2. If the clean-up is successful, an event is produced detailing that the account has been successfully cleaned up. This moves the account to Available state.

  3. Once available, the lease approval flow will attempt to claim an available sandbox account. Lease approval is a manual API action. During this, the account will move to Active state, and a user will be granted access, and the lease’s incurred cost and duration will start being monitored.

  4. (Optional) Frozen status: The account can be sent to to a Frozen status either manually via an API request, or the monitoring process detecting that a configured threshold for the lease was breached. This revokes account access for the sandbox user and allows the Admin and Manager to review the contents of the account.

  5. From Frozen or Active status, the account can be manually cleaned up by an API request, or the lease monitoring service detecting that the account has reached the end of its configured lease terms. The account will be moved back to CleanUp to delete resources that were created under the previous lease so that the account can be used again.

  6. During clean-up, if deletion fails (resources were unable to be deleted or an unexpected failure occurs), the account is moved to Quarantine. Accounts in Quarantine require manual remediation from the administrator and can only return to the account pool by retrying cleanup and succeeding. Accounts can also be quarantined if drift between the expected account location and actual OU location is detected by the drift monitor Lambda. In this case the account will bypass clean-up, and move straight to Quarantine.

  7. From any lifecycle status except accounts going through ongoing clean-up, the account can be ejected from the solution. During the ejection process, the solution relinquishes control over the account and places it in a boundary OU named Exit where an administrator can safely move it from the account pool. This is useful for preserving work in an account indefinitely, removing a problematic account from the solution, or downsizing the account pool.
