Smart Farm on Amazon Web Services

Publication date: October 24, 2022 (Diagram history)

This Connected Farm reference architecture enables sensors, computer vision, and edge inference in agriculture by focusing on ensuring scalability, elasticity, and a responsiveness for each operation’s growing and changing needs.

Smart Farm on Amazon Web Services Diagram

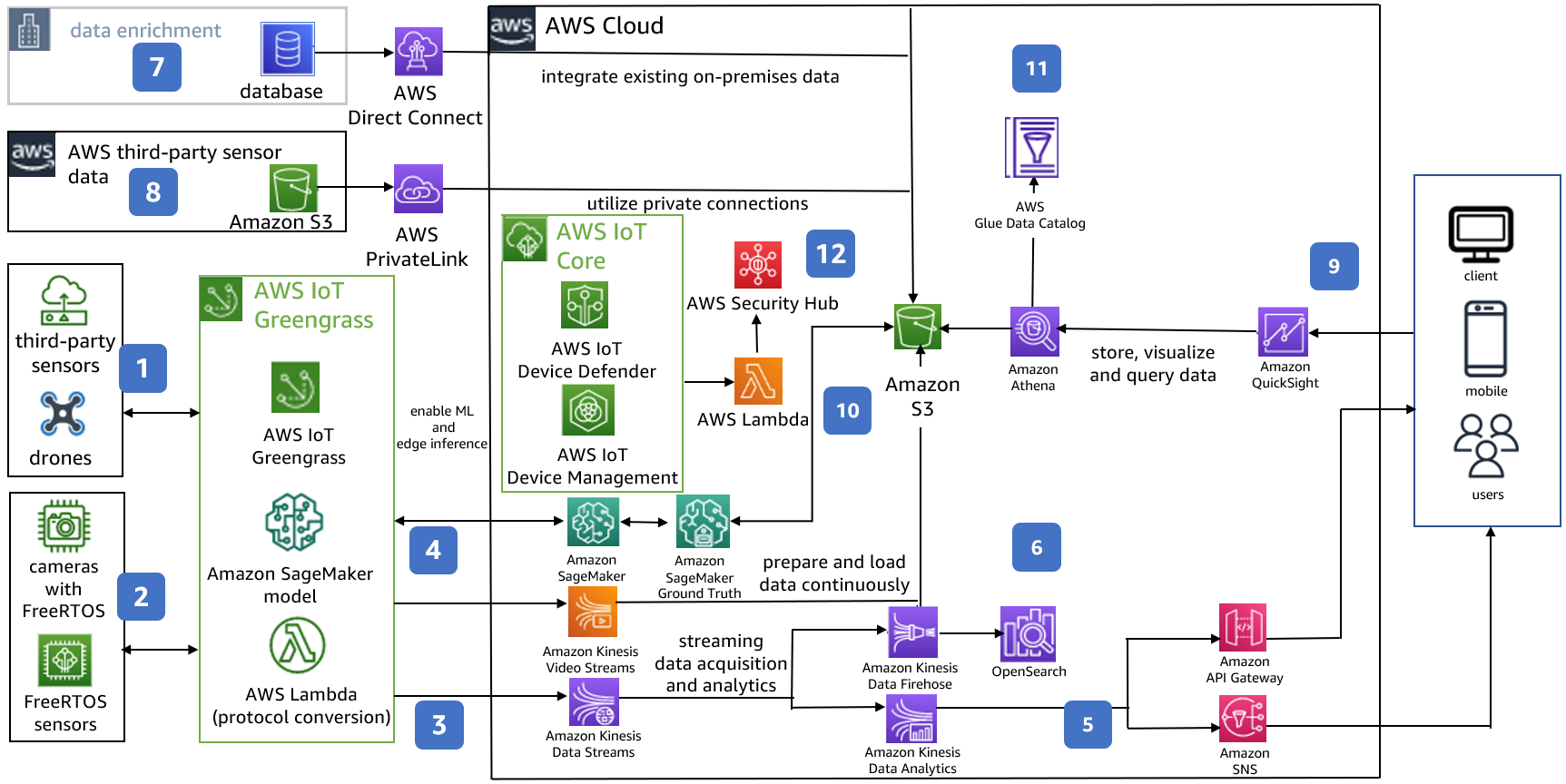

Reference Architecture Diagram

1. Third-party sensors or drones not using FreeRTOS send data through AWS Lambda for protocol conversion.

2. Sensors or cameras running FreeRTOS send data to AWS IoT Greengrass, providing protection from intermittent connectivity.

3. AWS IoT Greengrass streams enable ingestion from edge devices to Kinesis Data Streams.

4. Use real-time video via Amazon Kinesis Video Streams for streaming and replay of video content.

5. Derive real-time insights with Amazon Managed Service for Apache Flink and notify users via Amazon Simple Notification Service.

6. Enable analytics with OpenSearch and use Amazon Simple Storage Service for a data lake strategy.

7. Transfer owned data, like planting records or farm finances, securely into your data lake with AWS Direct Connect.

8. Securely consume data from a sensor ecosystem hosted on AWS with AWS PrivateLink.

9. Empower users with insights delivered via Amazon API Gateway or visualizations with QuickSight.

10. Build and deploy machine learning (ML) models for edge inference with Amazon SageMaker AI. Use Amazon SageMaker Ground Truth to manage data labeling workflow.

11. Each time a new file is written into Amazon S3, AWS Glue crawler crawls the data to infer the schema and make it available into the AWS Glue Data Catalog. Amazon Athena does on-demand querying.

12. Use a Lambda function that imports the AWS IoT Device Defender reports into AWS Security Hub to centralize incident response.

Download editable diagram

To customize this reference architecture diagram based on your business needs, download the ZIP file which contains an editable PowerPoint.

Create a free AWS account

Sign up for an AWS account. New accounts include 12 months of AWS Free Tier access, including the use of Amazon EC2, Amazon S3, and Amazon DynamoDB.

Further reading

For additional information, refer to

• AWS Architecture Icons

• AWS Architecture Center

• AWS Well-Architected

Diagram history

To be notified about updates to this reference architecture diagram, subscribe to the RSS feed.
