So fügen Sie einer statischen Karte ein Polygon hinzu
Gebäude und Standorte können auf einer Karte hervorgehoben werden, indem ein sie umgebendes Polygon zugewiesen wird, z. B. das Pentagon (in Washington, D.C.).

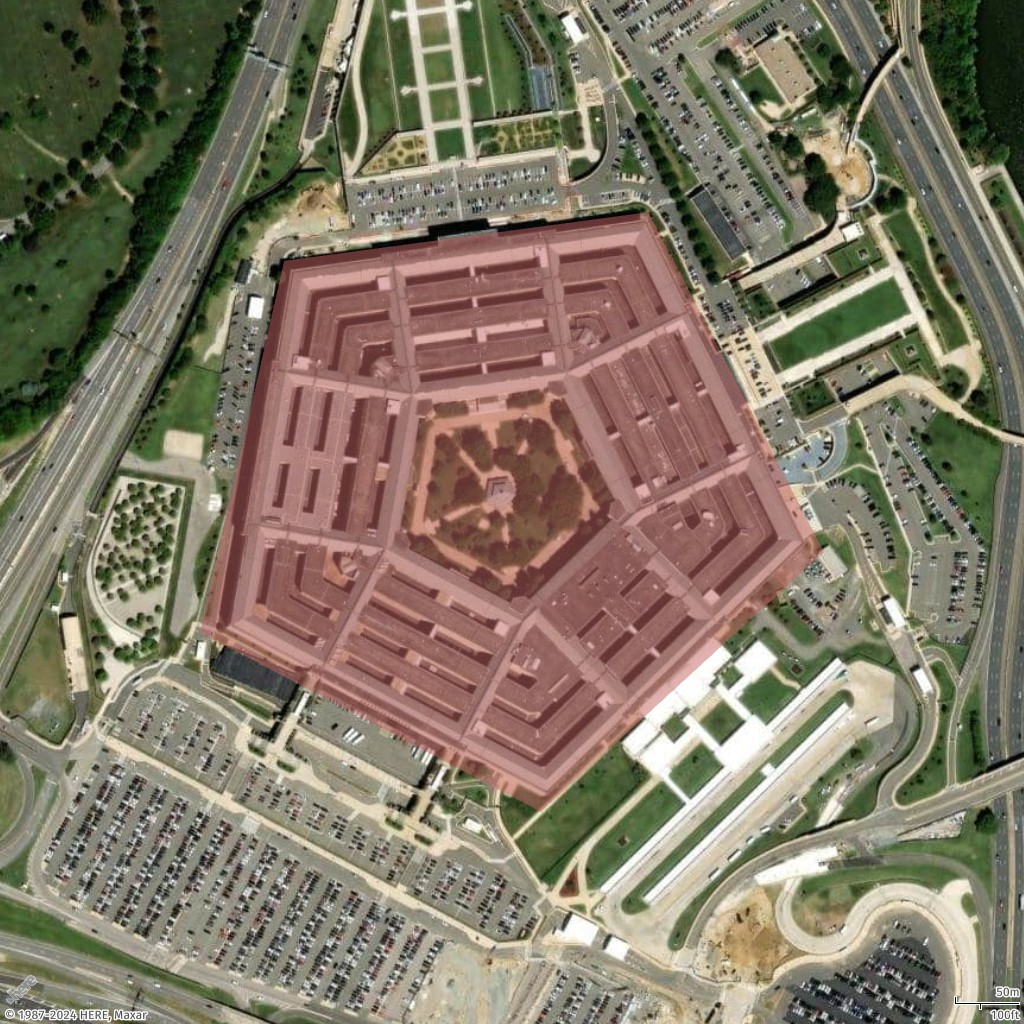

Fügen Sie ein einzelnes Polygon hinzu
In diesem Beispiel fügen Sie ein Polygon (ein Fünfeck) für das Pentagon-Gebäude auf der Karte hinzu.
- Geo JSON
-
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"coordinates": [
[
[
-77.0579282196337,
38.87264268371487
],
[
-77.05868880963534,
38.87003145971428
],
[
-77.05560979468949,
38.86876862025221
],
[
-77.05305311263672,
38.87059509268525
],
[
-77.0546384387842,
38.872985132206225
],
[
-77.0579282196337,
38.87264268371487
]
]
],
"type": "Polygon"
}
}
]
}
- Request URL
-
https://maps.geo.eu-central-1.amazonaws.com/v2/static/map?style=Satellite&width=600&height=1024&padding=200&scale-unit=KilometersMiles&geojson-overlay=%7B%22type%22%3A%22FeatureCollection%22,%22features%22%3A%5B%7B%22type%22%3A%22Feature%22,%22geometry%22%3A%7B%22coordinates%22%3A%5B%5B%5B-77.0579282196337,38.87264268371487%5D,%5B-77.05868880963534,38.87003145971428%5D,%5B-77.05560979468949,38.86876862025221%5D,%5B-77.05305311263672,38.87059509268525%5D,%5B-77.0546384387842,38.872985132206225%5D,%5B-77.0579282196337,38.87264268371487%5D%5D%5D,%22type%22%3A%22Polygon%22%7D%7D%5D%7D&key=your_API_Key
- Response image
-

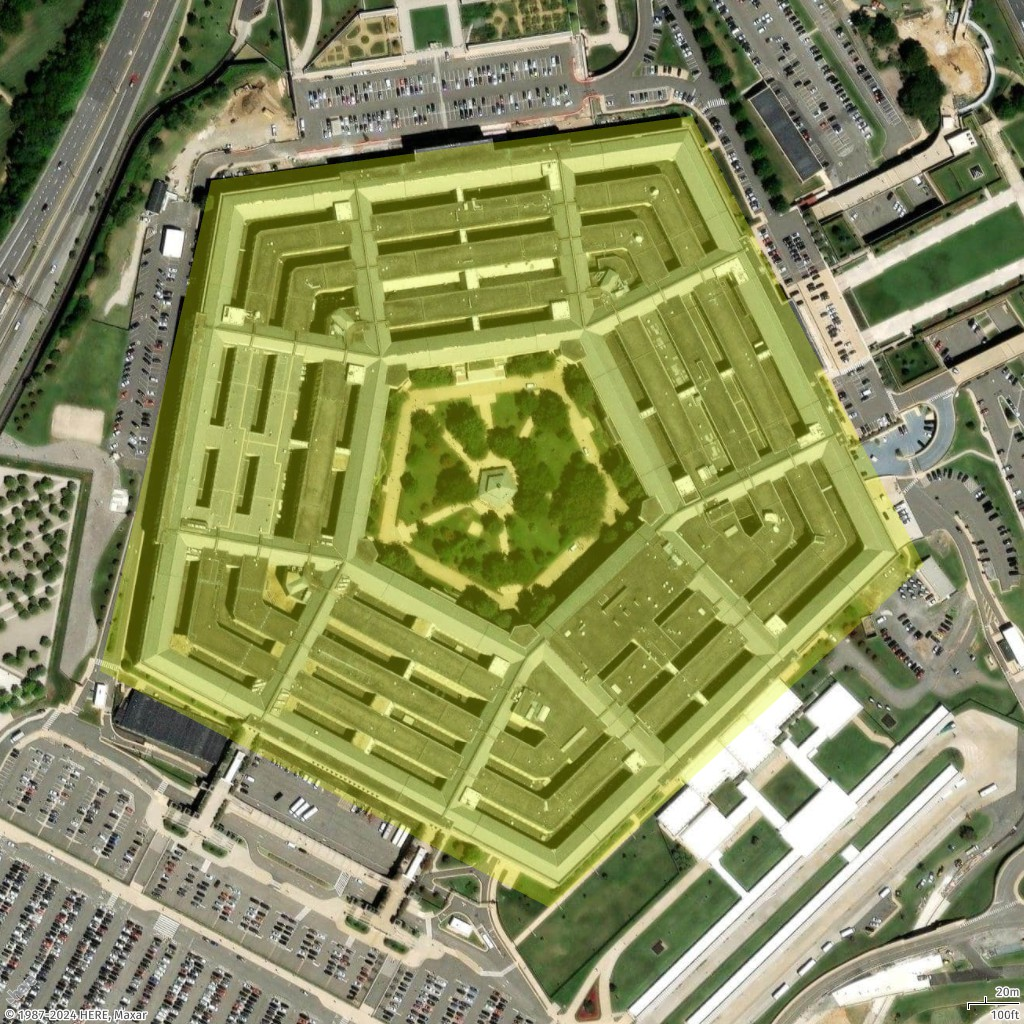

Fügen Sie ein Stilpolygon hinzu
In diesem Beispiel haben wir das im vorherigen Beispiel gezeigte Polygon neu gestaltet. Wir zeichnen das Polygon in einer anderen Farbe (#E3F70550). Die Farbkomponenten sind wie folgt.
-
E3 steht für die rote Komponente.
-
F7 steht für die grüne Komponente.
-
05 steht für die blaue Komponente.
-
50 steht für die Alpha-Komponente (Opazität).
- Geo JSON
-
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"coordinates": [
[
[
-77.0579282196337,
38.87264268371487
],
[
-77.05868880963534,
38.87003145971428
],
[
-77.05560979468949,
38.86876862025221
],
[
-77.05305311263672,
38.87059509268525
],
[
-77.0546384387842,
38.872985132206225
],
[
-77.0579282196337,
38.87264268371487
]
]
],
"type": "Polygon"
},
"properties": {
"color": "#E3F70550"
}
}
]
}
- Request URL
-
https://maps.geo.eu-central-1.amazonaws.com/v2/static/map?style=Satellite&width=1024&height=1024&padding=100&scale-unit=KilometersMiles&geojson-overlay=%7B%22type%22%3A%22FeatureCollection%22,%22features%22%3A%5B%7B%22type%22%3A%22Feature%22,%22geometry%22%3A%7B%22coordinates%22%3A%5B%5B%5B-77.0579282196337,38.87264268371487%5D,%5B-77.05868880963534,38.87003145971428%5D,%5B-77.05560979468949,38.86876862025221%5D,%5B-77.05305311263672,38.87059509268525%5D,%5B-77.0546384387842,38.872985132206225%5D,%5B-77.0579282196337,38.87264268371487%5D%5D%5D,%22type%22%3A%22Polygon%22%7D,%22properties%22%3A%7B%22color%22%3A%22%23E3F70550%22%7D%7D%5D%7D&key=your_API_Key
- Response image
-

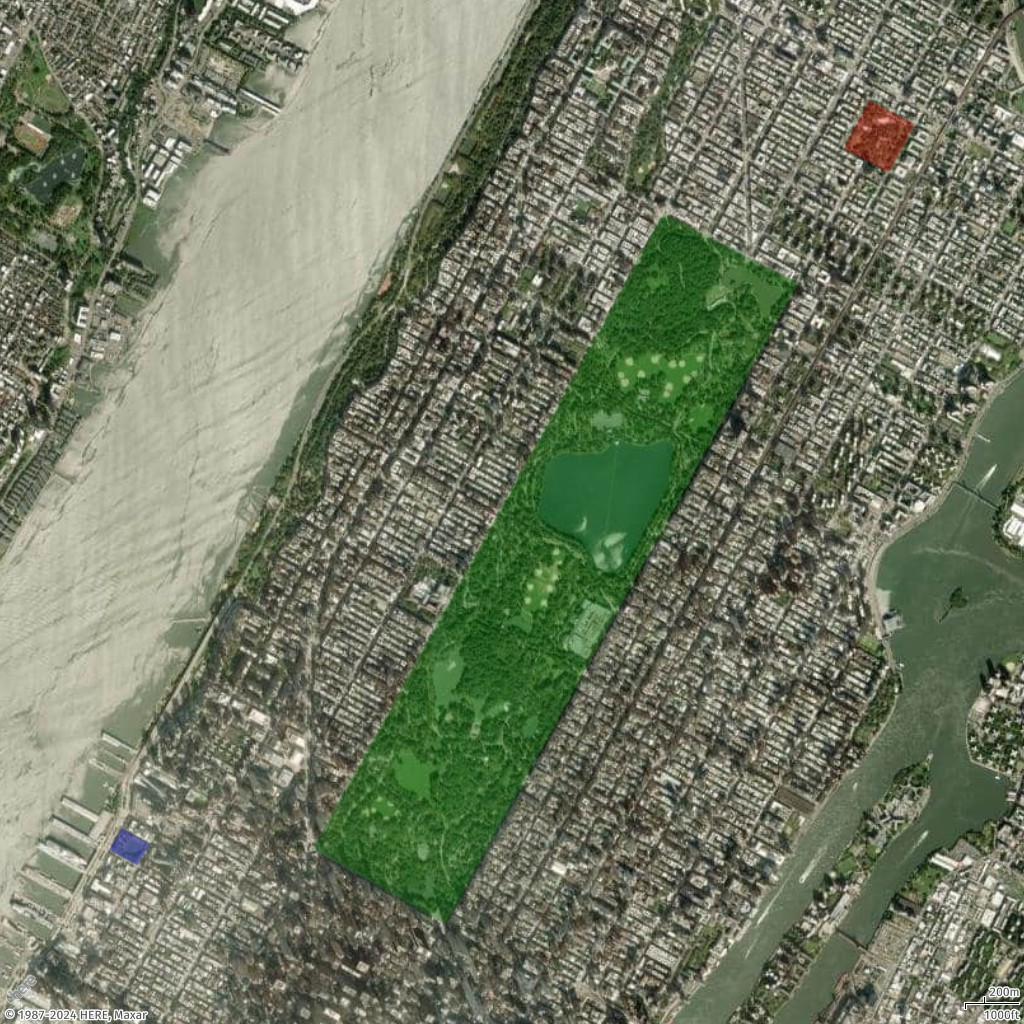

Fügen Sie mehrere Polygone hinzu
In diesem Beispiel fügen wir mehrere Polygone hinzu, um mehrere Parks in New York City hervorzuheben.
- Geo JSON
-
{
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"properties": {
"color": "#00800050"
},
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-73.95824708489555,
40.80055774655358
],
[
-73.9818875523859,
40.76810261850716
],
[
-73.9729556303776,
40.7642422333698
],
[
-73.94916953372382,
40.79699323614054
],
[
-73.95824708489555,
40.80055774655358
]
]
]
}
},
{
"type": "Feature",
"properties": {
"color": "#FF000050"
},
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-73.94432602794981,
40.80634757577718
],
[
-73.94607200977896,
40.803869579741644
],
[
-73.94301654157768,
40.80263972513214
],
[
-73.94127055974795,
40.805099411561145
],
[
-73.94432602794981,
40.80634757577718
]
]
]
}
},
{
"type": "Feature",
"properties": {
"color": "#0000FF50"
},
"geometry": {
"type": "Polygon",
"coordinates": [
[
[
-73.9947948382843,
40.7691390468232
],
[
-73.99564708262241,
40.76802192177411
],
[
-73.99372953286147,
40.76723992306512
],
[
-73.99289367783732,
40.76835706126087
],
[
-73.9947948382843,
40.7691390468232
]
]
]
}
}
]
}
- Request URL
-
https://maps.geo.eu-central-1.amazonaws.com/v2/static/map?style=Satellite&width=1024&height=1024&padding=100&scale-unit=KilometersMiles&geojson-overlay=%7B%22type%22%3A%22FeatureCollection%22,%22features%22%3A%5B%7B%22type%22%3A%22Feature%22,%22properties%22%3A%7B%22color%22%3A%22%2300800050%22%7D,%22geometry%22%3A%7B%22type%22%3A%22Polygon%22,%22coordinates%22%3A%5B%5B%5B-73.95824708489555,40.80055774655358%5D,%5B-73.9818875523859,40.76810261850716%5D,%5B-73.9729556303776,40.7642422333698%5D,%5B-73.94916953372382,40.79699323614054%5D,%5B-73.95824708489555,40.80055774655358%5D%5D%5D%7D%7D,%7B%22type%22%3A%22Feature%22,%22properties%22%3A%7B%22color%22%3A%22%23FF000050%22%7D,%22geometry%22%3A%7B%22type%22%3A%22Polygon%22,%22coordinates%22%3A%5B%5B%5B-73.94432602794981,40.80634757577718%5D,%5B-73.94607200977896,40.803869579741644%5D,%5B-73.94301654157768,40.80263972513214%5D,%5B-73.94127055974795,40.805099411561145%5D,%5B-73.94432602794981,40.80634757577718%5D%5D%5D%7D%7D,%7B%22type%22%3A%22Feature%22,%22properties%22%3A%7B%22color%22%3A%22%230000FF50%22%7D,%22geometry%22%3A%7B%22type%22%3A%22Polygon%22,%22coordinates%22%3A%5B%5B%5B-73.9947948382843,40.7691390468232%5D,%5B-73.99564708262241,40.76802192177411%5D,%5B-73.99372953286147,40.76723992306512%5D,%5B-73.99289367783732,40.76835706126087%5D,%5B-73.9947948382843,40.7691390468232%5D%5D%5D%7D%7D%5D%7D&key=your_API_Key
- Response image
-
