Task Pool library

Overview

FreeRTOS supports task management with the FreeRTOS Task Pool library. The Task Pool library enables you to schedule background tasks, and allows safe, asynchronous task scheduling and cancellation. Using the Task Pool APIs, you can configure your application's tasks to optimize the trade-off between performance and memory footprint.

The Task Pool library is built on two main data structures: the Task Pool and Task Pool jobs.

Task Pool (IotTaskPool_t)

The Task Pool contains a dispatch queue that manages the job queue for execution, and manages the worker threads that execute jobs.

Task Pool jobs (IotTaskPoolJob_t)

Task Pool jobs can be executed as background jobs, or timed background jobs. Background jobs are started in First-In-First-Out order and have no time constraints. Timed jobs are scheduled for background execution according to a timer.

Dependencies and requirements

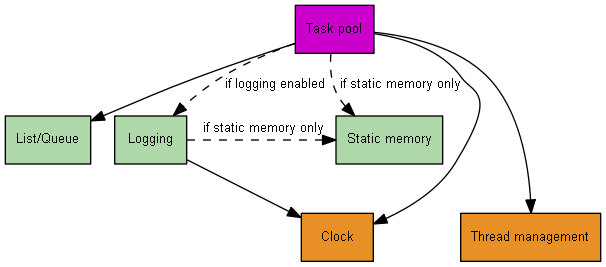

The Task Pool library has the following dependencies:

Features

Using the Task Pool library APIs, you can do the following:

Troubleshooting

The Task Pool library functions return error codes as IotTaskPoolError_t enumerated values. For more information about each error code, see the reference documentation for IotTaskPoolError_t enumerated data type in Task Pool C SDK API Reference.

Usage restrictions

The Task Pool pool library cannot be used from an interrupt service routine (ISR).

We strongly discourage task pool user callbacks that perform blocking operations, especially indefinite blocking operations. Long-standing blocking operations effectively steal a task pool thread, and create a potential for deadlock or starvation.

Initialization

An application needs to call IotTaskPool_CreateSystemTaskPool to initialize an instance of a system task pool, prior to using the task pool. The application needs to make sure that system-level task pool is initialized early enough in the boot sequence, before any library uses the task pool, and before any application code posts a job to the task pool. Shortly after boot, the system initializes the single, system-level task pool for all libraries to share. After initialization, the task pool handle can be retrieved for use with the IOT_SYSTEM_TASKPOOL API.

API reference

For a full API reference, see Task Pool C SDK API Reference.

Example usage

Suppose that you need to schedule a recurring collection of AWS IoT Device Defender metrics, and you decide to use a timer to schedule the collection with calls to the MQTT connect, subscribe, and publish APIs. The following code defines a callback function for accepting AWS IoT Device Defender metrics across MQTT, with a disconnect callback that disconnects from the MQTT connection.

/* An example of a user context to pass to a callback through a task pool thread. */
typedef struct JobUserContext
{
    uint32_t counter;
} JobUserContext_t;

/* An example of a user callback to invoke through a task pool thread. */
static void ExecutionCb( IotTaskPool_t * pTaskPool, IotTaskPoolJob_t * pJob, void * context )
{
    ( void )pTaskPool;
    ( void )pJob;
    JobUserContext_t * pUserContext = ( JobUserContext_t * )context;
    pUserContext->counter++;
}

void TaskPoolExample( )
{
    JobUserContext_t userContext = { 0 };
    IotTaskPoolJob_t job;
    IotTaskPool_t * pTaskPool;
    IotTaskPoolError_t errorSchedule;

    /* Configure the task pool to hold at least two threads and three at the maximum. */
    /* Provide proper stack size and priority per the application needs. */
    const IotTaskPoolInfo_t tpInfo = { .minThreads = 2, .maxThreads = 3, .stackSize = 512, .priority = 0 };

    /* Create a task pool. */
    IotTaskPool_Create( &tpInfo, &pTaskPool );

    /* Statically allocate one job, then schedule it. */
    IotTaskPool_CreateJob( &ExecutionCb, &userContext, &job );
    errorSchedule = IotTaskPool_Schedule( pTaskPool, &job, 0 );

    switch ( errorSchedule )
    {
    case IOT_TASKPOOL_SUCCESS:
        break;
    case IOT_TASKPOOL_BAD_PARAMETER:          // Invalid parameters, such as a NULL handle, can trigger this error.
    case IOT_TASKPOOL_ILLEGAL_OPERATION:      // Scheduling a job that was previously scheduled or destroyed could trigger this error.
    case IOT_TASKPOOL_NO_MEMORY:              // Scheduling a with flag #IOT_TASKPOOL_JOB_HIGH_PRIORITY could trigger this error.
    case IOT_TASKPOOL_SHUTDOWN_IN_PROGRESS:   // Scheduling a job after trying to destroy the task pool could trigger this error.
        // ASSERT
        break;
    default:
        // ASSERT*/
    }

    /* ................................. */
    /*  ... Perform other operations ... */
    /* ................................. */

    IotTaskPool_Destroy( pTaskPool );
}
