AWS IoT Device Defender Demo

Amazon FreeRTOS includes a single-threaded demo application that collects some AWS IoT Device Defender metrics for a device and publishes them to an MQTT topic. This demo is defined in <amazon-freertos>/demos/defender/aws_iot_defender_demo.c.

Before you can run the Device Defender demo, you must complete the getting started First Steps to set up AWS IoT and Amazon FreeRTOS so your device can communicate with the AWS cloud.

Open <amazon-freertos>/vendors/<vendor>/boards/<board>/aws_demos/config_files/aws_demo_config.h, comment out #define CONFIG_MQTT_DEMO_ENABLED, and define CONFIG_DEFENDER_DEMO_ENABLED.

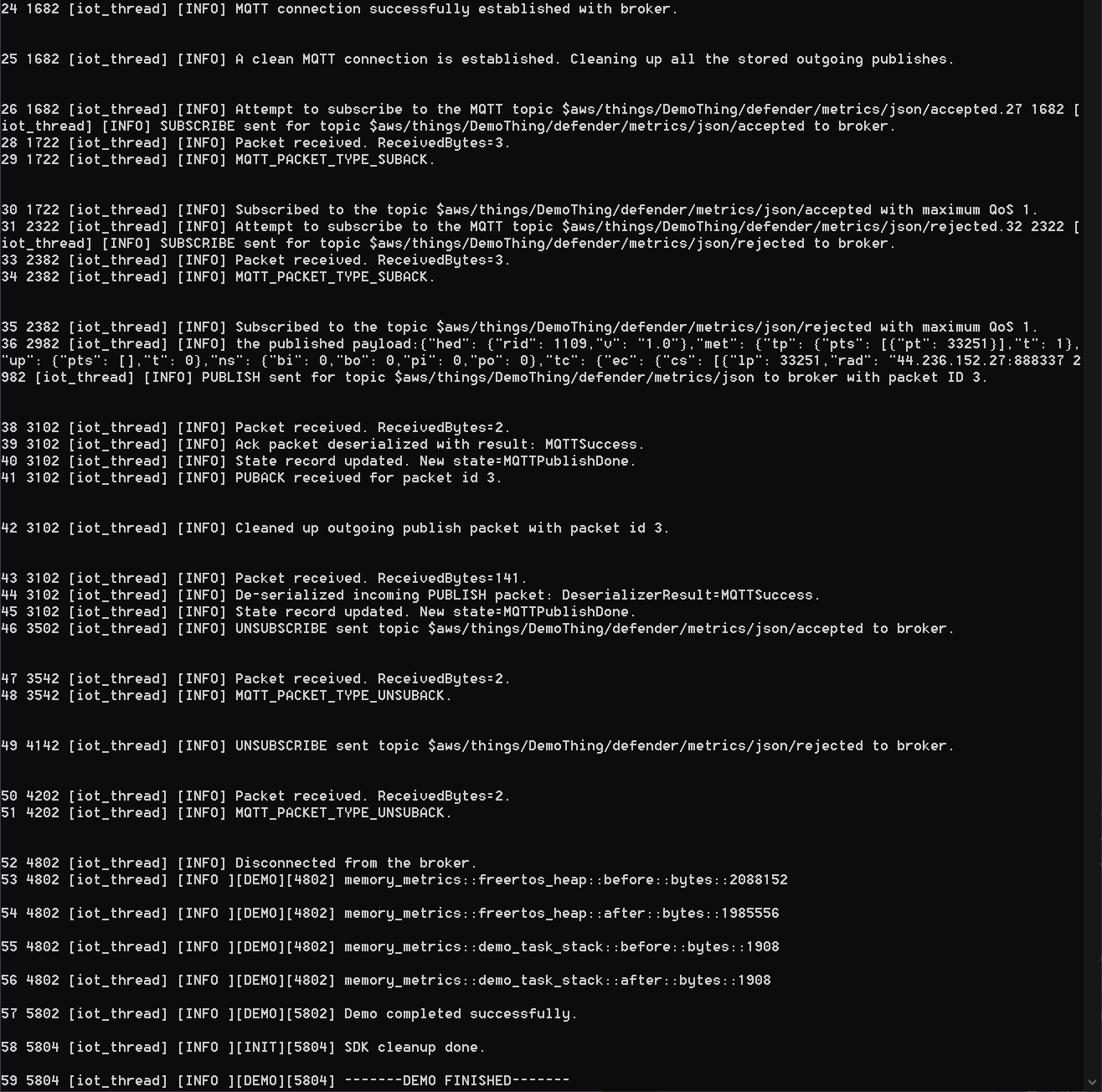

When you build, flash, and run Amazon FreeRTOS on your device with the Device Defender demo enabled, the following output should appear:

13 199 [iot_thread] [INFO ][DEMO][199] ----Device Defender Demo Start----. 14 199 [iot_thread] [INFO ][Defender][199] Metrics are successfully updated. 15 199 [iot_thread] [INFO ][Defender][199] Period has been set to 300 seconds successfully. 16 199 [iot_thread] [INFO ][Defender][199] Defender agent has successfully started. 17 250 [iot_thread] [INFO ][DEMO][250] expected ip: 34.208.133.153 18 570 [iot_thread] [INFO ][MQTT][570] Establishing new MQTT connection. 19 575 [iot_thread] [INFO ][MQTT][575] (MQTT connection 00E5CAC0, CONNECT operation 00E5CC50) Waiting for operation completion. 20 670 [iot_thread] [INFO ][MQTT][670] (MQTT connection 00E5CAC0, CONNECT operation 00E5CC50) Wait complete with result SUCCESS. 21 670 [iot_thread] [INFO ][MQTT][670] New MQTT connection 010BA79C established. 22 670 [iot_thread] [INFO ][MQTT][670] (MQTT connection 00E5CAC0) SUBSCRIBE operation scheduled. 23 670 [iot_thread] [INFO ][MQTT][670] (MQTT connection 00E5CAC0, SUBSCRIBE operation 00E5CC50) Waiting for operation completion. 24 710 [iot_thread] [INFO ][MQTT][710] (MQTT connection 00E5CAC0, SUBSCRIBE operation 00E5CC50) Wait complete with result SUCCESS. 25 711 [iot_thread] [INFO ][MQTT][711] (MQTT connection 00E5CAC0) MQTT PUBLISH operation queued. 26 870 [iot_thread] [INFO ][Defender][870] Metrics report was accepted by defender service. 27 870 [iot_thread] [INFO ][DEMO][870] User's callback is invoked on event 0. 28 870 [iot_thread] [INFO ][DEMO][870] Published metrics report. 29 870 [iot_thread] [INFO ][DEMO][870] Received MQTT message. 30 3711 [iot_thread] [INFO ][MQTT][3711] (MQTT connection 00E5CAC0) Disconnecting connection. 31 3711 [iot_thread] [INFO ][MQTT][3711] (MQTT connection 00E5CAC0, DISCONNECT operation 00E5CC50) Waiting for operation completion. 32 3712 [iot_thread] [INFO ][MQTT][3712] (MQTT connection 00E5CAC0, DISCONNECT operation 00E5CC50) Wait complete with result SUCCESS. 33 3712 [iot_thread] [INFO ][MQTT][3712] (MQTT connection 00E5CAC0) Connection disconnected. 34 3712 [iot_thread] [INFO ][MQTT][3712] (MQTT connection 00E5CAC0) Network connection closed. 35 3751 [iot_thread] [INFO ][MQTT][3751] (MQTT connection 00E5CAC0) Network connection destroyed. 36 3752 [iot_thread] [INFO ][Defender][3752] Defender agent has stopped. 37 3752 [iot_thread] [INFO ][DEMO][3752] ----Device Defender Demo End----.
