Migrate Apache Spark programs to AWS Glue

Apache Spark is an open-source platform for distributed computing workloads performed on large datasets. AWS Glue leverages Spark's capabilities to provide an optimized experience for ETL. You can migrate Spark programs to AWS Glue to take advantage of our features. AWS Glue provides the same performance enhancements you would expect from Apache Spark on Amazon EMR.

Run Spark code

Native Spark code can be run in a AWS Glue environment out of the box. Scripts are often developed by iteratively changing a piece of code, a workflow suited for an Interactive Session. However, existing code is more suited to run in a AWS Glue job, which allows you to schedule and consistently get logs and metrics for each script run. You can upload and edit an existing script through the console.

1. Acquire the source to your script. For this example, you will use an example script from the Apache Spark repository. Binarizer Example

2. In the AWS Glue Console, expand the left-side navigation pane and select ETL > Jobs

   In the Create job panel, select Spark script editor. An Options section will appear. Under Options, select Upload and edit an existing script.

   A File upload section will appear. Under File upload, click Choose file. Your system file chooser will appear. Navigate to the location where you saved binarizer_example.py, select it and confirm your selection.

   A Create button will appear on the header for the Create job panel. Click it.

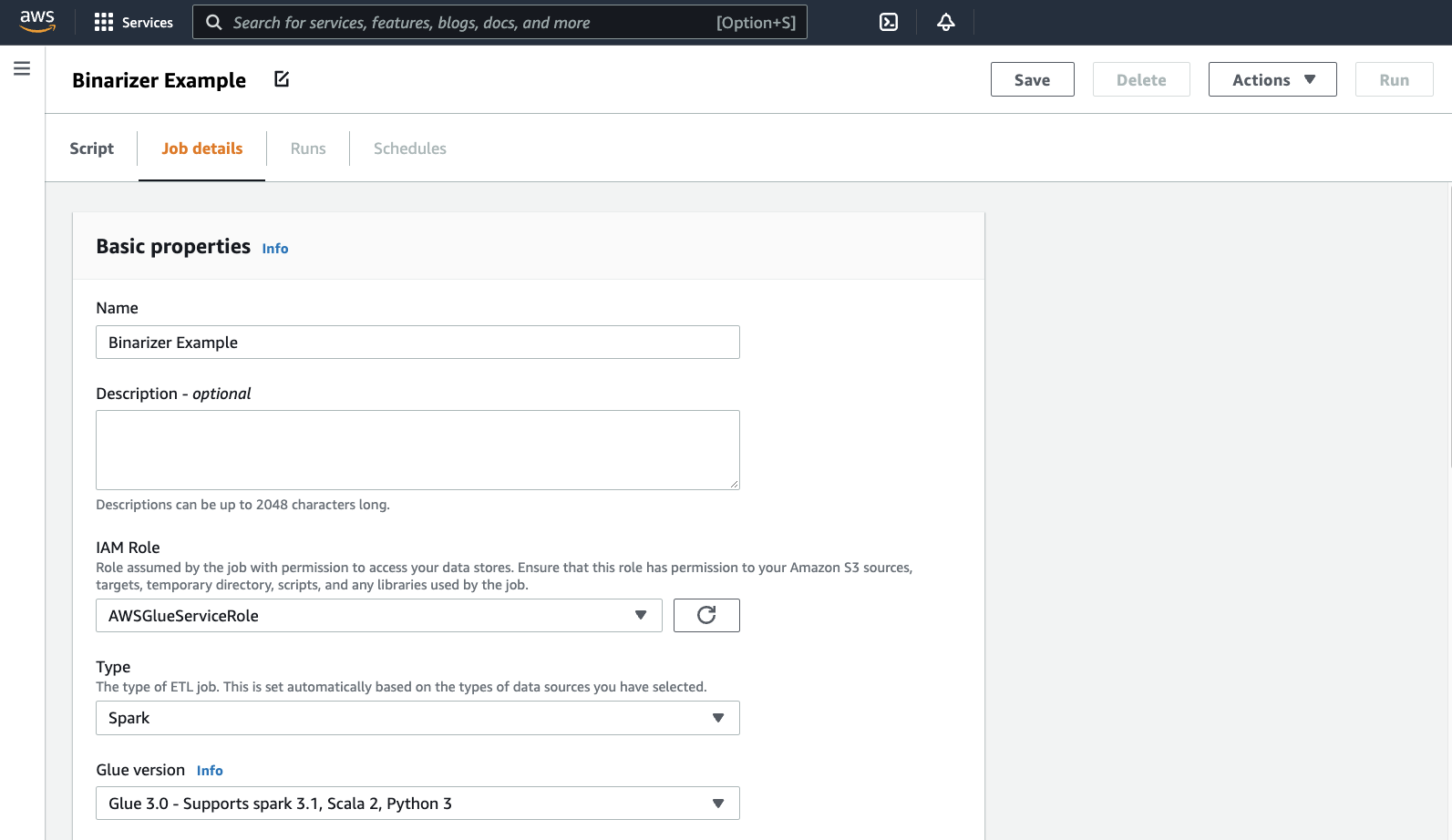

3. Your browser will navigate to the script editor. On the header, click the Job details tab. Set the Name and IAM Role. For guidance around AWS Glue IAM roles, consult Setting up IAM permissions for AWS Glue.

   Optionally - set Requested number of workers to 2 and Number of retries to 1. These options are valuable when running production jobs, but turning them down will streamline your experience while testing out a feature.

   In the title bar, click Save, then Run

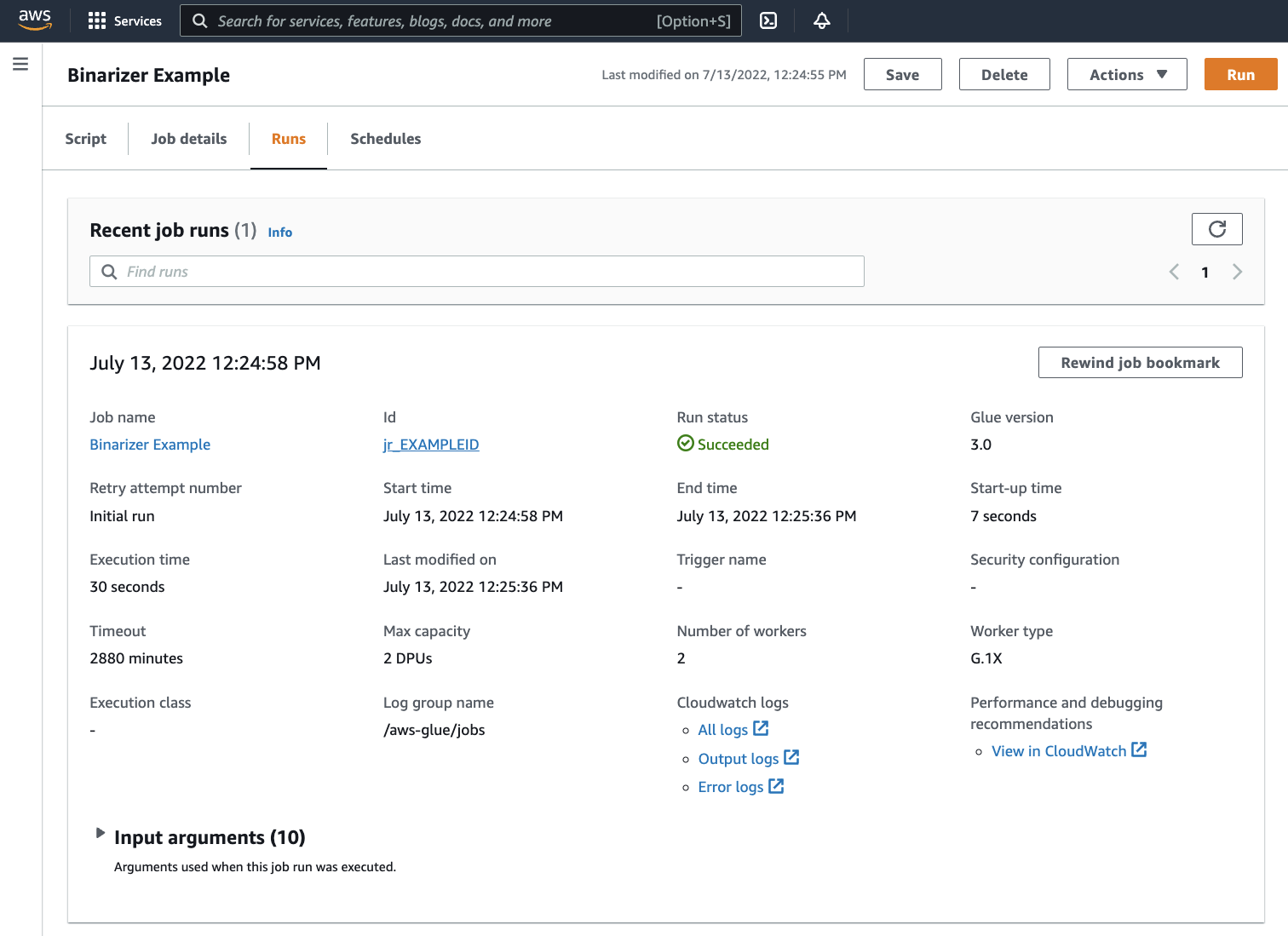

4. Navigate to the Runs tab. You will see a panel corresponding to your job run. Wait a few minutes and the page should automatically refresh to show Succeeded under Run status.



5. You will want to examine your output to confirm that the Spark script ran as intended. This Apache Spark sample script should write a string to the output stream. You can find that by navigating to Output logs under Cloudwatch logs in the panel for the successful job run. Note the job run id, a generated id under the Id label beginning with jr_.

   This will open the CloudWatch console, set to visualize the contents of the default AWS Glue log group /aws-glue/jobs/output, filtered to the contents of the log streams for the job run id. Each worker will have generated a log stream, shown as rows under the Log streams . One worker should have run the requested code. You will need to open all the log streams to identify the correct worker. Once you find the right worker, you should see the output of the script, as seen in the following image:



Common procedures needed for migrating Spark programs

Assess Spark version support

AWS Glue release versions define the version of Apache Spark and Python available to the AWS Glue job. You can find our AWS Glue versions and what they support at AWS Glue versions. You may need to update your Spark program to be compatible with a newer version of Spark in order to access certain AWS Glue features.

Include third-party libraries

Many existing Spark programs will have dependencies, both on private and public artifacts. AWS Glue supports JAR style dependencies for Scala Jobs as well as Wheel and source pure-Python dependencies for Python jobs.

Python - For information about Python dependencies, see Using Python libraries with AWS Glue

Common Python dependencies are provided in the AWS Glue environment, including the commonly requested Pandas library. Dependencies are included in AWS Glue Version 2.0+. For more information about provided modules, see Python modules already provided in AWS Glue. If you need to supply a Job with a different version of a dependency included by default, you can use --additional-python-modules. For information about job arguments, see Using job parameters in AWS Glue jobs.

You can supply additional Python dependencies with the --extra-py-files job argument. If you are migrating a job from a Spark program, this parameter is a good option because it is functionally equivalent to the --py-files flag in PySpark, and is subject to the same limitations. For more information about the --extra-py-files parameter, see Including Python files with PySpark native features

For new jobs, you can manage Python dependencies with the --additional-python-modules job argument. Using this argument allows for a more thorough dependency management experience. This parameter supports Wheel style dependencies, including those with native code bindings compatible with Amazon Linux 2.

Scala

You can supply additional Scala dependencies with the --extra-jars Job Argument. Dependencies must be hosted in Amazon S3 and the argument value should be a comma delimited list of Amazon S3 paths with no spaces. You may find it easier to manage your configuration by rebundling your dependencies before hosting and configuring them. AWS Glue JAR dependencies contain Java bytecode, which can be generated from any JVM language. You can use other JVM languages, such as Java, to write custom dependencies.

Manage data source credentials

Existing Spark programs may come with complex or custom configuration to pull data from their datasources. Common datasource auth flows are supported by AWS Glue connections. For more information about AWS Glue connections, see Connecting to data.

AWS Glue connections facilitate connecting your Job to a variety of types of data stores in two primary ways: through method calls to our libraries and setting the Additional network connection in the AWS console. You may also call the AWS SDK from within your job to retrieve information from a connection.

Method calls – AWS Glue Connections are tightly integrated with the AWS Glue Data Catalog, a service that allows you to curate information about your datasets, and the methods available to interact with AWS Glue connections reflect that. If you have an existing auth configuration you would like to reuse, for JDBC connections, you can access your AWS Glue connection configuration through the extract_jdbc_conf method on the GlueContext. For more information, see extract_jdbc_conf

Console configuration – AWS Glue Jobs use associated AWS Glue connections to configure connections to Amazon VPC subnets. If you directly manage your security materials, you may need to provide a NETWORK type Additional network connection in the AWS console to configure routing. For more information about the AWS Glue connection API, see Connection API

If your Spark programs has a custom or uncommon auth flow, you may need to manage your security materials in a hands-on fashion. If AWS Glue connections do not seem like a good fit, you can securely host security materials in Secrets Manager and access them through the boto3 or AWS SDK, which are provided in the job.

Configure Apache Spark

Complex migrations often alter Spark configuration to acommodate their workloads. Modern versions of Apache Spark allow runtime configuration to be set with the SparkSession. AWS Glue 3.0+ Jobs are provided a SparkSession, which can be modified to set runtime configuration. Apache Spark Configuration. Tuning Spark is complex, and AWS Glue does not guarantee support for setting all Spark configuration. if your migration requires substantial Spark-level configuration, contact support.

Set custom configuration

Migrated Spark programs may be designed to take custom configuration. AWS Glue allows configuration to be set on the job and job run level, through the job arguments. For information about job arguments, see Using job parameters in AWS Glue jobs. You can access job arguments within the context of a job through our libraries. AWS Glue provides a utility function to provide a consistent view between arguments set on the job and arguments set on the job run. See Accessing parameters using getResolvedOptions in Python and AWS Glue Scala GlueArgParser APIs in Scala.

Migrate Java code

As explained in Include third-party libraries, your dependencies can contain classes generated by JVM languages, such as Java or Scala. Your dependencies can include a main method. You can use a main method in a dependency as the entrypoint for a AWS Glue Scala job. This allows you to write your main method in Java, or reuse a main method packaged to your own library standards.

To use a main method from a dependency, perform the following: Clear the contents of the editing pane providing the default GlueApp object. Provide the fully qualified name of a class in a dependency as a job argument with the key --class. You should then be able to trigger a Job run.

You cannot configure the order or structure of the arguments AWS Glue passes to the main method. If your existing code needs to read configuration set in AWS Glue, this will likely cause incompatibility with prior code. If you use getResolvedOptions, you will also not have a good place to call this method. Consider invoking your dependency directly from a main method generated by AWS Glue. The following AWS Glue ETL script shows an example of this.

import com.amazonaws.services.glue.util.GlueArgParser

object GlueApp {
  def main(sysArgs: Array[String]) {
    val args = GlueArgParser.getResolvedOptions(sysArgs, Seq("JOB_NAME").toArray)

    // Invoke static method from JAR. Pass some sample arguments as a String[], one defined inline and one taken from the job arguments, using getResolvedOptions
    com.mycompany.myproject.MyClass.myStaticPublicMethod(Array("string parameter1", args("JOB_NAME")))

    // Alternatively, invoke a non-static public method.
    (new com.mycompany.myproject.MyClass).someMethod()
  }
}
