Set Up a Continuous Deployment Pipeline Using AWS CodePipeline

AWS experience	Beginner
Minimum time to complete	30 minutes
Cost to complete	Free Tier eligible
Services used	AWS CodePipeline AWS Elastic Beanstalk
Last updated	February 14, 2023

Overview

In this tutorial, you will learn how to create an automated software release pipeline that deploys a live sample app. You will create the pipeline using AWS CodePipeline, a service that builds, tests, and deploys your code every time there is a code change. You will use your GitHub account, an Amazon Simple Storage Service (Amazon S3) bucket, or an AWS CodeCommit repository as the source location for the sample app’s code. You will also use AWS Elastic Beanstalk as the deployment target for the sample app. Your completed pipeline will be able to detect changes made to the source repository containing the sample app and then automatically update your live sample app.

Continuous deployment allows you to deploy revisions to a production environment automatically without explicit approval from a developer, making the entire software release process automated.

Everything done in this tutorial is Free Tier eligible.

What you will accomplish

In this tutorial, you will:

• create an automated software release pipeline that deploys a live sample app

• create the pipeline using AWS CodePipeline

• use AWS Elastic Beanstalk as the deployment target for the sample app

Prerequisites

Before starting this tutorial, you will need an AWS account. If you don't already have one, follow the Setting Up Your AWS Environment getting started guide for a quick overview.

Implementation

Step 1: Create a deployment environment

Your continuous deployment pipeline will need a target environment containing virtual servers, or Amazon EC2 instances, where it will deploy sample code. You will prepare this environment before creating the pipeline.

To simplify the process of setting up and configuring EC2 instances for this tutorial, you will spin up a sample environment using AWS Elastic Beanstalk. With Elastic Beanstalk you can easily host web applications without needing to launch, configure, or operate virtual servers on your own. It automatically provisions and operates the infrastructure (such as virtual servers and load balancers) and provides the application stack (such as OS, language and framework, and web and application server) for you.

1. Create an application

   To start, open the Elastic Beanstalk console and choose Create Application.

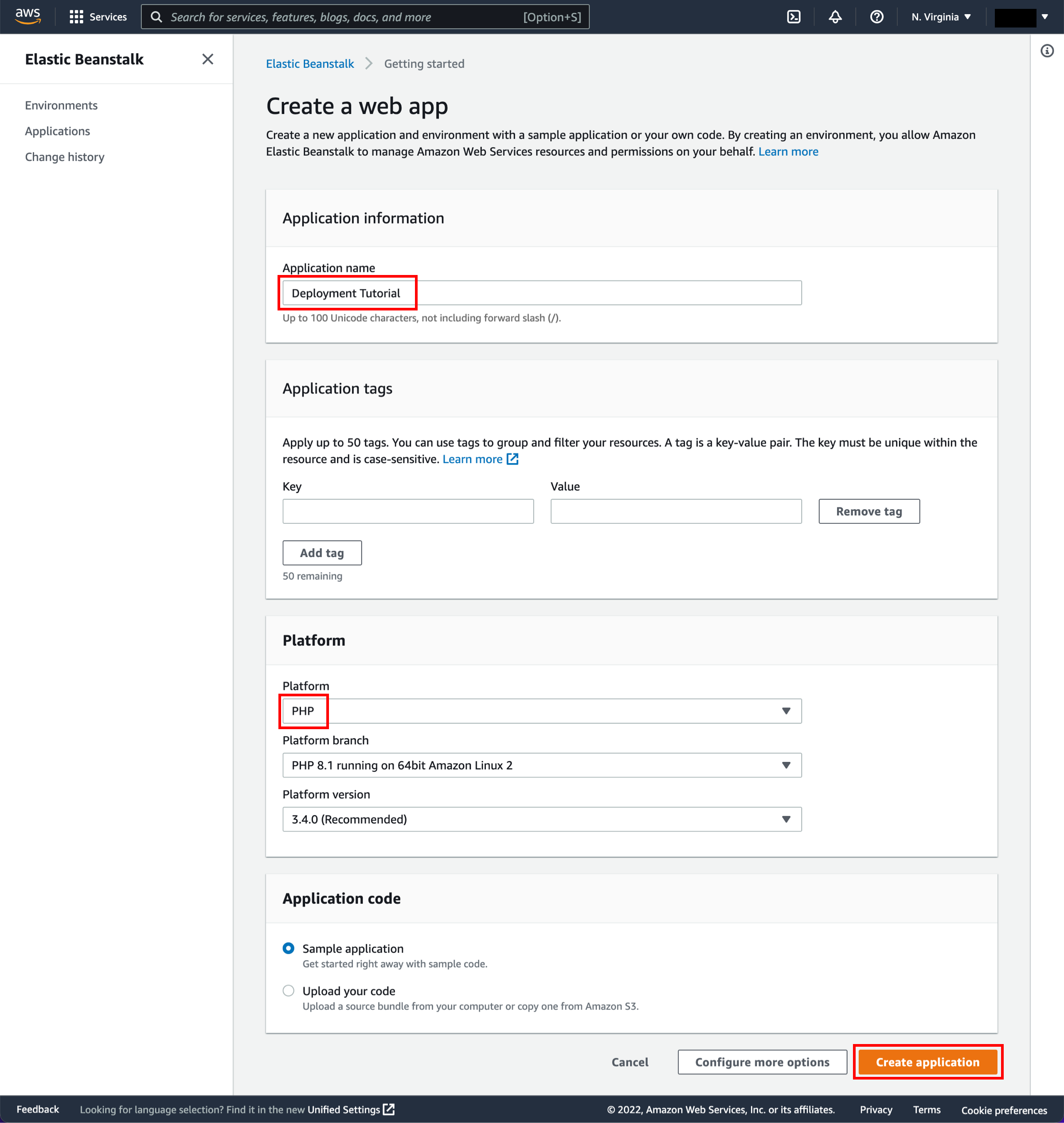

2. Configure the application

   For Application name, enter Deployment Tutorial. Select PHP from the dropdown menu under Platform, and choose Create application.

   Note

   If you have created an Elastic Beanstalk application before, choose Create New Application on the upper-right corner. Name your application and create a new web server environment. Select PHP as your Platform and Single Instance as your Environment type. If you are planning to remote login to your instances, select a key pair. Otherwise, leave default values for the remaining options and create the environment for your continuous deployment pipeline.



3. Create a sample environment

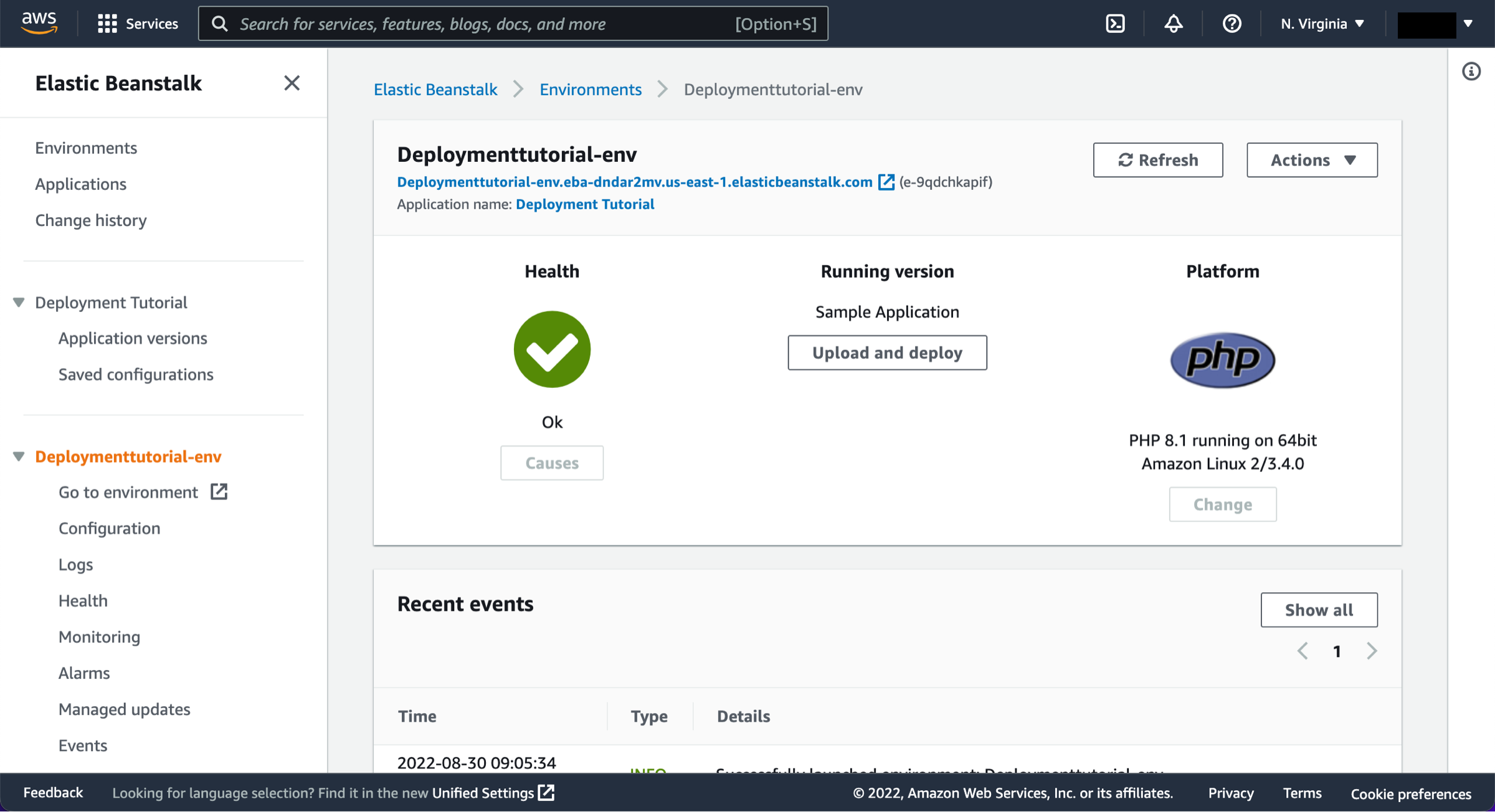

   Elastic Beanstalk will begin creating a sample environment for you to deploy your application to. It will create an Amazon EC2 instance, a security group, an Auto Scaling group, an Amazon S3 bucket, Amazon CloudWatch alarms, and a domain name for your application.

   Note

   This will take several minutes to complete.



Step 2: Get a copy of the sample code

In this step, you will retrieve a copy of the sample app’s code and choose a source to host the code. The pipeline takes code from the source and then performs actions on it.

You can use one of three options as your source: a GitHub repository, an Amazon S3 bucket, or an AWS CodeCommit repository. Select your preference and follow the steps.

GitHub

Use this procedure if you would like to use your GitHub account as your source.

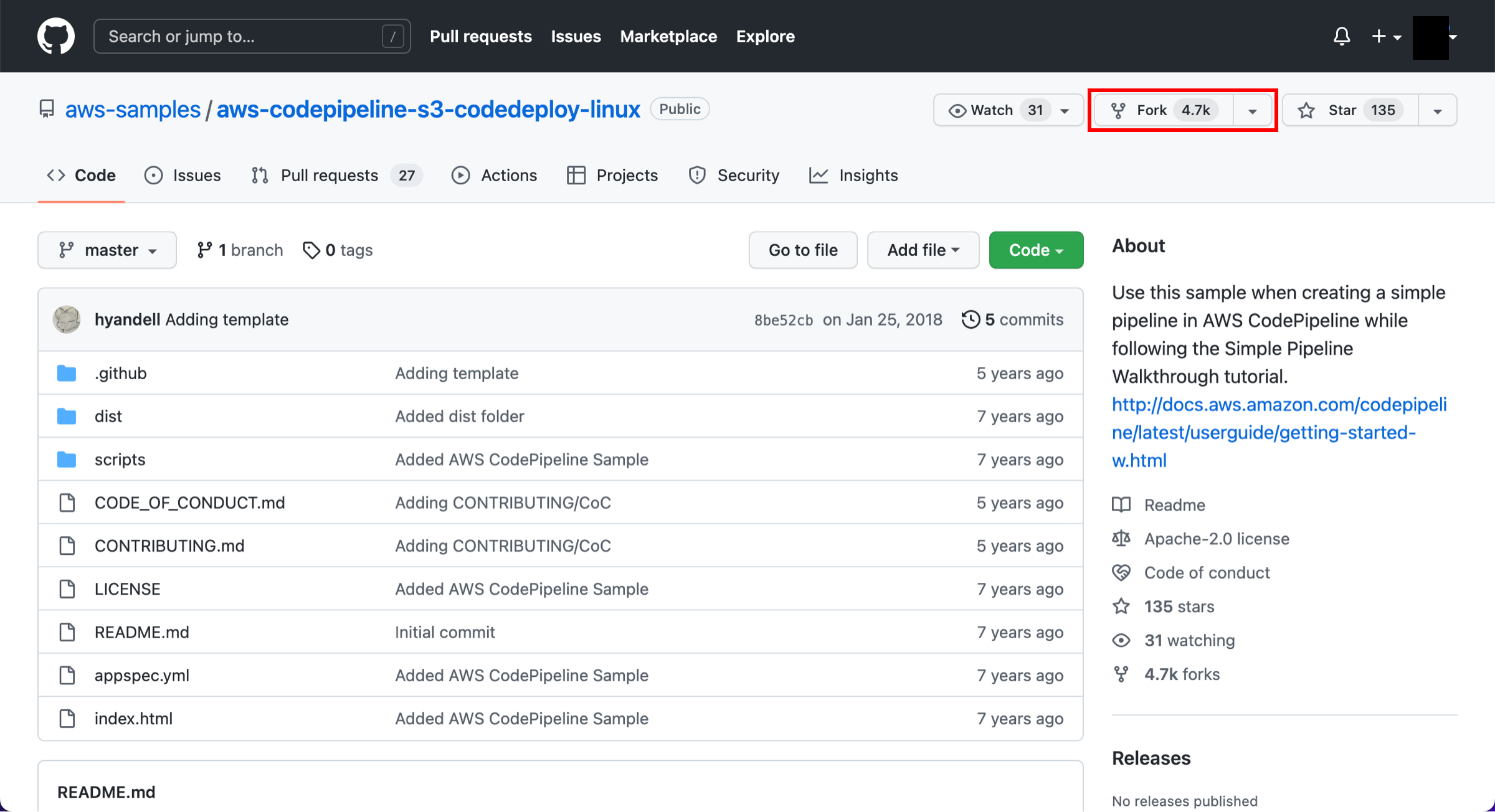

• Fork the repository

  If you would like to use your GitHub account:

  • Visit our GitHub repository containing the sample code at https://github.com/aws-samples/aws-codepipeline-s3-codedeploy-linux.

  • Fork a copy of the repository to your own GitHub account by choosing the Fork button in the upper-right corner.

  Then, go to Create your pipeline.



Amazon S3

Use this procedure if you would like to use Amazon S3 as your source.

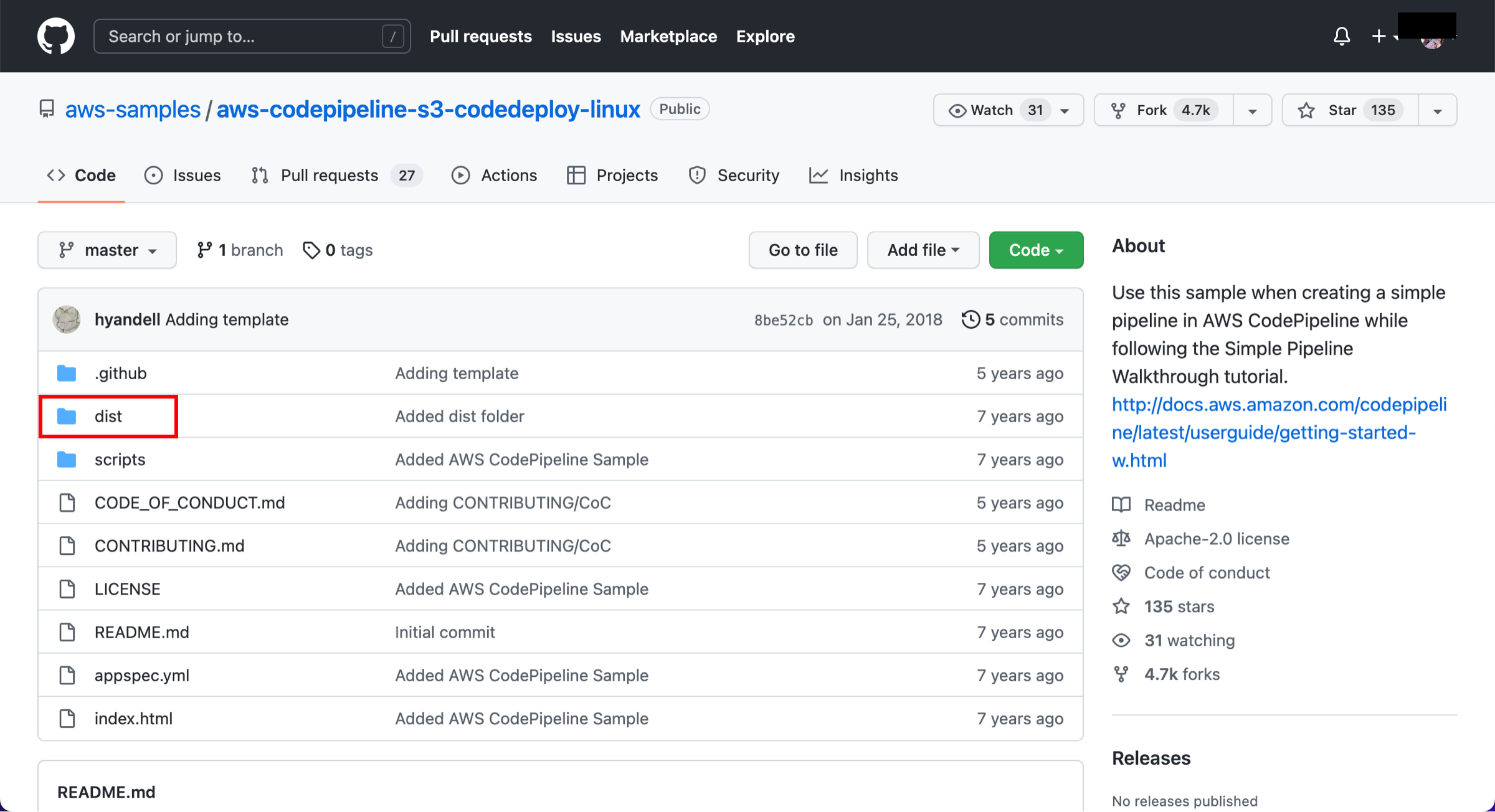

1. Navigate to the sample code

   If you plan to use Amazon S3 as your source, you will retrieve the sample code from the AWS GitHub repository, save it to your computer, and upload it to an Amazon S3 bucket.

   • Visit our GitHub repository containing the sample code at https://github.com/aws-samples/aws-codepipeline-s3-codedeploy-linux

   • Select the dist folder.



2. Download the files

   Save the source files to your computer:

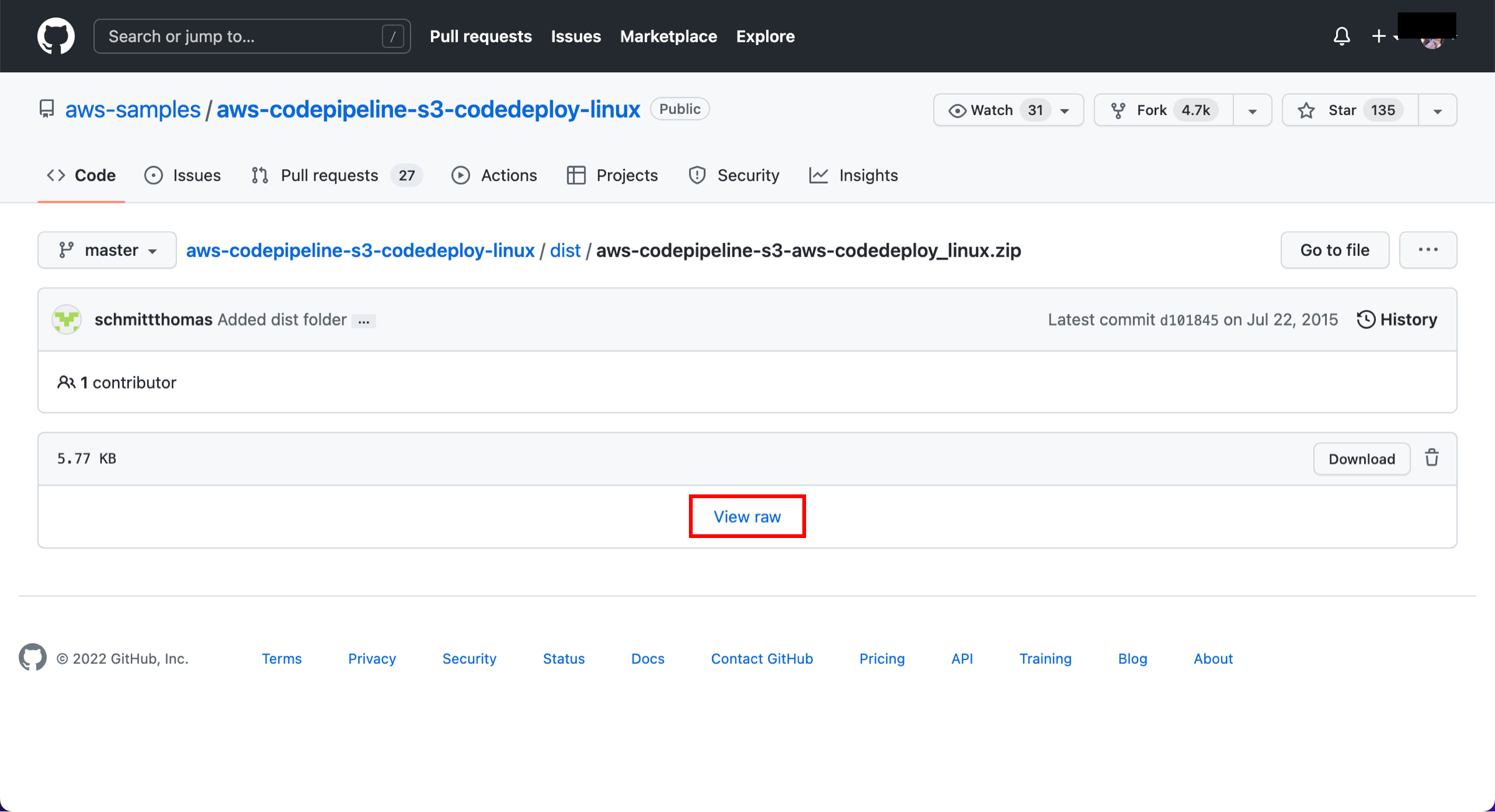

   1. Select the file named aws-codepipeline-s3-aws-codedeploy_linux.zip.

   2. Choose View raw.

   3. Save the sample file to your local computer.

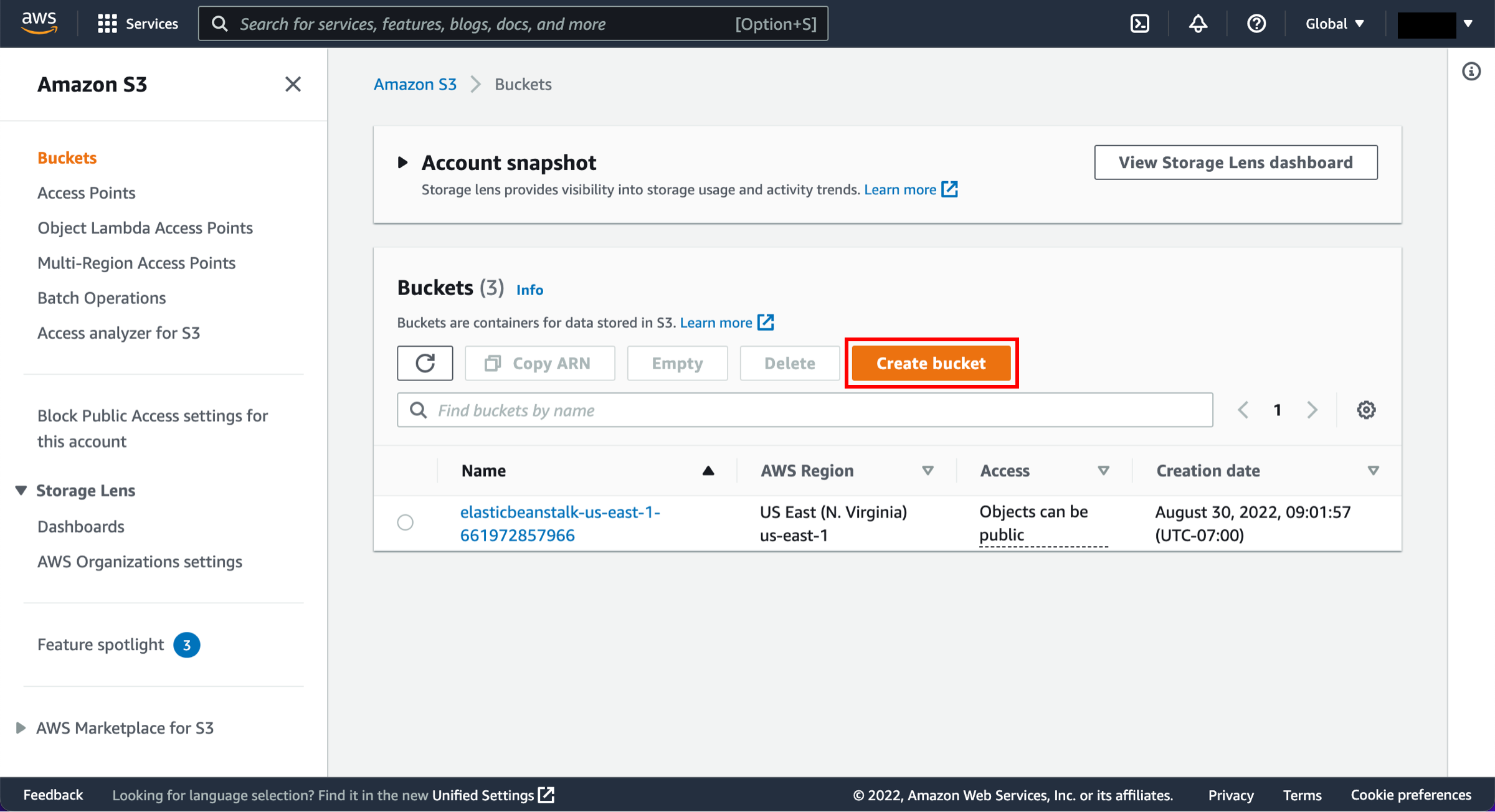

3. Create a bucket

   Open the Amazon S3 console and choose Create bucket.

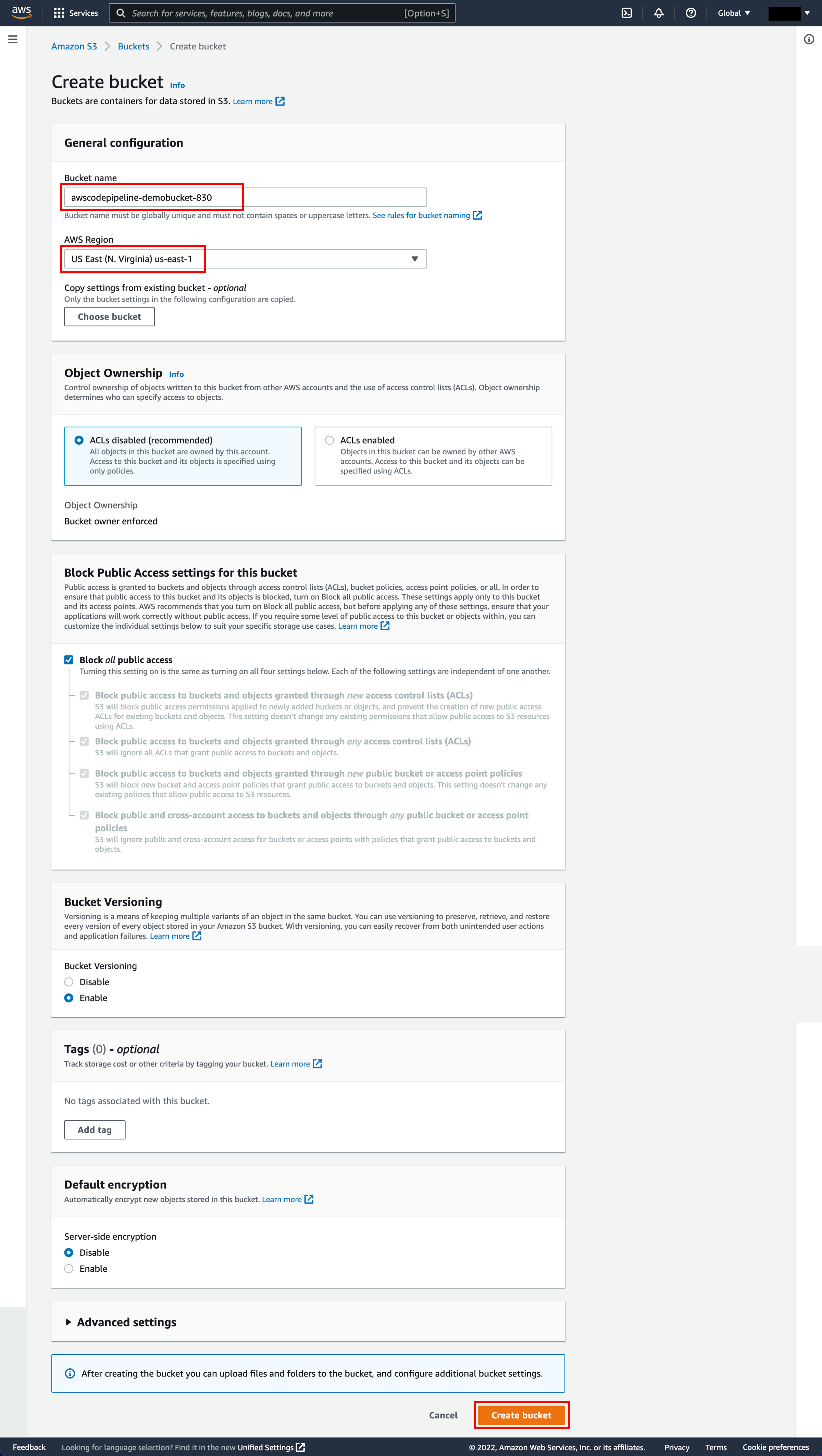

4. Configure bucket details

   Bucket name: Enter a unique name for your bucket, such as awscodepipeline-demobucket-variables. All bucket names in Amazon S3 must be unique, so use one of your own, not one with the name shown in the example.

   Region: In the dropdown, select the Region where you will create your pipeline, such as US East (N. Virginia).

   Choose Create bucket.

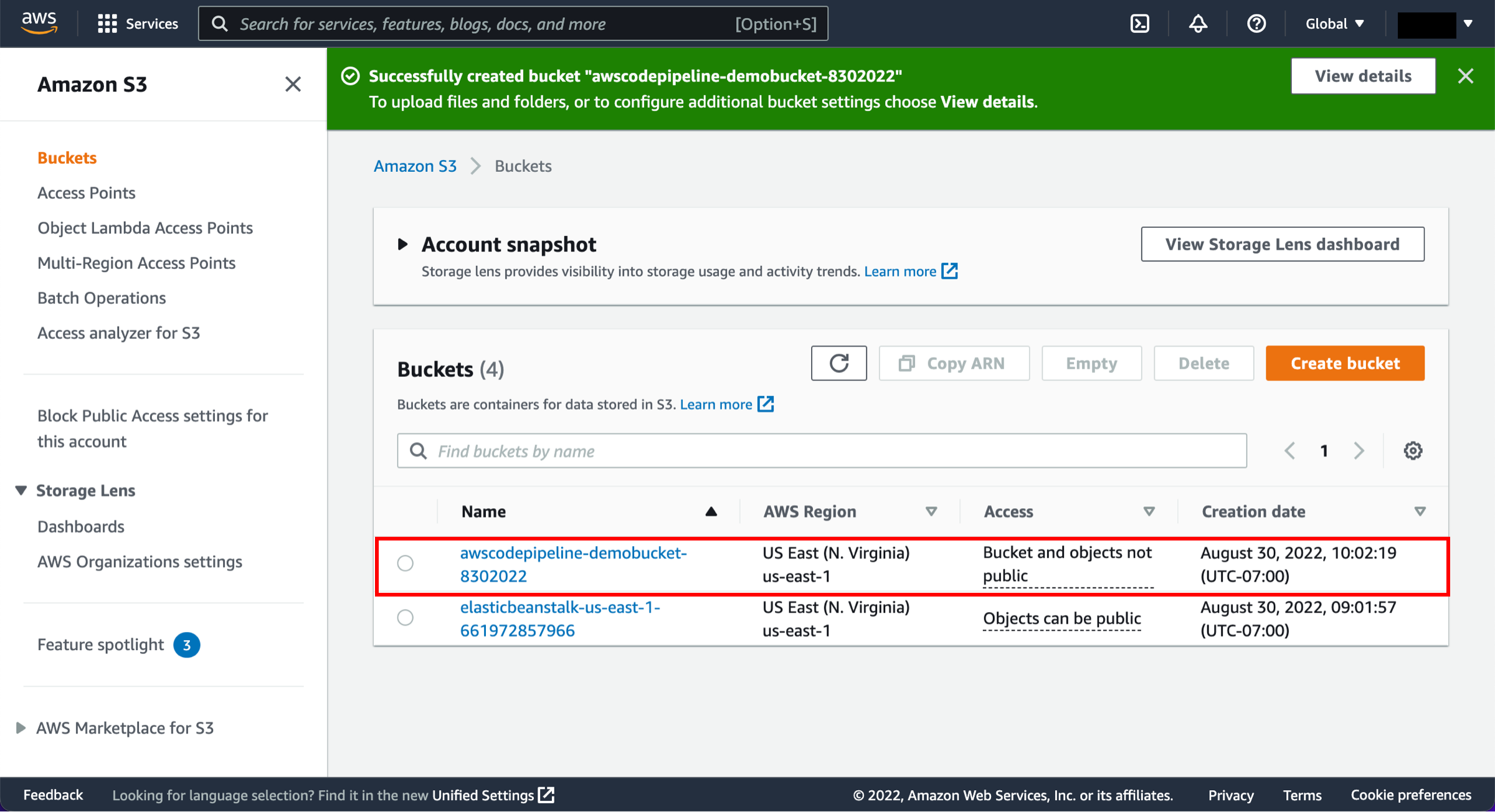

5. View the created bucket

   The console displays the newly created bucket, which is empty.



6. Open the bucket

   You will now upload the sample code to the Amazon S3 bucket. Select the Amazon S3 bucket.

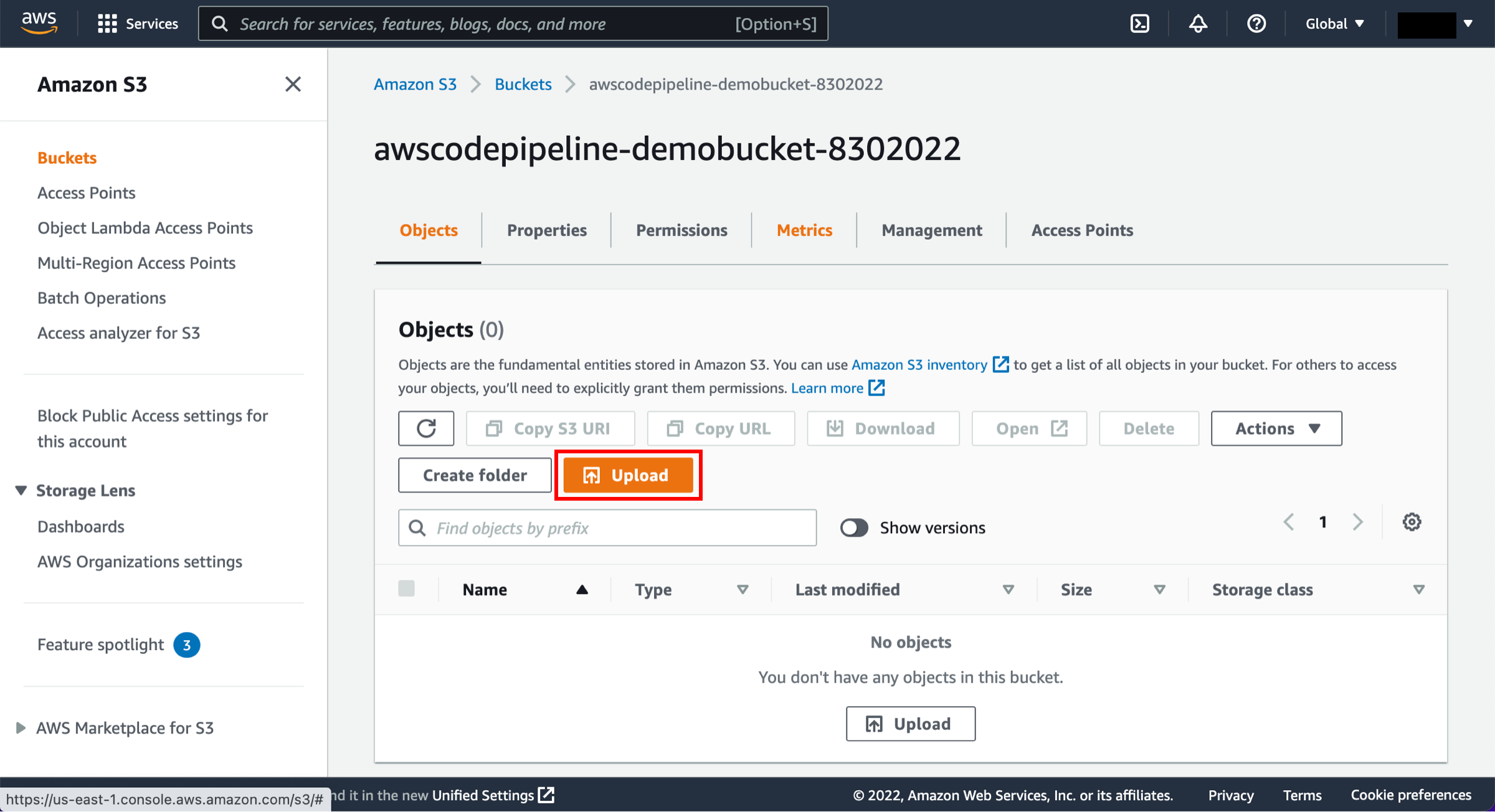

7. Upload the sample code

   Select Upload.

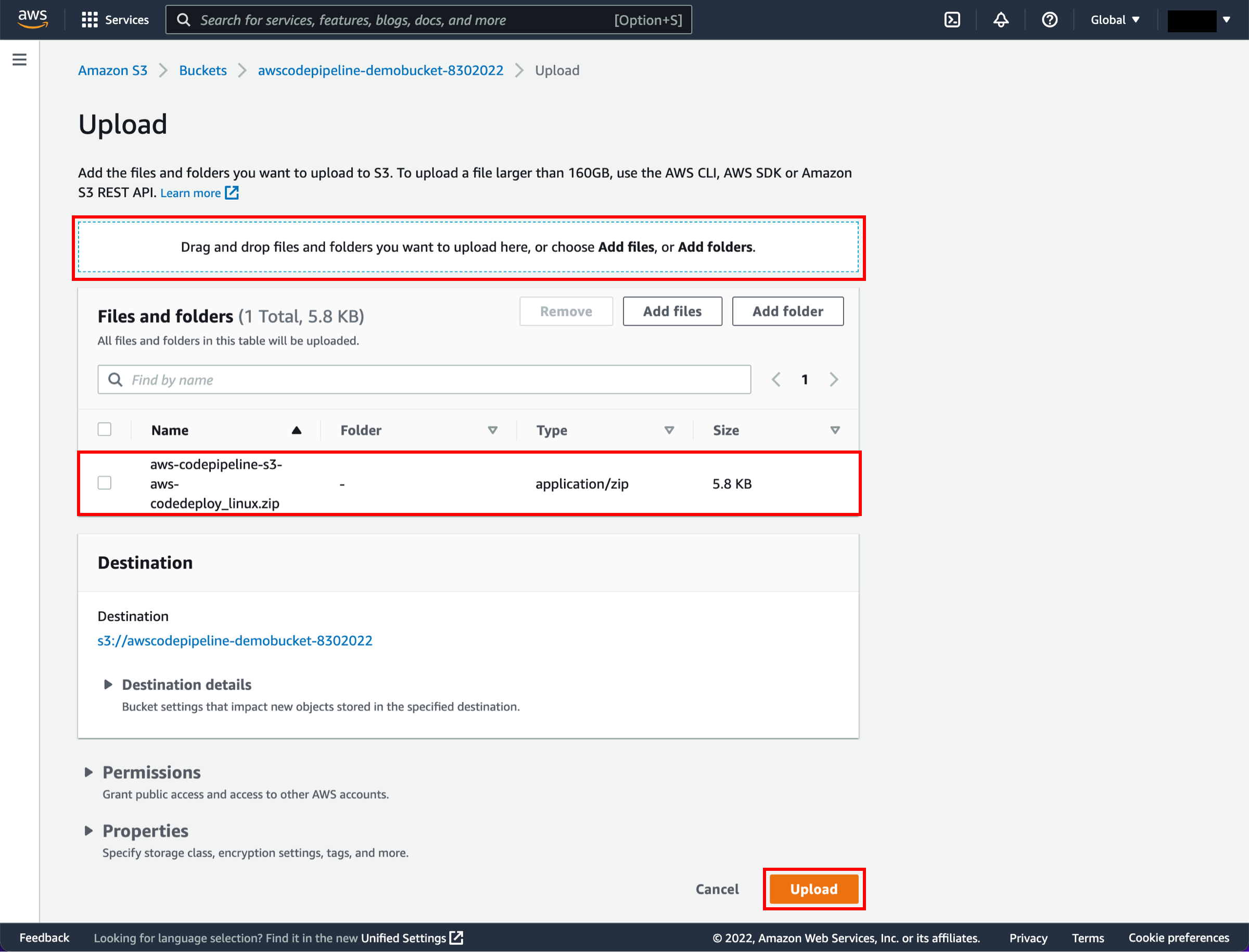

8. Add files

   Select Add files to upload the zip file you downloaded earlier or drag and drop the file. Then select Upload.

   Then, go to Create your pipeline.



AWS CodeCommit

Use this procedure if you would like to use AWS CodeCommit as your source.

1. Navigate to the sample code

   If you plan to use AWS CodeCommit as your source, you will retrieve the sample code from the AWS GitHub repository, save it to your computer, and upload it to an AWS CodeCommit repository.

   • Visit our GitHub repository containing the sample code at https://github.com/aws-samples/aws-codepipeline-s3-codedeploy-linux

   • Select the dist folder.



2. Download the files

   Save the source files to your computer:

   1. Select the file named aws-codepipeline-s3-aws-codedeploy_linux.zip.

   2. Choose View raw.

   3. Save the sample file to your local computer.

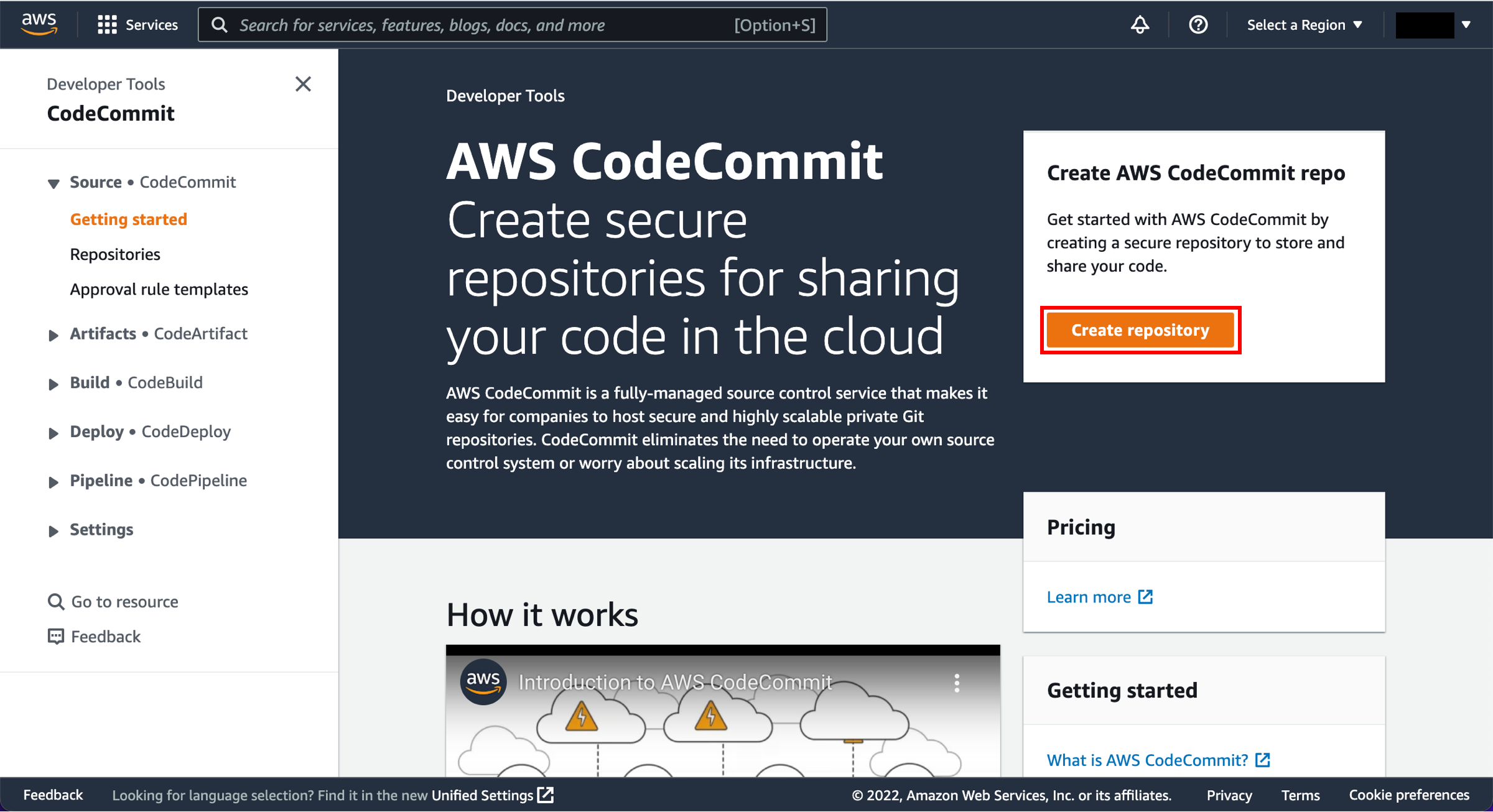

3. Create a repository

   Open the AWS CodeCommit console and choose Create repository.

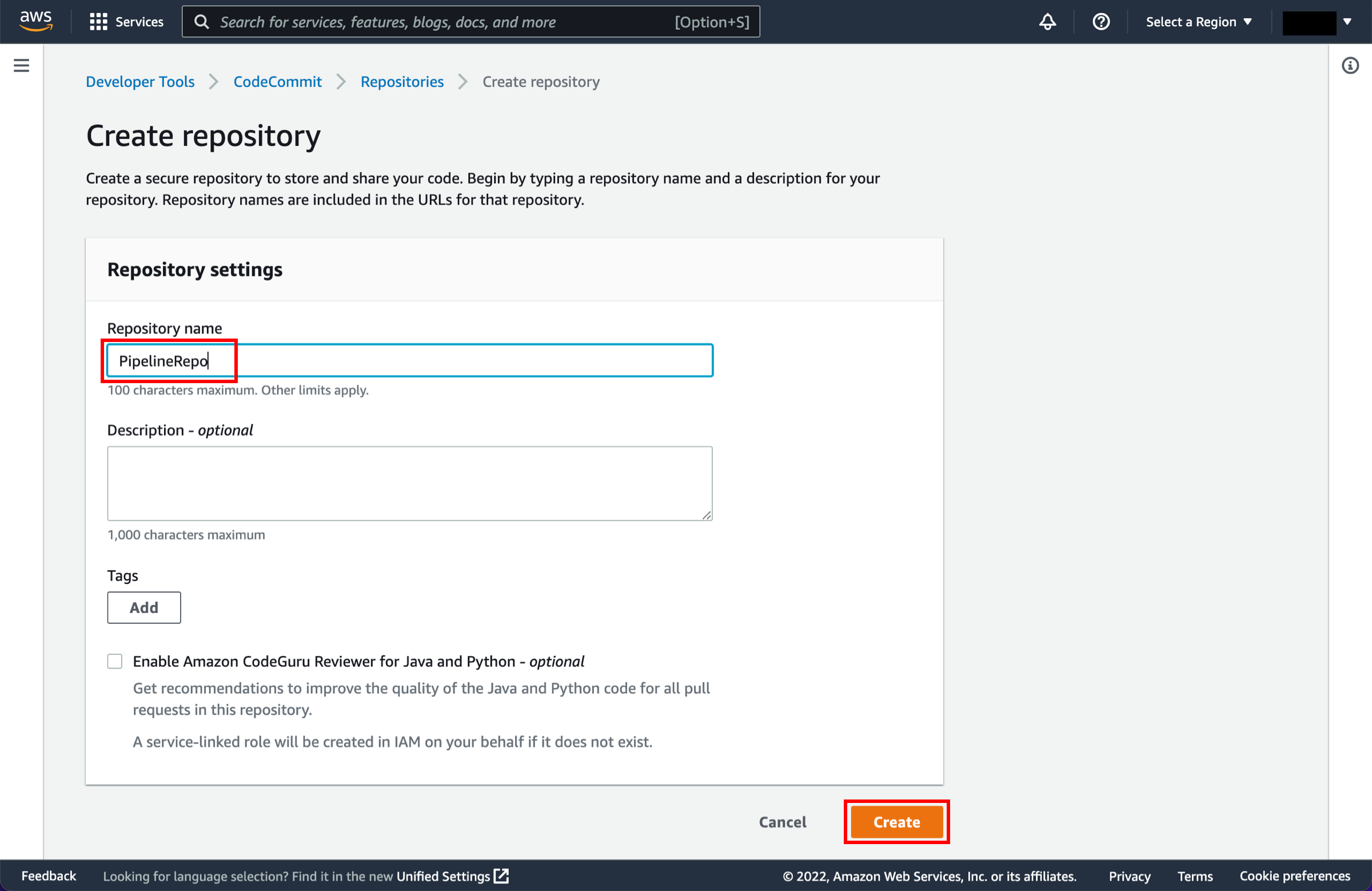

4. Configure repository settings

   On the Create repository page:

   Enter PipelineRepo for Repository name.

   Choose Create.

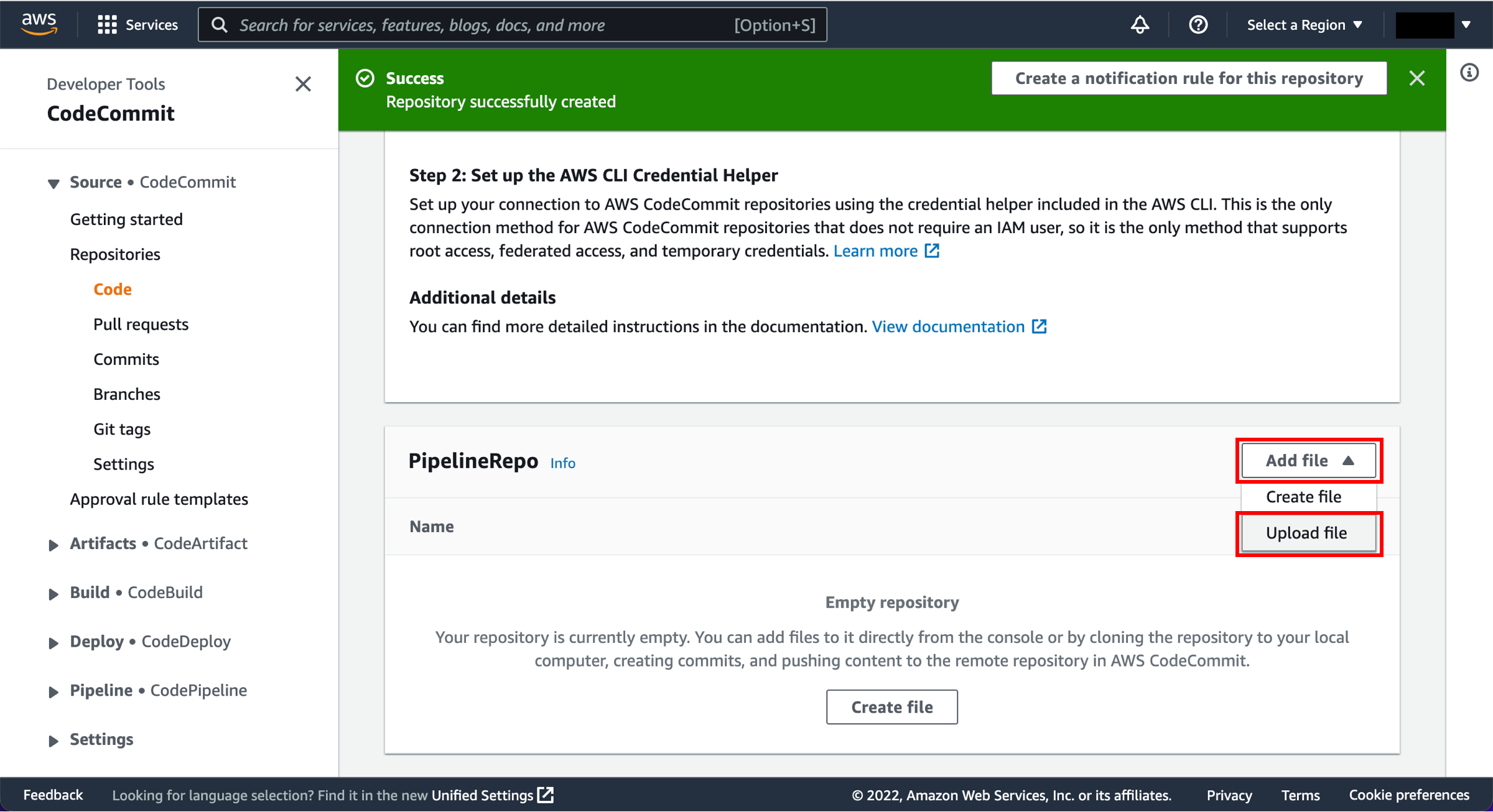

5. Upload sample code

   Once the repository is successfully created, scroll down to the PipelineRepo section and select Add file, then choose Upload file.



6. Select the sample code file

   On the Upload a file page, choose the Choose file button and select the downloaded aws-codepipeline-s3-aws-codedeploy_linux.zip file.

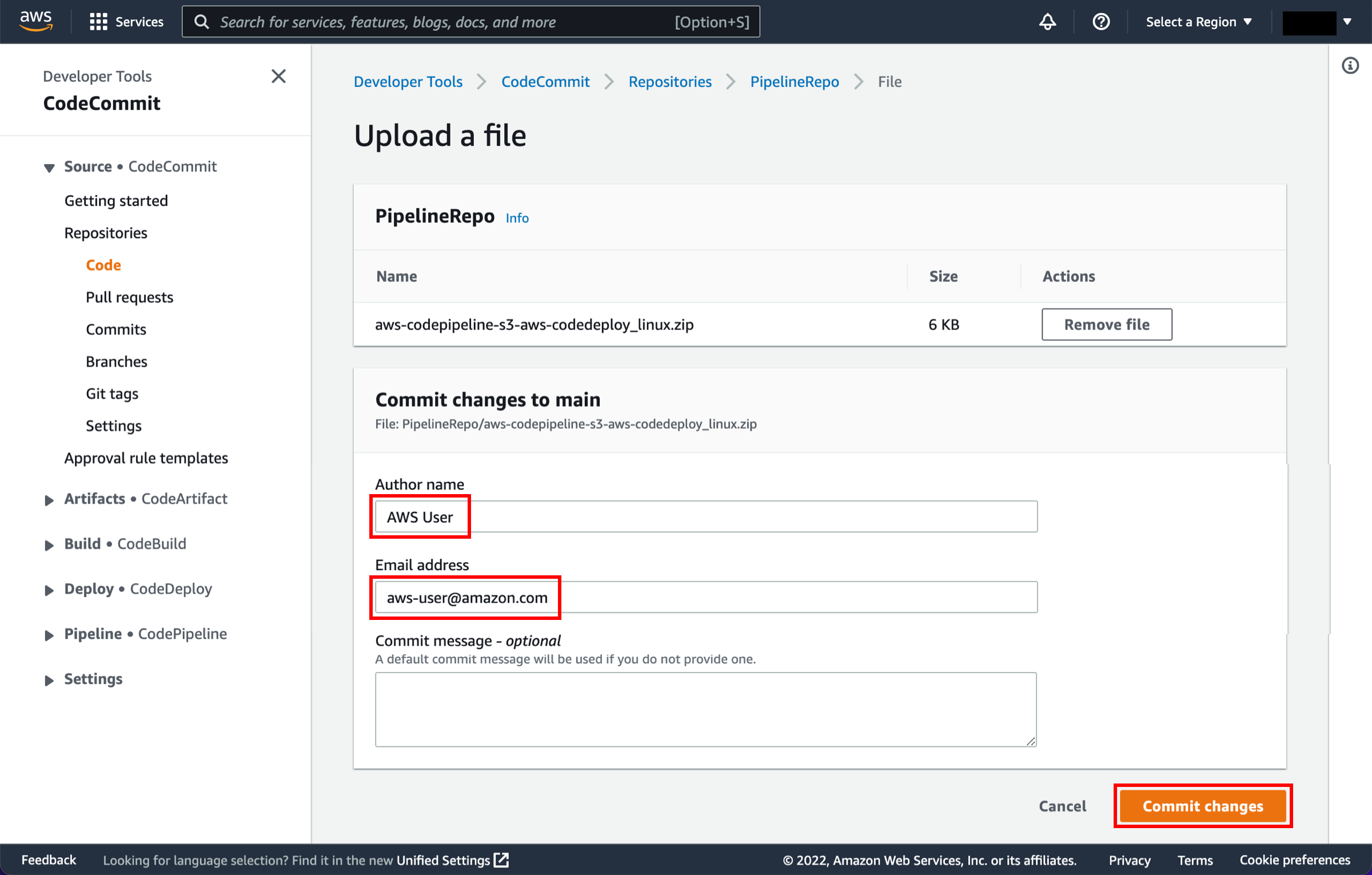

7. Commit changes to main

   Enter an Author name and Email address, then choose Commit changes.

   Then, go to Create your pipeline.



Step 3: Create your pipeline

In this step, you will create and configure a simple pipeline with two actions: source and deploy. You will provide CodePipeline with the locations of your source repository and deployment environment.

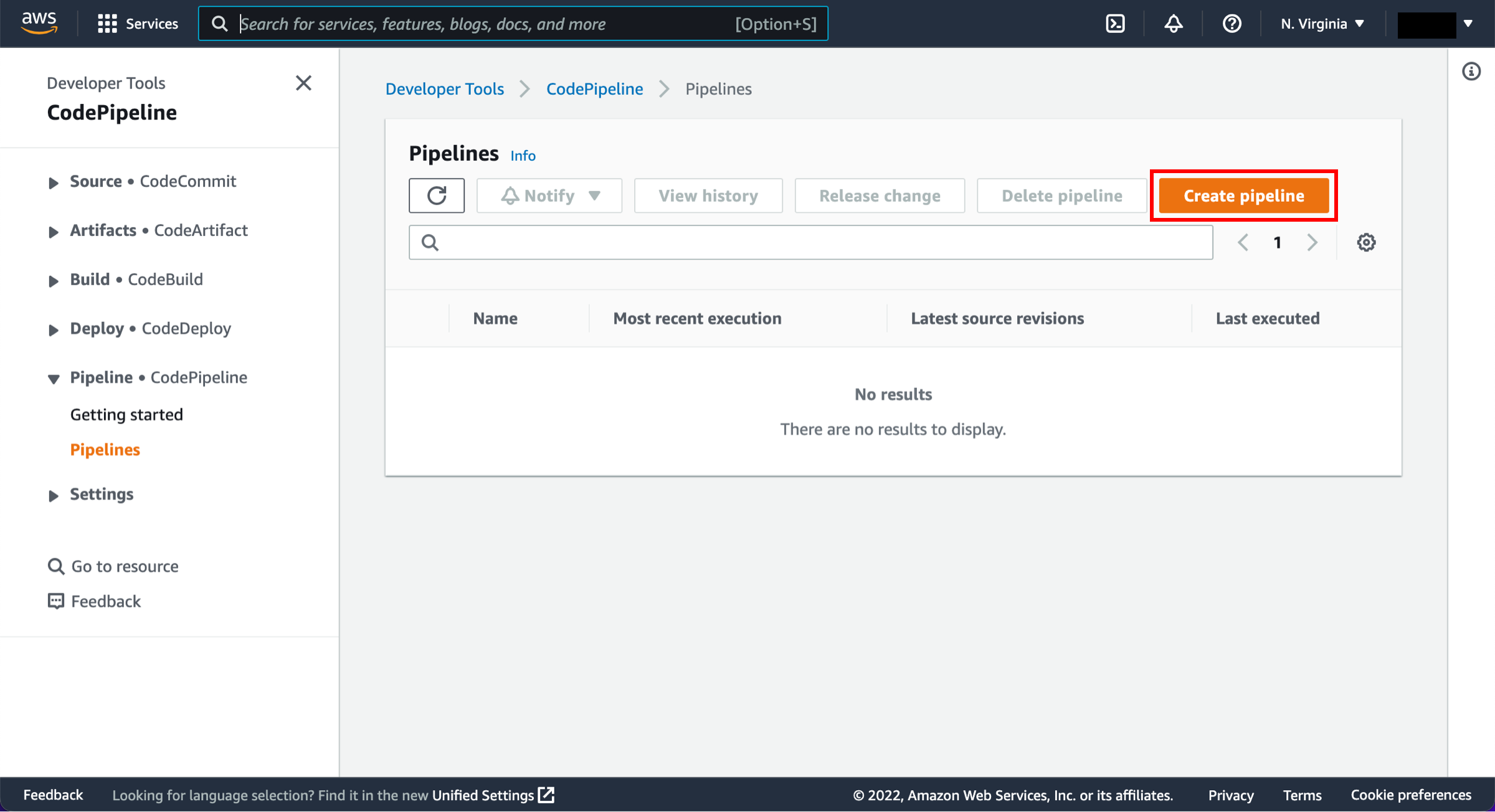

1. Create a pipeline

   Open the AWS CodePipeline console.

   On the Welcome page, choose Create pipeline.

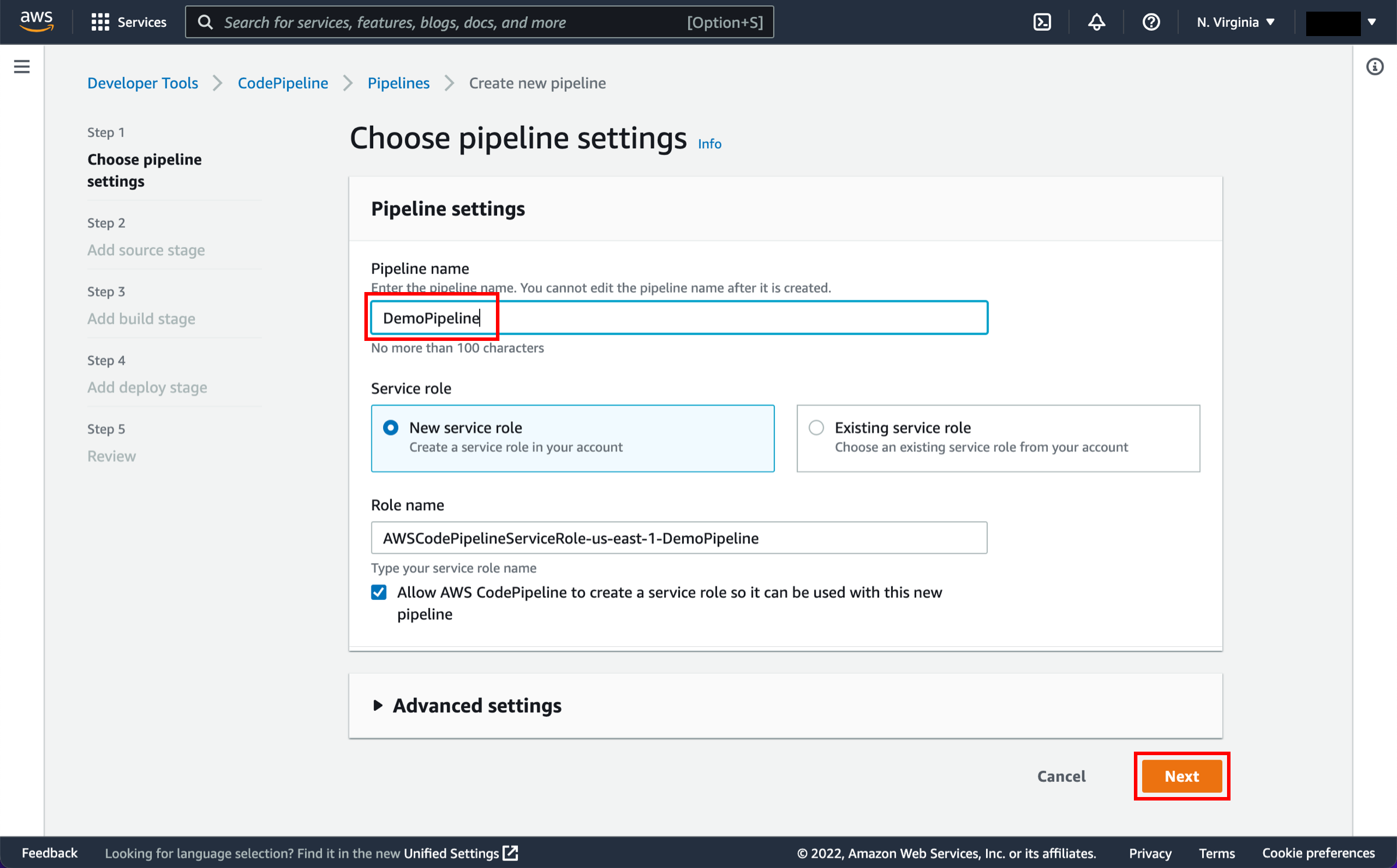

2. Configure pipeline settings

   On the Step 1: Choose pipeline settings page:

   • Pipeline name: Enter the name for your pipeline, DemoPipeline.

   • Choose Next.

   Note

   After you create a pipeline, you cannot change its name.



3. Choose your source

   On the Step 2: Add source stage page, select the location of the source you selected using the following instructions.

GitHub

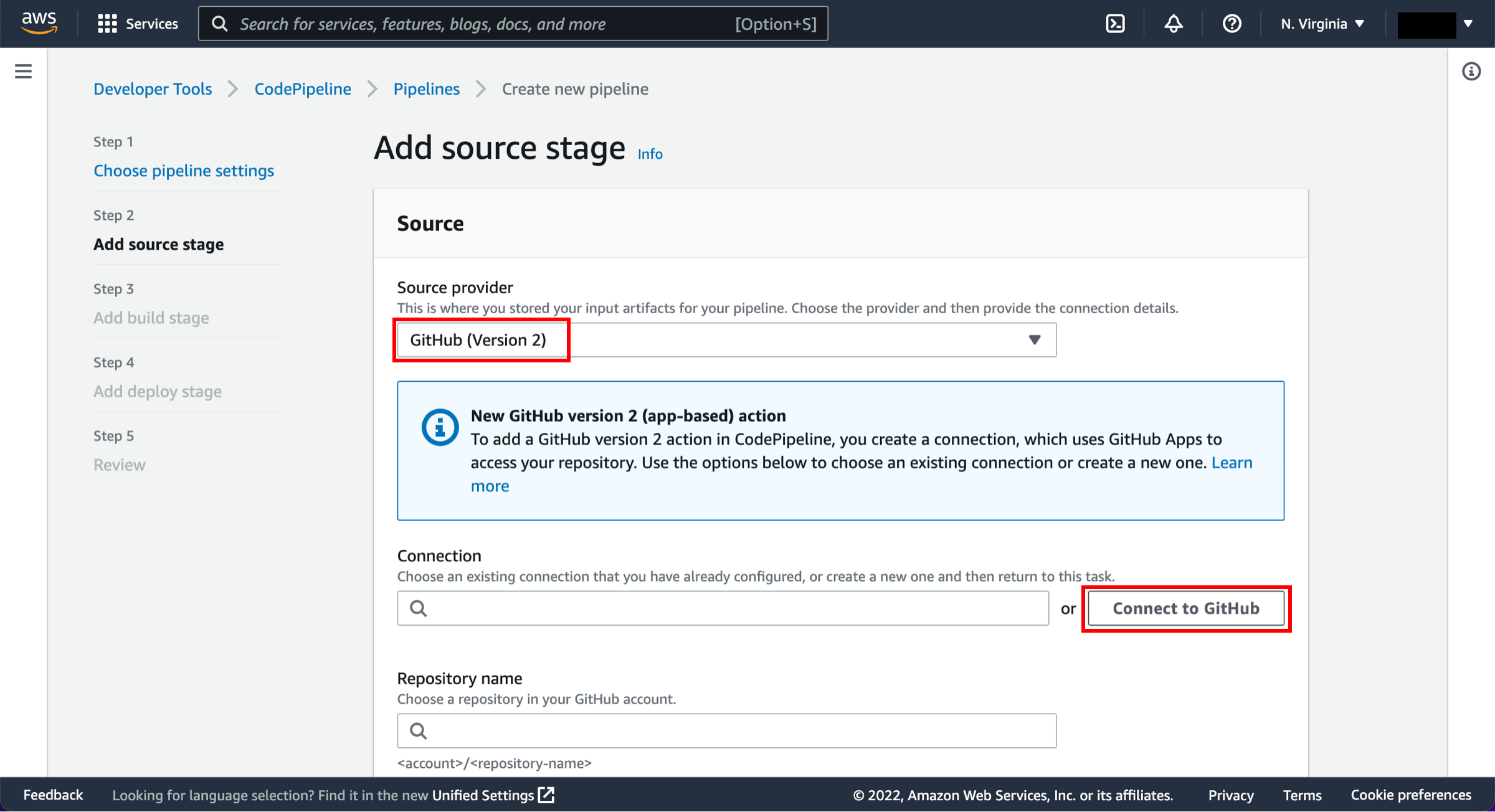

1. Add source

   Select GitHub (Version 2) for the Source provider.

   Choose Connect to GitHub.

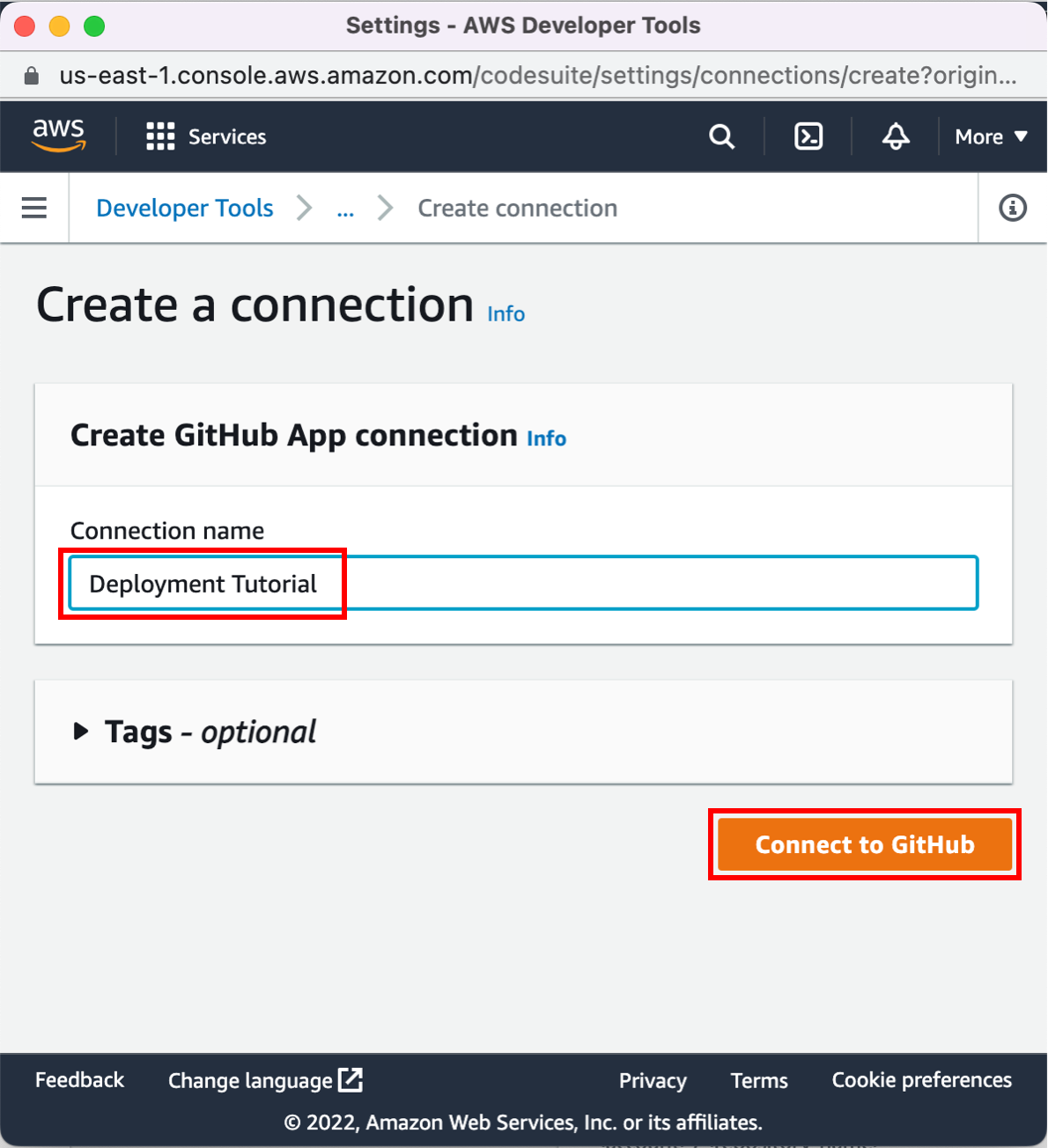

2. Enter a connection name

   Enter Deployment Tutorial for Connection name and choose Connect to GitHub.

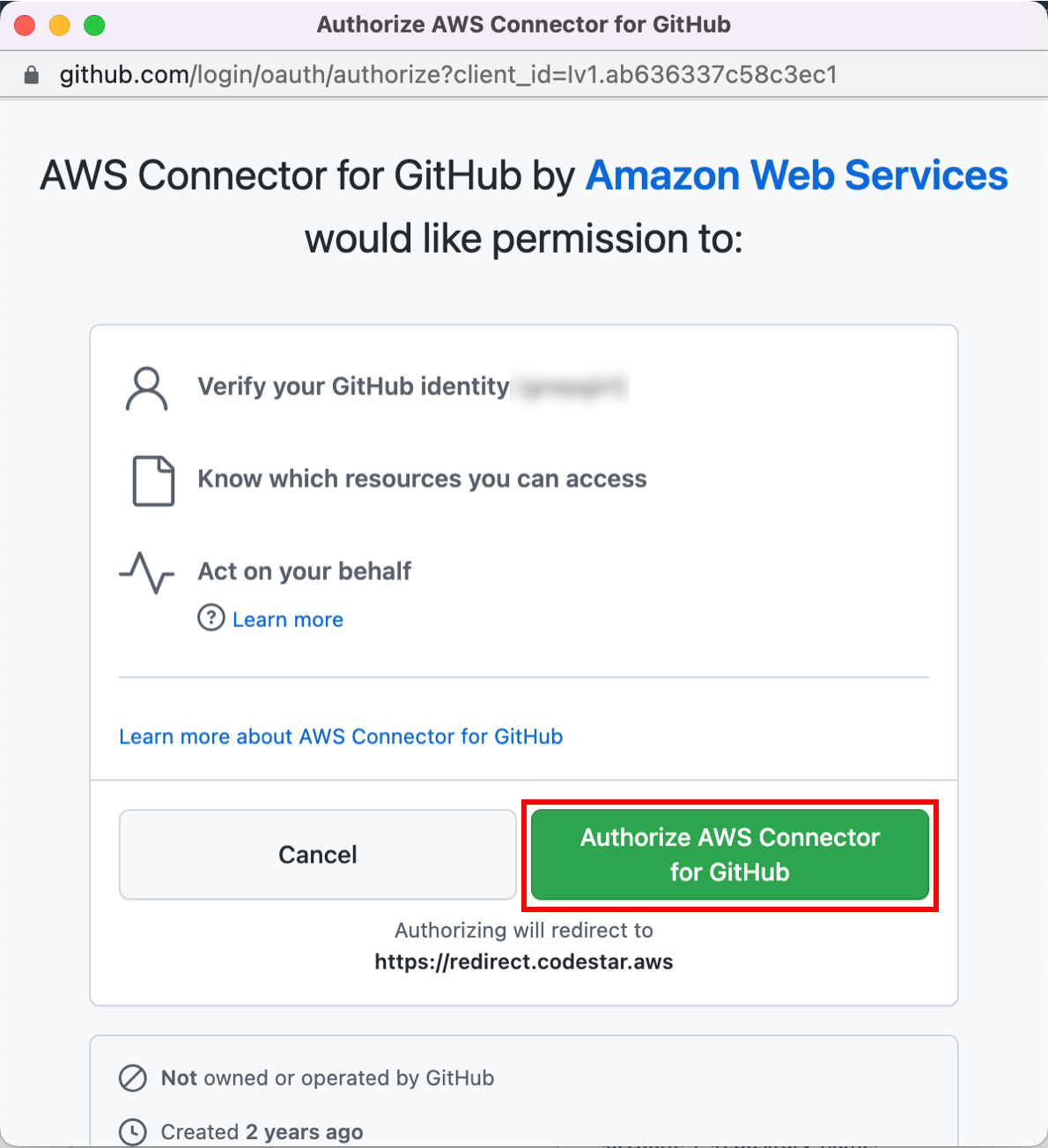

3. Grant permissions

   Select Authorize AWS Connector for GitHub.

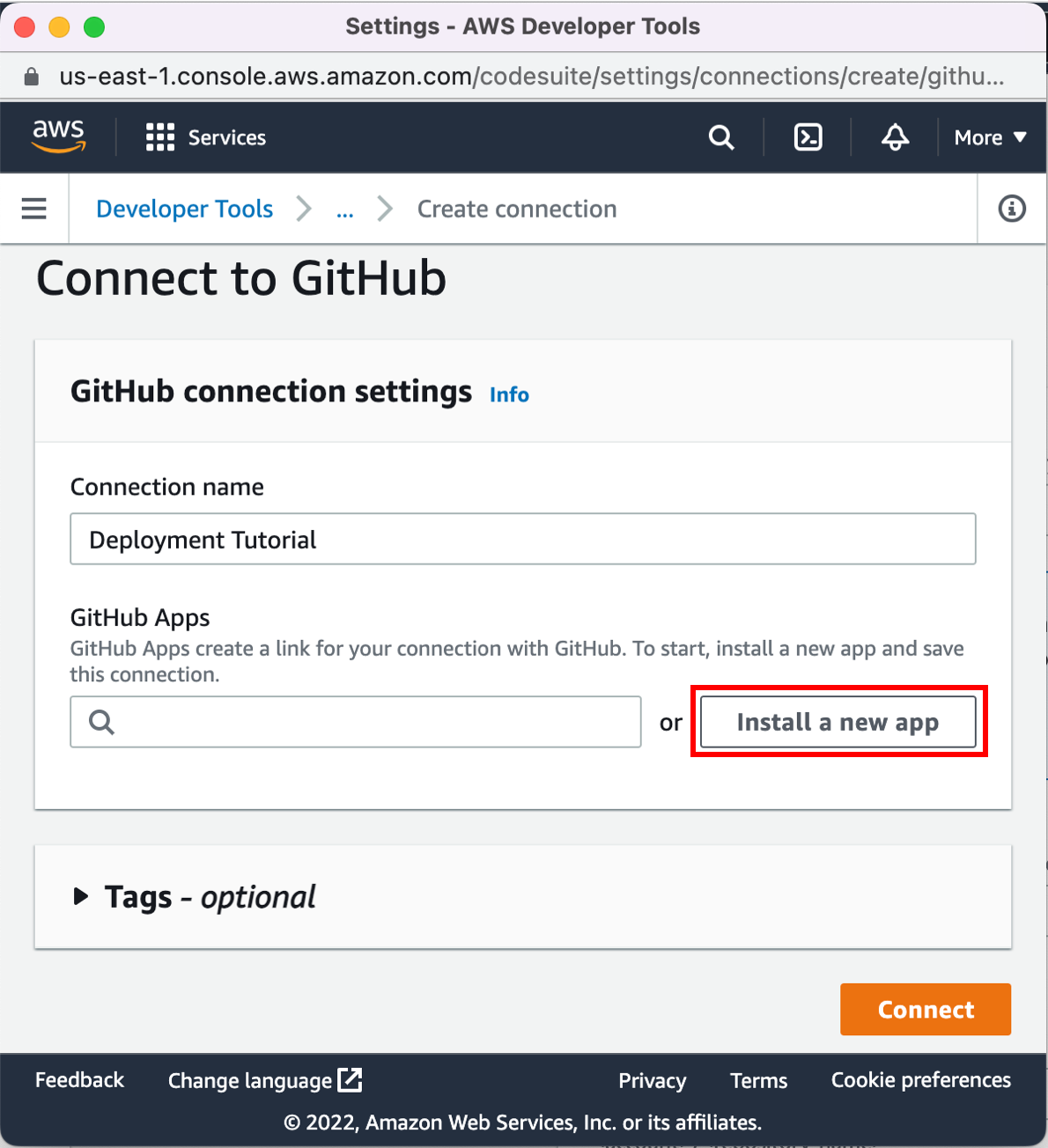

4. Install a new app

   When redirected back to the connection screen, choose Install a new app.

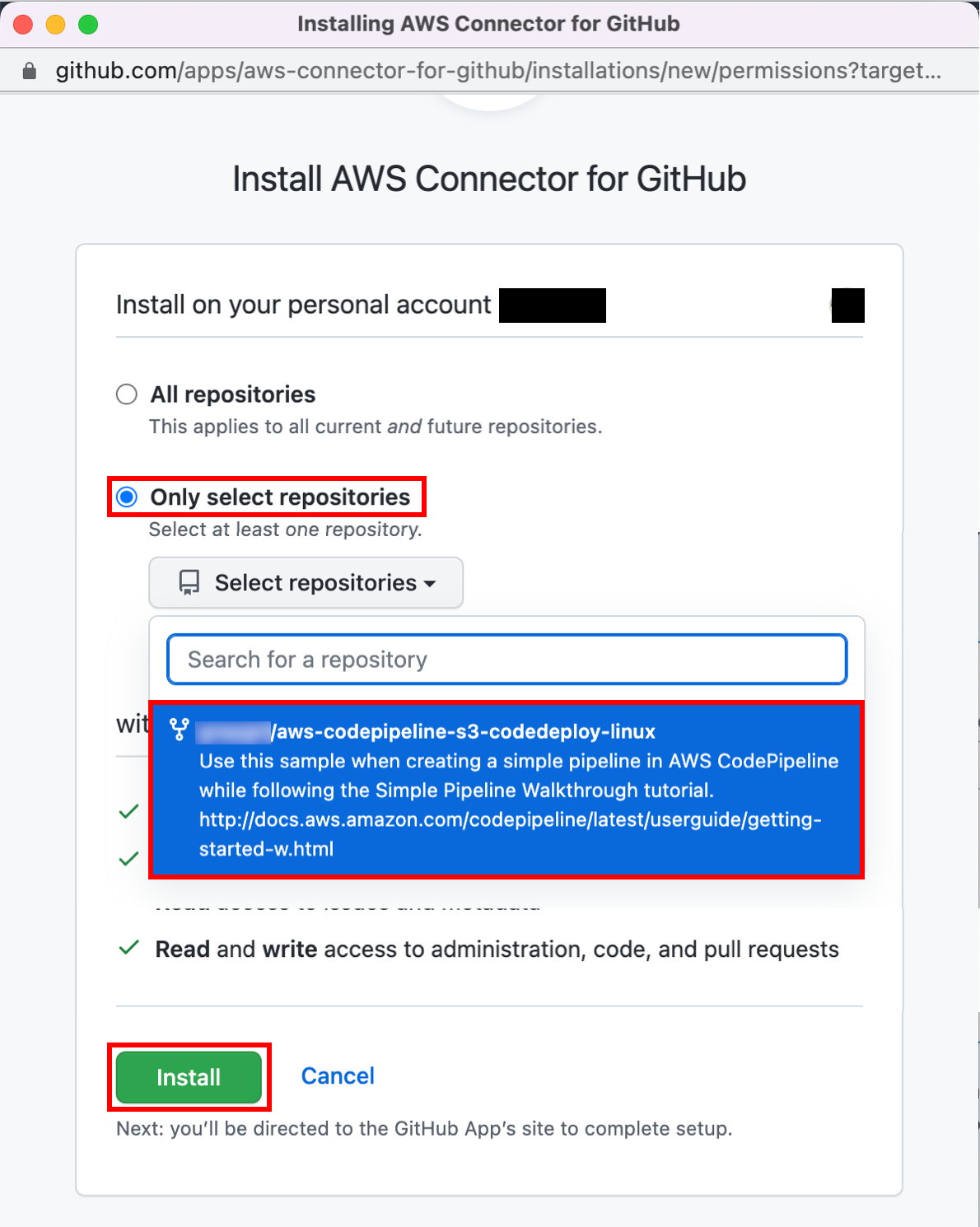

5. Install the forked repository

   On the Install AWS Connector for GitHub page, choose Only select repositories and select the aws-codepipeline-s3-codedeploy-linux repository forked in the previous step.

   Choose Install.

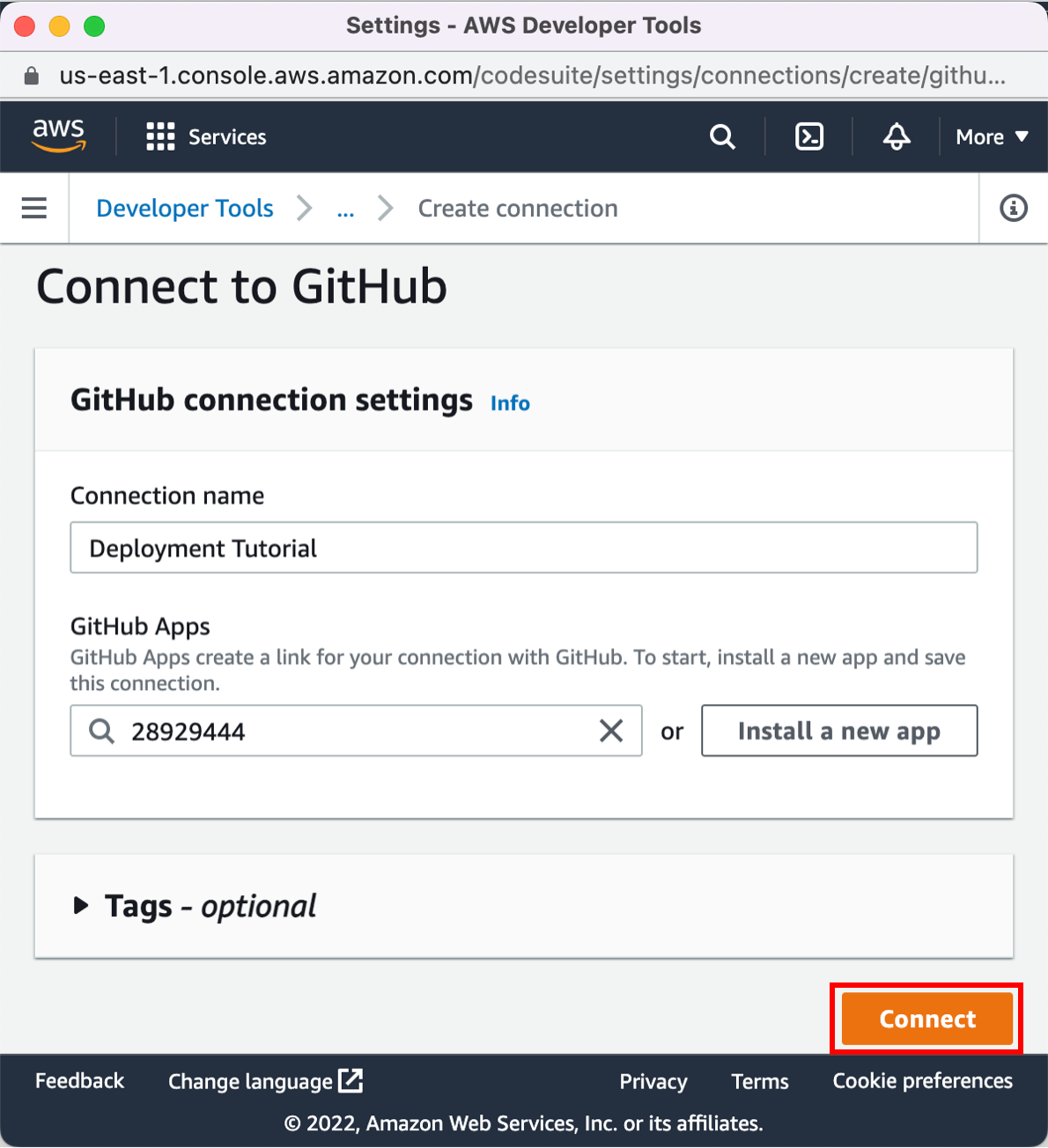

6. Connect to GitHub

   Once redirected back to the Connect to GitHub page, choose Connect.

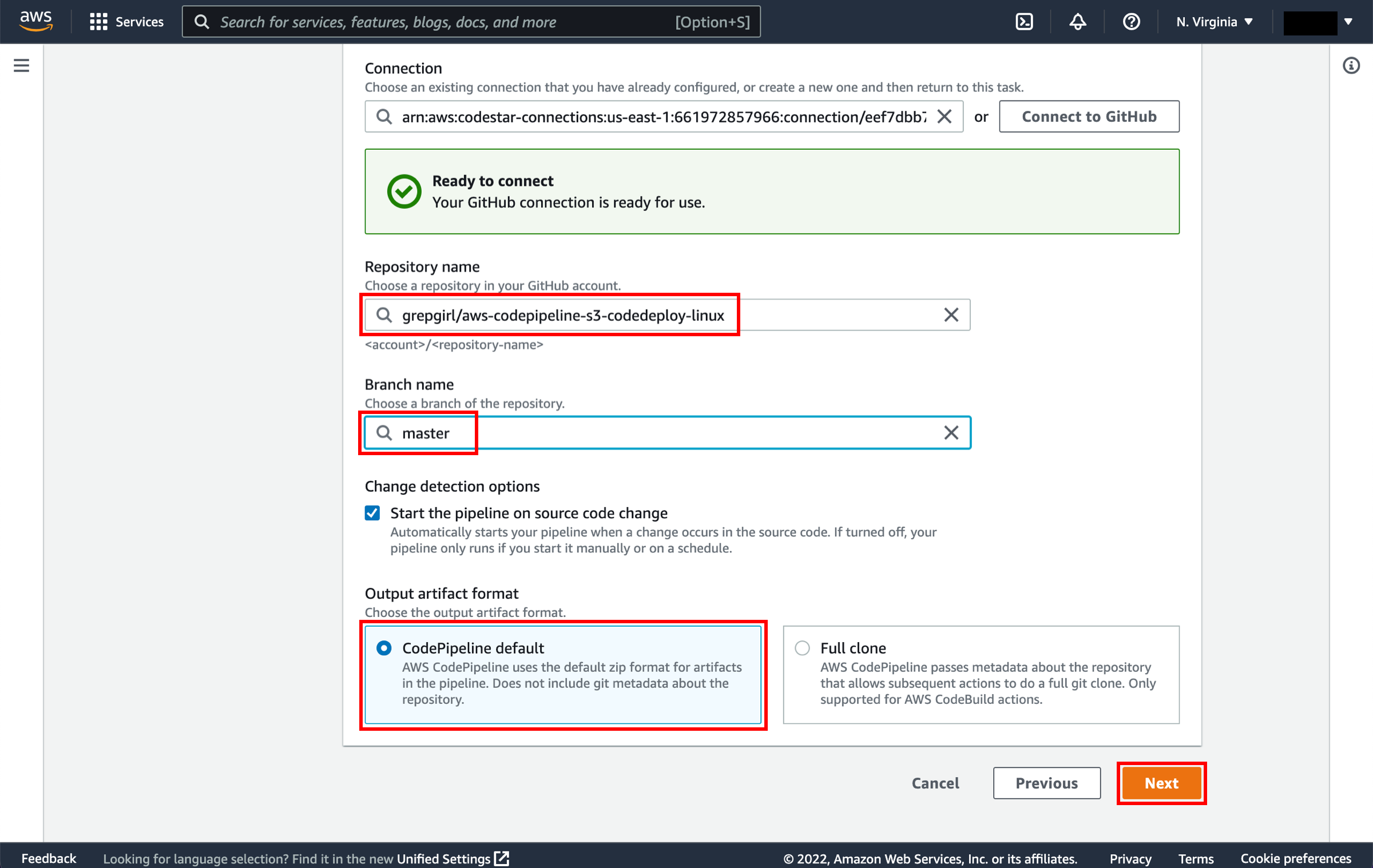

7. Specify a repository and branch

   The Add source page will be updated to reflect GitHub is ready to connect. Specify the repository and branch:

   Repository name: In the dropdown list, select the GitHub repository you want to use as the source location for your pipeline. Select the forked repository in your GitHub account named aws-codepipeline-s3-codedeploy-linux.

   Branch name: In the dropdown list, select the branch you want to use, master.

   Output artifact format: Select CodePipeline default.

   Choose Next.

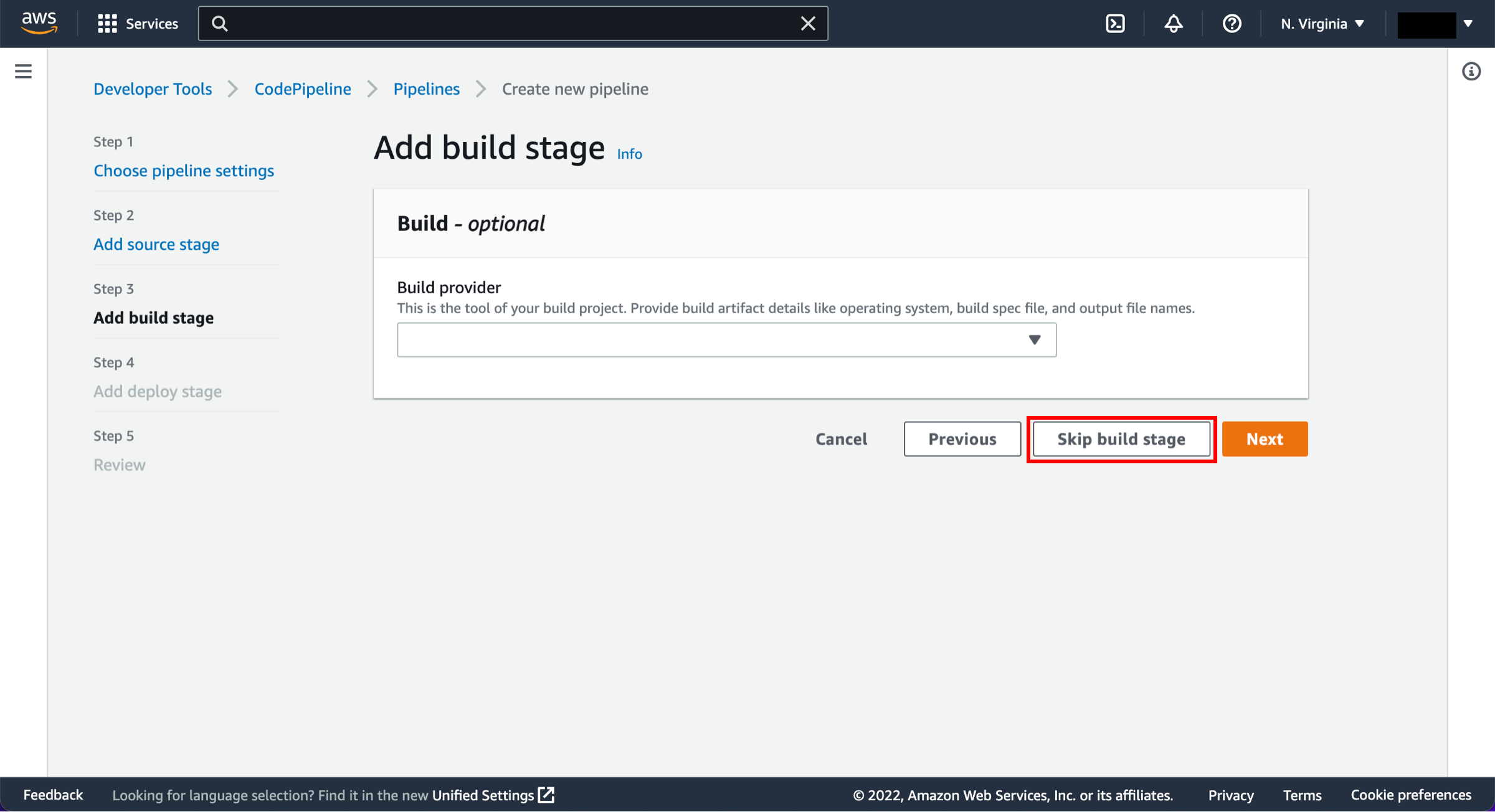

8. Skip build stage

   A true continuous deployment pipeline requires a build stage, where code is compiled and unit tested. CodePipeline lets you plug your preferred build provider into your pipeline. However, in this tutorial you will skip the build stage.

   In Step 3: Add build stage, choose Skip build stage.

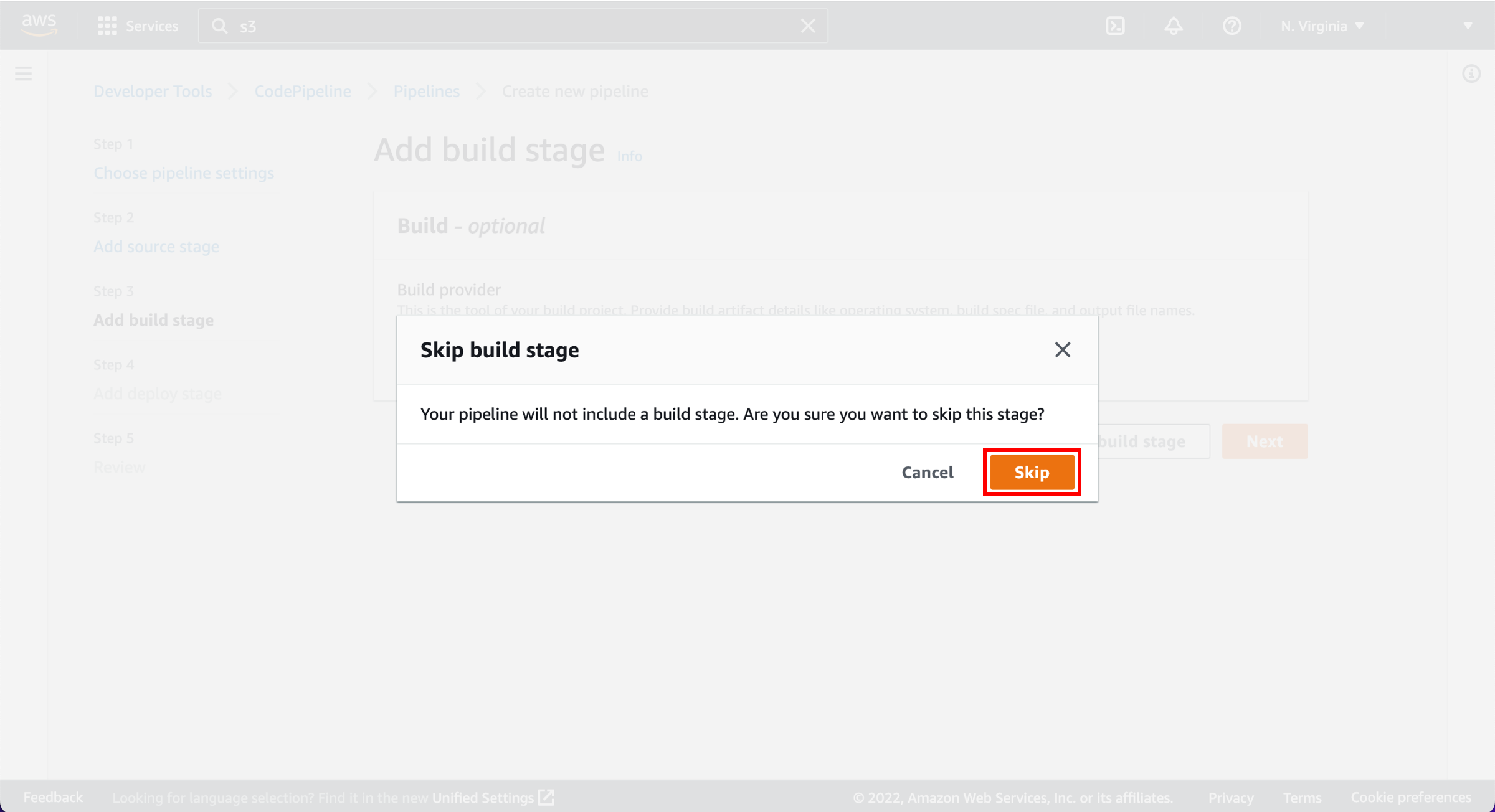

9. Choose Skip

   In the confirmation dialog, select Skip.

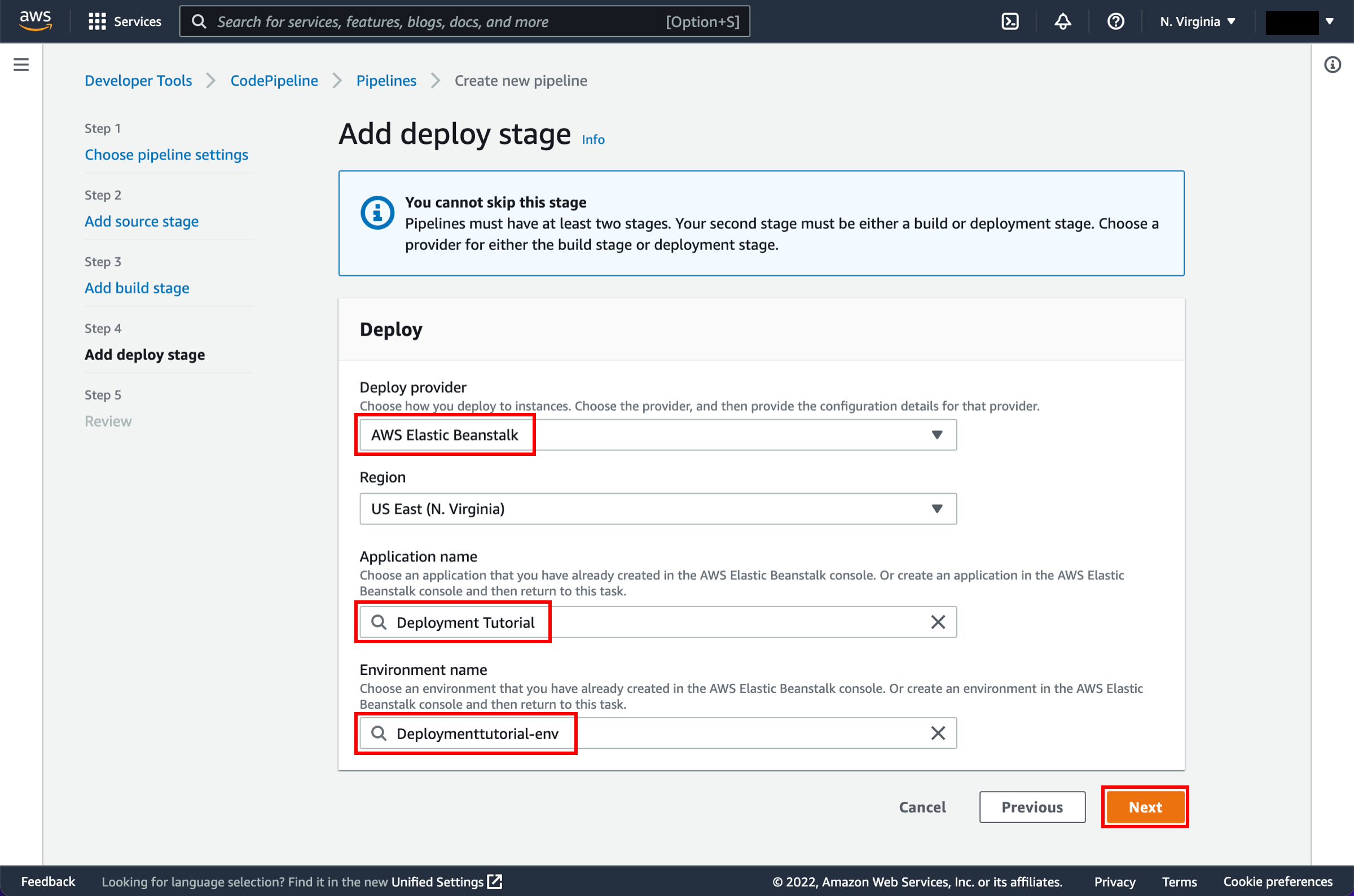

10. Configure deploy stage

    In the Step 4: Add deploy stage page:

    Deploy provider: Select AWS Elastic Beanstalk.

    Region: Retain the default region.

    Application name: Select Deployment Tutorial.

    Environment name: Select Deploymenttutorial-env.

    Click Next.

    Continue to Activate your pipeline to deploy your code.



Amazon S3

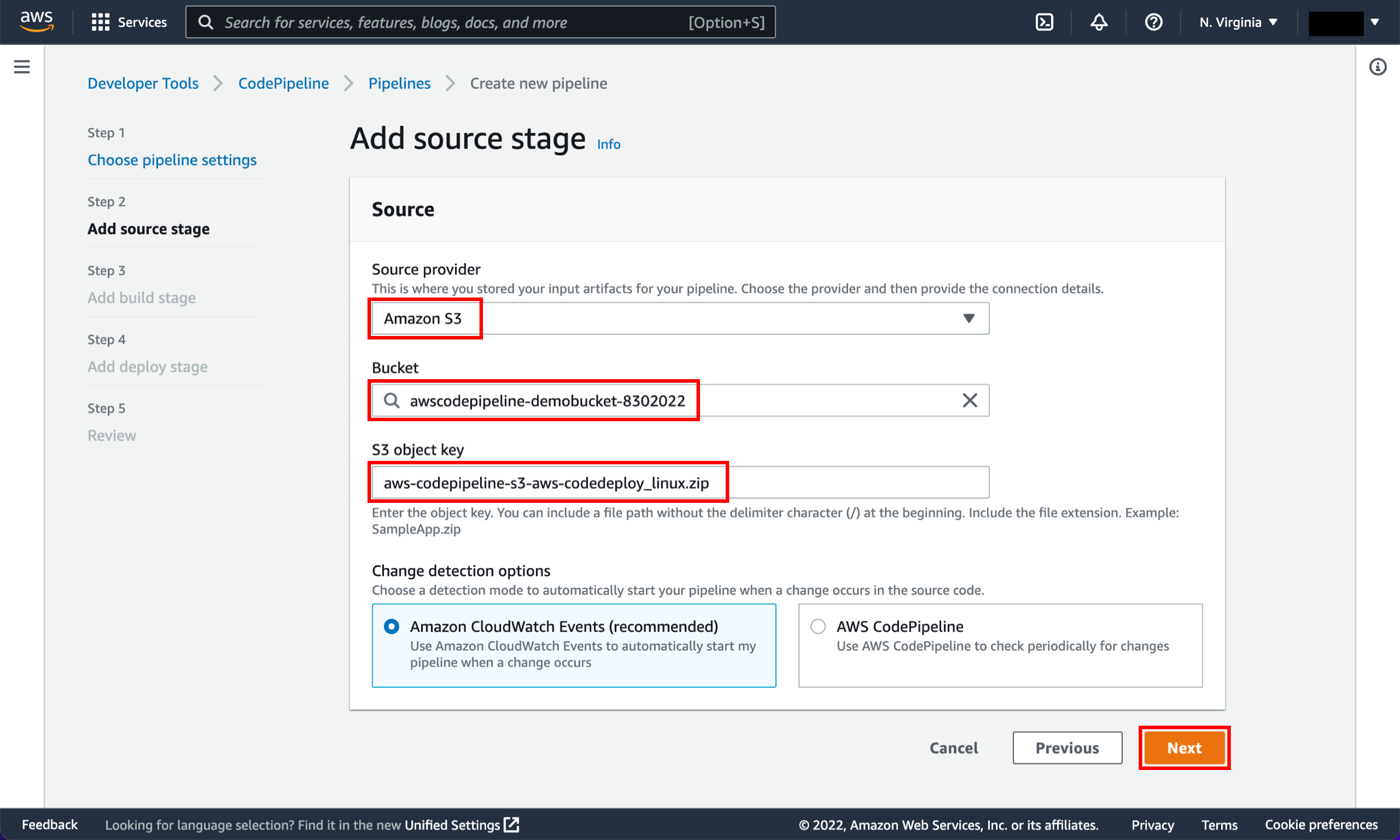

1. Add source

   Select Amazon S3 for the Source provider, select the Amazon S3 bucket you created, and then enter the S3 object key for the file uploaded, for example: aws-codepipeline-s3-aws-codedeploy_linux.zip.

   Choose Next.



2. Skip build stage

   A true continuous deployment pipeline requires a build stage, where code is compiled and unit tested. CodePipeline lets you plug your preferred build provider into your pipeline. However, in this tutorial you will skip the build stage.

   In Step 3: Add build stage, choose Skip build stage.



3. Choose Skip

   In the confirmation dialog, select Skip.



4. Configure deploy stage

   In the Step 4: Add deploy stage page:

   Deploy provider: Select AWS Elastic Beanstalk.

   Region: Retain the default region.

   Application name: Select Deployment Tutorial.

   Environment name: Select Deploymenttutorial-env.

   Click Next.

   Continue to Activate your pipeline to deploy your code.



AWS CodeCommit

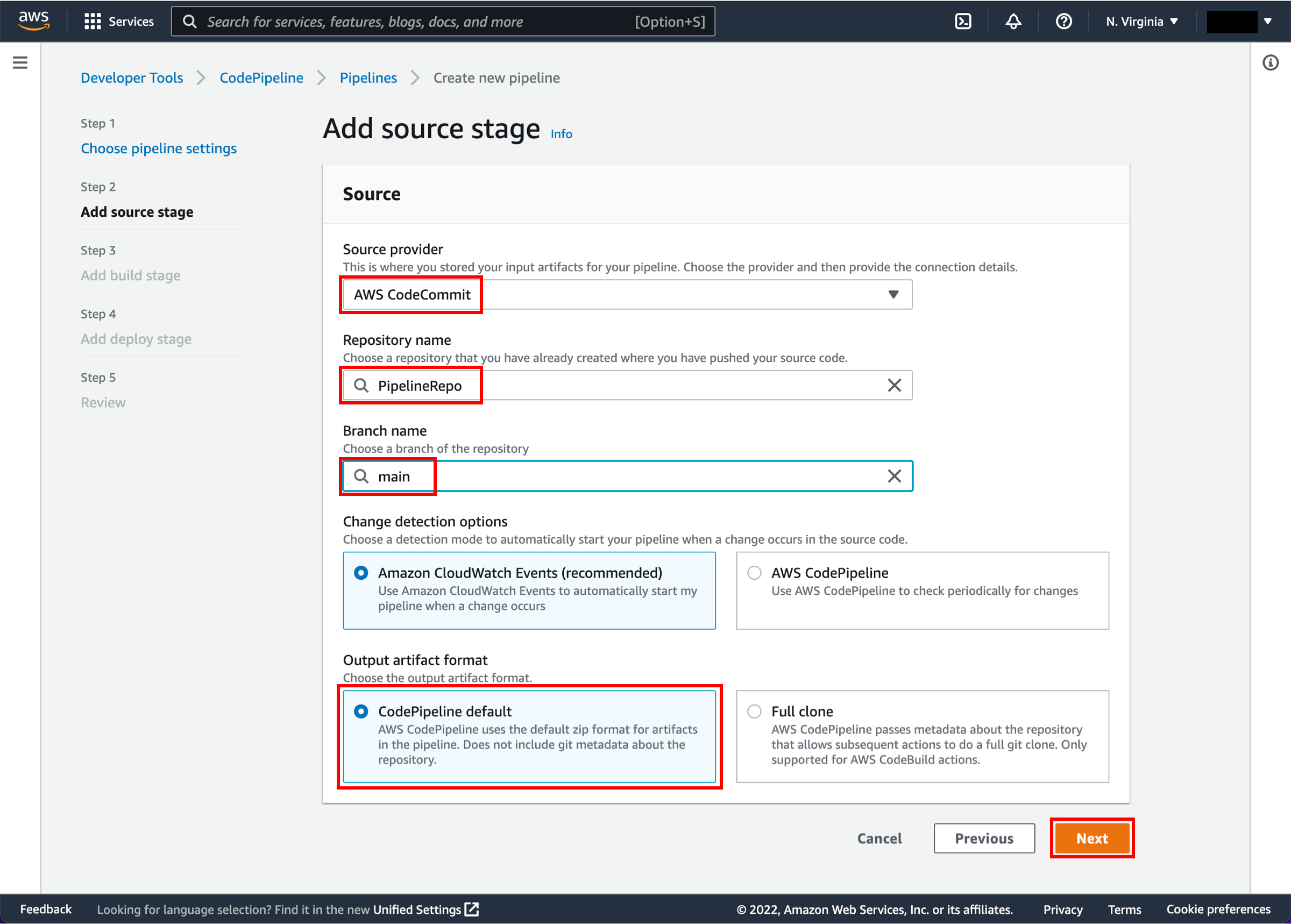

1. Add source

   Select AWS CodeCommit for the Source provider.

   Repository name: In the dropdown list, choose the PipelineRepo repository you created to use as the source location for your pipeline.

   Branch name: In the dropdown list, choose the branch you want to use, main.

   Output artifact format: Choose CodePipeline default.

   Choose Next.



2. Skip build stage

   A true continuous deployment pipeline requires a build stage, where code is compiled and unit tested. CodePipeline lets you plug your preferred build provider into your pipeline. However, in this tutorial you will skip the build stage.

   In Step 3: Add build stage, choose Skip build stage.



3. Choose Skip

   In the confirmation dialog, select Skip.



4. Configure deploy stage

   In the Step 4: Add deploy stage page:

   Deploy provider: Select AWS Elastic Beanstalk.

   Region: Retain the default region.

   Application name: Select Deployment Tutorial.

   Environment name: Select Deploymenttutorial-env.

   Click Next.

   Continue to Activate your pipeline to deploy your code.



Step 4: Activate your pipeline to deploy your code

In this step, you will launch your pipeline. Once your pipeline has been created, it will start to run automatically. First, it detects the sample app code in your source location, bundles up the files, and then moves them to the second stage that you defined. During this stage, it passes the code to Elastic Beanstalk, which contains the EC2 instance that will host your code. Elastic Beanstalk handles deploying the code to the EC2 instance.

1. Review configuration and create pipeline

   In the Step 5: Review page, review the information and choose Create pipeline.

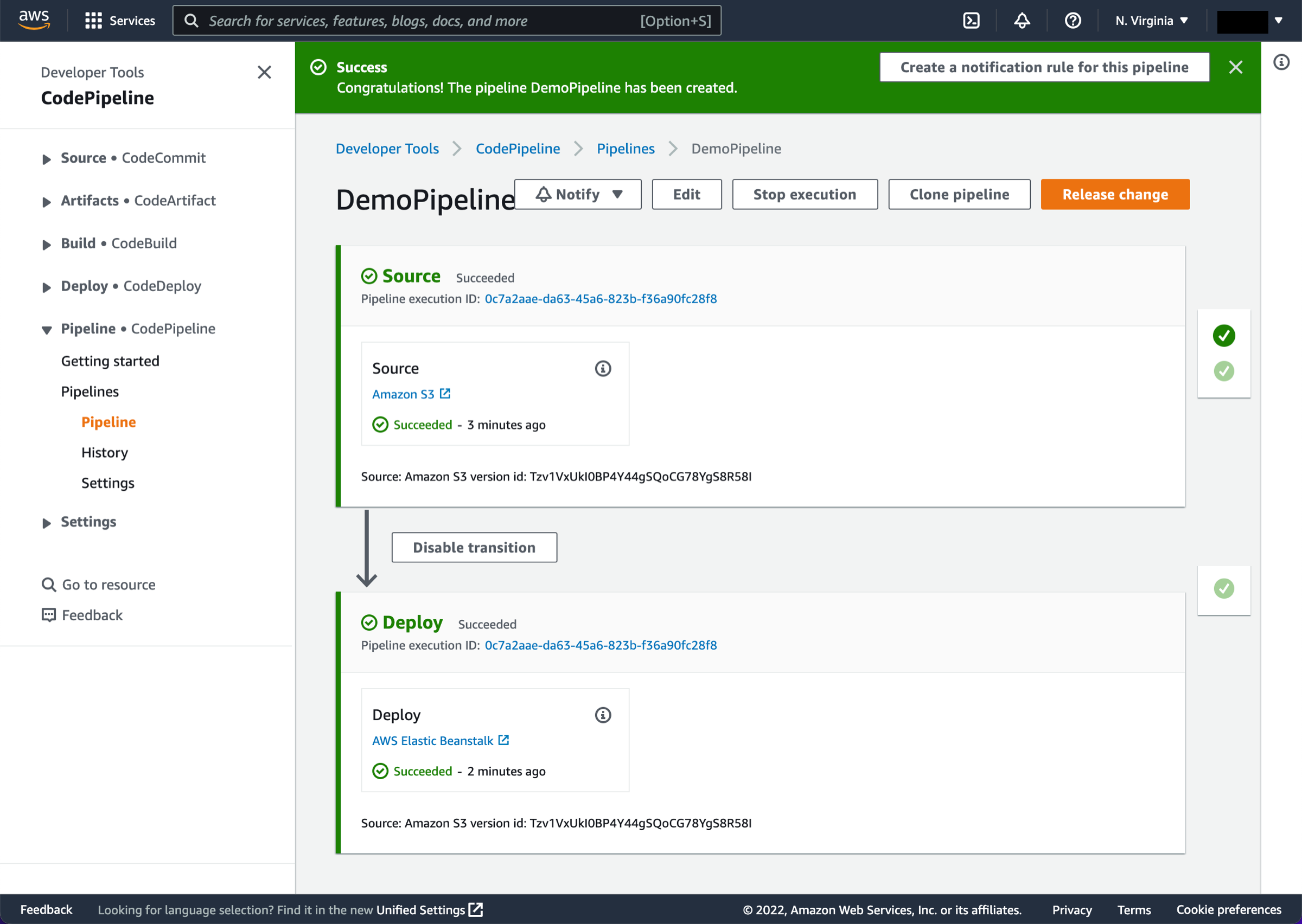

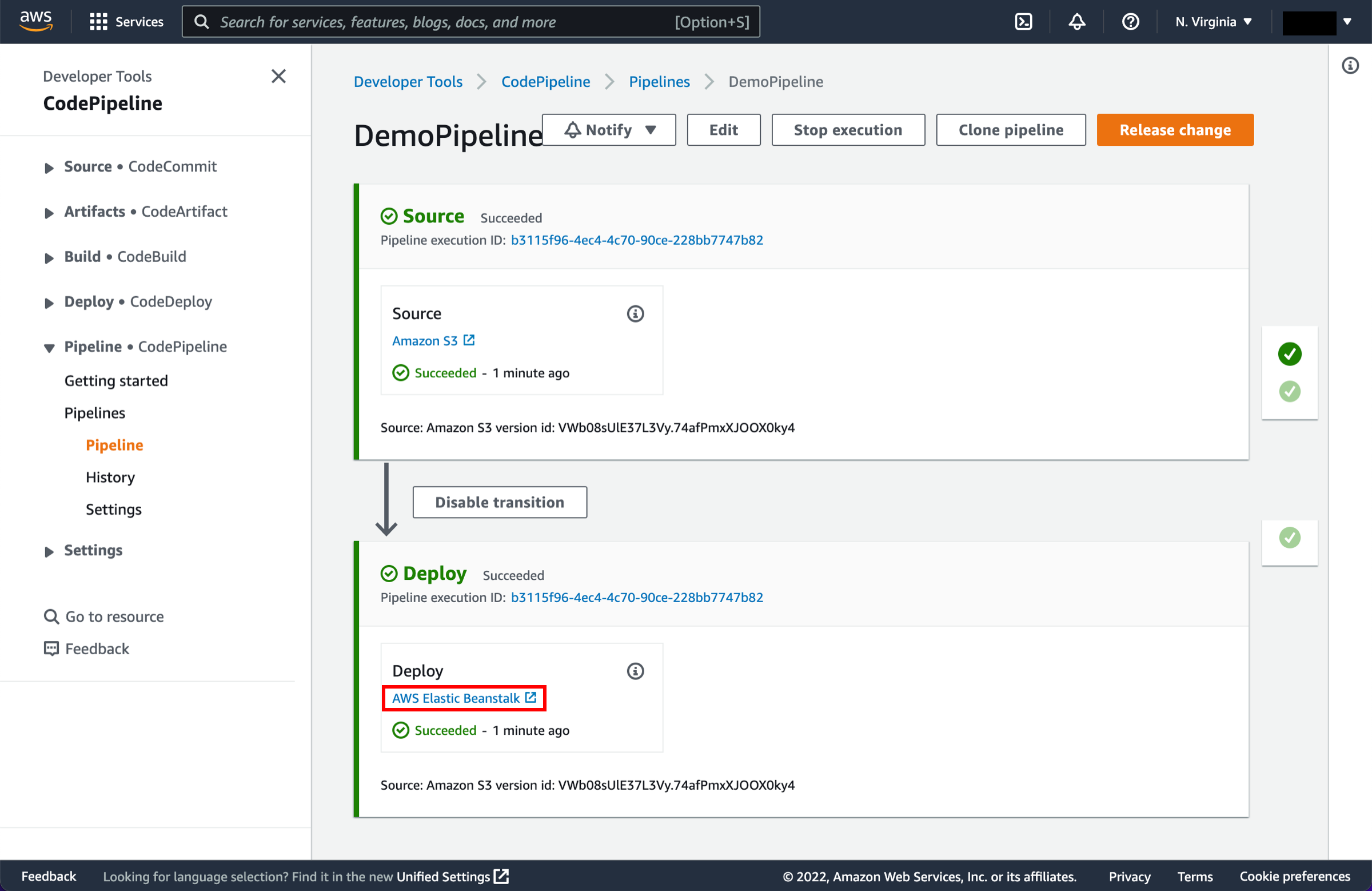

2. Monitor the pipeline status

   After your pipeline is created, the pipeline status page appears and the pipeline automatically starts to run. You can view progress as well as success and failure messages as the pipeline performs each action.

   To verify your pipeline ran successfully, monitor the progress of the pipeline as it moves through each stage. The status of each stage will change from No executions yet to In progress, and then to either Succeeded or Failed. The pipeline should complete the first run within a few minutes.



3. Select Elastic Beanstalk

   In the status area for the Beta stage, select AWS Elastic Beanstalk.

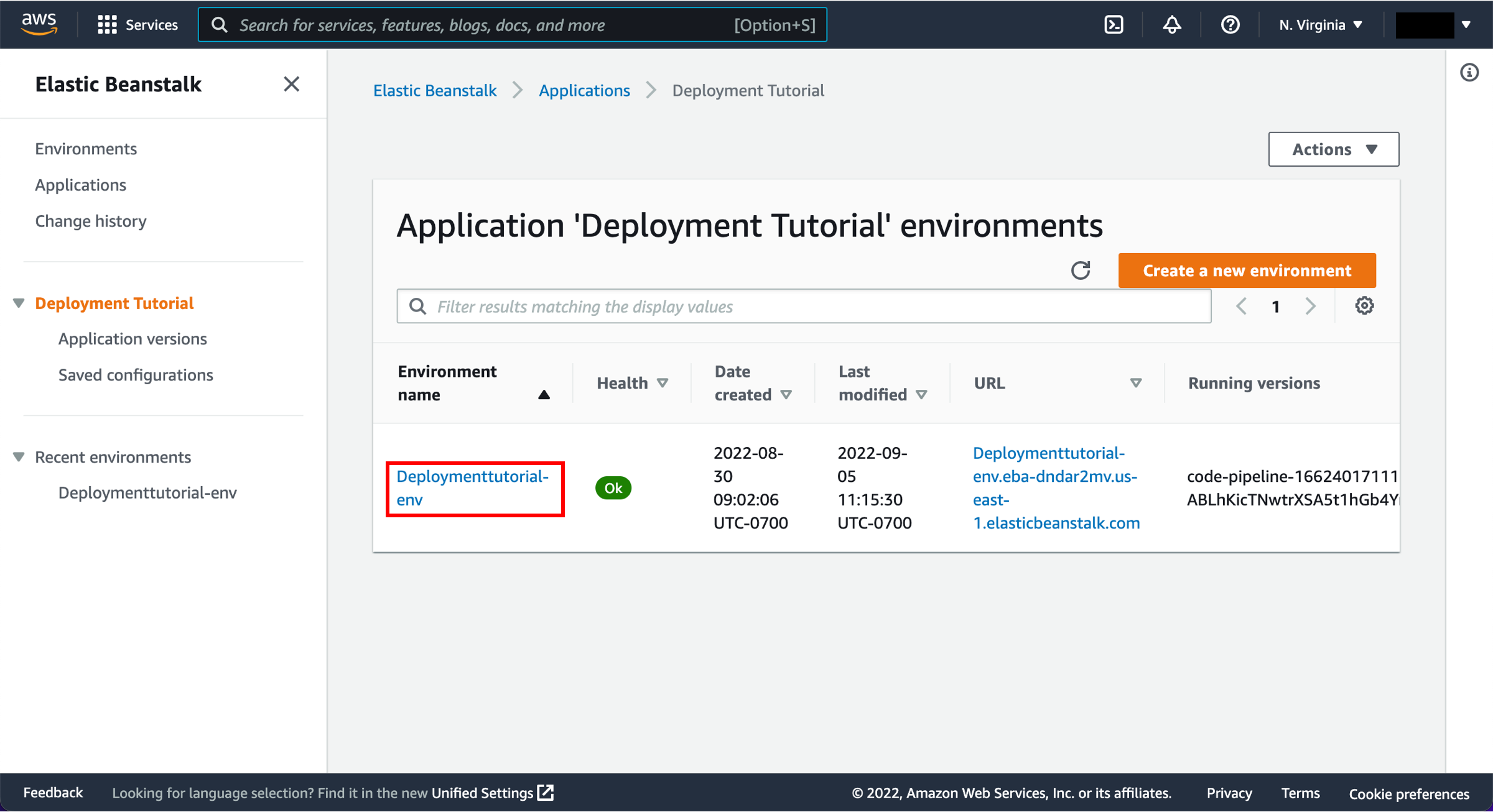

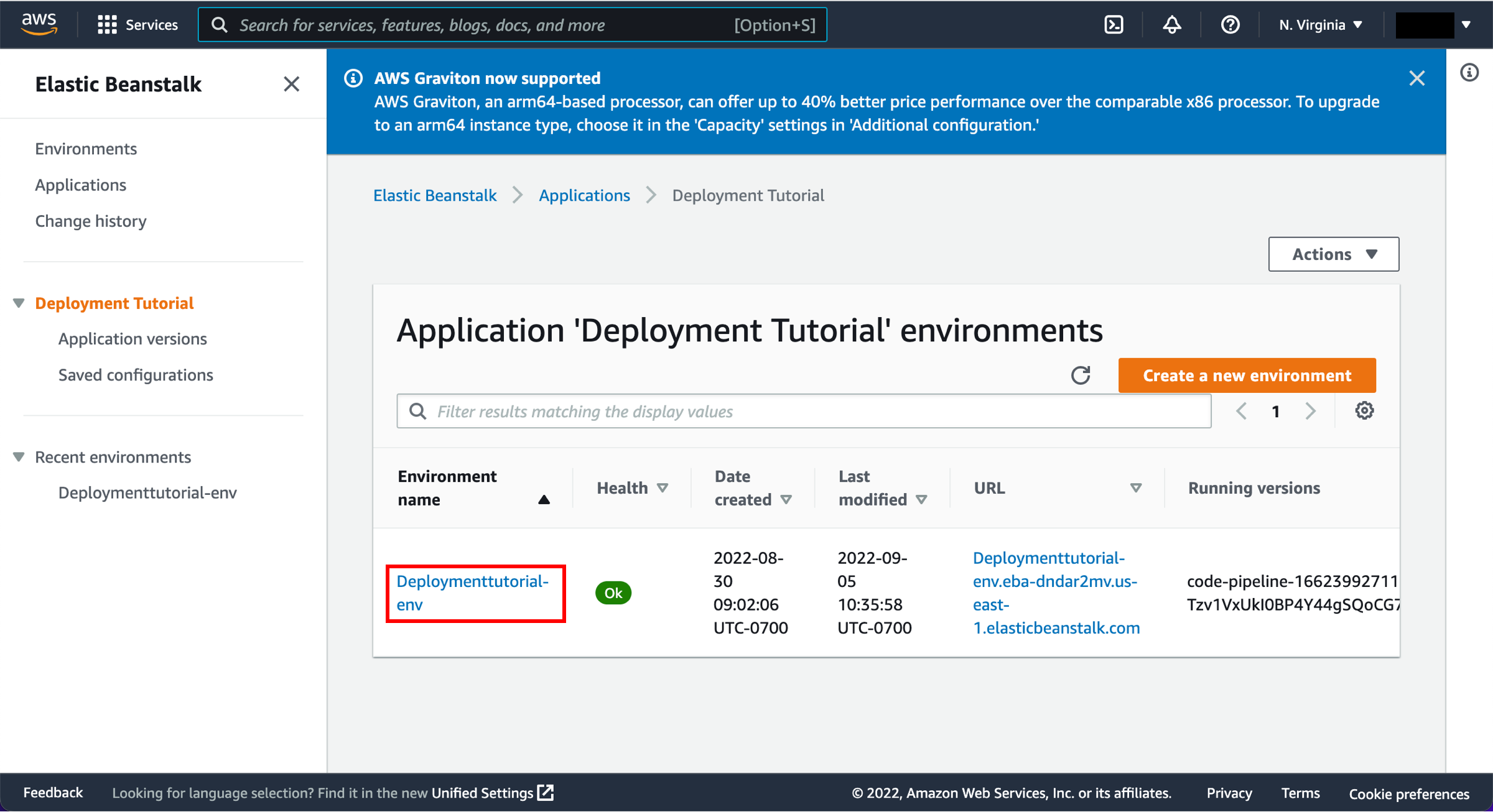

4. Select the environment

   The AWS Elastic Beanstalk console opens with the details of the deployment.

   Select the environment you created earlier, called Default-Environment Deploymenttutorial-env.



5. Select the URL of the sample website

   Select the URL to view the sample website you deployed.

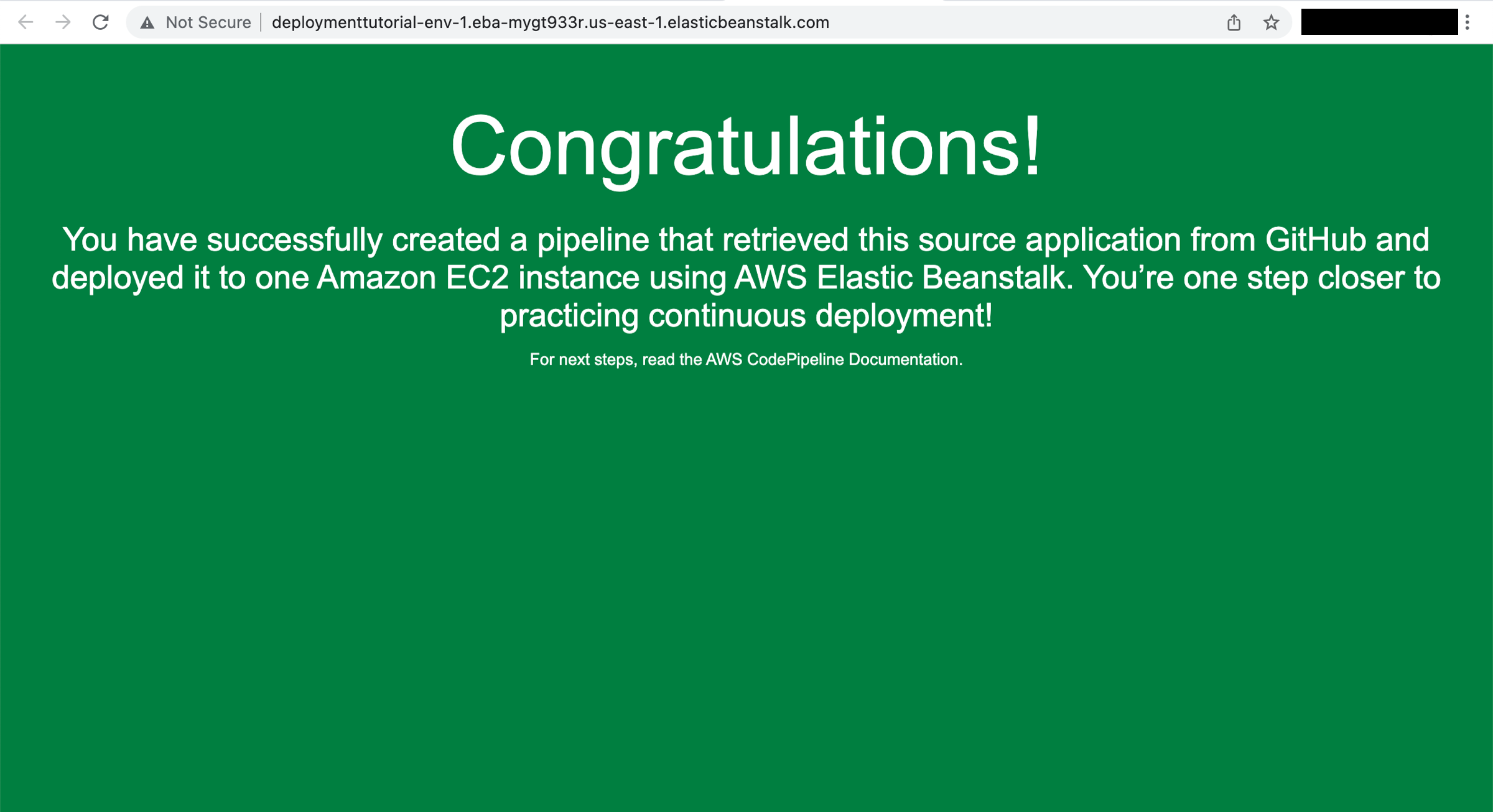

   A webpage with a congratulations message indicating you successfully created a pipeline from your source to Amazon EC2 will open.



Step 5: Commit a change and then update your app

In this step, you will revise the sample code and commit the change to your repository. CodePipeline will detect your updated sample code and then automatically initiate deploying it to your EC2 instance by way of Elastic Beanstalk.

Note that the sample web page you deployed refers to AWS CodeDeploy, a service that automates code deployments. In CodePipeline, CodeDeploy is an alternative to using Elastic Beanstalk for deployment actions. Let’s update the sample code so that it correctly states that you deployed the sample using Elastic Beanstalk.

Choose the appropriate tab based on the code source you used.

GitHub

1. Edit the code

   Visit your own copy of the repository that you forked in GitHub.

   Open index.html.

   Select the Edit icon.

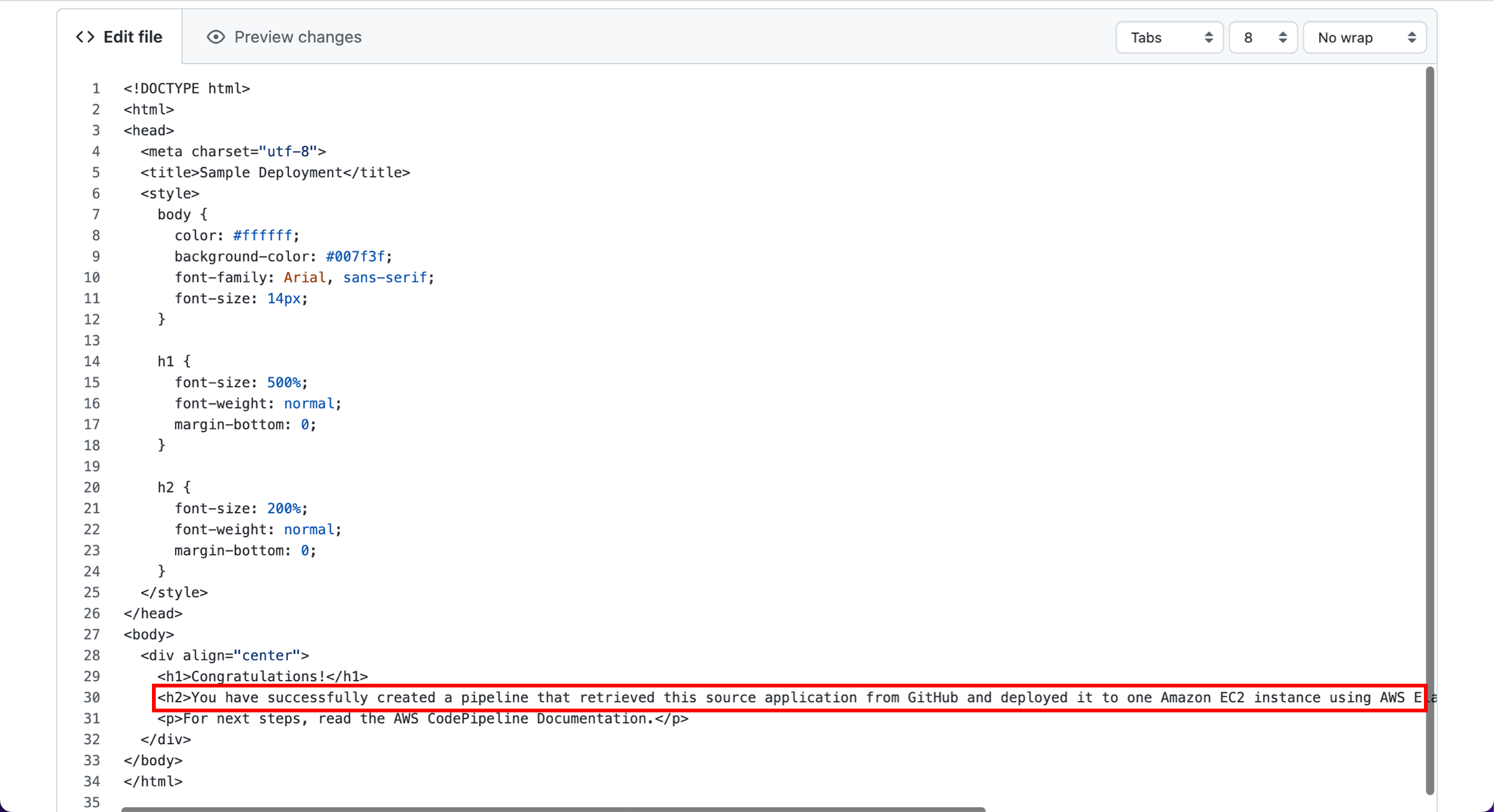

2. Insert text

   Update the webpage by copying and pasting the following text on line 30:

   You have successfully created a pipeline that retrieved this source application from GitHub and deployed it to one Amazon EC2 instance using AWS Elastic Beanstalk. You’re one step closer to practicing continuous deployment!

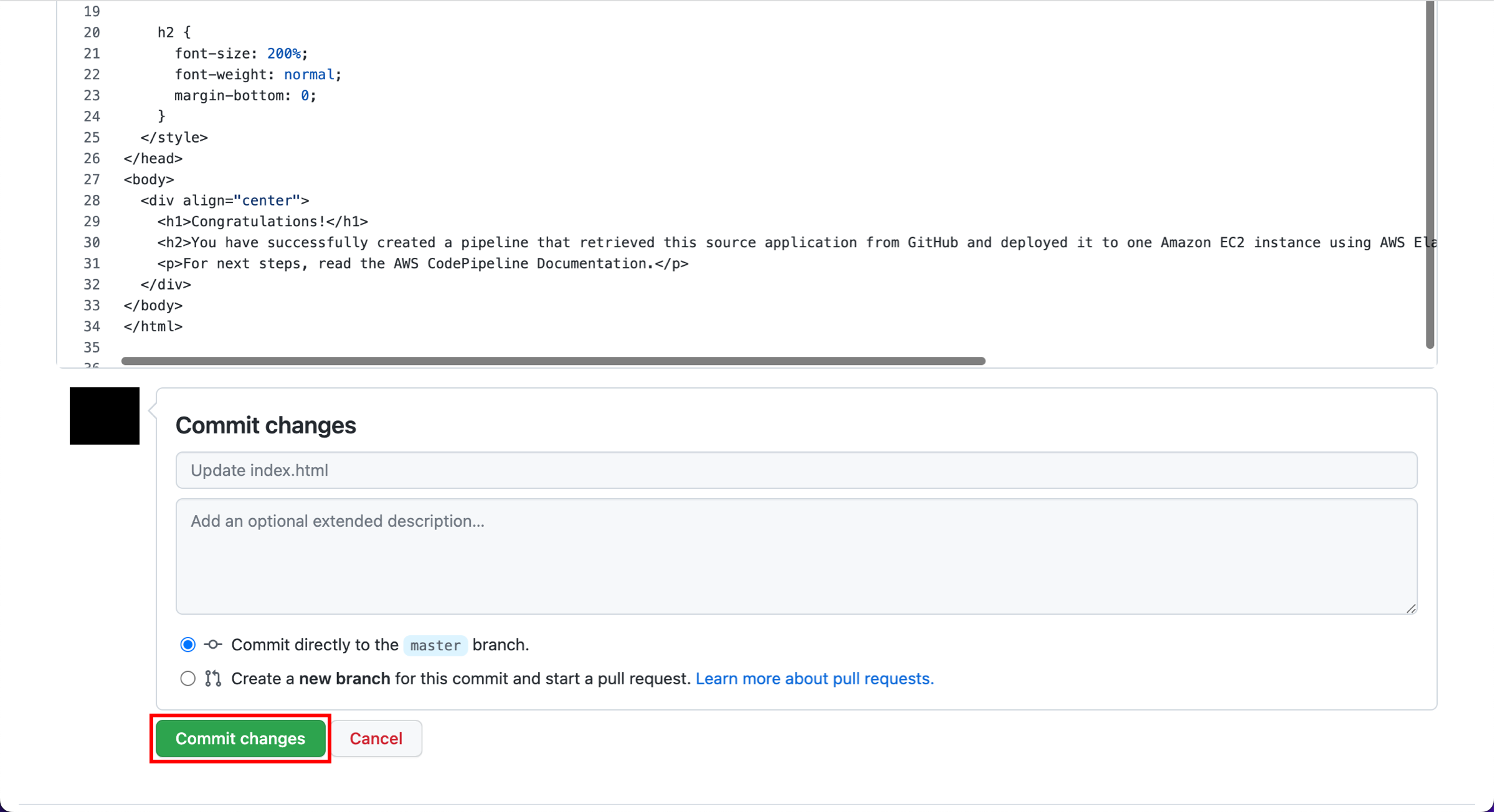

3. Commit the change

   Commit the change to your repository.

   Then, go to View the page you updated with GitHub.



Amazon S3

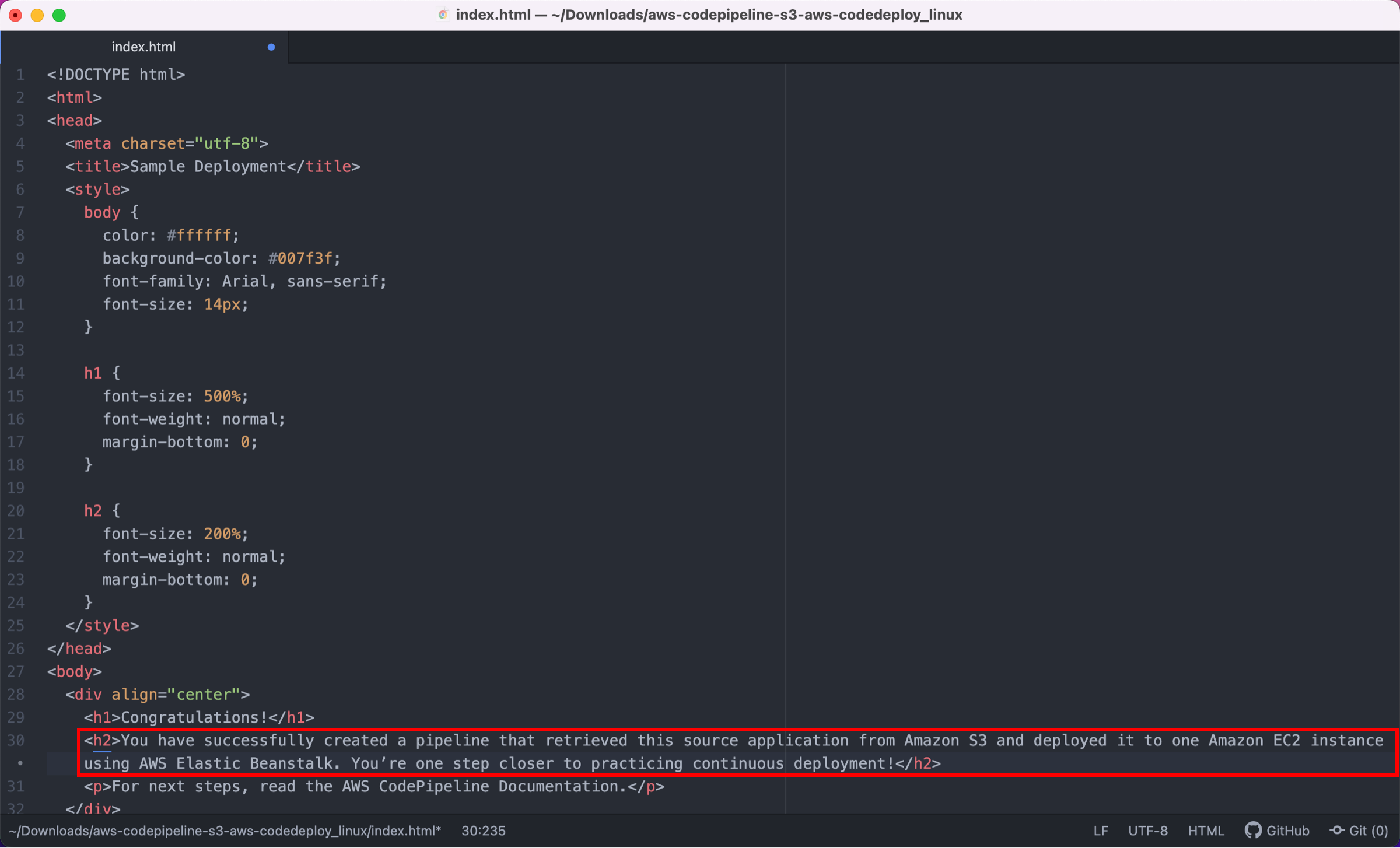

1. Edit the code

   On your desktop, visit the zip file you downloaded called aws-codepipeline-s3-aws-codedeploy_linux.zip.

   Edit the sample web app code:

   1. Extract index.html from the zip file and open it using your preferred text editor.

   2. Update the header text that comes after Congratulations! so that it reads:

      You have successfully created a pipeline that retrieved this source application from Amazon S3 and deployed it to one Amazon EC2 instance using AWS Elastic Beanstalk. You’re one step closer to practicing continuous deployment!

   3. Copy the updated index.html file back into aws-codepipeline-s3-aws-codedeploy_linux.zip and replace the older version of index.html.

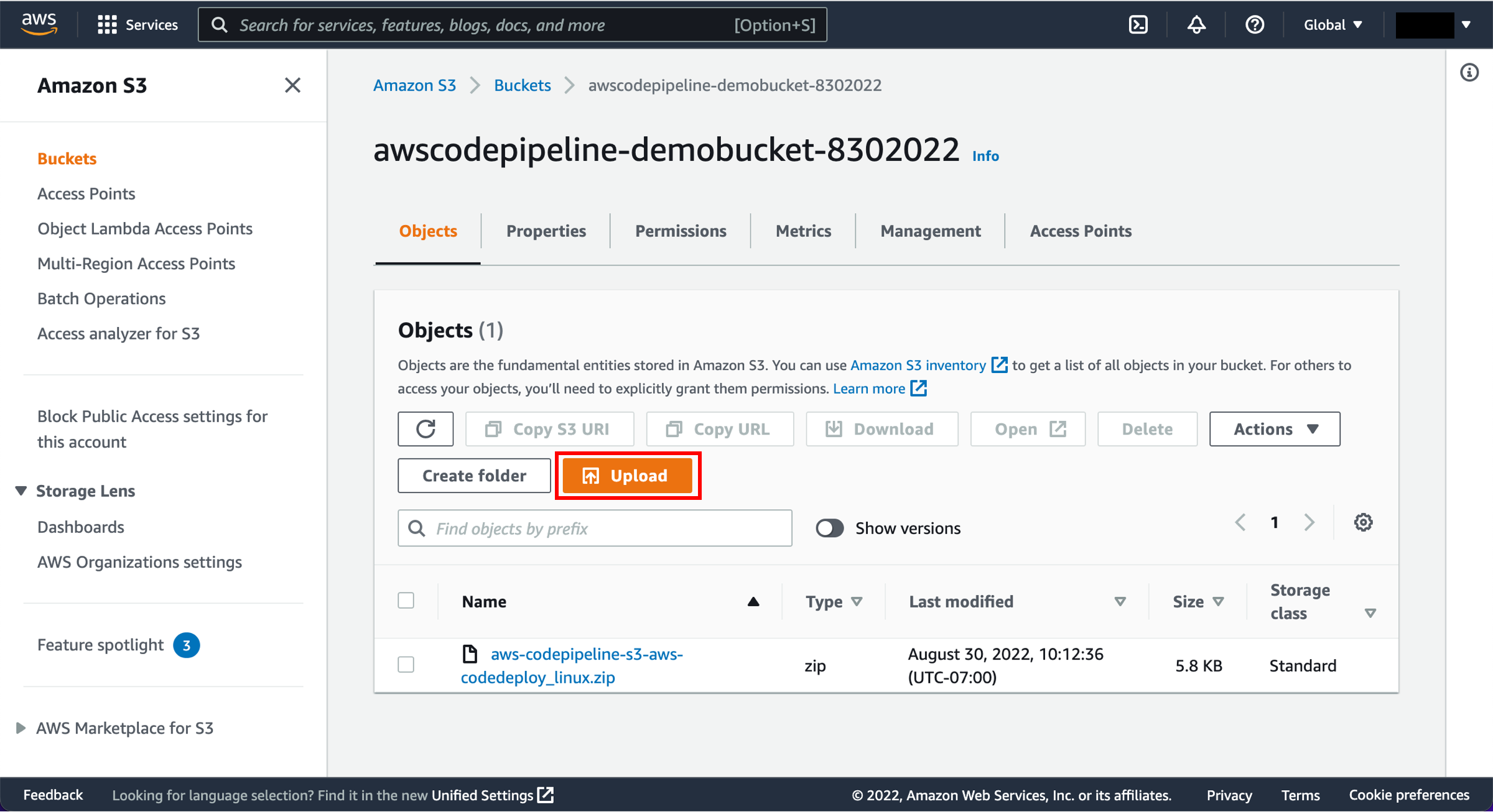

2. Upload the file to your bucket

   Return to the S3 bucket that you created earlier and select Upload.



3. Upload the file to your bucket

   Select Add files to upload the updated aws-codepipeline-s3-aws-codedeploy_linux.zip file or drag and drop the file. Then choose Upload.

   Note

   Because you enabled versioning when you first created the S3 bucket, S3 will save a copy of every version of your files.

   Then, go to View the page you updated in Amazon S3.



AWS CodeCommit

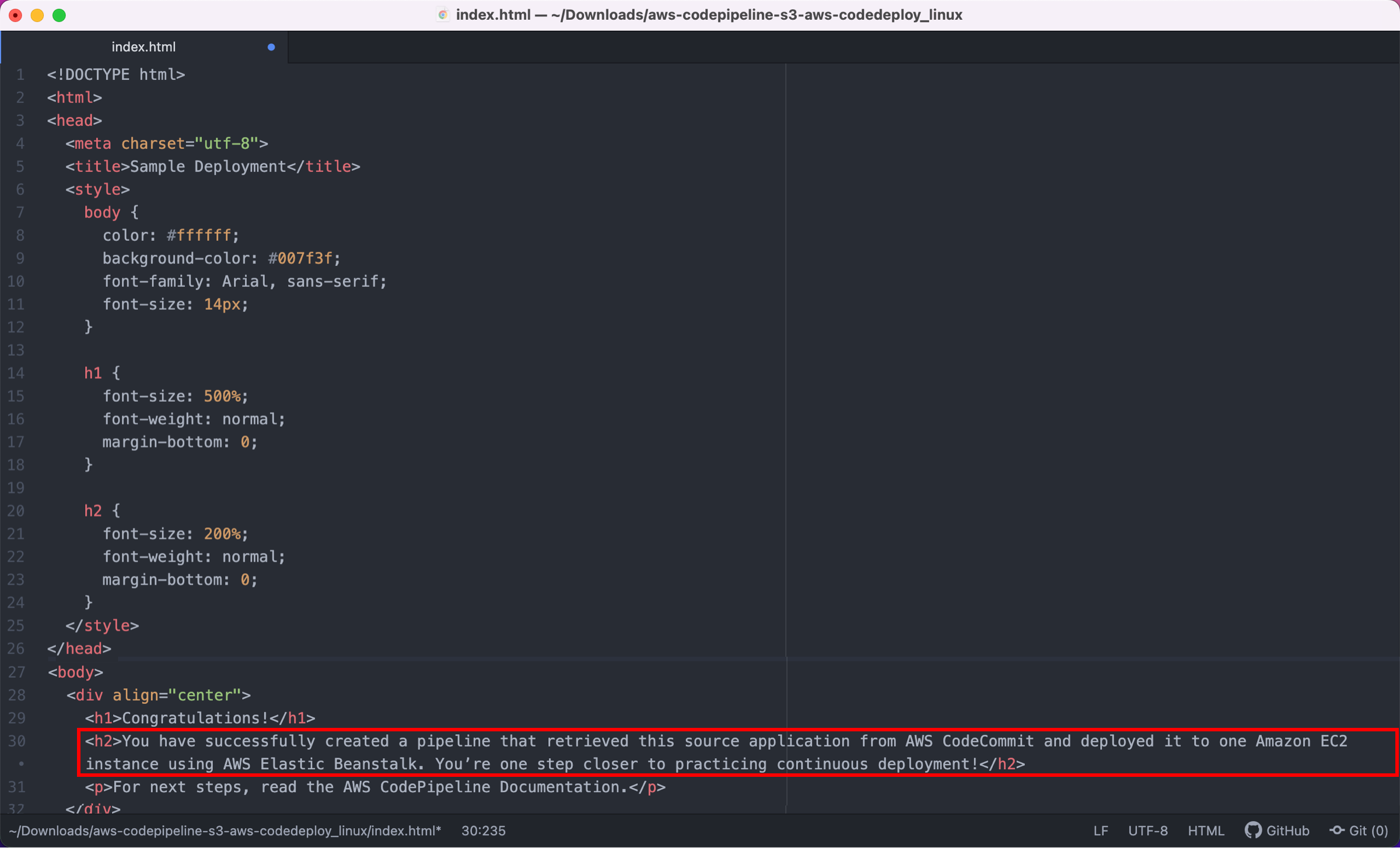

1. Edit the code

   On your desktop, visit the zip file you downloaded called aws-codepipeline-s3-aws-codedeploy_linux.zip.

   Edit the sample web app code:

   1. Extract index.html from the zip file and open it using your preferred text editor.

   2. Update the header text that comes after Congratulations! so that it reads:

      You have successfully created a pipeline that retrieved this source application from AWS CodeCommit and deployed it to one Amazon EC2 instance using AWS Elastic Beanstalk. You’re one step closer to practicing continuous deployment!



2. Upload the file

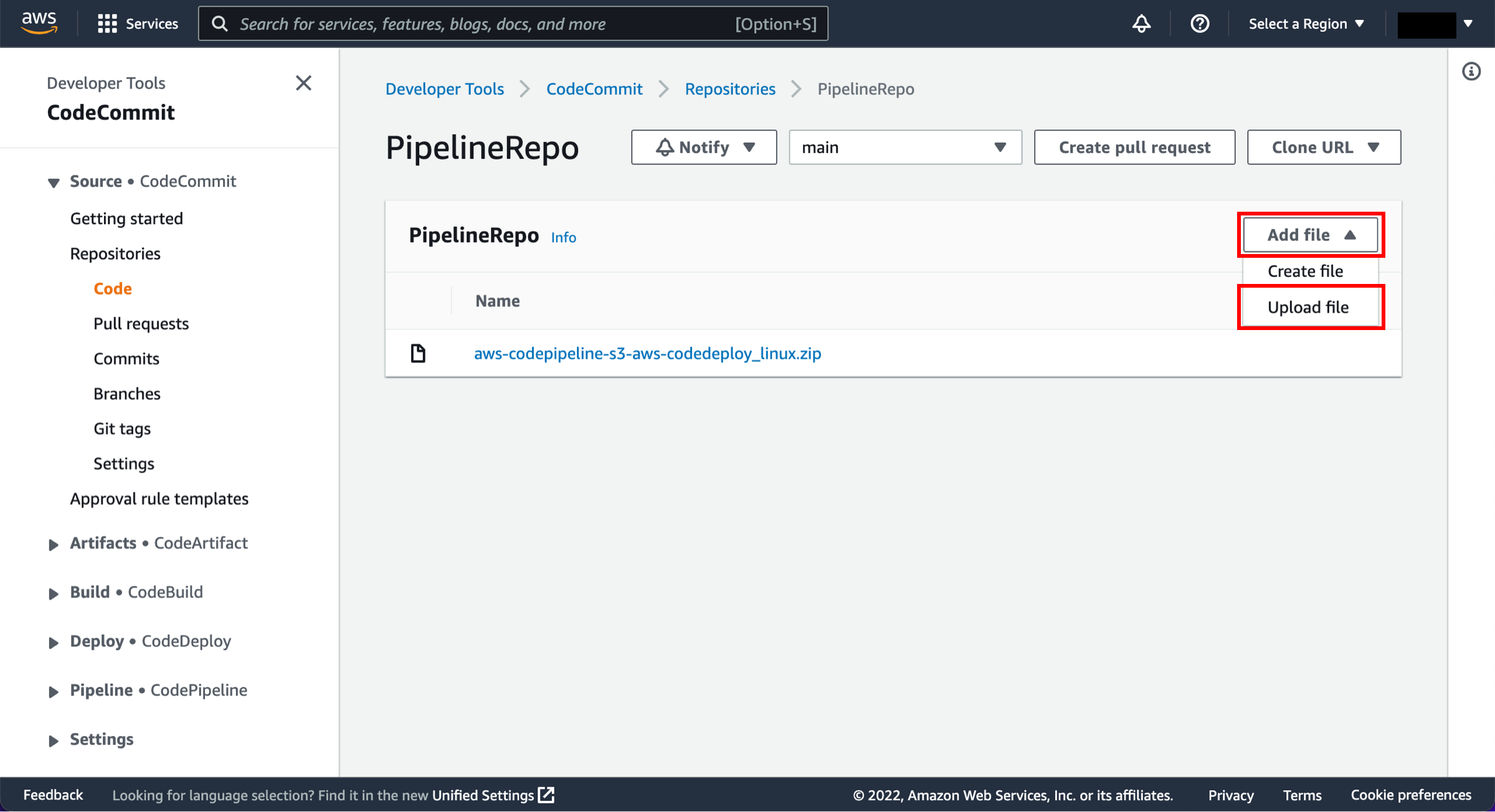

   From the CodeCommit PipelineRepo page, choose Add file and select Upload file.



3. Upload the file

   On the Upload a file page, choose the Choose file button and select the updated aws-codepipeline-s3-aws-codedeploy_linux.zip file.



4. Commit changes

   Enter an Author name and Email address, then choose Commit changes.



Step 6: View the page you updated

In this step, you will view the page you updated.

Choose the appropriate tab based on the code source you used.

GitHub

1. Choose Elastic Beanstalk

   Return to your pipeline in the CodePipeline console. In a few minutes, you should see the Source change to blue, indicating that the pipeline has detected the changes you made to your source repository. Once this occurs, it will automatically move the updated code to Elastic Beanstalk.

   After the pipeline status displays Succeeded, in the status area for the Beta stage, choose AWS Elastic Beanstalk.



2. Select the environment

   The AWS Elastic Beanstalk console opens with the details of the deployment. Select the environment you created earlier, called Deploymenttutorial-env.



3. Select the URL

   Select the URL to view the sample website again.

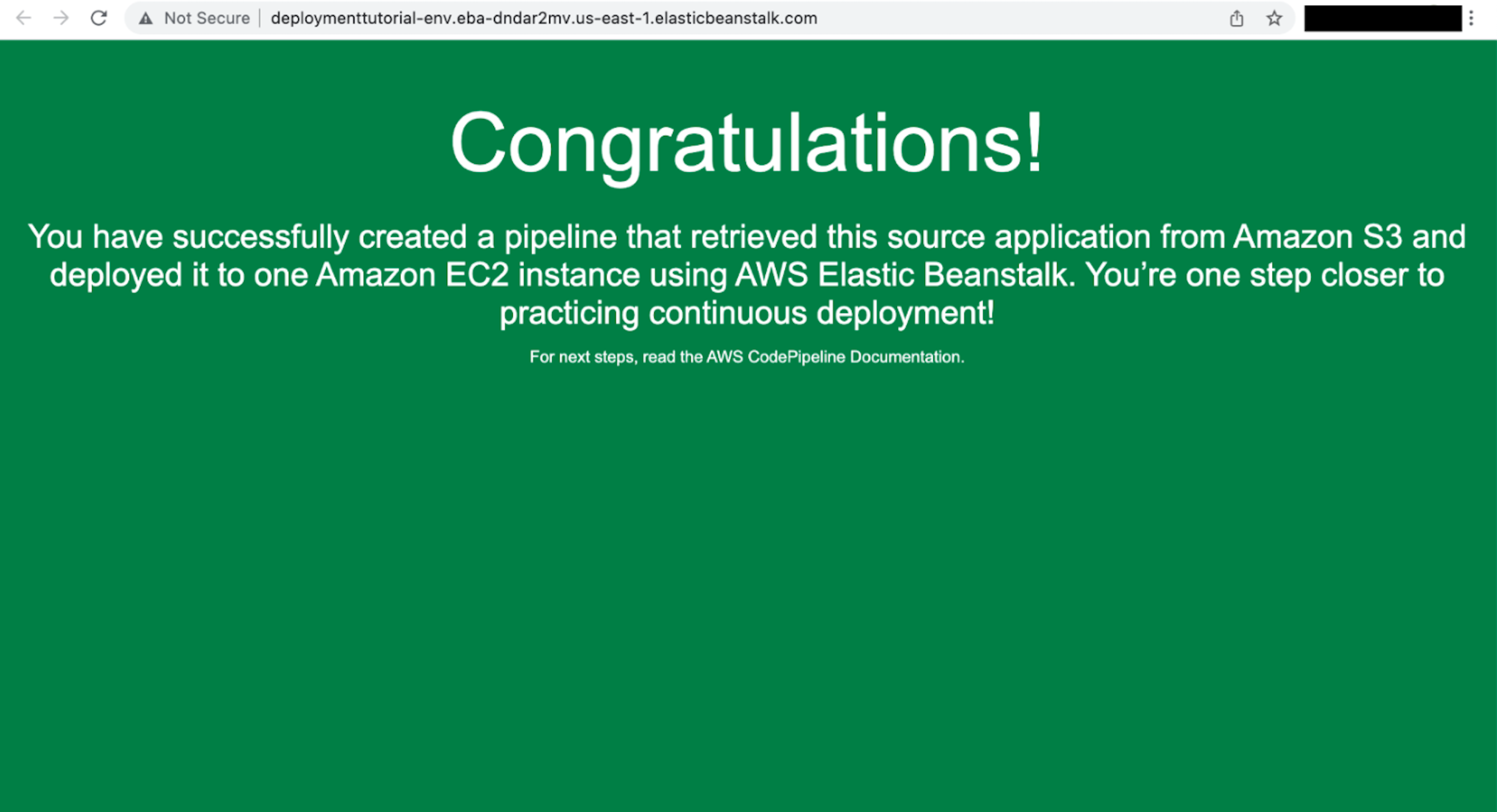

4. View the page

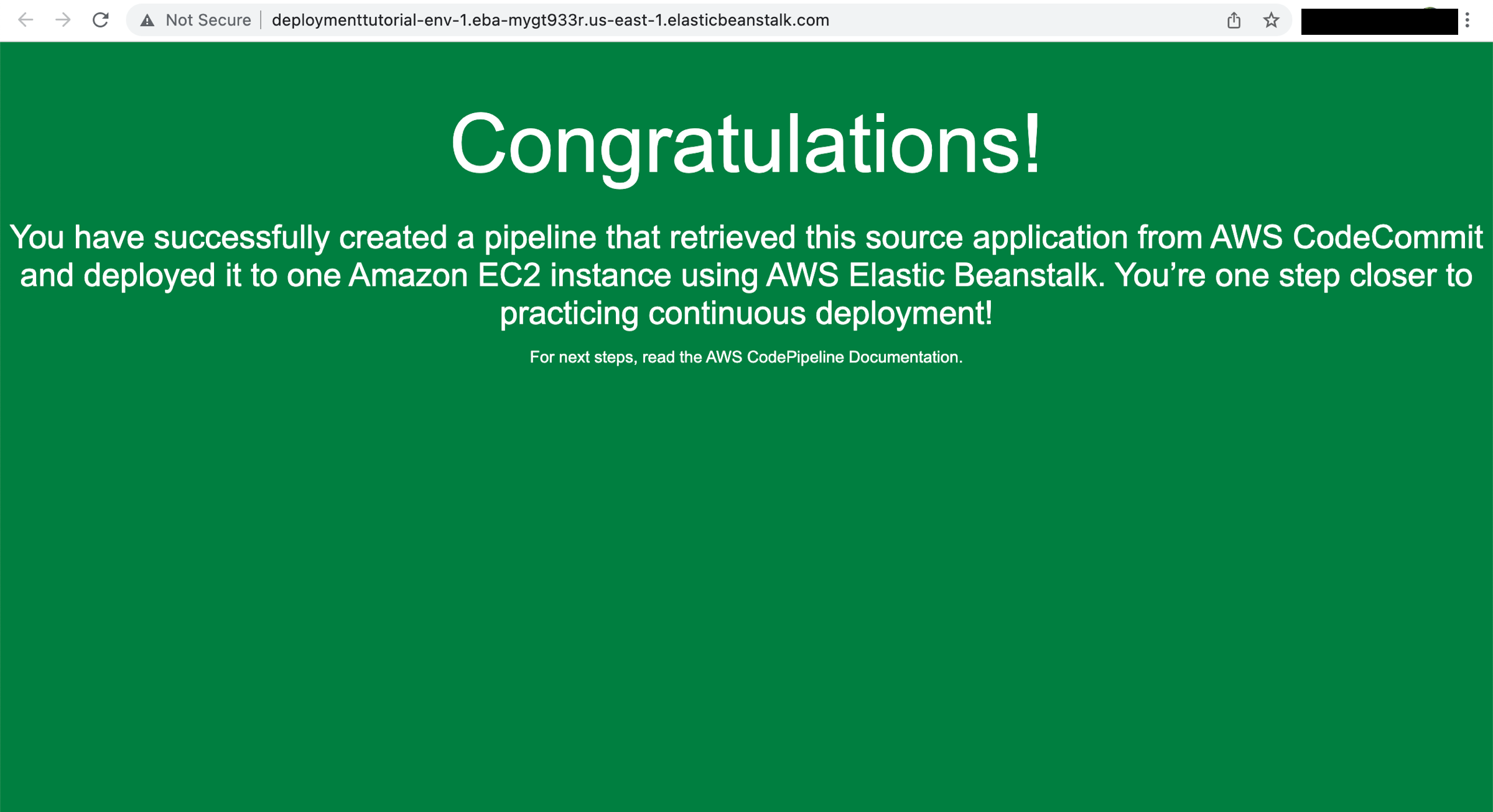

   Confirm that the updated text appears on the webpage.



Amazon S3

1. Choose Elastic Beanstalk

   Return to your pipeline in the CodePipeline console. In a few minutes, you should see the Source change to blue, indicating that the pipeline has detected the changes you made to your source repository. Once this occurs, it will automatically move the updated code to Elastic Beanstalk.

   After the pipeline status displays Succeeded, in the status area for the Beta stage, choose AWS Elastic Beanstalk.



2. Select the environment

   The AWS Elastic Beanstalk console opens with the details of the deployment. Select the environment you created earlier, called Deploymenttutorial-env.



3. Select the URL

   Select the URL to view the sample website again.



4. View the page

   Confirm that the updated text appears on the webpage.



AWS CodeCommit

1. Choose Elastic Beanstalk

   Return to your pipeline in the CodePipeline console. In a few minutes, you should see the Source change to blue, indicating that the pipeline has detected the changes you made to your source repository. Once this occurs, it will automatically move the updated code to Elastic Beanstalk.

   After the pipeline status displays Succeeded, in the status area for the Beta stage, choose AWS Elastic Beanstalk.



2. Select the environment

   The AWS Elastic Beanstalk console opens with the details of the deployment. Select the environment you created earlier, called Deploymenttutorial-env.



3. Select the URL

   Select the URL to view the sample website again.



4. View the page

   Confirm that the updated text appears on the webpage.



Clean up resources

To avoid future charges, you will delete all the resources you launched throughout this tutorial, which includes the pipeline, the Elastic Beanstalk application, and the source you set up to host the code.

1. Delete the pipeline

   First, you will delete your pipeline. In the Pipelines view, select the pipeline radio button and select Delete pipeline.



2. Confirm deletion

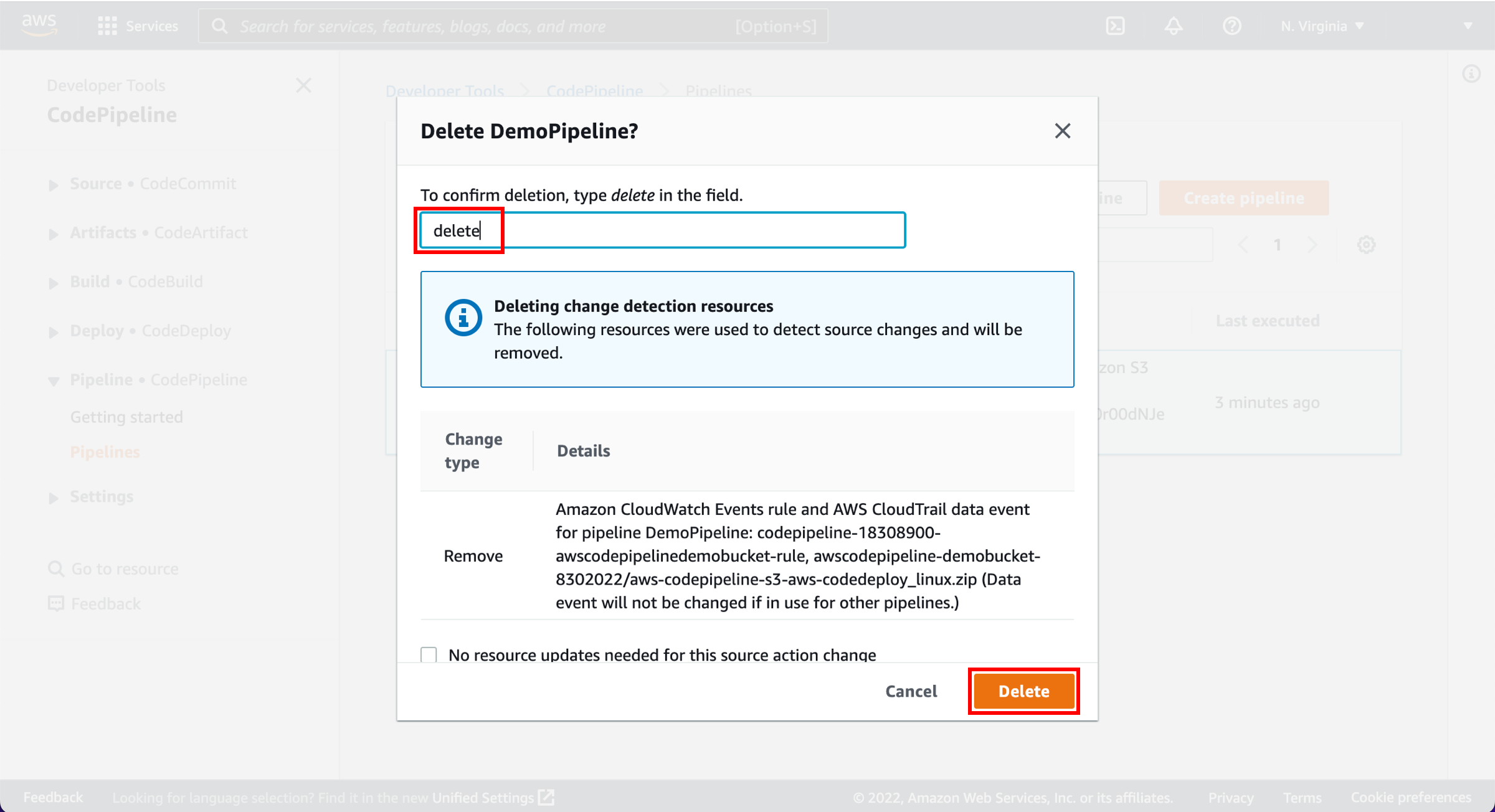

   To confirm deletion, enter delete in the field and choose Delete.



3. Delete the Beanstalk application

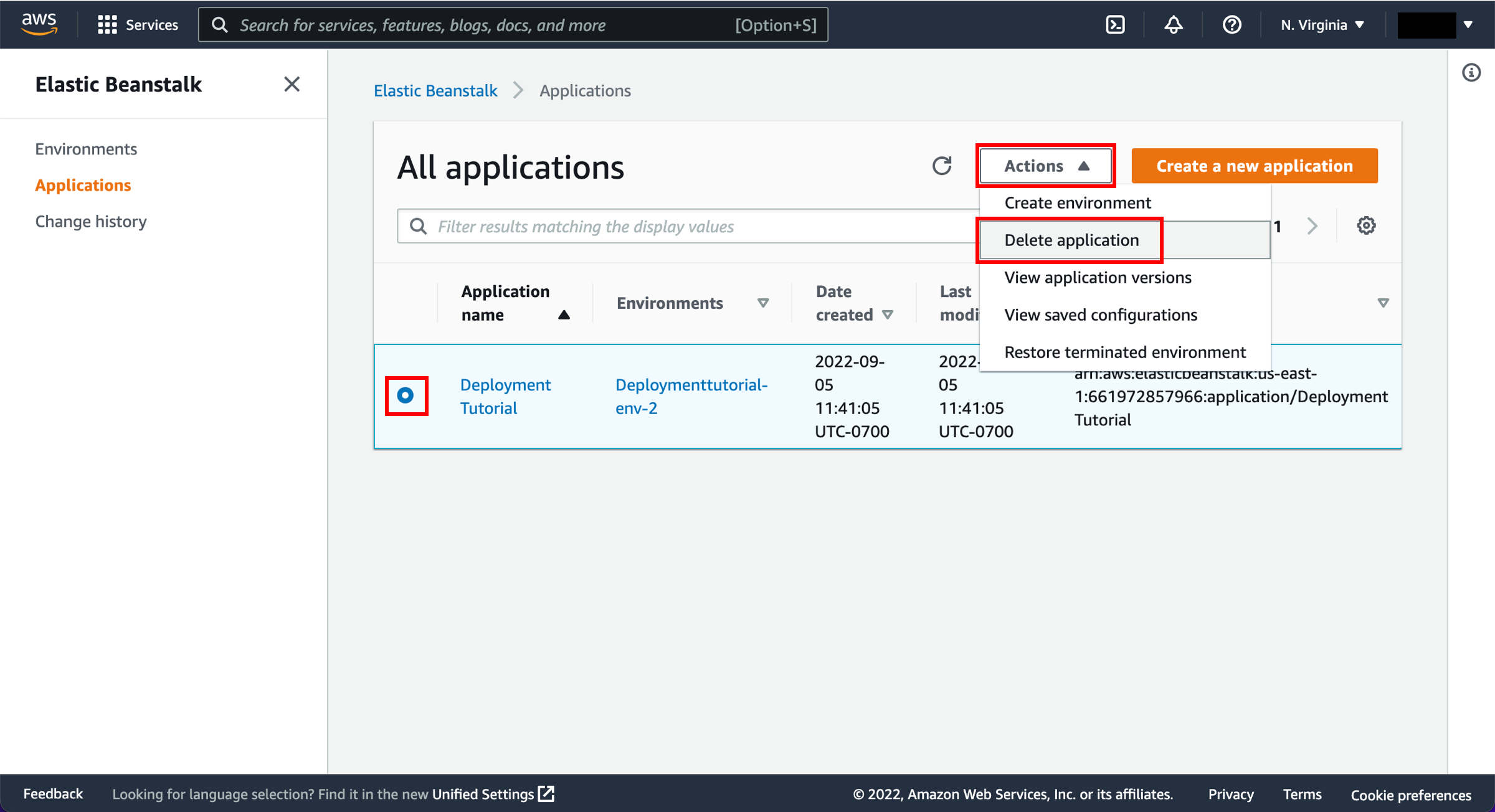

   Second, delete your Elastic Beanstalk application. Visit the Elastic Beanstalk Applications page. Select the radio button for the Deployment Tutorial. Select Actions and Delete application.



4. Confirm deletion

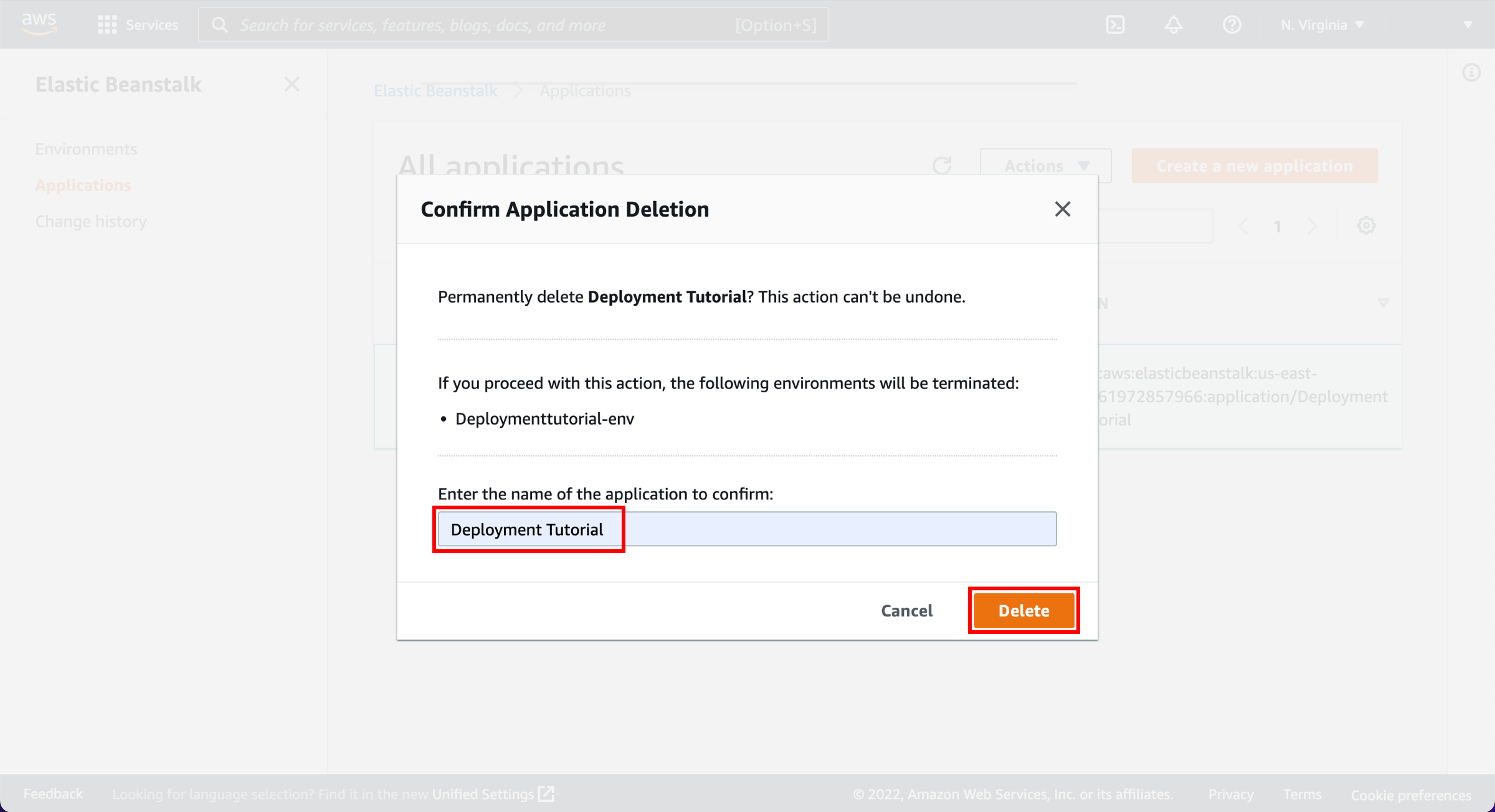

   In the Confirm Application Deletion window, enter the name of the application to be deleted and choose Delete.



(Optional) Delete Amazon S3 resources

If you used Amazon S3 as your source, you can delete the resources to avoid future charges.

1. Empty the bucket contents

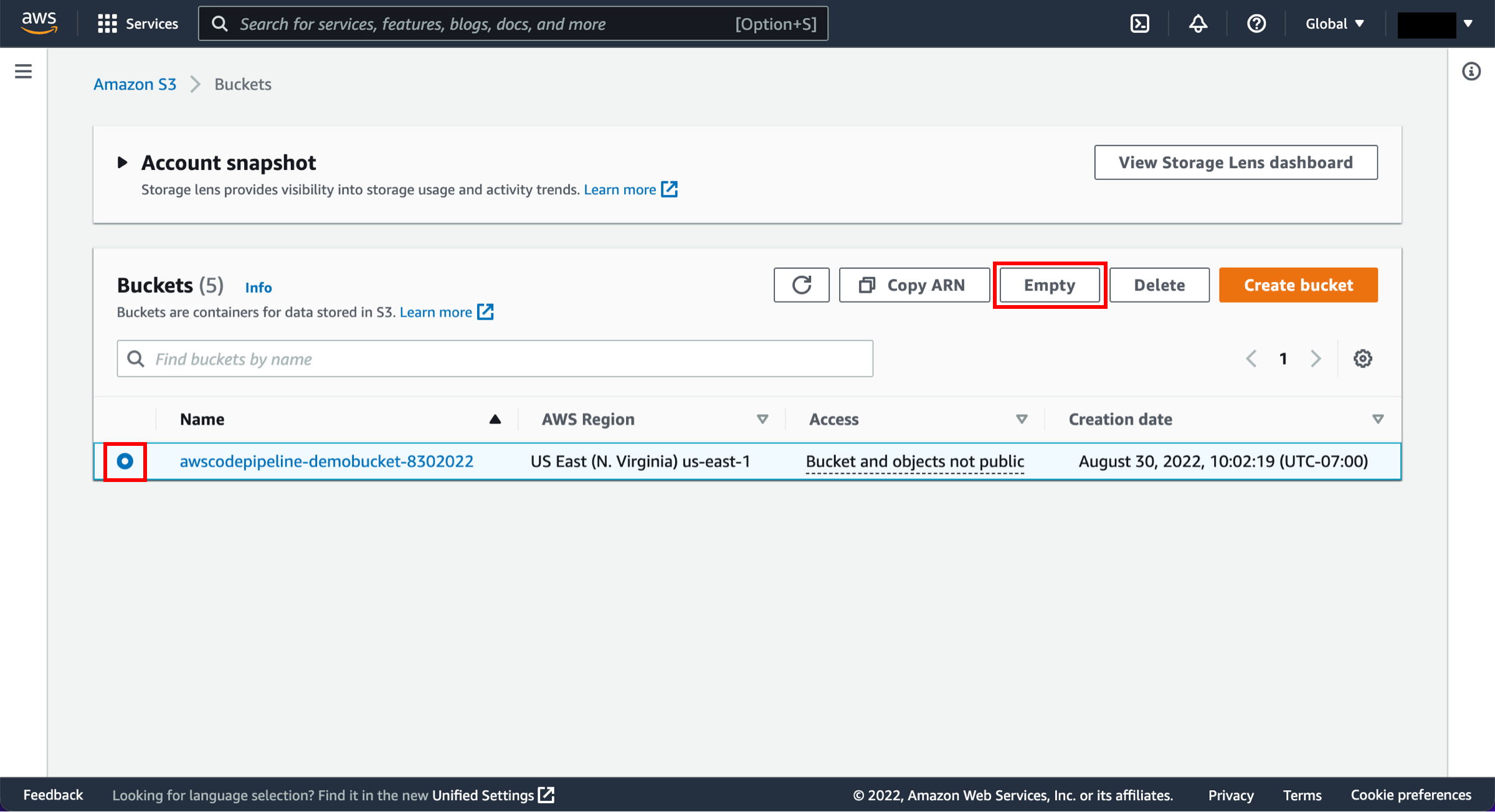

   Visit the S3 console. First, we will empty the S3 bucket. Select the radio button next to the awscodepipeline bucket and choose Empty.



2. Confirm deletion

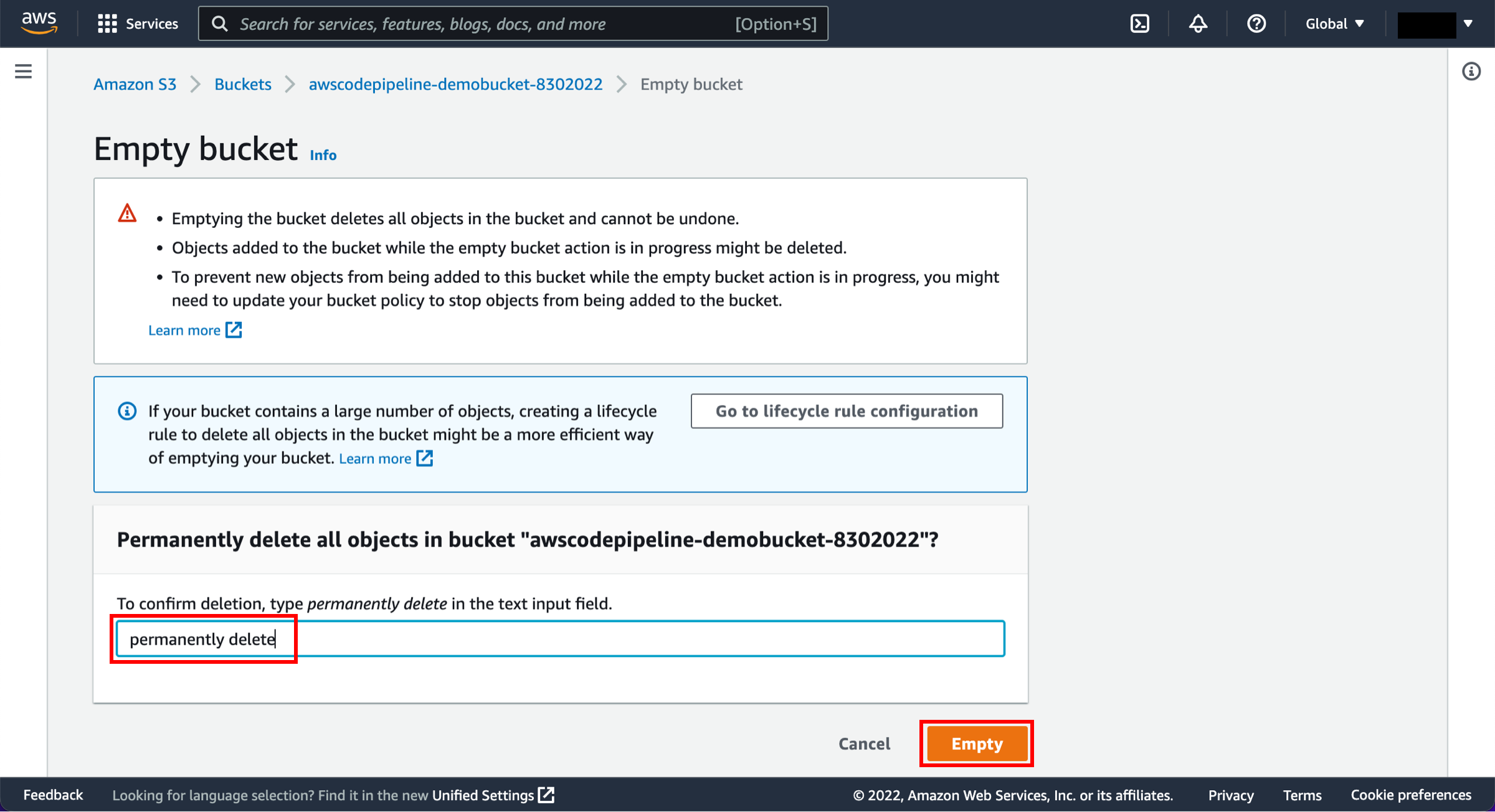

   When a confirmation message appears, enter permanently delete in the text input field and choose Empty.



3. Delete the bucket

   Now we will delete the bucket. Select the radio button next to the awscodepipeline bucket and choose Delete.



4. Confirm deletion

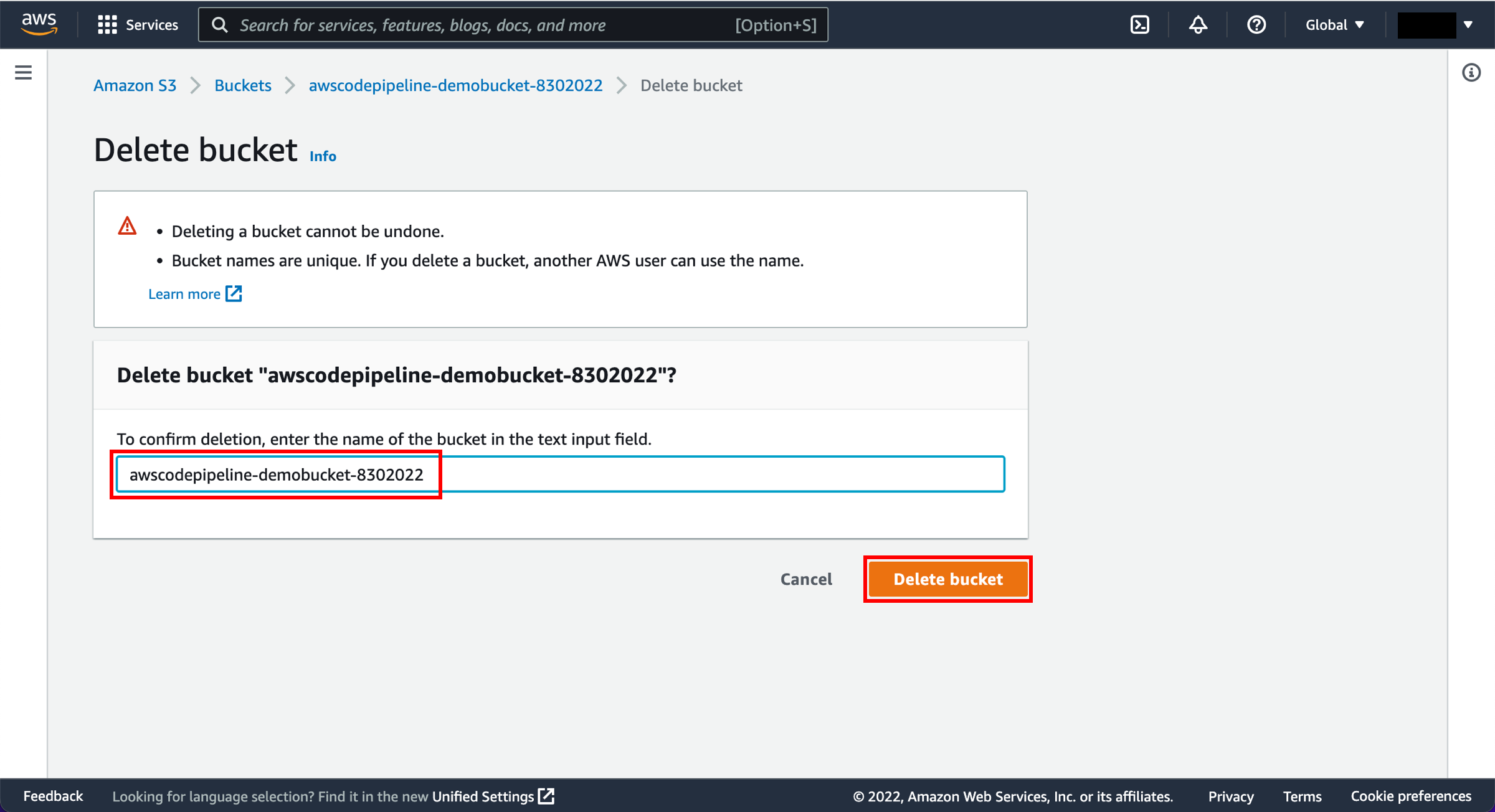

   When a confirmation message appears, enter the bucket name and then choose Delete bucket.



(Optional) Delete AWS CodeCommit resources

If you used AWS CodeCommit as your source, you can delete the resources to avoid future charges.

1. Delete the repository

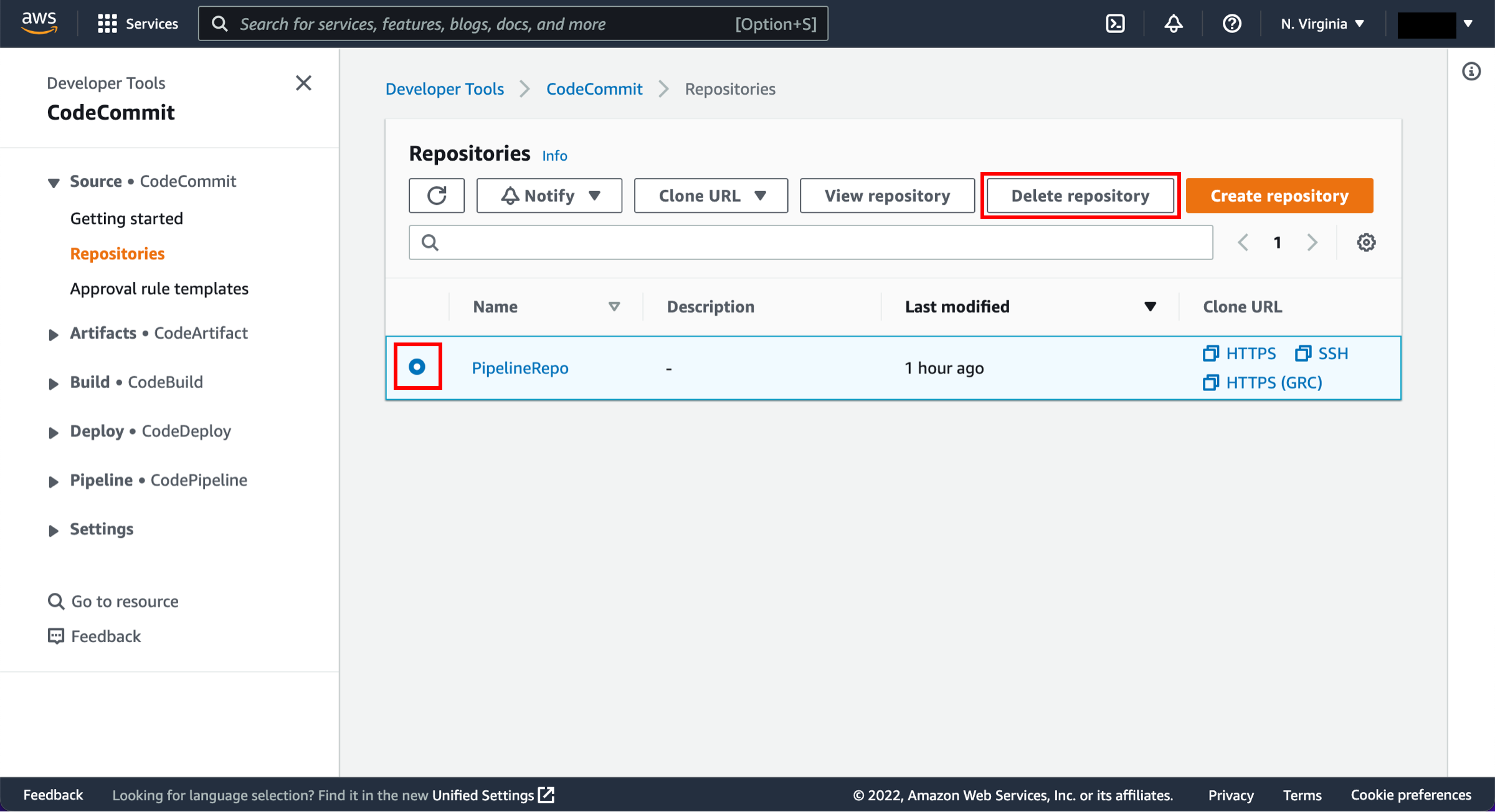

   Open the AWS CodeCommit repository. Select the radio button next to the repository you created and choose Delete repository.



2. Confirm deletion

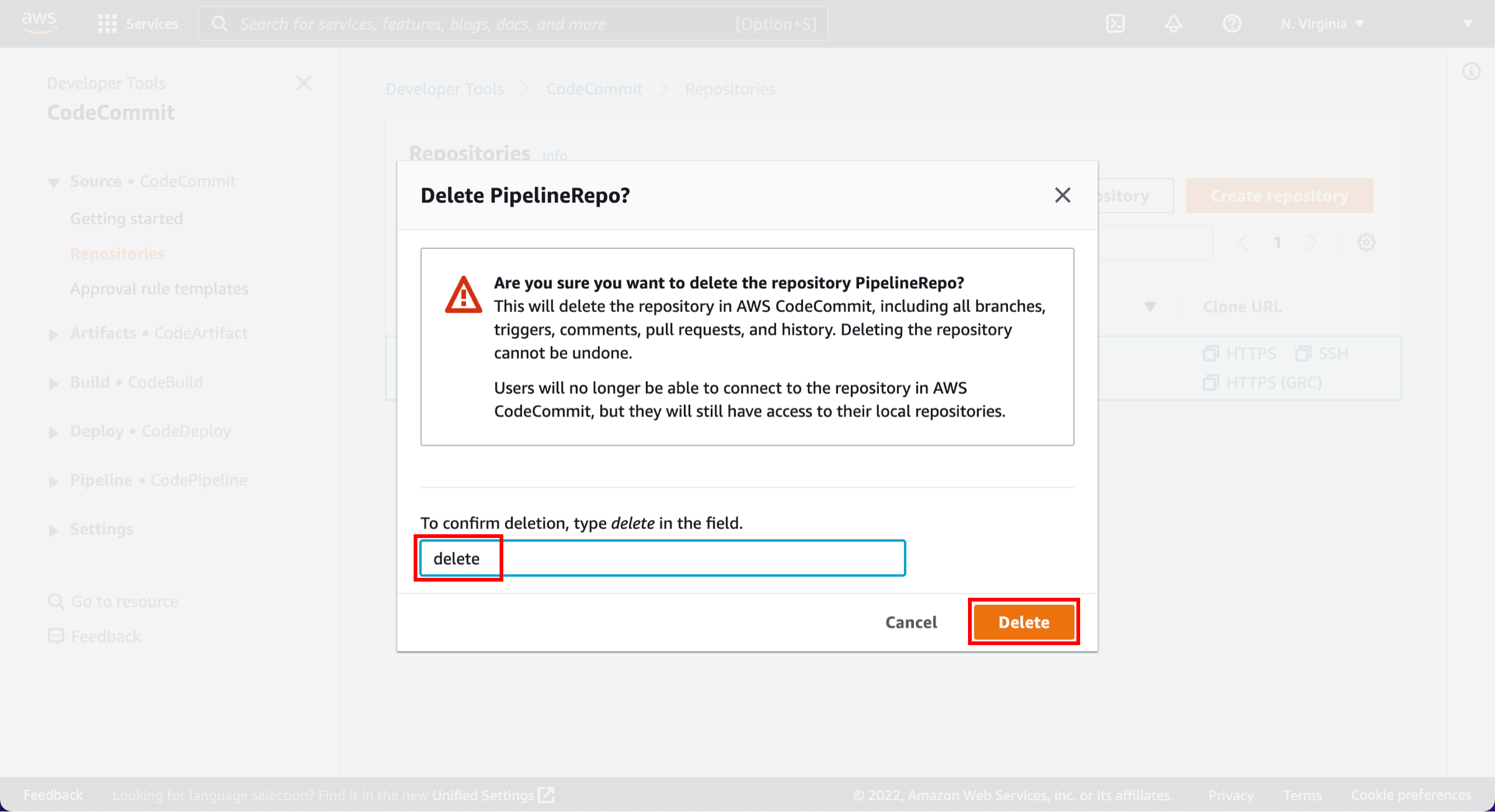

   A confirmation window will pop up. Enter delete and choose Delete.



Conclusion

Congratulations! You have successfully created an automated software release pipeline using AWS CodePipeline. Using CodePipeline, you created a pipeline that uses GitHub, Amazon S3, or AWS CodeCommit as the source location for application code and then deploys the code to an Amazon EC2 instance managed by AWS Elastic Beanstalk. Your pipeline will automatically deploy your code every time there is a code change. You are one step closer to practicing continuous deployment!
