Creating dashboards - AWS IoT SiteWise Monitor

Creating dashboards

As a project owner, you create dashboards in AWS IoT SiteWise Monitor to provide a shared view of asset properties to your project viewers. You can create a dashboard from the Dashboards page or while viewing a project's details.

To create a dashboard from the dashboards page

  1. In the navigation bar, choose the Dashboards icon.


    The "Dashboards" icon in the navigation bar.

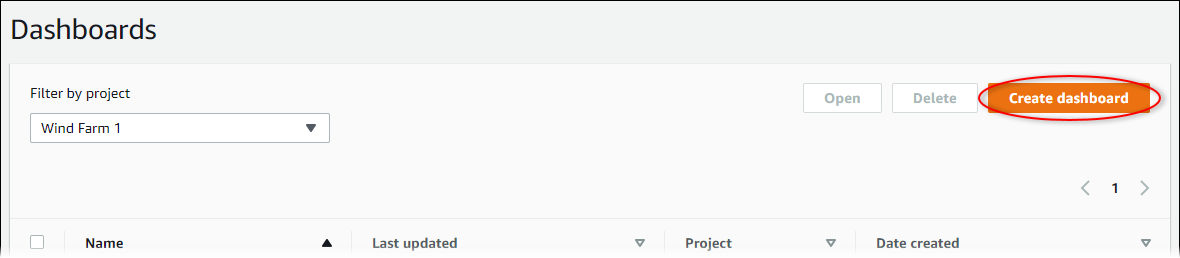

  2. On the Dashboards page, choose Create dashboard.


            The dashboards list with "Create dashboard" highlighted.
  3. In the dashboard editor, change the dashboard name from the default, New dashboard, to something that describes the content.


          The dashboard editor.
  4. Add one or more visualizations. For more information, see Adding visualizations.

  5. After you finish editing the dashboard, choose Save dashboard to save your changes. The dashboard editor closes. If you try to close a dashboard that has unsaved changes, you're prompted to save them.

To create a dashboard while viewing a project's details

  1. In the navigation bar, choose the Projects icon.


    The "Projects" icon in the navigation bar.
  2. On the Projects page, choose the project in which you want to create a dashboard.


            The "Projects" page.
  3. In the Dashboards section, choose Create dashboard.


          The dashboards list on the project details page with "Create dashboard"
            highlighted.
  4. In the dashboard editor, change the dashboard name from the default, New dashboard, to something that describes the content.


          The dashboard editor.
  5. Add one or more visualizations. For more information, see Adding visualizations.

  6. After you finish editing the dashboard, choose Save dashboard to save your changes. The dashboard editor closes. If you try to close a dashboard that has unsaved changes, you're prompted to save them.
