Analyze sync status and errors

This topic provides guidance on how to analyze sync errors and statuses.

Important

See Differences between custom and default workspaces for information about the differences between the custom and default workspaces.

Sync job statuses

A sync job has one of the following statuses depending on its state.

• The sync job CREATING state means the job is checking for permissions and loading data from AWS IoT SiteWise to prepare the sync.

• The sync job INITIALIZING state means all the existing resources in AWS IoT SiteWise are synced to AWS IoT TwinMaker. This step can take longer to complete if the user has a large number of assets and asset models in AWS IoT SiteWise. You can monitor the number of resources that have been synced by checking on the sync job in the AWS IoT TwinMaker console, or by calling the ListSyncResources API.

• The sync job ACTIVE state means the initialization step is done. The job is now ready to sync any new updates from AWS IoT SiteWise.

• The sync job ERROR state indicates an error with any of the preceding states. Review the error message. There may be an issue with the IAM role setup. If you want to use a new IAM role, delete the sync job that had the error and create a new one with the new role.

Sync errors appear in the model source page, which is accessed from the Entity model sources table in your workspace. The model source page displays a list of resources that failed to sync. Most errors are automatically retried by the sync job, but if the resource requires an action, then it remains in the ERROR state. You can also obtain a list of errors by using the ListSyncResources API.

To see all the listed errors for the current source, use the following procedure.

1. Navigate to your workspace in the AWS IoT TwinMaker console.

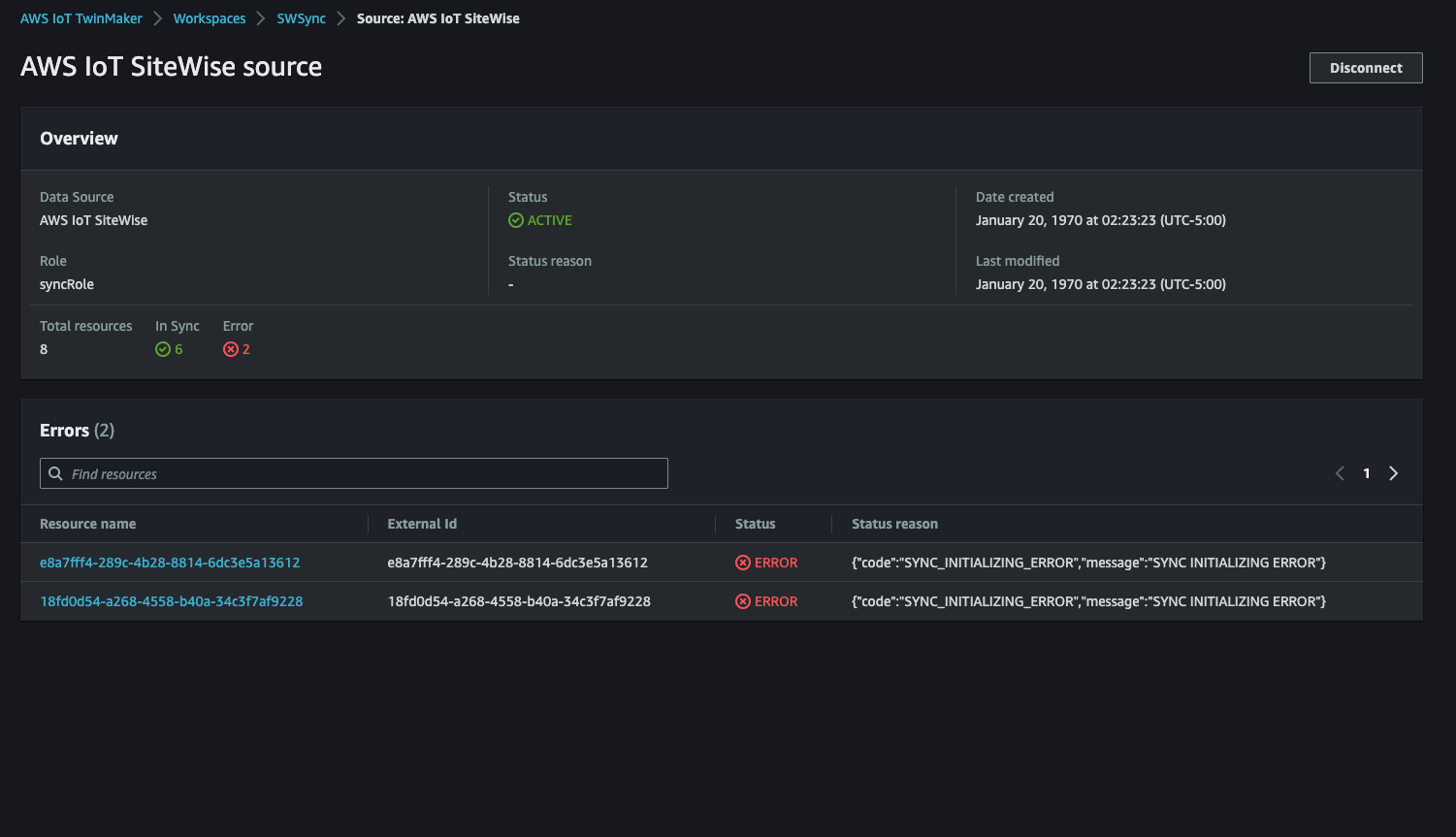

2. Select the AWS IoT SiteWise source listed in the Entity model sources modal to open the asset sync details page.



3. As shown in the preceding screenshot, any resources with persisting errors are listed in the Errors table. You can use this table to track down and fix errors related to specific resources.

Possible errors include the following:

• While AWS IoT SiteWise supports duplicate asset names, AWS IoT TwinMaker only supports them at the ROOT level, not under the same parent entity. If you have two assets with the same name under a parent entity in AWS IoT SiteWise, one of them fails to sync. To fix this error, either delete one of the assets or move one under a different parent asset in AWS IoT SiteWise before you sync.

• If you already have an entity with the same ID as the AWS IoT SiteWise asset ID, that asset fails to sync until you delete the existing entity.
