Custom data source connector

Use a custom data source when you have a repository that Amazon Kendra doesn’t yet provide a data source connector for. You can use it to see the same run history metrics that Amazon Kendra data sources provide even when you can't use Amazon Kendra's data sources to sync your repositories. Use this to create a consistent sync monitoring experience between Amazon Kendra data sources and custom ones. Specifically, use a custom data source to see sync metrics for a data source connector that you created using the BatchPutDocument and BatchDeleteDocument APIs.

For troubleshooting your Amazon Kendra custom data source connector, see Troubleshooting data sources.

When you create a custom data source, you have complete control over how the documents to index are selected. Amazon Kendra only provides metric information that you can use to monitor your data source sync jobs. You must create and run the crawler that determines the documents your data source indexes.

You must specify the main title of your documents using the Document object, and _source_uri in DocumentAttribute in order to have DocumentTitle and DocumentURI included in the response of the Query result.

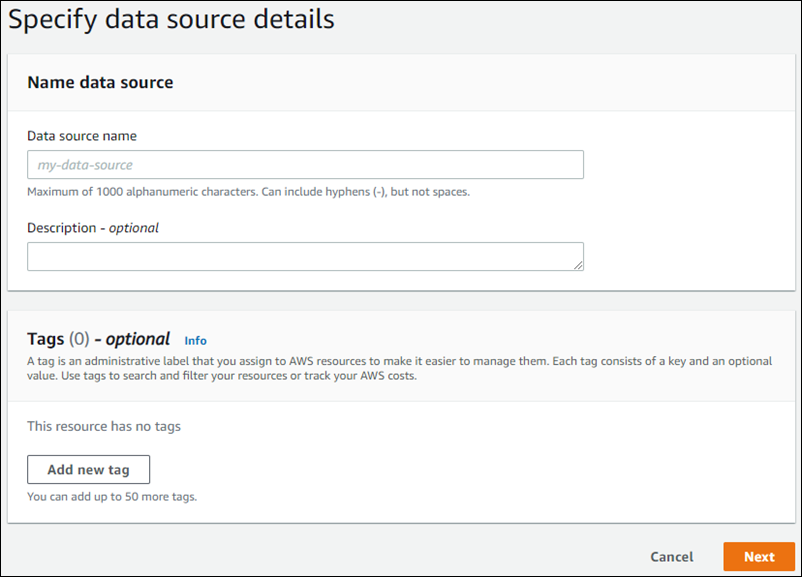

You create an identifier for your custom data source using the console or by using the CreateDataSource API. To use the console, give your data source a name, and optionally a description and resource tags. After the data source is created, a data source ID is shown. Copy this ID to use when you synchronize the data source with the index.

You can also create a custom data source using the CreateDataSource API. The API returns an ID to use when you synchronize the data source. When you use the CreateDataSource API to create a custom data source, you can't set the Configuration, RoleArn or Schedule parameters. If you set these parameters, Amazon Kendra returns a ValidationException exception.

To use a custom data source, create an application that is responsible for updating the Amazon Kendra index. The application depends on a crawler that you create. The crawler reads the documents in your repository and determines which should be sent to Amazon Kendra. Your application should perform the following steps:

1. Crawl your repository and make a list of the documents in your repository that are added, updated, or deleted.

2. Call the StartDataSourceSyncJob API to signal that a sync job is starting. You provide a data source ID to identify the data source that is synchronizing. Amazon Kendra returns a execution ID to identify a particular sync job.

3. Call the BatchDeleteDocument API to remove documents from the index. You provide the data source ID and execution ID to identify the data source that is synchronizing and the job that this update is associated with.

4. Call the StopDataSourceSyncJob API to signal the end of the sync job. After you call the StopDataSourceSyncJob API, the associated execution ID is no longer valid.

5. Call the ListDataSourceSyncJobs API with the index and data source identifiers to list the sync jobs for the data source and to see metrics for the sync jobs.

After you end a sync job, you can start a new synchronization job. There can be a period of time before all of the submitted documents are added to the index. Use the ListDataSourceSyncJobs API to see the status of the sync job. If the Status returned for the sync job is SYNCING_INDEXING, some documents are still being indexed. You can start a new sync job when the status of the previous job is FAILED or SUCCEEDED.

After you call the StopDataSourceSyncJob API, you can't use a sync job identifier in a call to the BatchPutDocument or BatchDeleteDocument APIs. If you do, all of the documents submitted are returned in the FailedDocuments response message from the API.

Required attributes

When you submit a document to Amazon Kendra using the BatchPutDocument API, each document requires two attributes to identify the data source and synchronization run that it belongs to. You must provide the following two attributes to map documents from your custom data source correctly to an Amazon Kendra index:

• _data_source_id—The identifier of the data source. This is returned when you create the data source with the console or the CreateDataSource API.

• _data_source_sync_job_execution_id—The identifier of the sync run. This is returned when you start the index synchronization with the StartDataSourceSyncJob API.

The following is the JSON required to index a document using a custom data source.

{
    "Documents": [
        {
            "Attributes": [
                {
                    "Key": "_data_source_id",
                    "Value": {
                        "StringValue": "data source identifier"
                    }
                },
                {
                    "Key": "_data_source_sync_job_execution_id",
                    "Value": {
                        "StringValue": "sync job identifier"
                    }
                }
            ],
            "Blob": "document content",
            "ContentType": "content type",
            "Id": "document identifier",
            "Title": "document title"
        }
    ],
    "IndexId": "index identifier",
    "RoleArn": "IAM role ARN"
}

When you remove a document from the index using the BatchDeleteDocument API, you need to specify the following two fields in the DataSourceSyncJobMetricTarget parameter:

• DataSourceId—The identifier of the data source. This is returned when you create the data source with the console or the CreateDataSource API.

• DataSourceSyncJobId—The identifier of the sync run. This is returned when you start the index synchronization with the StartDataSourceSyncJob API.

The following is the JSON required to delete a document from the index using the BatchDeleteDocument API.

{
    "DataSourceSyncJobMetricTarget": {
        "DataSourceId": "data source identifier",
        "DataSourceSyncJobId": "sync job identifier"
    },
    "DocumentIdList": [
        "document identifier"
    ],
    "IndexId": "index identifier"
}

Viewing metrics

After a sync job is finished, you can use the DataSourceSyncJobMetrics API to get the metrics associated with the sync job. Use this to monitor your custom data source syncs.

If you submit the same document multiple times, either as part of the BatchPutDocument API, the BatchDeleteDocument API, or if the document is submitted for both addition and deletion, the document is only counted once in the metrics.

• DocumentsAdded—The number of documents submitted using the BatchPutDocument API associated with this sync job added to the index for the first time. If a document is submitted for addition more than once in a sync, the document is only counted once in the metrics.

• DocumentsDeleted—The number of documents submitted using the BatchDeleteDocument API associated with this sync job deleted from the index. If a document is submitted for deletion more than once in a sync, the document is only counted once in the metrics.

• DocumentsFailed—The number of documents associated with this sync job that failed indexing. These are documents that were accepted by Amazon Kendra for indexing but could not be indexed or deleted. If a document isn't accepted by Amazon Kendra, the identifier for the document is returned in the FailedDocuments response property of the BatchPutDocument and BatchDeleteDocument APIs.

• DocumentsModified—The number of modified documents submitted using the BatchPutDocument API associated with this sync job that were modified in the Amazon Kendra index.

Amazon Kendra also emits Amazon CloudWatch metrics while indexing documents. For more information, see Monitoring Amazon Kendra with Amazon CloudWatch.

Amazon Kendra doesn't return the DocumentsScanned metric for custom data sources. It also emits the CloudWatch metrics listed in the document Metrics for Amazon Kendra data sources.

Learn more

To learn more about integrating Amazon Kendra with your custom data source, see:

• Adding custom data sources to Amazon Kendra
