Manage firewall ports for Lightsail for Research virtual computers

A firewall in Amazon Lightsail for Research controls the traffic allowed to connect to your virtual computer. You add rules to your virtual computer’s firewall that specify the protocol, ports, and the source IPv4 or IPv6 addresses that are allowed to connect to it. Firewall rules are always permissive; you can't create rules that deny access. You add rules to your virtual computer's firewall to allow traffic to reach your virtual computer. Each virtual computer has two firewalls; one for IPv4 addresses and another for IPv6 addresses. Both firewalls are independent of each other, and contain a preconfigured set of rules that filter traffic coming into the instance.

Protocols

A protocol is the format in which data is transmitted between two computers. You can specify the following protocols in a firewall rule:

• Transmission Control Protocol (TCP) is primarily used for establishing and maintaining a connection between clients and the application that’s running on your virtual computer. It is a widely used protocol, and one that you might often specify in your firewall rules.

• User Datagram Protocol (UDP) is primarily used for establishing low-latency and loss-tolerating connections between clients and the application that’s running on your virtual computer. Its ideal use is for network applications in which perceived latency is critical, such as gaming, voice, and video communications.

• Internet Control Message Protocol (ICMP) is primarily used to diagnose network communication issues, such as to determine if data is reaching its intended destination in a timely manner. Its ideal use is for the Ping utility, which you can use to test the speed of the connection between your local computer and your virtual computer. It reports how long it takes data to reach your virtual computer and come back to your local computer.

• All is used to allow all protocol traffic to flow into your virtual computer. Specify this protocol when you're unsure which protocol to specify. This includes all internet protocols, not only the ones specified here. For more information, see Protocol Numbers on the Internet Assigned Numbers Authority website.

Ports

Similar to physical ports on your computer, which let your computer communicate with peripherals like your keyboard and pointer, firewall ports serve as internet communications endpoints for your virtual computer. When a client seeks to connect with your virtual computer, it will expose a port to establish the communication.

The ports that you can specify in a firewall rule can range from 0 to 65535. When you create a firewall rule to allow a client to establish a connection with your virtual computer, you specify the protocol to use. You also specify the port numbers through which the connection can be established and the IP addresses that are allowed to establish a connection.

The following ports are open by default for newly created virtual computers.

• TCP

  • 22 - Used for Secure Shell (SSH).

  • 80 - Used for Hypertext Transfer Protocol (HTTP).

  • 443 - Used for Hypertext Transfer Protocol Secure (HTTPS).

  • 8443 - Used for Hypertext Transfer Protocol Secure (HTTPS).

Why open and close ports

When you open ports, you allow a client to establish a connection with your virtual computer. When you close ports, you block connections to your virtual computer. For example, to allow an SSH client to connect to your virtual computer, you configure a firewall rule that allows TCP over port 22 only from the IP address of the computer that needs to establish a connection. In this case, you don't want to allow any IP address to establish an SSH connection to your virtual computer. Doing so could lead to a security risk. If this rule is already configured on your instance's firewall, then you can delete it to block the SSH client from connecting to your virtual computer.

The following procedures show you how to get the ports that are currently open on your virtual computer, open new ports, and close ports.

Complete the prerequisites

Complete the following prerequisites before you get started.

• Create a virtual computer in Lightsail for Research. For more information, see Create a Lightsail for Research virtual computer.

• Download and install the AWS Command Line Interface (AWS CLI). For more information, see Installing or updating the latest version of the AWS CLI in the AWS Command Line Interface User Guide for Version 2.

• Configure the AWS CLI to access your AWS account. For more information, see Configuration basics in the AWS Command Line Interface User Guide for Version 2.

Get port states for a virtual computer

Complete the following procedure to get the port states for a virtual computer. This procedure uses the get-instance-port-states AWS CLI command to obtain the firewall port states for a specific Lightsail for Research virtual computer, the IP addresses allowed to connect to the virtual computer through the ports, and the protocol. For more information, see get-instance-port-states in the AWS CLI Command Reference.

1. This step is determined by the operating system of your local computer.

   • If your local computer uses a Windows operating system, open a Command Prompt window.

   • If your local computer uses a Linux or Unix-based operating system (including macOS), open a Terminal window.

2. Enter the following command to get the firewall port states and allowed IP addresses and protocols. In the command, replace REGION with the code of the AWS Region in which the virtual computer was created, such as us-east-2. Replace NAME with the name of your virtual computer.

   aws lightsail get-instance-port-states --region REGION --instance-name NAME

   Example

   aws lightsail get-instance-port-states --region us-east-2 --instance-name MyUbuntu

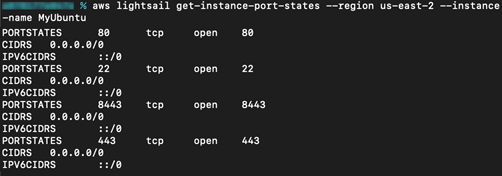

   The response will display the open ports and protocols, and the IP CIDR ranges that are allowed to connect to your virtual computer.



   For information about how to open ports, continue to the next section.

Open ports for a virtual computer

Complete the following procedure to open ports for a virtual computer. This procedure uses the open-instance-public-ports AWS CLI command. Open firewall ports to allow connections to be established from a trusted IP address or range of IP addresses. For example, to allow the IP address 192.0.2.44, specify 192.0.2.44 or 192.0.2.44/32. To allow the IP addresses 192.0.2.0 to 192.0.2.255, specify 192.0.2.0/24. For more information, see open-instance-public-ports in the AWS CLI Command Reference.

1. This step is determined by the operating system of your local computer.

   • If your local computer uses a Windows operating system, open a Command Prompt window.

   • If your local computer uses a Linux or Unix-based operating system (including macOS), open a Terminal window.

2. Enter the following command to open ports.

   In the command, replace the following items:

   • Replace REGION with the code of the AWS Region in which the virtual computer was created, such as us-east-2.

   • Replace NAME with the name of your virtual computer.

   • Replace FROM-PORT with the first port in a range of ports that you want to open.

   • Replace PROTOCOL with the IP protocol name. For example, TCP.

   • Replace TO-PORT with the last port in a range of ports that you want to open.

   • Replace IP with the IP address or range of IP address that you want to allow to connect to your virtual computer.

   aws lightsail open-instance-public-ports --region REGION --instance-name NAME --port-info fromPort=FROM-PORT, protocol=PROTOCOL, toPort=TO-PORT,cidrs=IP

   Example

   aws lightsail open-instance-public-ports --region us-east-2 --instance-name MyUbuntu --port-info fromPort=22, protocol=TCP, toPort=22,cidrs=192.0.2.0/24

   The response will display the newly added ports, protocols, and IP CIDR ranges that are allowed to connect to your virtual computer.



   For information about how to close ports, continue to the next section.

Close ports for a virtual computer

Complete the following procedure to close ports for a virtual computer. This procedure uses the close-instance-public-ports AWS CLI command. For more information, see close-instance-public-ports in the AWS CLI Command Reference.

1. This step is determined by the operating system of your local computer.

   • If your local computer uses a Windows operating system, open a Command Prompt window.

   • If your local computer uses a Linux or Unix-based operating system (including macOS), open a Terminal window.

2. Enter the following command to close ports.

   In the command, replace the following items:

   • Replace REGION with the code of the AWS Region in which the virtual computer was created, such as us-east-2.

   • Replace NAME with the name of your virtual computer.

   • Replace FROM-PORT with the first port in a range of ports that you want to close.

   • Replace PROTOCOL with the IP protocol name. For example, TCP.

   • Replace TO-PORT with the last port in a range of ports that you want to close.

   • Replace IP with the IP address or range of IP address that you want to remove.

   aws lightsail close-instance-public-ports --region REGION --instance-name NAME --port-info fromPort=FROM-PORT, protocol=PROTOCOL, toPort=TO-PORT,cidrs=IP

   Example

   aws lightsail close-instance-public-ports --region us-east-2 --instance-name MyUbuntu --port-info fromPort=22, protocol=TCP, toPort=22,cidrs=192.0.2.0/24

   The response will display the ports, protocols, and IP CIDR ranges that have been closed and are no longer allowed to connect to your virtual computer.



Continue to the next steps

You can complete the following additional next steps after you've successfully managed the firewall ports for your virtual computer:

• Get your virtual computer's key pair. With the key pair, you can establish a connection using numerous SSH clients, such as OpenSSH, PuTTY, and Windows Subsystem for Linux. For more information, see Get a key pair for a Lightsail for Research virtual computer.

• Connect to your virtual computer using SSH to manage it using the command line. For more information, see Transfer files to Lightsail for Research virtual computers using Secure Copy.

• Connect to your virtual computer using SCP to securely transfer files. For more information, see Transfer files to Lightsail for Research virtual computers using Secure Copy.
