Agent deployment models

In a basic AaaS experience, a provider may deploy agents using various patterns. There are myriad factors that influence how agents are deployed to meet customer, performance, compliance, geography, and security needs. Different deployment strategies affect how an agent is designed, implemented, and consumed. It's here that we can introduce classic multi-tenant terms to label different deployment strategies. The following diagram shows different permutations for deploying agents in an AaaS environment.

This diagram represents three modes of agent deployment. On the left-hand side is a siloed model, where each tenant is provided with a fully isolated experience and a dedicated set of agents. In this scenario, agents do not share compute, resources, or execution environments across tenants.

The middle example illustrates a hybrid model, where tenants use a combination of siloed and pooled agents. For instance, Agent 1 is deployed in siloed mode—each tenant receives a dedicated instance—while agents 2 and 3 operate in a pooled model, sharing resources across tenants.

On the right-hand side is a fully pooled model, where all agents are shared across tenants, offering a classic multi-tenant deployment. In this scenario, tenants leverage common compute, memory, and service infrastructure for agent execution.

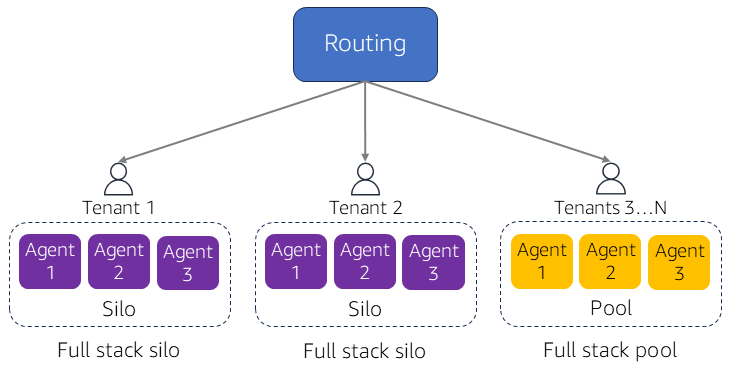

The idea is that agents can operate in different deployment models, with compute and dependent resources either dedicated (siloed) or shared (pooled) across tenants. These deployment strategies are not mutually exclusive. Agent services often support a spectrum of customer needs, combining both models to balance performance, isolation, cost, and scalability. The following diagram shows an agentic system that supports multiple deployment configurations within the same operational environment.

In this diagram, an agent provider has three agents that are deployed through agent as a service (AaaS). They support two types of tenants. On the left-hand side, two tenants have compliance and performance requirements that they address through a full-stack silo model. The remaining tenant on the right-hand side runs in a pooled model where tenants share resources.

If the goal is agility and operational efficiency, try to limit the effects associated with supporting per-tenant deployment models. This means putting routing and other experience mechanisms in place that allow agents to be managed, operated, and deployed through a single pane of glass.

If you build an agent in a low- or no-code environment, there will be no notion of siloed or pooled agents. Instead, agents may be fully managed by another agent. Siloed and pooled models apply more to environments where an organization controls the agent's construction and footprint. In this case, teams should consider which deployment model to support.

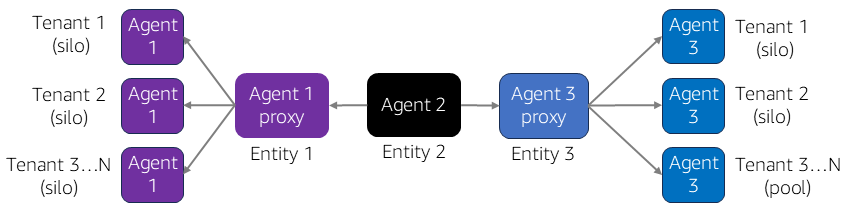

On the surface, these deployment models don't directly affect how an agent functions in a broader system. An agent may have no direct awareness of other agents that are deployed in a silo or pooled model. Instead, these deployment strategies can be implemented as part of a routing construct within an environment. The following diagram shows an example of how siloed and pooled models can be implemented using a routing strategy.

This example includes three agents from three different providers. Each agent provider has the option to implement its own deployment strategy. For example, agent 1 uses a proxy to distribute inbound requests to a set of siloed tenant agents. Agent 2 requires no routing and supports all tenant requests through one pooled agent. Agent 3 is a hybrid-model deployment where some tenants are siloed and others are pooled.

If and how you choose to support these deployment models depends on the nature of your solution. You may have no need to support either model. You may, however, have instances where you must consider supporting this strategy, such as with compliance, noisy neighbor, performance, or tiering.
