AWSSupport-TroubleshootAWSBatchJob
Description
The AWSSupport-TroubleshootAWSBatchJob
runbook helps you to troubleshoot issues that prevent an AWS Batch job from progressing from RUNNABLE
to STARTING
status.
How does it work?
This runbook performs the following checks:
If the compute environment is in an
INVALID
orDISABLED
state.If the compute environment’s
Max vCPU
parameter is large enough to accommodate the job volume in the job queue.If the jobs require more vCPUs or memory resources than what the compute environment’s instance types can provide.
If the jobs should run on GPU-based instances but the compute environment is not configured to use GPU-based instances.
If the Auto Scaling group for the compute environment failed to launch instances.
If the launched instances can join the underlying Amazon Elastic Container Service (Amazon ECS) cluster; if not, it runs the AWSSupport-TroubleshootECSContainerInstance runbook.
If any permissions issue is blocking specific actions that are required to run the job.
Important
This runbook must be initiated in the same AWS Region as your job that is stuck in
RUNNABLE
status.This runbook can be initiated for AWS Batch jobs scheduled on Amazon ECS, AWS Fargate or Amazon Elastic Compute Cloud (Amazon EC2) instances. If the automation is initiated for an AWS Batch job on Amazon Elastic Kubernetes Service (Amazon EKS), the initiation stops.
If instances are available to run the job but fail to register the Amazon ECS cluster, this runbook initiates the
AWSSupport-TroubleshootECSContainerInstance
automation runbook to try determine why. For more information, reference the AWSSupport-TroubleshootECSContainerInstance runbook.
Document type
Automation
Owner
Amazon
Platforms
Linux, macOS, Windows
Parameters
-
AutomationAssumeRole
Type: String
Description: (Optional) The Amazon Resource Name (ARN) of the AWS Identity and Access Management (IAM) role that allows Systems Manager Automation to perform the actions on your behalf. If no role is specified, Systems Manager Automation uses the permissions of the user that starts this runbook.
-
JobId
Type: String
Description: (Required) The ID of the AWS Batch Job that is stuck in
RUNNABLE
status.Allowed Pattern:
^[a-f0-9]{8}(-[a-f0-9]{4}){3}-[a-f0-9]{12}(:[0-9]+)?(#[0-9]+)?$
Required IAM permissions
The AutomationAssumeRole
parameter requires the following actions to
use the runbook successfully.
autoscaling:DescribeAutoScalingGroups
autoscaling:DescribeScalingActivities
batch:DescribeComputeEnvironments
batch:DescribeJobs
batch:DescribeJobQueues
batch:ListJobs
cloudtrail:LookupEvents
ec2:DescribeIamInstanceProfileAssociations
ec2:DescribeInstanceAttribute
ec2:DescribeInstances
ec2:DescribeInstanceTypeOfferings
ec2:DescribeInstanceTypes
ec2:DescribeNetworkAcls
ec2:DescribeRouteTables
ec2:DescribeSecurityGroups
ec2:DescribeSpotFleetInstances
ec2:DescribeSpotFleetRequests
ec2:DescribeSpotFleetRequestHistory
ec2:DescribeSubnets
ec2:DescribeVpcEndpoints
ec2:DescribeVpcs
ecs:DescribeClusters
ecs:DescribeContainerInstances
ecs:ListContainerInstances
iam:GetInstanceProfile
iam:GetRole
iam:ListRoles
iam:PassRole
iam:SimulateCustomPolicy
iam:SimulatePrincipalPolicy
ssm:DescribeAutomationExecutions
ssm:DescribeAutomationStepExecutions
ssm:GetAutomationExecution
ssm:StartAutomationExecution
sts:GetCallerIdentity
Instructions
Navigate to the AWSSupport-TroubleshootAWSBatchJob
in the AWS Systems Manager Console. Select Execute Automation
-

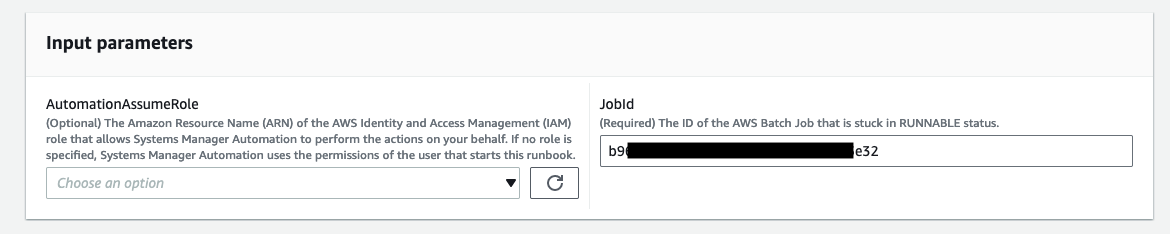

For input parameters, enter the following:
-
AutomationAssumeRole (Optional):
The Amazon Resource Name (ARN) of the AWS Identity and Access Management (IAM) role that allows Systems Manager Automation to perform the actions on your behalf. If no role is specified, Systems Manager Automation uses the permissions of the user that starts this runbook.
-
JobId (Required):
The ID of the AWS Batch Job that is stuck in the
RUNNABLE
status.
-
Select Execute.
Notice that the automation initiates.
-
The document performs the following steps:
-
PreflightPermissionChecks:
Performs preflight IAM permission checks against the initiating user/role. If there are any missing permissions, this step provides the API Actions missing in the global output section.
-
ProceedOnlyIfUserHasPermission:
Branches based on if you have permissions to all required actions for the runbook.
-
AWSBatchJobEvaluation:
Performs checks against the AWS Batch Job verifying it exists and is in the
RUNNABLE
status. -
ProceedOnlyIfBatchJobExistsAndIsinRunnableState:
Branches based on if the jobs exists and is in the
RUNNABLE
status. -
BatchComputeEnvironmentEvaluation:
Performs checks against the AWS Batch Compute Environment.
-
ProceedOnlyIfComputeEnvironmentChecksAreOK:
Branches based on if compute environment checks succeeded.
-
UnderlyingInfraEvaluation:
Performs checks against the underlying Auto Scaling Group or Spot Fleet Request.
-
ProceedOnlyIfInstancesNotJoiningEcsCluster:
Branches based on if there are instances not joining the Amazon ECS cluster.
-
EcsAutomationRunner:
Runs the Amazon ECS automation for the instances not joining the cluster.
-
ExecutionResults:
Generates output based on previous steps.
-
-
After completing, the URI for the assessment report HTML file is provided:
S3 Console link and Amazon S3 URI for the Report on successful execution of the runbook
References
Systems Manager Automation
