使用 AWS FIS aws：ecs：task 動作 - AWS 故障注入服務

您可以使用 aws：ecs：task 動作，將故障注入您的 Amazon ECS 任務。支援 Amazon EC2 和 Fargate 容量類型。

這些動作使用 AWS Systems Manager (SSM) 文件來注入錯誤。若要使用 aws:ecs:task 動作，您需要將具有 SSM 代理程式的容器新增至 Amazon Elastic Container Service (Amazon ECS) 任務定義。容器會執行 AWS FIS 定義的指令碼，將 Amazon ECS 任務註冊為 SSM 服務中的受管執行個體。此外，指令碼會擷取任務中繼資料，將標籤新增至受管執行個體。設定將允許 AWS FIS 解析目標任務。此段落參考下圖中的設定。

當您執行以為目標的 AWS FIS 實驗時aws:ecs:task， AWS FIS 會使用資源標籤將您在 AWS FIS 實驗範本中指定的目標 Amazon ECS 任務映射到一組 SSM 受管執行個體ECS_TASK_ARN。標籤值是應執行 SSM 文件之相關聯 Amazon ECS 任務的 ARN。本段落參考下圖中的 Fault Injection。

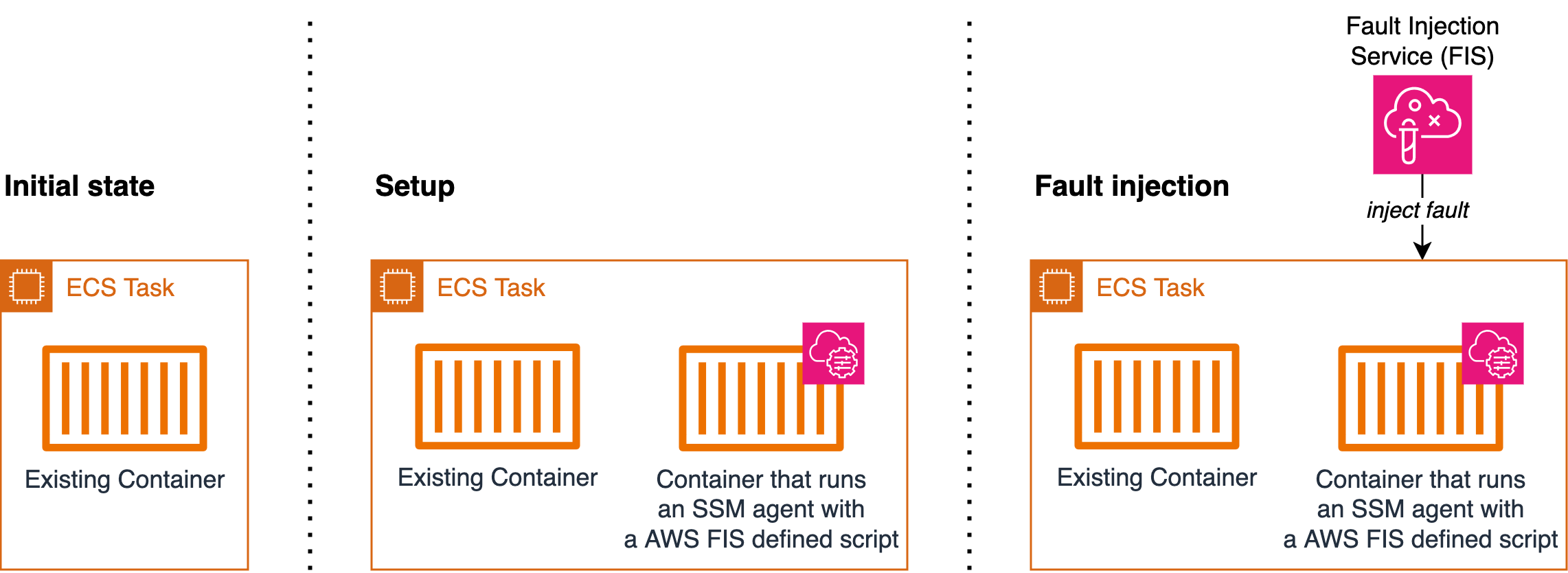

下圖示範具有一個現有容器的任務的設定和故障注入。

Diagram showing ECS task setup and fault injection process with containers and AWS FIS.

動作

限制

下列動作無法平行執行：
- aws:ecs:task-network-blackhole-port
- aws:ecs:task-network-latency
- aws:ecs:task-network-packet-loss
如果您啟用 Amazon ECS Exec，您必須先停用它，才能使用這些動作。
即使實驗狀態已完成，SSM 文件執行仍可能已取消狀態。執行 Amazon ECS 動作時，在實驗中的動作持續時間和 Amazon EC2 Systems Manager (SSM) 文件持續時間中，會使用客戶提供的持續時間。啟動動作後，SSM 文件需要一些時間才能開始執行。因此，在達到指定的動作持續時間時，SSM 文件可能仍有幾秒鐘的時間來完成其執行。達到實驗動作持續時間時，動作會停止，且 SSM 文件執行會取消。故障注入成功。

要求

將下列許可新增至 AWS FIS 實驗角色：
- ssm:SendCommand
- ssm:ListCommands
- ssm:CancelCommand
將下列許可新增至 Amazon ECS 任務 IAM 角色：
- ssm:CreateActivation
- ssm:AddTagsToResource
- iam:PassRole
請注意，您可以將受管執行個體角色的 ARN 指定為的資源iam:PassRole。
建立 Amazon ECS 任務執行 IAM 角色，並新增 AmazonECSTaskExecutionRolePolicy 受管政策。
在任務定義中，將環境變數MANAGED_INSTANCE_ROLE_NAME設定為受管執行個體角色的名稱。這是將連接到在 SSM 中註冊為受管執行個體之任務的角色。
將下列許可新增至受管執行個體角色：
- ssm:DeleteActivation
- ssm:DeregisterManagedInstance
將 AmazonSSMManagedInstanceCore 受管政策新增至受管執行個體角色。

將 SSM 代理程式容器新增至 Amazon ECS 任務定義。命令指令碼會將 Amazon ECS 任務註冊為受管執行個體。


{
    "name": "amazon-ssm-agent",
    "image": "public.ecr.aws/amazon-ssm-agent/amazon-ssm-agent:latest",
    "cpu": 0,
    "links": [],
    "portMappings": [],
    "essential": false,
    "entryPoint": [],
    "command": [
        "/bin/bash",
        "-c",
        "set -e; dnf upgrade -y; dnf install jq procps awscli -y; term_handler() { echo \"Deleting SSM activation $ACTIVATION_ID\"; if ! aws ssm delete-activation --activation-id $ACTIVATION_ID --region $ECS_TASK_REGION; then echo \"SSM activation $ACTIVATION_ID failed to be deleted\" 1>&2; fi; MANAGED_INSTANCE_ID=$(jq -e -r .ManagedInstanceID /var/lib/amazon/ssm/registration); echo \"Deregistering SSM Managed Instance $MANAGED_INSTANCE_ID\"; if ! aws ssm deregister-managed-instance --instance-id $MANAGED_INSTANCE_ID --region $ECS_TASK_REGION; then echo \"SSM Managed Instance $MANAGED_INSTANCE_ID failed to be deregistered\" 1>&2; fi; kill -SIGTERM $SSM_AGENT_PID; }; trap term_handler SIGTERM SIGINT; if [[ -z $MANAGED_INSTANCE_ROLE_NAME ]]; then echo \"Environment variable MANAGED_INSTANCE_ROLE_NAME not set, exiting\" 1>&2; exit 1; fi; if ! ps ax | grep amazon-ssm-agent | grep -v grep > /dev/null; then if [[ -n $ECS_CONTAINER_METADATA_URI_V4 ]] ; then echo \"Found ECS Container Metadata, running activation with metadata\"; TASK_METADATA=$(curl \"${ECS_CONTAINER_METADATA_URI_V4}/task\"); ECS_TASK_AVAILABILITY_ZONE=$(echo $TASK_METADATA | jq -e -r '.AvailabilityZone'); ECS_TASK_ARN=$(echo $TASK_METADATA | jq -e -r '.TaskARN'); ECS_TASK_REGION=$(echo $ECS_TASK_AVAILABILITY_ZONE | sed 's/.$//'); ECS_TASK_AVAILABILITY_ZONE_REGEX='^(af|ap|ca|cn|eu|me|sa|us|us-gov)-(central|north|(north(east|west))|south|south(east|west)|east|west)-[0-9]{1}[a-z]{1}$'; if ! [[ $ECS_TASK_AVAILABILITY_ZONE =~ $ECS_TASK_AVAILABILITY_ZONE_REGEX ]]; then echo \"Error extracting Availability Zone from ECS Container Metadata, exiting\" 1>&2; exit 1; fi; ECS_TASK_ARN_REGEX='^arn:(aws|aws-cn|aws-us-gov):ecs:[a-z0-9-]+:[0-9]{12}:task/[a-zA-Z0-9_-]+/[a-zA-Z0-9]+$'; if ! [[ $ECS_TASK_ARN =~ $ECS_TASK_ARN_REGEX ]]; then echo \"Error extracting Task ARN from ECS Container Metadata, exiting\" 1>&2; exit 1; fi; CREATE_ACTIVATION_OUTPUT=$(aws ssm create-activation --iam-role $MANAGED_INSTANCE_ROLE_NAME --tags Key=ECS_TASK_AVAILABILITY_ZONE,Value=$ECS_TASK_AVAILABILITY_ZONE Key=ECS_TASK_ARN,Value=$ECS_TASK_ARN Key=FAULT_INJECTION_SIDECAR,Value=true --region $ECS_TASK_REGION); ACTIVATION_CODE=$(echo $CREATE_ACTIVATION_OUTPUT | jq -e -r .ActivationCode); ACTIVATION_ID=$(echo $CREATE_ACTIVATION_OUTPUT | jq -e -r .ActivationId); if ! amazon-ssm-agent -register -code $ACTIVATION_CODE -id $ACTIVATION_ID -region $ECS_TASK_REGION; then echo \"Failed to register with AWS Systems Manager (SSM), exiting\" 1>&2; exit 1; fi; amazon-ssm-agent & SSM_AGENT_PID=$!; wait $SSM_AGENT_PID; else echo \"ECS Container Metadata not found, exiting\" 1>&2; exit 1; fi; else echo \"SSM agent is already running, exiting\" 1>&2; exit 1; fi"
    ],
    "environment": [
        {
            "name": "MANAGED_INSTANCE_ROLE_NAME",
            "value": "SSMManagedInstanceRole"
        }
    ],
    "environmentFiles": [],
    "mountPoints": [],
    "volumesFrom": [],
    "secrets": [],
    "dnsServers": [],
    "dnsSearchDomains": [],
    "extraHosts": [],
    "dockerSecurityOptions": [],
    "dockerLabels": {},
    "ulimits": [],
    "logConfiguration": {},
    "systemControls": []
}

如需指令碼更易讀的版本，請參閱指令碼的參考版本。

透過在 Amazon ECS 任務定義中設定 enableFaultInjection 欄位，啟用 Amazon ECS 故障注入 APIs：
```
"enableFaultInjection": true,
```
在 Fargate 任務上使用 aws:ecs:task-network-blackhole-portaws:ecs:task-network-latency、或 aws:ecs:task-network-packet-loss 動作時，動作必須將 useEcsFaultInjectionEndpoints 參數設定為 true。
使用 aws:ecs:task-kill-process、aws:ecs:task-network-latency、 aws:ecs:task-network-blackhole-port和 aws:ecs:task-network-packet-loss動作時，Amazon ECS 任務定義必須pidMode設定為 task。
使用 aws:ecs:task-network-blackhole-port、 aws:ecs:task-network-latency和 aws:ecs:task-network-packet-loss動作時，Amazon ECS 任務定義必須networkMode設定為以外的值bridge。

指令碼的參考版本

以下是需求區段中更易於讀取的指令碼版本，供您參考。


#!/usr/bin/env bash

# This is the activation script used to register ECS tasks as Managed Instances in SSM
# The script retrieves information form the ECS task metadata endpoint to add three tags to the Managed Instance
#  - ECS_TASK_AVAILABILITY_ZONE: To allow customers to target Managed Instances / Tasks in a specific Availability Zone
#  - ECS_TASK_ARN: To allow customers to target Managed Instances / Tasks by using the Task ARN
#  - FAULT_INJECTION_SIDECAR: To make it clear that the tasks were registered as managed instance for fault injection purposes. Value is always 'true'.
# The script will leave the SSM Agent running in the background
# When the container running this script receives a SIGTERM or SIGINT signal, it will do the following cleanup:
#  - Delete SSM activation
#  - Deregister SSM managed instance

set -e # stop execution instantly as a query exits while having a non-zero

dnf upgrade -y
dnf install jq procps awscli -y

term_handler() {
  echo "Deleting SSM activation $ACTIVATION_ID"
  if ! aws ssm delete-activation --activation-id $ACTIVATION_ID --region $ECS_TASK_REGION; then
    echo "SSM activation $ACTIVATION_ID failed to be deleted" 1>&2
  fi

  MANAGED_INSTANCE_ID=$(jq -e -r .ManagedInstanceID /var/lib/amazon/ssm/registration)
  echo "Deregistering SSM Managed Instance $MANAGED_INSTANCE_ID"
  if ! aws ssm deregister-managed-instance --instance-id $MANAGED_INSTANCE_ID --region $ECS_TASK_REGION; then
    echo "SSM Managed Instance $MANAGED_INSTANCE_ID failed to be deregistered" 1>&2
  fi

  kill -SIGTERM $SSM_AGENT_PID
}
trap term_handler SIGTERM SIGINT

# check if the required IAM role is provided
if [[ -z $MANAGED_INSTANCE_ROLE_NAME ]] ; then
  echo "Environment variable MANAGED_INSTANCE_ROLE_NAME not set, exiting" 1>&2
  exit 1
fi

# check if the agent is already running (it will be if ECS Exec is enabled)
if ! ps ax | grep amazon-ssm-agent | grep -v grep > /dev/null; then

  # check if ECS Container Metadata is available
  if [[ -n $ECS_CONTAINER_METADATA_URI_V4 ]] ; then

    # Retrieve info from ECS task metadata endpoint
    echo "Found ECS Container Metadata, running activation with metadata"
    TASK_METADATA=$(curl "${ECS_CONTAINER_METADATA_URI_V4}/task")
    ECS_TASK_AVAILABILITY_ZONE=$(echo $TASK_METADATA | jq -e -r '.AvailabilityZone')
    ECS_TASK_ARN=$(echo $TASK_METADATA | jq -e -r '.TaskARN')
    ECS_TASK_REGION=$(echo $ECS_TASK_AVAILABILITY_ZONE | sed 's/.$//')

    # validate ECS_TASK_AVAILABILITY_ZONE
    ECS_TASK_AVAILABILITY_ZONE_REGEX='^(af|ap|ca|cn|eu|me|sa|us|us-gov)-(central|north|(north(east|west))|south|south(east|west)|east|west)-[0-9]{1}[a-z]{1}$'
    if ! [[ $ECS_TASK_AVAILABILITY_ZONE =~ $ECS_TASK_AVAILABILITY_ZONE_REGEX ]] ; then
      echo "Error extracting Availability Zone from ECS Container Metadata, exiting" 1>&2
      exit 1
    fi

    # validate ECS_TASK_ARN
    ECS_TASK_ARN_REGEX='^arn:(aws|aws-cn|aws-us-gov):ecs:[a-z0-9-]+:[0-9]{12}:task/[a-zA-Z0-9_-]+/[a-zA-Z0-9]+$'
    if ! [[ $ECS_TASK_ARN =~ $ECS_TASK_ARN_REGEX ]] ; then
      echo "Error extracting Task ARN from ECS Container Metadata, exiting" 1>&2
      exit 1
    fi

    # Create activation tagging with Availability Zone and Task ARN
    CREATE_ACTIVATION_OUTPUT=$(aws ssm create-activation \
      --iam-role $MANAGED_INSTANCE_ROLE_NAME \
      --tags Key=ECS_TASK_AVAILABILITY_ZONE,Value=$ECS_TASK_AVAILABILITY_ZONE Key=ECS_TASK_ARN,Value=$ECS_TASK_ARN Key=FAULT_INJECTION_SIDECAR,Value=true \
      --region $ECS_TASK_REGION)

    ACTIVATION_CODE=$(echo $CREATE_ACTIVATION_OUTPUT | jq -e -r .ActivationCode)
    ACTIVATION_ID=$(echo $CREATE_ACTIVATION_OUTPUT | jq -e -r .ActivationId)

    # Register with AWS Systems Manager (SSM)
    if ! amazon-ssm-agent -register -code $ACTIVATION_CODE -id $ACTIVATION_ID -region $ECS_TASK_REGION; then
      echo "Failed to register with AWS Systems Manager (SSM), exiting" 1>&2
      exit 1
    fi

    # the agent needs to run in the background, otherwise the trapped signal
    # won't execute the attached function until this process finishes
    amazon-ssm-agent &
    SSM_AGENT_PID=$!

    # need to keep the script alive, otherwise the container will terminate
    wait $SSM_AGENT_PID

  else
    echo "ECS Container Metadata not found, exiting" 1>&2
    exit 1
  fi

else
  echo "SSM agent is already running, exiting" 1>&2
  exit 1
fi

範例實驗範本

以下是 aws:ecs:task-cpu-stress動作的範例實驗範本。


{
    "description": "Run CPU stress on the target ECS tasks",
    "targets": {
        "myTasks": {
            "resourceType": "aws:ecs:task",
            "resourceArns": [
                "arn:aws:ecs:us-east-1:111122223333:task/my-cluster/09821742c0e24250b187dfed8EXAMPLE"
            ],
            "selectionMode": "ALL"
        }
    },
    "actions": {
        "EcsTask-cpu-stress": {
            "actionId": "aws:ecs:task-cpu-stress",
            "parameters": {
                "duration": "PT1M"
            },
            "targets": {
                "Tasks": "myTasks"
            }
        }
    },
    "stopConditions": [
        {
            "source": "none",
        }
    ],
    "roleArn": "arn:aws:iam::111122223333:role/fis-experiment-role",
    "tags": {}
}
