教學課程: AWS Lambda 搭配 Amazon DocumentDB Streams 使用
在本教學課程中,您將建立一個基礎 Lambda 函數,它會從 Amazon DocumentDB (with MongoDB compatibility) 變更串流中取用事件。完成本教學課程需逐一進行以下階段:
-
設定您的 Amazon DocumentDB 叢集、連線到叢集,然後在叢集上啟用變更串流。
-
建立 Lambda 函數,並將 Amazon DocumentDB 叢集設定為函數的事件來源。
-
透過將項目插入 Amazon DocumentDB 資料庫來測試設定。
建立 Amazon DocumentDB 叢集
在 Secrets Manager 中建立密碼
在 Amazon DocumentDB 建立叢集時,請建立 AWS Secrets Manager 秘密來存放資料庫登入資料。您將在後續步驟中建立 Lambda 事件來源映射時提供此秘密。
在 Secrets Manager 中建立密碼
-
開啟 Secrets Manager 主控台,並選擇儲存新密碼。
-
針對選擇密碼類型,選擇以下選項:
-
在基本詳細資訊下:
-
密碼類型:Amazon DocumentDB 資料庫的憑證
-
在登入資料下,輸入您用來建立 Amazon DocumentDB 叢集的相同使用者名稱和密碼。
-
資料庫:選擇您的 Amazon DocumentDB 叢集。
-
選擇下一步。
-
針對設定密碼,選擇下列選項:
-
秘密名稱: DocumentDBSecret
-
選擇下一步。
-
選擇下一步。
-
選擇儲存。
-
重新整理主控台以確認您已成功儲存 DocumentDBSecret
密碼。
請注意秘密 ARN。在後續步驟中需要它。
連線至叢集
使用 連線至您的 Amazon DocumentDB 叢集 AWS CloudShell
-
在 Amazon DocumentDB 管理主控台的叢集下,找到您建立的叢集。按一下叢集旁的核取方塊,以選擇叢集。
-
選擇連線至叢集。隨即出現 CloudShell Run 命令畫面。
-
在新增環境名稱欄位中,輸入唯一名稱,例如「測試」,然後選擇建立並執行。
-
出現提示時,輸入您的密碼。當提示變成 時rs0 [direct: primary] <env-name>>
,您已成功連線到 Amazon DocumentDB 叢集。
啟用變更串流
在本教學課程中,您將追蹤 Amazon DocumentDB 叢集中 docdbdemo
資料庫 products
集合的變更。可以透過啟用變更串流來完成此操作。
在叢集內建立新資料庫
-
執行下列命令來建立新的資料庫,稱為 docdbdemo
:
use docdbdemo
-
在終端機視窗中,使用下列命令將記錄插入 docdbdemo
:
db.products.insertOne({"hello":"world"})
您應該會看到如下所示的輸出:
{
acknowledged: true,
insertedId: ObjectId('67f85066ca526410fd531d59')
}
-
接下來,使用以下命令在 docdbdemo
資料庫的 products
集合上啟用變更串流:
db.adminCommand({modifyChangeStreams: 1,
database: "docdbdemo",
collection: "products",
enable: true});
您應該會看到類似下面的輸出:
{ "ok" : 1, "operationTime" : Timestamp(1680126165, 1) }
建立介面 VPC 端點
接下來,建立介面 VPC 端點,以確保 Lambda 和 Secrets Manager (稍後用來儲存我們的叢集存取憑證) 可以連線到您的預設 VPC。
建立介面 VPC 端點
-
開啟 VPC 主控台。在左側選單的虛擬私有雲端下,選擇端點。
-
選擇建立端點。使用下列組態建立端點:
-
針對名稱標籤,輸入 lambda-default-vpc
。
-
針對服務類別,選擇 AWS 服務。
-
針對服務,在搜尋方塊中輸入 lambda
。選擇格式為 com.amazonaws.<region>.lambda
的服務。
-
針對 VPC,選擇 Amazon DocumentDB 叢集所在的 VPC。這通常是預設 VPC。
-
針對子網路,請核取每個可用區域旁邊的方塊。請選擇每個可用區域的正確子網路。
-
針對 IP 地址類型,請選擇 IPv4。
-
針對安全群組,選擇 Amazon DocumentDB 叢集使用的安全群組。這通常是default
安全群組。
-
請保留所有其他預設設定。
-
選擇建立端點。
-
再次選擇建立端點。使用下列組態建立端點:
-
針對名稱標籤,輸入 secretsmanager-default-vpc
。
-
針對服務類別,選擇 AWS 服務。
-
針對服務,在搜尋方塊中輸入 secretsmanager
。選擇格式為 com.amazonaws.<region>.secretsmanager
的服務。
-
針對 VPC,選擇 Amazon DocumentDB 叢集所在的 VPC。這通常是預設 VPC。
-
針對子網路,請核取每個可用區域旁邊的方塊。請選擇每個可用區域的正確子網路。
-
針對 IP 地址類型,請選擇 IPv4。
-
針對安全群組,選擇 Amazon DocumentDB 叢集使用的安全群組。這通常是default
安全群組。
-
請保留所有其他預設設定。
-
選擇建立端點。
這就完成了本教學課程的叢集設定部分。
建立執行角色
在接下來的一組步驟中,您將建立 Lambda 函數。首先,您需要建立授予函數存取叢集許可的執行角色。您可先建立 IAM 政策,然後將此政策連接到 IAM 角色。
建立 IAM 政策
-
開啟 IAM 主控台的政策頁面,並選擇建立政策。
-
選擇 JSON 標籤。在下列政策中,將陳述式最後一行中的 Secrets Manager 資源 ARN 取代為先前的密碼 ARN,並將政策複製到編輯器中。
- JSON
-
-
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "LambdaESMNetworkingAccess",
"Effect": "Allow",
"Action": [
"ec2:CreateNetworkInterface",
"ec2:DescribeNetworkInterfaces",
"ec2:DescribeVpcs",
"ec2:DeleteNetworkInterface",
"ec2:DescribeSubnets",
"ec2:DescribeSecurityGroups",
"kms:Decrypt"
],
"Resource": "*"
},
{
"Sid": "LambdaDocDBESMAccess",
"Effect": "Allow",
"Action": [
"rds:DescribeDBClusters",
"rds:DescribeDBClusterParameters",
"rds:DescribeDBSubnetGroups"
],
"Resource": "*"
},
{
"Sid": "LambdaDocDBESMGetSecretValueAccess",
"Effect": "Allow",
"Action": [
"secretsmanager:GetSecretValue"
],
"Resource": "arn:aws:secretsmanager:us-east-1:123456789012:secret:DocumentDBSecret
"
}
]
}
-
選擇下一步:標籤,然後選擇下一步:檢閱。
-
對於 Name (名稱),輸入 AWSDocumentDBLambdaPolicy
。
-
選擇建立政策。
建立 IAM 角色
-
開啟 IAM 主控台的角色頁面,然後選擇建立角色。
-
針對選取信任的實體,請選擇以下選項:
-
信任的實體類型: AWS 服務
-
服務或使用案例:Lambda
-
選擇下一步。
-
針對新增許可,請選擇您剛建立的 AWSDocumentDBLambdaPolicy
政策以及 AWSLambdaBasicExecutionRole
,授予函數寫入 Amazon CloudWatch Logs 的許可。
-
選擇下一步。
-
在角色名稱中,輸入 AWSDocumentDBLambdaExecutionRole
。
-
選擇建立角色。
建立 Lambda 函式
本教學課程使用 Python 3.13 執行時間,但我們也提供其他執行時間的範例程式碼檔案。您可以在下列方塊中選取索引標籤,查看您感興趣的執行期程式碼。
程式碼會接收 Amazon DocumentDB 事件輸入,並處理其中包含的訊息。
建立 Lambda 函數
-
開啟 Lambda 主控台中的函數頁面。
-
選擇建立函數。
-
選擇從頭開始撰寫
-
在基本資訊下,請執行下列動作:
-
在函數名稱輸入 ProcessDocumentDBRecords
-
針對執行期,選擇 Python 3.13。
-
對於 Architecture (架構),選擇 x86_64。
-
在變更預設執行角色索引標籤中,執行下列操作:
-
展開索引標籤,然後選擇使用現有角色。
-
選擇您之前建立的 AWSDocumentDBLambdaExecutionRole
。
-
選擇 Create function (建立函數)。
部署函數程式碼
-
在以下方塊中選擇 Python 索引標籤,然後複製程式碼。
- .NET
-
- 適用於 .NET 的 SDK
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 .NET 搭配 Lambda 使用 Amazon DocumentDB 事件。
using Amazon.Lambda.Core;
using System.Text.Json;
using System;
using System.Collections.Generic;
using System.Text.Json.Serialization;
//Assembly attribute to enable the Lambda function's JSON input to be converted into a .NET class.
[assembly: LambdaSerializer(typeof(Amazon.Lambda.Serialization.SystemTextJson.DefaultLambdaJsonSerializer))]
namespace LambdaDocDb;
public class Function
{
/// <summary>
/// Lambda function entry point to process Amazon DocumentDB events.
/// </summary>
/// <param name="event">The Amazon DocumentDB event.</param>
/// <param name="context">The Lambda context object.</param>
/// <returns>A string to indicate successful processing.</returns>
public string FunctionHandler(Event evnt, ILambdaContext context)
{
foreach (var record in evnt.Events)
{
ProcessDocumentDBEvent(record, context);
}
return "OK";
}
private void ProcessDocumentDBEvent(DocumentDBEventRecord record, ILambdaContext context)
{
var eventData = record.Event;
var operationType = eventData.OperationType;
var databaseName = eventData.Ns.Db;
var collectionName = eventData.Ns.Coll;
var fullDocument = JsonSerializer.Serialize(eventData.FullDocument, new JsonSerializerOptions { WriteIndented = true });
context.Logger.LogLine($"Operation type: {operationType}");
context.Logger.LogLine($"Database: {databaseName}");
context.Logger.LogLine($"Collection: {collectionName}");
context.Logger.LogLine($"Full document:\n{fullDocument}");
}
public class Event
{
[JsonPropertyName("eventSourceArn")]
public string EventSourceArn { get; set; }
[JsonPropertyName("events")]
public List<DocumentDBEventRecord> Events { get; set; }
[JsonPropertyName("eventSource")]
public string EventSource { get; set; }
}
public class DocumentDBEventRecord
{
[JsonPropertyName("event")]
public EventData Event { get; set; }
}
public class EventData
{
[JsonPropertyName("_id")]
public IdData Id { get; set; }
[JsonPropertyName("clusterTime")]
public ClusterTime ClusterTime { get; set; }
[JsonPropertyName("documentKey")]
public DocumentKey DocumentKey { get; set; }
[JsonPropertyName("fullDocument")]
public Dictionary<string, object> FullDocument { get; set; }
[JsonPropertyName("ns")]
public Namespace Ns { get; set; }
[JsonPropertyName("operationType")]
public string OperationType { get; set; }
}
public class IdData
{
[JsonPropertyName("_data")]
public string Data { get; set; }
}
public class ClusterTime
{
[JsonPropertyName("$timestamp")]
public Timestamp Timestamp { get; set; }
}
public class Timestamp
{
[JsonPropertyName("t")]
public long T { get; set; }
[JsonPropertyName("i")]
public int I { get; set; }
}
public class DocumentKey
{
[JsonPropertyName("_id")]
public Id Id { get; set; }
}
public class Id
{
[JsonPropertyName("$oid")]
public string Oid { get; set; }
}
public class Namespace
{
[JsonPropertyName("db")]
public string Db { get; set; }
[JsonPropertyName("coll")]
public string Coll { get; set; }
}
}
- Go
-
- SDK for Go V2
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 Go 搭配 Lambda 使用 Amazon DocumentDB 事件。
package main
import (
"context"
"encoding/json"
"fmt"
"github.com/aws/aws-lambda-go/lambda"
)
type Event struct {
Events []Record `json:"events"`
}
type Record struct {
Event struct {
OperationType string `json:"operationType"`
NS struct {
DB string `json:"db"`
Coll string `json:"coll"`
} `json:"ns"`
FullDocument interface{} `json:"fullDocument"`
} `json:"event"`
}
func main() {
lambda.Start(handler)
}
func handler(ctx context.Context, event Event) (string, error) {
fmt.Println("Loading function")
for _, record := range event.Events {
logDocumentDBEvent(record)
}
return "OK", nil
}
func logDocumentDBEvent(record Record) {
fmt.Printf("Operation type: %s\n", record.Event.OperationType)
fmt.Printf("db: %s\n", record.Event.NS.DB)
fmt.Printf("collection: %s\n", record.Event.NS.Coll)
docBytes, _ := json.MarshalIndent(record.Event.FullDocument, "", " ")
fmt.Printf("Full document: %s\n", string(docBytes))
}
- Java
-
- SDK for Java 2.x
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 Java 搭配 Lambda 使用 Amazon DocumentDB 事件。
import java.util.List;
import java.util.Map;
import com.amazonaws.services.lambda.runtime.Context;
import com.amazonaws.services.lambda.runtime.RequestHandler;
public class Example implements RequestHandler<Map<String, Object>, String> {
@SuppressWarnings("unchecked")
@Override
public String handleRequest(Map<String, Object> event, Context context) {
List<Map<String, Object>> events = (List<Map<String, Object>>) event.get("events");
for (Map<String, Object> record : events) {
Map<String, Object> eventData = (Map<String, Object>) record.get("event");
processEventData(eventData);
}
return "OK";
}
@SuppressWarnings("unchecked")
private void processEventData(Map<String, Object> eventData) {
String operationType = (String) eventData.get("operationType");
System.out.println("operationType: %s".formatted(operationType));
Map<String, Object> ns = (Map<String, Object>) eventData.get("ns");
String db = (String) ns.get("db");
System.out.println("db: %s".formatted(db));
String coll = (String) ns.get("coll");
System.out.println("coll: %s".formatted(coll));
Map<String, Object> fullDocument = (Map<String, Object>) eventData.get("fullDocument");
System.out.println("fullDocument: %s".formatted(fullDocument));
}
}
- JavaScript
-
- SDK for JavaScript (v3)
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 JavaScript 搭配 Lambda 使用 Amazon DocumentDB 事件。
console.log('Loading function');
exports.handler = async (event, context) => {
event.events.forEach(record => {
logDocumentDBEvent(record);
});
return 'OK';
};
const logDocumentDBEvent = (record) => {
console.log('Operation type: ' + record.event.operationType);
console.log('db: ' + record.event.ns.db);
console.log('collection: ' + record.event.ns.coll);
console.log('Full document:', JSON.stringify(record.event.fullDocument, null, 2));
};
使用 TypeScript 搭配 Lambda 使用 Amazon DocumentDB 事件
import { DocumentDBEventRecord, DocumentDBEventSubscriptionContext } from 'aws-lambda';
console.log('Loading function');
export const handler = async (
event: DocumentDBEventSubscriptionContext,
context: any
): Promise<string> => {
event.events.forEach((record: DocumentDBEventRecord) => {
logDocumentDBEvent(record);
});
return 'OK';
};
const logDocumentDBEvent = (record: DocumentDBEventRecord): void => {
console.log('Operation type: ' + record.event.operationType);
console.log('db: ' + record.event.ns.db);
console.log('collection: ' + record.event.ns.coll);
console.log('Full document:', JSON.stringify(record.event.fullDocument, null, 2));
};
- PHP
-
- SDK for PHP
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 PHP 搭配 Lambda 使用 Amazon DocumentDB 事件。
<?php
require __DIR__.'/vendor/autoload.php';
use Bref\Context\Context;
use Bref\Event\Handler;
class DocumentDBEventHandler implements Handler
{
public function handle($event, Context $context): string
{
$events = $event['events'] ?? [];
foreach ($events as $record) {
$this->logDocumentDBEvent($record['event']);
}
return 'OK';
}
private function logDocumentDBEvent($event): void
{
// Extract information from the event record
$operationType = $event['operationType'] ?? 'Unknown';
$db = $event['ns']['db'] ?? 'Unknown';
$collection = $event['ns']['coll'] ?? 'Unknown';
$fullDocument = $event['fullDocument'] ?? [];
// Log the event details
echo "Operation type: $operationType\n";
echo "Database: $db\n";
echo "Collection: $collection\n";
echo "Full document: " . json_encode($fullDocument, JSON_PRETTY_PRINT) . "\n";
}
}
return new DocumentDBEventHandler();
- Python
-
- SDK for Python (Boto3)
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 Python 搭配 Lambda 使用 Amazon DocumentDB 事件。
import json
def lambda_handler(event, context):
for record in event.get('events', []):
log_document_db_event(record)
return 'OK'
def log_document_db_event(record):
event_data = record.get('event', {})
operation_type = event_data.get('operationType', 'Unknown')
db = event_data.get('ns', {}).get('db', 'Unknown')
collection = event_data.get('ns', {}).get('coll', 'Unknown')
full_document = event_data.get('fullDocument', {})
print(f"Operation type: {operation_type}")
print(f"db: {db}")
print(f"collection: {collection}")
print("Full document:", json.dumps(full_document, indent=2))
- Ruby
-
- SDK for Ruby
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 Ruby 搭配 Lambda 使用 Amazon DocumentDB 事件。
require 'json'
def lambda_handler(event:, context:)
event['events'].each do |record|
log_document_db_event(record)
end
'OK'
end
def log_document_db_event(record)
event_data = record['event'] || {}
operation_type = event_data['operationType'] || 'Unknown'
db = event_data.dig('ns', 'db') || 'Unknown'
collection = event_data.dig('ns', 'coll') || 'Unknown'
full_document = event_data['fullDocument'] || {}
puts "Operation type: #{operation_type}"
puts "db: #{db}"
puts "collection: #{collection}"
puts "Full document: #{JSON.pretty_generate(full_document)}"
end
- Rust
-
- SDK for Rust
-
GitHub 上提供更多範例。尋找完整範例,並了解如何在無伺服器範例儲存庫中設定和執行。
使用 Rust 搭配 Lambda 使用 Amazon DocumentDB 事件。
use lambda_runtime::{service_fn, tracing, Error, LambdaEvent};
use aws_lambda_events::{
event::documentdb::{DocumentDbEvent, DocumentDbInnerEvent},
};
// Built with the following dependencies:
//lambda_runtime = "0.11.1"
//serde_json = "1.0"
//tokio = { version = "1", features = ["macros"] }
//tracing = { version = "0.1", features = ["log"] }
//tracing-subscriber = { version = "0.3", default-features = false, features = ["fmt"] }
//aws_lambda_events = "0.15.0"
async fn function_handler(event: LambdaEvent<DocumentDbEvent>) ->Result<(), Error> {
tracing::info!("Event Source ARN: {:?}", event.payload.event_source_arn);
tracing::info!("Event Source: {:?}", event.payload.event_source);
let records = &event.payload.events;
if records.is_empty() {
tracing::info!("No records found. Exiting.");
return Ok(());
}
for record in records{
log_document_db_event(record);
}
tracing::info!("Document db records processed");
// Prepare the response
Ok(())
}
fn log_document_db_event(record: &DocumentDbInnerEvent)-> Result<(), Error>{
tracing::info!("Change Event: {:?}", record.event);
Ok(())
}
#[tokio::main]
async fn main() -> Result<(), Error> {
tracing_subscriber::fmt()
.with_max_level(tracing::Level::INFO)
.with_target(false)
.without_time()
.init();
let func = service_fn(function_handler);
lambda_runtime::run(func).await?;
Ok(())
}
-
在 Lambda 主控台的程式碼來源窗格中,將程式碼貼到程式碼編輯器中,取代 Lambda 建立的程式碼。
-
在 DEPLOY 區段中,選擇部署以更新函數的程式碼:
建立 Lambda 事件來源映射
建立可將 Amazon DocumentDB 變更串流與 Lambda 函數建立關聯的事件來源映射。建立此事件來源映射之後, 會 AWS Lambda 立即開始輪詢串流。
建立事件來源映射
-
開啟 Lambda 主控台中的函數頁面。
-
選擇您之前建立的 ProcessDocumentDBRecords
函數。
-
選擇組態索引標籤,然後在左側選單中選擇觸發。
-
選擇 Add trigger (新增觸發條件)。
-
在觸發條件組態下,針對來源選取 Amazon DocumentDB。
-
使用下列組態建立事件來源映射:
-
選擇新增。建立事件來源映射可能需要幾分鐘的時間。
測試函數

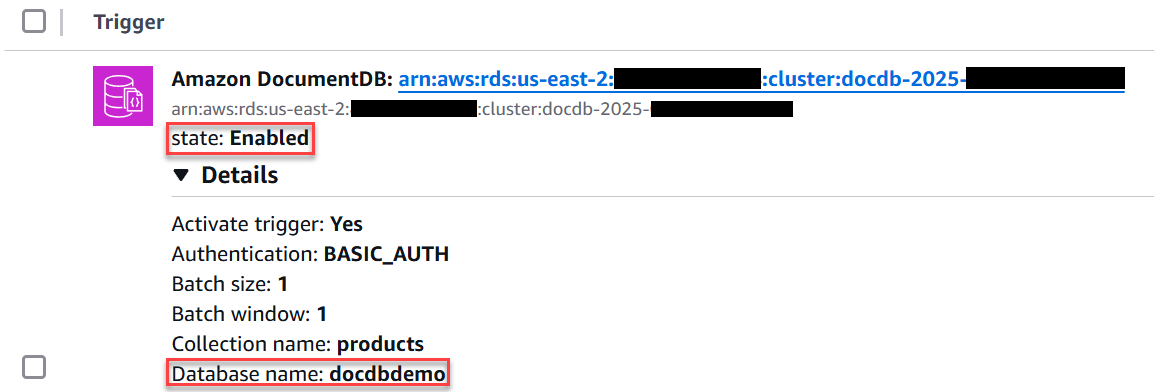

等待事件來源映射達到已啟用狀態。這可能需要幾分鐘的時間。然後,透過插入、更新和刪除資料庫記錄來測試end-to-end設定。開始之前:
將記錄插入到 docdbdemo
資料庫的 products
集合中:
db.products.insertOne({"name":"Pencil", "price": 1.00})

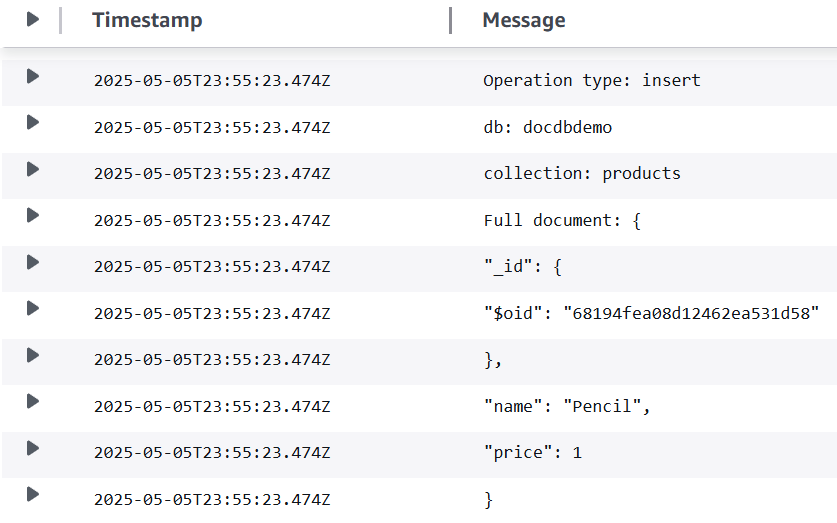

檢查 CloudWatch Logs 以確認您的函數已成功處理此事件。您應該會看到如下所示的日誌項目:
使用以下命令更新您剛插入的記錄:
db.products.updateOne(
{ "name": "Pencil" },
{ $set: { "price": 0.50 }}
)

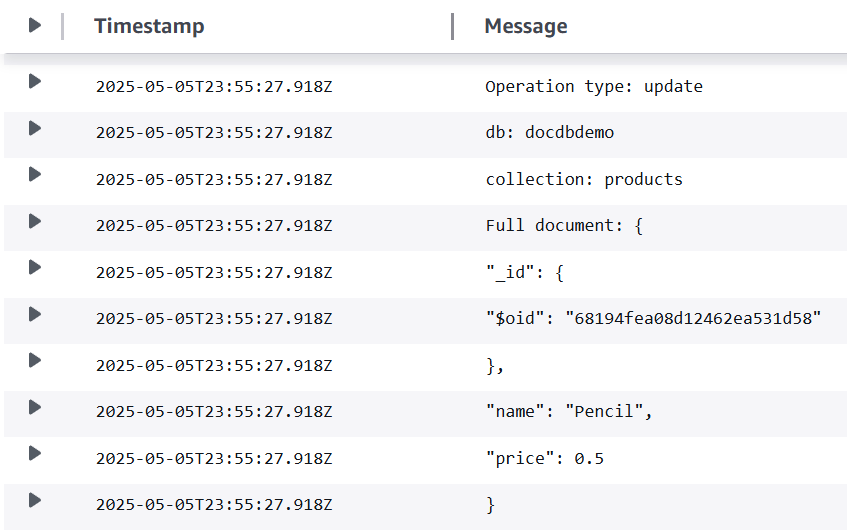

檢查 CloudWatch Logs 以確認您的函數已成功處理此事件。您應該會看到如下所示的日誌項目:
使用下列命令刪除您剛更新的記錄:
db.products.deleteOne( { "name": "Pencil" } )

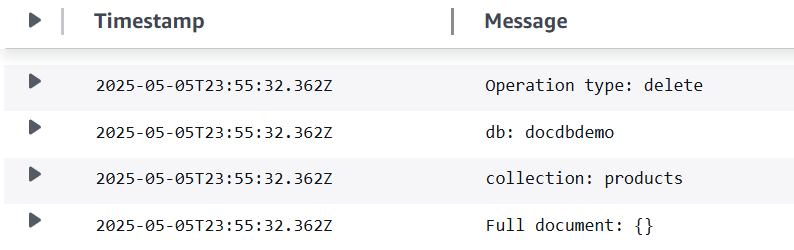

檢查 CloudWatch Logs 以確認您的函數已成功處理此事件。您應該會看到如下所示的日誌項目:

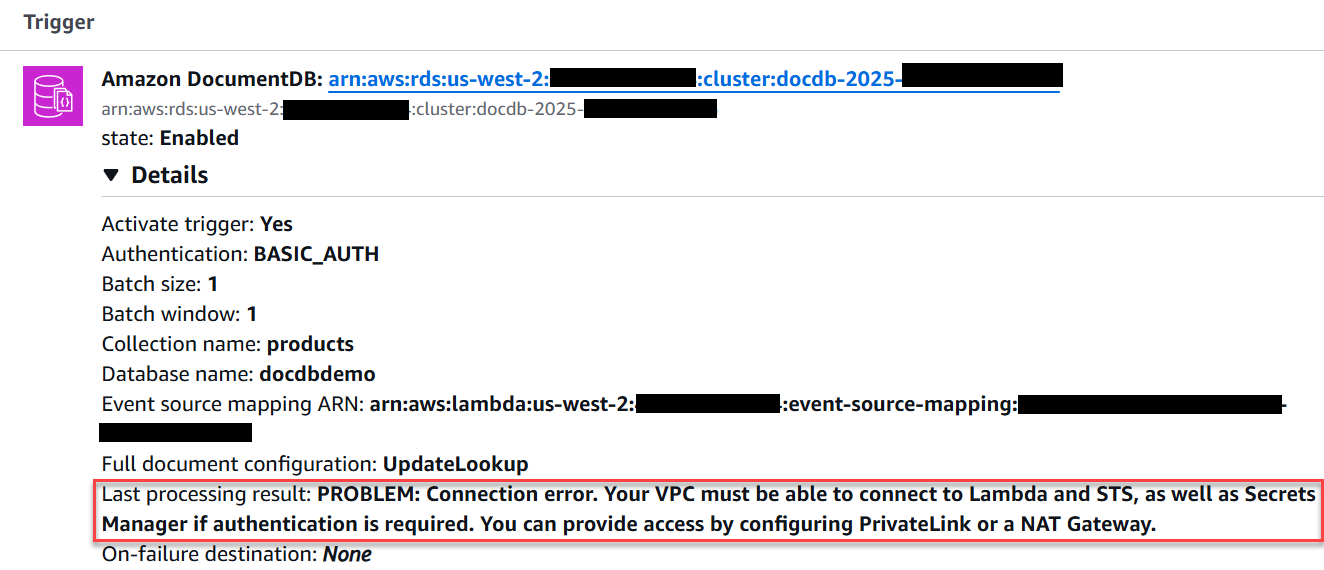

故障診斷
如果您在函數的 CloudWatch 日誌中看不到任何資料庫事件,請檢查下列項目:
清除您的資源
除非您想要保留為此教學課程建立的資源,否則您現在便可刪除。透過刪除您不再使用的 AWS
資源,可為 AWS 帳戶避免不必要的費用。
若要刪除 Lambda 函數
-
開啟 Lambda 主控台中的 函數頁面。
-
選擇您建立的函數。
-
選擇 Actions (動作)、Delete (刪除)。
-
在文字輸入欄位中輸入 confirm
,然後選擇刪除。
刪除執行角色
-
開啟 IAM 主控台中的 角色頁面 。
-
選取您建立的執行角色。
-
選擇刪除。
-
在文字輸入欄位中輸入角色的名稱,然後選擇刪除。
刪除 VPC 端點。
-
開啟 VPC 主控台。在左側選單的虛擬私有雲端下,選擇端點。
-
選擇您建立的端點。
-
選擇 Actions (動作)、Delete VPC endpoints (刪除 VPC 端點)。
-
在文字輸入欄位中輸入 delete
。
-
選擇 刪除。
刪除 Amazon DocumentDB 叢集
-
開啟 Amazon DocumentDB 主控台。
-
選擇您為本教學課程建立的 Amazon DocumentDB 叢集,並停用刪除保護。
-
在主叢集頁面中,再次選擇您的 Amazon DocumentDB 叢集。
-
選擇 動作、刪除。
-
針對建立最終叢集快照,請選取否。
-
在文字輸入欄位中輸入 delete
。
-
選擇 刪除。
在 Secrets Manager 中刪除密碼
-
開啟 Secrets Manager 主控台。
-
選擇您為此教學課程建立的密碼。
-
選擇動作、刪除機密。
-
選擇 Schedule deletion (排定刪除)。
