Traffic Segmentation Options in AWS Direct Connect

Publication date: November 9, 2023 (Diagram history)

This architecture shows traffic segmentation options in AWS Direct Connect, include using several private VIFs in the VPC or AWS Direct Connect gateway, using AWS Transit Gateway Connect attachments over transit VIF, and using AWS Site-to-Site VPN connections over transit VIF.

Segment Your Traffic over AWS Direct Connect by Using Several Private VIFs in the VPC or AWS Direct Connect Gateway Diagram

Private virtual interfaces (VIFs) are used to access Amazon Virtual Private Cloud (Amazon VPC) using private IP addresses. Each VIF is configured with an unique virtual local area network (VLAN) tag, which means you can segment your traffic by using one VIF per virtual routing and forwarding (VRF) you have in your data center. Take into account the limits in the number of VIFs, depending the type of AWS Direct Connect connection you have. You can have 50 private or public VIFs with a dedicated connection, and one private or public VIF with a hosted connection. In addition, you can have 30 private VIFs associated to the same AWS Direct Connect gateway. You can check the quotas in the AWS Direct Connect user guide.

1. Traffic initiated from an instance in Spoke VPC A and destined for the corporate data center server (in VRF A) is routed to the virtual private gateway according to the Spoke VPC A route table.

2. The virtual private gateway is associated with the AWS Direct Connect gateway, which uses a private VIF (VLAN) to connect to the corporate data center. To achieve segmentation, use several private VIFs. The on-premises router must be configured to use a different VIF (VLAN) connection per VRF configured.

3. The on-premises router forwards the traffic from private VIF A to VRF A and the destination server.

4. Traffic from the corporate data center’s VRF B destined for Spoke VPC B is first sent to the customer gateway located in the data center.

5. The customer gateway uses private VIF B – over the AWS Direct Connect link – to send the traffic to the virtual private gateway in VPC B.

6. Traffic is forwarded to the destination according to the Spoke VPC B route table.

Segment Your Traffic over AWS Direct Connect by Using Several Transit VIFs and AWS Direct Connect Gateways Diagram

Transit Virtual Interfaces (VIFs) are used to access AWS Transit Gateway by way of an AWS Direct Connect gateway. Each VIF is configured with an unique virtual local area network (VLAN) tag, which means you can segment your traffic by using one VIF per virtual routing and forwarding (VRF) you have in your data center. Take into account the limits in the number of VIFs, depending the type of AWS Direct Connect connection you have. You can have four transit VIFs with a max combination of 51 private, public, and transit VIFs per dedicated connection. For hosted connections, you can have only one transit VIF. In addition, you can have 30 transit VIFs associated with the same AWS Direct Connect gateway. You can check the quotas in the AWS Direct Connect user guide.

1. Traffic initiated from an instance in Spoke VPC A and destined for the corporate data center server (in VRF A) is routed to AWS Transit Gateway according to the Spoke VPC A route table.

2. Transit Gateway is associated with several AWS Direct Connect gateways (DXGW), each one of them using a transit VIF (VLAN) to connect to the corporate data center, achieving traffic segmentation. The on-premises router must be configured to use a different VIF (VLAN) connection per VRF configured.

3. Traffic is forwarded to DXGW A according to the Segment A Transit Gateway route table associated with the VPC A attachment.

4. The on-premises router forwards the traffic from the transit VIF A to VRF A and the destination server.

5. Traffic from the corporate data center’s VRF B destined for Spoke VPC B is first sent to the customer gateway located in the data center.

6. The customer gateway uses transit VIF B – over the AWS Direct Connect link – to send the traffic to Transit Gateway Segment B.

7. Traffic is forwarded to VPC B according to the Segment B Transit Gateway route table.

8. Traffic is forwarded to the destination according to the VPC B route table.

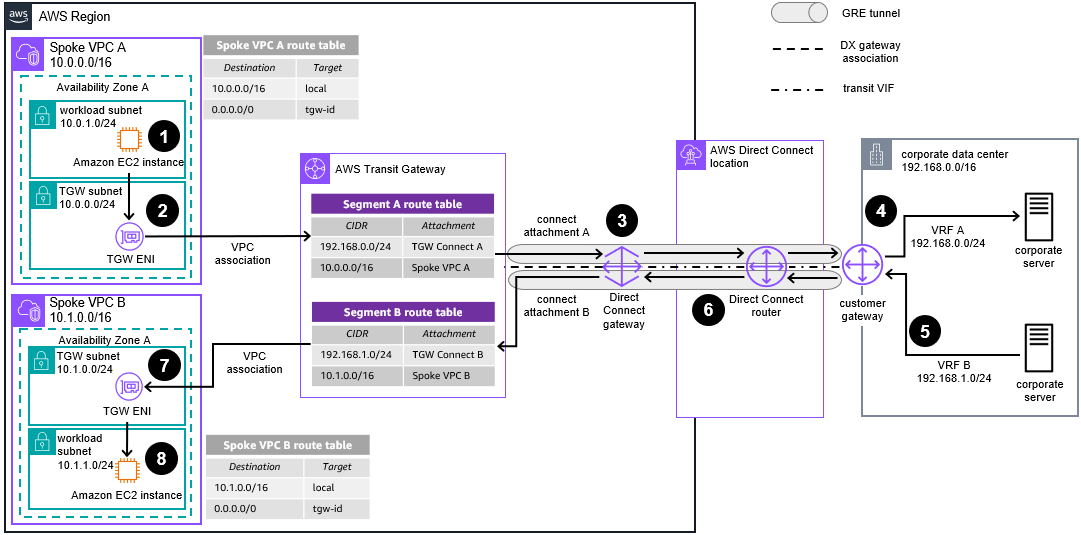

Use AWS Transit Gateway Connect Attachments and AWS Direct Connect to Extend your On-Premises VRFs over Transit VIFs Diagram

With a hosted connection, you get one transit VIF; with a dedicated connection you get four. When you have more VRFs than transit VIFs, you can use several Transit Gateway Connect attachments (GRE tunnels) over a transit VIF to segment the traffic, creating one connect attachment per VRF you have in your data center. For more information about this use case, refer to Using AWS Transit Gateway Connect to extend VRFs and increase IP prefix advertisement.

1. Traffic initiated from an instance in Spoke VPC A and destined for the corporate data center server (in VRF A) is routed to the Transit Gateway elastic network interface (TGW ENI) according to the Spoke VPC A route table.

2. Traffic is forwarded to Transit Gateway. Traffic is then routed to the corporate data center through the Transit Gateway Connect attachment A according to the Segment A route table.

3. The Transit Gateway Connect attachment uses the AWS Direct Connect connection as transport and connects Transit Gateway to the corporate data center router using Generic Routing Encapsulation (GRE) tunneling and Border Gateway Protocol (BGP). The on-premises router must be configured to use a different connect attachment per VRF configured.

4. The on-premises router forwards the traffic from Connect attachment A to VRF A and the destination server.

5. Traffic from the corporate data center’s VRF B destined for Spoke VPC B is first sent to the customer gateway located in the data center.

6. The customer gateway uses the GRE tunnel of the Transit Gateway Connect attachment B – over the AWS Direct Connect link – to send the traffic to Transit Gateway.

7. Traffic is forwarded to the Spoke VPC B attachment according to the Transit Gateway Segment B route table.

8. The TGW ENI of Spoke VPC B forwards the traffic to the destination.

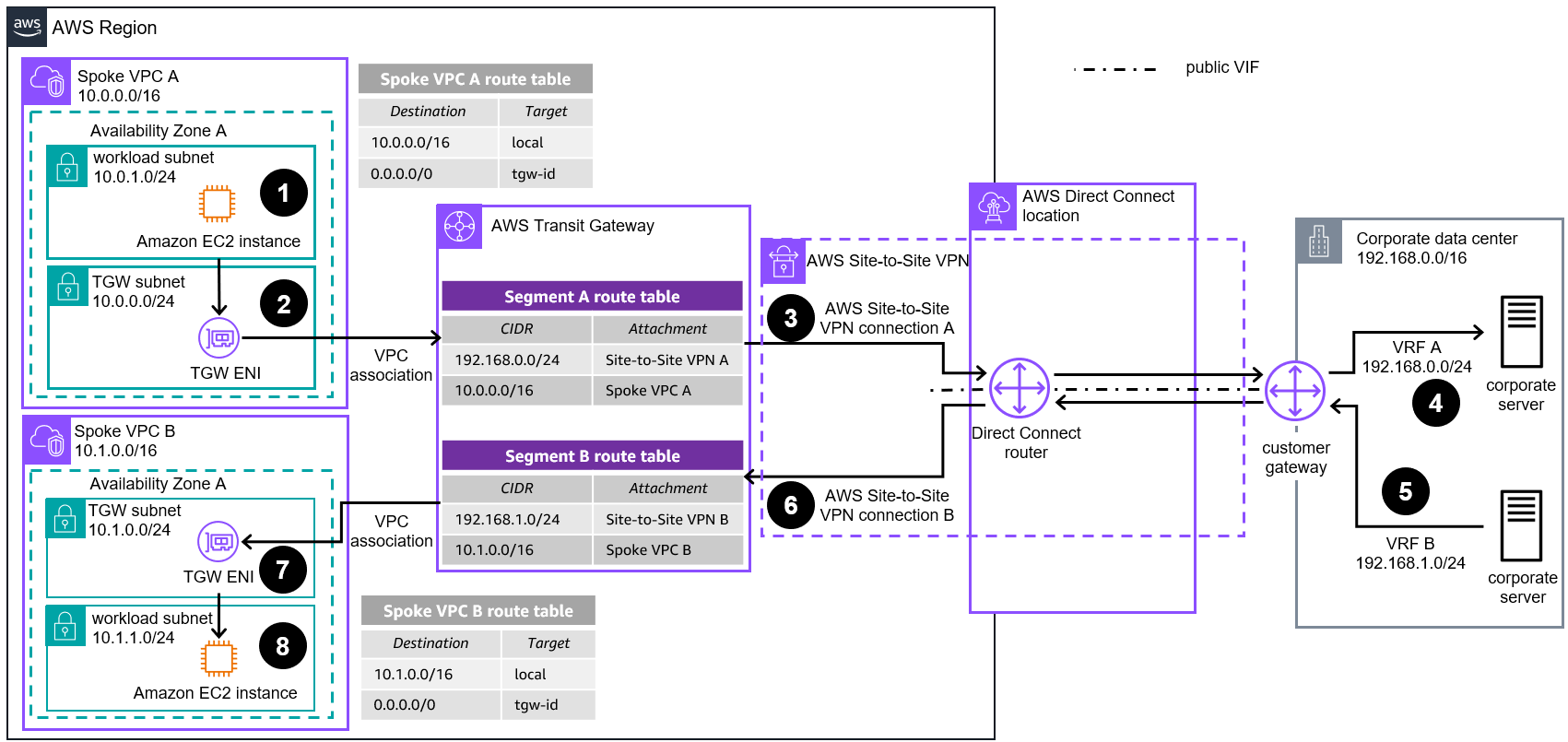

Use AWS Site-to-Site VPN Attachments (Public VIFs) and AWS Direct Connect to Extend Your On-Premises VRFs Diagram

If your customer gateway does not support Generic Routing Encapsulation (GRE), you can still segment your traffic by creating one AWS Site-to-Site VPN connection per each VRF you have in your data center. You can use a public VIF as underlaying transport.

1. Traffic initiated from an instance in Spoke VPC A and destined for the corporate data center server (in VRF A) is routed to the Transit Gateway elastic network interface (TGW ENI) according to the Spoke VPC A route table.

2. Traffic is forwarded to Transit Gateway. Traffic is then routed to the corporate data center through Site-to-Site VPN connection A according to the Segment A route table.

3. The Site-to-Site VPN connection is created using a public VIF as transport (VLAN). The on-premises router must be configured to use a different VPN connection per VRF configured.

4. The on-premises router forwards the traffic from Site-to-Site VPN connection A to the VRF A and the destination server.

5. Traffic from the corporate data center’s VRF B destined for Spoke VPC B is first sent to the customer gateway located in the data center.

6. The customer gateway chooses Site-to-Site VPN connection B to send the traffic to the Transit Gateway over the AWS Direct Connect link.

7. Traffic is forwarded to the Spoke VPC B attachment according to the Transit Gateway Segment B route table.

8. The TGW ENI of Spoke VPC B forwards the traffic to the destination.

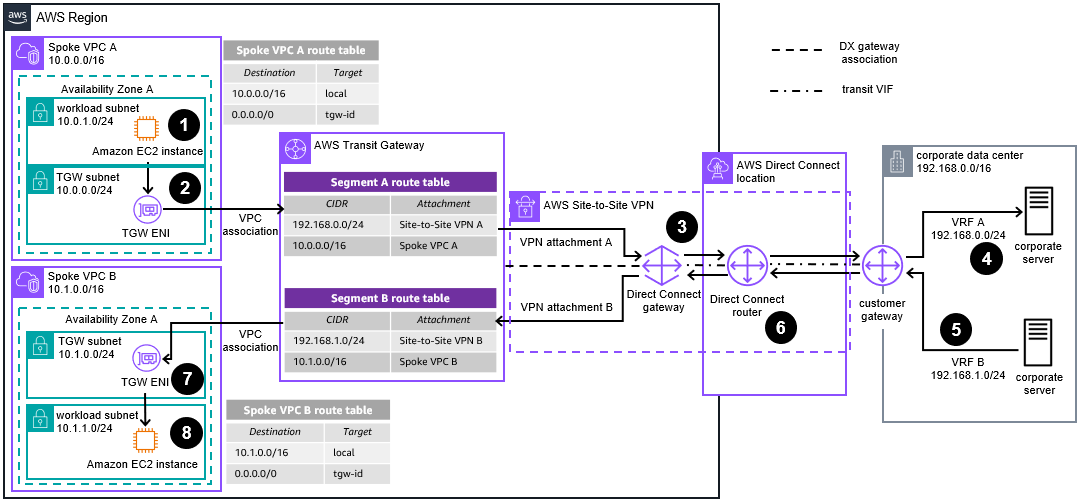

Use AWS Site-to-Site VPN Private IP VPN Attachments and AWS Direct Connect to Extend Your On-Premises VRFs Over Transit VIFs Diagram

If your customer gateway does not support GRE (Generic Routing Encapsulation), you can still segment your traffic by creating one AWS Site-to-Site VPN connection (with two tunnels) per each VRF you have in your data center. With the Site-to-Site VPN Private IP VPN feature, you can create the VPNs using private IPs with the AWS Direct Connect gateway and transit VIF as underlying transport.

1. Traffic initiated from an instance in Spoke VPC A and destined for the corporate data center server (in VRF A) is routed to the AWS Transit Gateway elastic network interface (TGW ENI) according to the Spoke VPC A route table.

2. Traffic is forwarded to Transit Gateway. Traffic is then routed to the corporate data center through Transit Gateway VPN attachment A according to the Segment A route table.

3. The Transit Gateway Site-to-Site VPN attachment uses the AWS Direct Connect connection as transport, and connects Transit Gateway to the corporate data center router using one IPSec VPN connection (with two tunnels). The on-premises router must be configured to use a different VPN attachment per VRF configured.

4. The on-premises router forwards the traffic from VPN attachment A to VRF A and the destination server.

5. Traffic from the corporate data center’s VRF B destined for Spoke VPC B is first sent to the customer gateway located in the data center.

6. The customer gateway uses Site-to-Site VPN connection B – over the AWS Direct Connect link – to send the traffic to Transit Gateway.

7. Traffic is forwarded to the Spoke VPC B attachment according to the Transit Gateway Segment B route table.

8. The TGW ENI of Spoke VPC B forwards the traffic to the destination.
