Set Up Prerequisites

The AWS Blockchain Template for Ethereum configuration that you specify in this tutorial requires that you do the following:

Create a VPC and Subnets

The AWS Blockchain Template for Ethereum launches resources into a virtual network that you define using Amazon Virtual Private Cloud (Amazon VPC). The configuration you specify in this tutorial creates an Application Load Balancer, which requires two public subnets in different Availability Zones. In addition, a private subnet is required for the container instances, and the subnet must be in the same Availability Zone as the Application Load Balancer. You first use the VPC Wizard to create one public subnet and a private subnet in the same Availability Zone. You then create a second public subnet within this VPC in a different Availability Zone.

For more information, see What is Amazon VPC? in the Amazon VPC User Guide.

Use the Amazon VPC console (https://console.aws.amazon.com/vpc/) to create the Elastic IP address, the VPC, and the subnet as described below.

To create an Elastic IP address

  1. Open the Amazon VPC console at https://console.aws.amazon.com/vpc/.

  2. Choose Elastic IPs, Allocate new address, Allocate.

  3. Make a note of the Elastic IP address that you create and choose Close.

  4. In the list of Elastic IP addresses, find the Allocation ID for the Elastic IP address created earlier. You use this when you create the VPC.

To create the VPC

  1. From the navigation bar, select a Region for the VPC. VPCs are specific to a Region, so select the same Region in which you created your key pair in and where you are launching the Ethereum stack. For more information, see Create a Key Pair.

  2. On the VPC dashboard, choose Start VPC Wizard.

  3. On the Step 1: Select a VPC Configuration page, choose VPC with Public and Private Subnets, Select.

  4. On the Step 2: VPC with Public and Private Subnets page, leave IPv4 CIDR block and IPv6 CIDR block to their default values. For VPC name, enter a friendly name.

  5. For Public subnet's IPv4 CIDR, leave the default value. For Availability Zone, choose a zone. For Public subnet name, enter a friendly name.

    You specify this subnet as one of the first of two subnets for the Application Load Balancer when you use the template.

    Note the Availability Zone of this subnet because you select the same Availability Zone for the private subnet, and a different one for the other public subnet.

  6. For Private subnet's IPv4 CIDR, leave the default value. For Availability Zone, select the same Availability Zone as in the previous step. For Private subnet name, enter a friendly name.

  7. For Elastic IP Allocation ID, select the Elastic IP address that you created earlier.

  8. Leave the default values for other settings.

  9. Choose Create VPC.

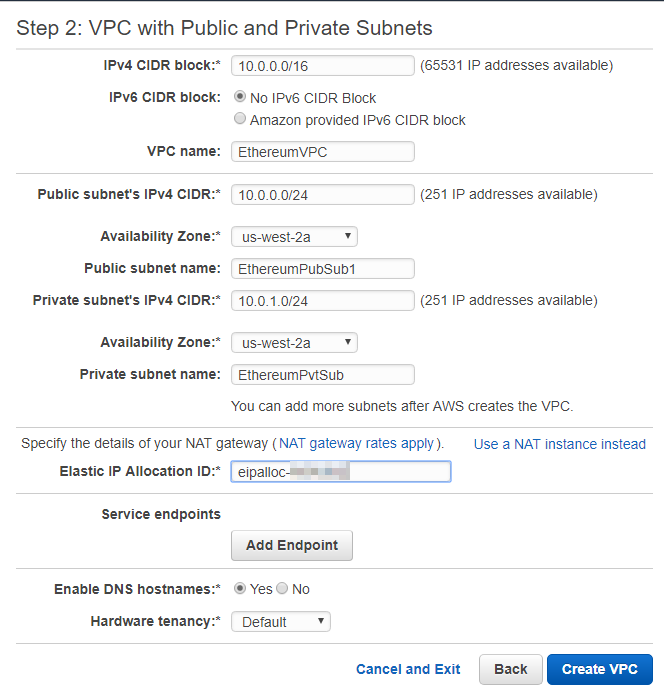

    The example below shows a VPC EthereumNetworkVPC with a public subnet EthereumPubSub1 and a private subnet EthereumPvtSub1. The public subnet uses Availability Zone us-west-2a.

To create the second public subnet in a different Availability Zone

  1. Choose Subnets and then select the public subnet that you created earlier from the list. Select the Route Table tab and note the Route table ID. You specify this same route table for the second public subnet below.

  2. Choose Create Subnet.

  3. For Name tag, enter a name for the subnet. You use this name later when you create the bastion host in this network.

  4. For VPC, select the VPC that you created earlier.

  5. For Availability Zone, select a different zone from the zone that you selected for the first public subnet.

  6. For IPv4 CIDR block, enter 10.0.2.0/24.

  7. Choose Yes, Create. The subnet is added to the list of subnets.

  8. With the subnet selected from the list, choose Subnet Actions, Modify auto-assign IP settings. Select Auto-assign IPs, Save, Close. This allows the bastion host to obtain a public IP address when you create it in this subnet.

  9. On the Route Table tab, choose Edit. For Change to, select the route table ID that you noted earlier and choose Save.

You should now see three subnets for the VPC that you created earlier. Make a note of the subnet names and IDs so that you can specify them using the template.

Create Security Groups

Security groups act as firewalls, controlling inbound and outbound traffic to resources. When you use the template to create an Ethererum network on an Amazon ECS cluster, you specify two security groups:

  • A security group for EC2 instances that controls traffic to and from EC2 instances in the cluster

  • A security group for the Application Load Balancer that controls traffic between the Application Load Balancer, EC2 instances, and the bastion host. You associate this security group with the bastion host as well.

Each security group has rules that allow communication between the Application Load Balancer and the EC2 instances, as well as other minimum rules. This requires that the security groups reference one another. For this reason, you first create the security groups and then update them with appropriate rules.

To create two security groups

  1. Open the Amazon EC2 console at https://console.aws.amazon.com/ec2/.

  2. In the navigation pane, choose Security Groups, Create Security Group.

  3. For Security group name, enter a name for the security group that's easy to identify and will differentiate it from the other, such as EthereumEC2-SG or EthereumALB-SG. You use these names later. For Description, enter a brief summary.

  4. For VPC, select the VPC that you created earlier.

  5. Choose Create.

  6. Repeat the steps above to create the other security group.

Add inbound rules to the security group for EC2 instances

  1. Select the security group for EC2 instances that you created earlier

  2. On the Inbound tab, choose Edit.

  3. For Type, choose All traffic. For Source, leave Custom selected, and then choose the security group you are currently editing from the list, for example, EthereumEC2-SG. This allows the EC2 instances in the security group to communicate with one another.

  4. Choose Add Rule.

  5. For Type, choose All traffic. For Source, leave Custom selected, and then choose the security group for the Application Load Balancer from the list, for example, EthereumALB-SG. This allows the EC2 instances in the security group to communicate with the Application Load Balancer.

  6. Choose Save.

Add inbound and edit outbound rules for the security group for the Application Load Balancer

  1. Select the security group for Application Load Balancers that you created earlier

  2. On the Inbound tab, choose Edit and then add the following inbound rules:

    1. For Type, choose All traffic. For Source, leave Custom selected, and then choose the security group you are currently editing from the list, for example, EthereumALB-SG. This allows the Application Load Balancer to communicate with itself and with the bastion host.

    2. Choose Add Rule.

    3. For Type, choose All traffic. For Source, leave Custom selected, and then choose the security group for EC2 instances from the list, for example, EthereumEC2-SG. This allows the EC2 instances in the security group to communicate with the Application Load Balancer and the bastion host.

    4. Choose Add Rule.

    5. For Type, choose SSH. For Source, select My IP, which detects your computer's IP CIDR and enters it.

      Important

      This rule allows the bastion host to accept SSH traffic from your computer, enabling your computer to use the bastion host to view web interfaces and connect to EC2 instances on the Ethereum network. To allow others to connect to the Ethereum network, add them as sources to this rule. Only allow inbound traffic to trusted sources.

    6. Choose Save.

  3. On the Outbound tab, choose Edit and delete the rule that was automatically created to allow outbound traffic to all IP addresses.

  4. Choose Add Rule.

  5. For Type, choose All traffic. For Source, leave Custom selected, and then choose the security group for EC2 instances from the list. This allows outbound connections from the Application Load Balancer and the bastion host to EC2 instances in the Ethereum network.

  6. Choose Add Rule.

  7. For Type, choose All traffic. For Source, leave Custom selected, and then choose the security group you are currently editing from the list, for example, EthereumALB-SG. This allows the Application Load Balancer to communicate with itself and with the bastion host.

  8. Choose Save.

Create an IAM Role for Amazon ECS and an EC2 Instance Profile

When you use this template, you specify an IAM role for Amazon ECS and an EC2 instance profile. The permissions policies attached to these roles allow the AWS resources and instances in your cluster interact with other AWS resources. For more information, see IAM Roles in the IAM User Guide. You set up the IAM role for Amazon ECS and the EC2 instance profile using the IAM console (https://console.aws.amazon.com/iam/).

To create the IAM role for Amazon ECS

  1. Open the IAM console at https://console.aws.amazon.com/iam/.

  2. In the navigation pane, choose Roles, Create Role.

  3. Under Select type of trusted entity, choose AWS service.

  4. For Choose the service that will use this role, choose Elastic Container Service.

  5. Under Select your use case, choose Elastic Container Service, Next:Permissions.

  6. For Permissions policy, leave the default policy (AmazonEC2ContainerServiceRole) selected, and choose Next:Review.

  7. For Role name, enter a value that helps you identify the role, such as ECSRoleForEthereum. For Role Description, enter a brief summary. Note the role name for later.

  8. Choose Create role.

  9. Select the role that you just created from the list. If your account has many roles, you can search for the role name.

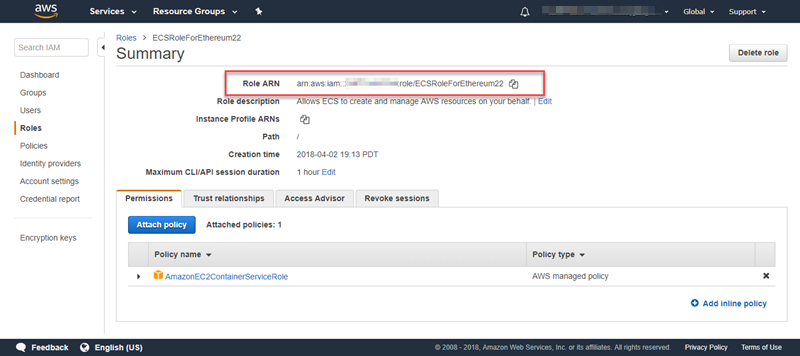

  10. Copy the Role ARN value and save it so that you can copy it again. You need this ARN when you create the Ethereum network.

The EC2 instance profile that you specify in the template is assumed by EC2 instances in the Ethereum network to interact with other AWS services. You create a permissions policy for the role, create the role (which automatically creates an instance profile of the same name), and then attach the permissions policy to the role.

To create an EC2 instance profile

  1. In the navigation pane, choose Policies, Create policy.

  2. Choose JSON and replace the default policy statement with the following JSON policy:

    { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "ecs:CreateCluster", "ecs:DeregisterContainerInstance", "ecs:DiscoverPollEndpoint", "ecs:Poll", "ecs:RegisterContainerInstance", "ecs:StartTelemetrySession", "ecs:Submit*", "ecr:GetAuthorizationToken", "ecr:BatchCheckLayerAvailability", "ecr:GetDownloadUrlForLayer", "ecr:BatchGetImage", "logs:CreateLogStream", "logs:PutLogEvents", "dynamodb:BatchGetItem", "dynamodb:BatchWriteItem", "dynamodb:PutItem", "dynamodb:DeleteItem", "dynamodb:GetItem", "dynamodb:Scan", "dynamodb:Query", "dynamodb:UpdateItem" ], "Resource": "*" } ] }
  3. Choose Review policy.

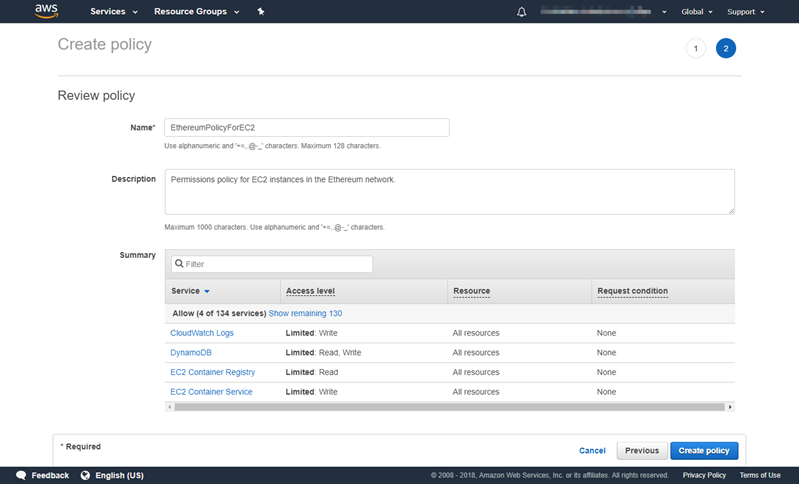

  4. For Name, enter a value that helps you identify this permissions policy, for example EthereumPolicyForEC2. For Description, enter a brief summary. Choose Create policy.

  5. Choose Roles, Create role.

  6. Choose EC2, Next: Permissions.

  7. In the Search field, enter the name of the permissions policy that you created earlier, for example EthereumPolicyForEC2.

  8. Select the check mark for the policy that you created earlier, and choose Next: Review.

  9. For Role name, enter a value that helps you identify the role, for example EC2RoleForEthereum. For Role description, enter a brief summary.Choose Create role.

  10. Select the role that you just created from the list. If your account has many roles, you can enter the role name in the Search field.

  11. Copy the Instance Profile ARN value and save it so you can copy it again. You need this ARN when you create the Ethereum network.

Create a Bastion Host

In this tutorial, you create a bastion host. This is an EC2 instance that you use to connect to the web interfaces and instances in your Ethereum network. It's sole purpose is to forward SSH traffic from trusted clients outside the VPC so that they can access Ethereum network resources.

You set up the bastion host because the Application Load Balancer that the template creates is internal, meaning it only routes internal IP addresses. The bastion host:

  • Has an internal IP address that the Application Load Balancer recognizes because you launch it in the second public subnet that you created earlier.

  • Has a public IP address that the subnet assigns, which can be accessed by trusted sources outside the VPC.

  • Is associated with the security group for the Application Load Balancer you created earlier, which has an inbound rule that allows SSH traffic (port 22) from trusted clients.

To be able to access the Ethereum network, trusted clients need to be set up to connect through the bastion host. For more information, see Connect to EthStats and EthExplorer Using the Bastion Host. A bastion host is one approach. You can use any approach that provides access from trusted clients to private resources within a VPC.

To create a bastion host

  1. Follow the first five steps to Launch an Instance in the Amazon EC2 User Guide for Linux Instances.

  2. Choose Edit Instance Details. For Network, choose the VPC you created earlier, for Subnet select the second public subnet that you created earlier. Leave all other settings to their defaults.

  3. Confirm the change when prompted, and then choose Review and Launch.

  4. Choose Edit Security Groups. For Assign a security group, choose Select an existing security group.

  5. From the list of security groups, select the security group for the Application Load Balancer that you created earlier, and then choose Review and Launch.

  6. Choose Launch.

  7. Note the instance ID. You need it later when you Connect to EthStats and EthExplorer Using the Bastion Host.
