Quick Start Guide: Global Clusters

Configuration

Amazon DocumentDB global cluster spans at least two AWS Regions. The primary region supports a cluster that has one primary (writer) instance and up to fifteen replica instances, while a secondary region runs a read-only cluster made up entirely of up to sixteen replica instances. A global cluster can have up to five secondary regions. The table lists the maximum clusters, instances, and replicas allowed in a global cluster.

Description	Primary AWS Region	Secondary AWS Region
Clusters	1	5 (maximum)
Writer instances	1	0
Read-only instances (Amazon DocumentDB replicas), per cluster	15 (max)	16 (total)
Read-only instances (max allowed, given actual number of secondary regions)	15 - s	s = total number of secondary AWS Regions

The clusters have the following specific requirements:

• Database instance class requirements — You can only use the db.r5 and db.r6 instance classes.

• AWS Region requirements — The primary cluster must be in one region, and at least one secondary cluster must be in a different region of the same account. You can create up to five secondary (read-only) clusters, and each must be in a different region. In other words, no two clusters can be in the same region.

• Naming requirements — The names you choose for each of your clusters must be unique, across all regions. You can't use the same name for different clusters even though they're in different regions.

Creating an Amazon DocumentDB global cluster

Are you ready to build your first global cluster? In this section we will explain how to create a brand new global cluster with new database clusters and instances, using either the AWS Management Console or AWS CLI with the following instructions.

Using the AWS Management Console

1. In the AWS Management Console, navigate to Amazon DocumentDB.

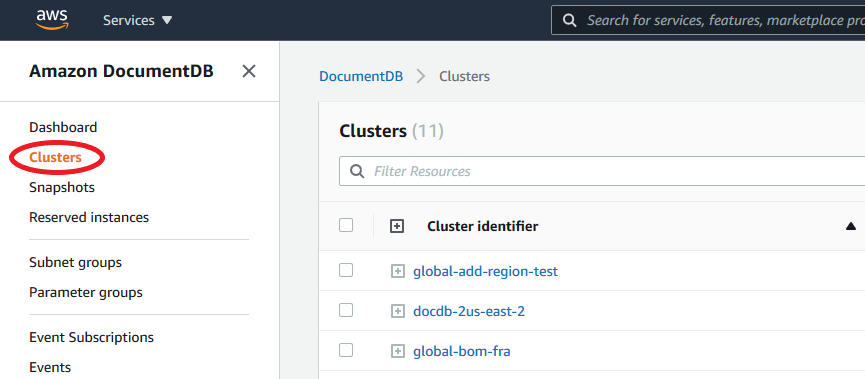

2. When you get to the Amazon DocumentDB console, choose Clusters.

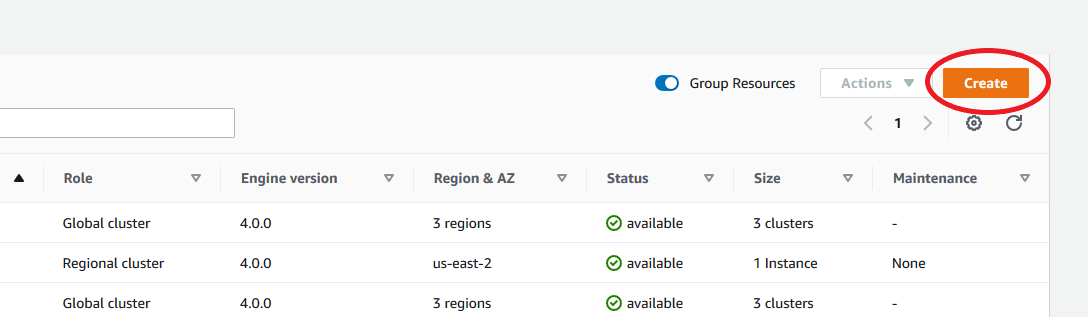

3. Choose Create.



4. Fill out the Configuration section of the Create Amazon DocumentDB Cluster form accordingly:

   • Cluster identifier: You can either enter a unique identifier for this instance or allow Amazon DocumentDB to provide the instance identifier based on the cluster identifier.

   • Engine version: Choose 4.0.0

   • Instance class: Choose db.r5.large

   • Number of instances: Choose 3.



5. In the Authentication section, fill in a master username and master password.

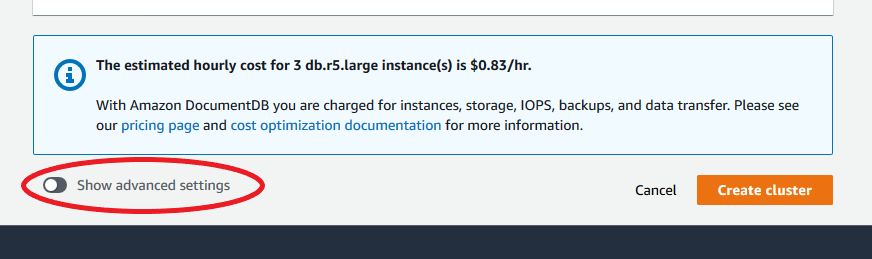

6. Choose Show Advanced Settings.



7. In the Network Settings section:

   • Keep default options for Virtual Private Cloud and Subnet Group.



   • For VPC Security Groups, default VPC should already be added.

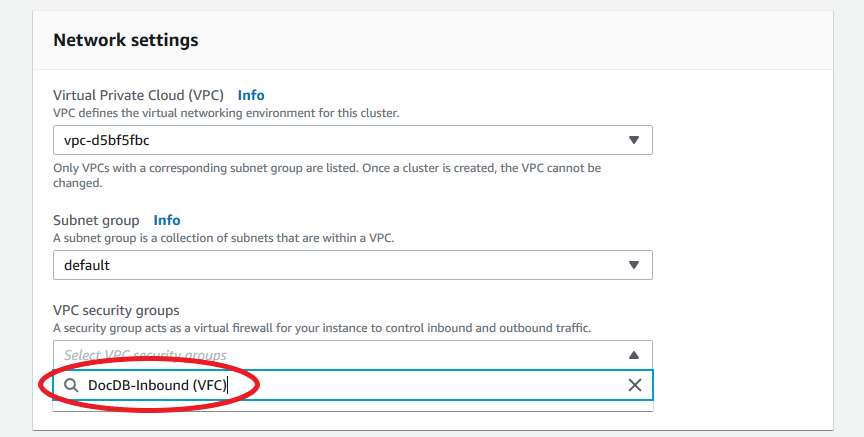

   • Type DocDB into the VPC Security Groups field and select DocDB-Inbound (VPC).



8. For Cluster Options and Encryption-at-rest, leave at default selections.

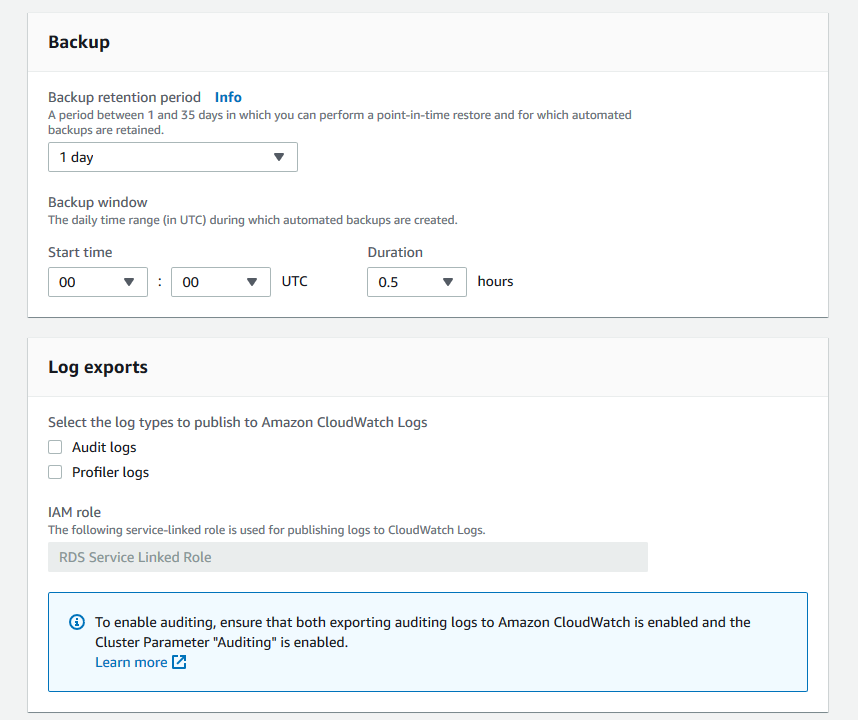

9. For Backup and Log Exports, leave at default selections.



10. For Maintenance, Tags and Deletion Protection, leave default selections.



11. Now click the button that says Create.



Using the AWS CLI

To create an Amazon DocumentDB regional cluster, call the create-db-cluster AWS CLI. The following AWS CLI command creates an Amazon DocumentDB cluster named global-cluster-id. For more information on deletion protection, see Deleting an Amazon DocumentDB cluster.

Also, --engine-version is an optional parameter that defaults to the latest major engine version. The current major engine version is 4.0.0. When new major engine versions are released, the default engine version for --engine-version will be updated to reflect the lasted major engine version. As a result, for production workloads, and especially those that are dependent on scripting, automation, or AWS CloudFormation templates, we recommend that you explicitly specify the --engine-version to the intended major version.

If a db-subnet-group-name or vpc-security-group-id is not specified, Amazon DocumentDB will use the default subnet group and Amazon VPC security group for the given region.

In the following example, replace each user input placeholder with your own information.

For Linux, macOS, or Unix:

aws docdb create-db-cluster \
      --global-cluster-identifier global-cluster-id \
      --source-db-cluster-identifier arn:aws:rds:us-east-1:111122223333:cluster-id


For Windows:

aws docdb create-db-cluster ^
      --global-cluster-identifier global-cluster-id ^
      --source-db-cluster-identifier arn:aws:rds:us-east-1:111122223333:cluster-id


Output from this operation looks something like the following (JSON format).

{
    "DBCluster": {
        "StorageEncrypted": false,
        "DBClusterMembers": [],
        "Engine": "docdb",
        "DeletionProtection" : "enabled",
        "ClusterCreateTime": "2018-11-26T17:15:19.885Z",
        "DBSubnetGroup": "default",
        "EngineVersion": "4.0.0",
        "MasterUsername": "masteruser",
        "BackupRetentionPeriod": 1,
        "DBClusterArn": "arn:aws:rds:us-east-1:123456789012:cluster:cluster-id",
        "DBClusterIdentifier": "cluster-id",
        "MultiAZ": false,
        "DBClusterParameterGroup": "default.docdb4.0",
        "PreferredBackupWindow": "09:12-09:42",
        "DbClusterResourceId": "cluster-KQSGI4MHU4NTDDRVNLNTU7XVAY",
        "PreferredMaintenanceWindow": "tue:04:17-tue:04:47",
        "Port": 27017,
        "Status": "creating",
        "ReaderEndpoint": "cluster-id.cluster-ro-sfcrlcjcoroz.us-east-1.docdb.amazonaws.com",
        "AssociatedRoles": [],
        "HostedZoneId": "ZNKXTT8WH85VW",
        "VpcSecurityGroups": [
            {
                "VpcSecurityGroupId": "sg-77186e0d",
                "Status": "active"
            }
        ],
        "AvailabilityZones": [
            "us-east-1a",
            "us-east-1c",
            "us-east-1e"
        ],
        "Endpoint": "cluster-id.cluster-sfcrlcjcoroz.us-east-1.docdb.amazonaws.com"
    }
}


It takes several minutes to create the cluster. You can use the AWS Management Console or AWS CLI to monitor the status of your cluster. For more information, see Monitoring an Amazon DocumentDB cluster's status.

Important

When you use the AWS CLI to create an Amazon DocumentDB regional cluster, no instances are created. Consequently, you must explicitly create a primary instance and any replica instances that you need. You can use either the console or AWS CLI to create the instances. For more information, see Adding an Amazon DocumentDB instance to a cluster and CreateDBCluster in the Amazon DocumentDB API Reference.

Once your regional cluster is available, you can add a secondary cluster in another region with the following instructions: Adding an AWS Region to an Amazon DocumentDB global cluster. When you add a region, your regional cluster becomes your primary cluster, and you have a new secondary cluster in the region you chose.

Adding an AWS Region to an Amazon DocumentDB global cluster

A global cluster needs at least one secondary cluster in a different region than the primary cluster, and you can add up to five secondary clusters. Note that for each secondary cluster that you add, you must reduce the number of replicas allowed in the primary cluster by one. For example, if your global cluster has five secondary regions, your primary cluster can have only ten (rather than fifteen) replicas. For more information, see Configuration requirements of an Amazon DocumentDB global cluster.

Using the AWS Management Console

1. Sign in to the AWS Management Console and open the Amazon DocumentDB console.

2. In the navigation pane, choose Clusters.



3. Choose the cluster that you would like to add a secondary cluster to. Ensure that the cluster is Available.



4. Select the drop down menu for Actions and then choose Add region.

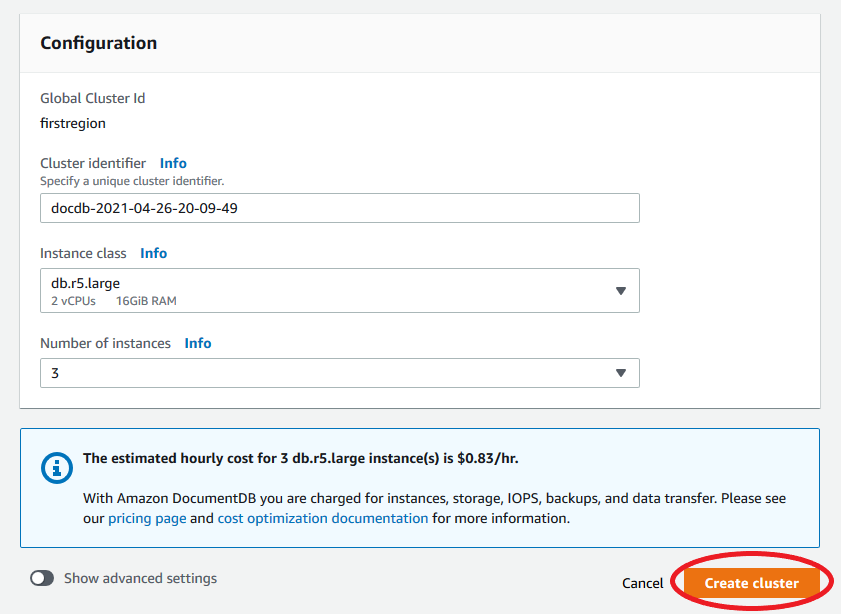

5. On the Add a region page, choose the secondary region. Note that you can't choose a region that already has a secondary cluster for the same global cluster. Also, it can't be the same region as the primary cluster. If this is the first region you are adding, you will also have to specify a global cluster identifier of your choice.



6. Complete the remaining fields for the secondary cluster in the new region then select Create Cluster. After you finish adding the region, you can see it in the list of Clusters in the AWS Management Console.



Using the AWS CLI

• Use the create-db-cluster CLI command with the name (--global-cluster-identifier) of your global cluster. For other parameters, do the following:

  • For --region, choose a different AWS Region than that of your primary region.

  • Choose specific values for the --engine and --engine-version parameters.

  • For an encrypted cluster, specify your primary AWS Region as the --source-region for encryption.

The following example creates a new Amazon DocumentDB cluster and attaches it to the global cluster as a read-only secondary cluster. In the last step, the instance is added to the new cluster.

In the following example, replace each user input placeholder with your own information.

For Linux, macOS, or Unix:

aws docdb --region secondary-region-id \
  create-db-cluster \
    --db-cluster-identifier cluster-id \
    --global-cluster-identifier global-cluster-id \
    --engine-version version \
    --engine docdb

aws docdb --region secondary-region-id \
  create-db-instance \
    --db-cluster-identifier cluster-id \
    --global-cluster-identifier global-cluster-id \
    --engine-version version \
    --engine docdb


For Windows:

aws docdb --region secondary-region-id ^
  create-db-cluster ^
    --db-cluster-identifier cluster-id ^
    --global-cluster-identifier global-cluster-id ^
    --engine-version version ^
    --engine docdb

aws docdb --region secondary-region-id ^
  create-db-instance ^
    --db-cluster-identifier cluster-id ^
    --global-cluster-identifier global-cluster-id ^
    --engine-version version ^
    --engine docdb


Using a snapshot for your Amazon DocumentDB global cluster

You can restore a snapshot of an Amazon DocumentDB cluster to use as the starting point for your global cluster. To do this, you must restore the snapshot and create a new cluster. This will serve as the primary cluster of your global cluster. You can then add another region to the restored cluster, thus converting it into a global cluster.
