Create and package a Lambda function - AWS IoT Greengrass

You are viewing the documentation for AWS IoT Greengrass Version 1. AWS IoT Greengrass Version 2 is the latest major version of AWS IoT Greengrass. For more information about using AWS IoT Greengrass V2, see the AWS IoT Greengrass Version 2 Developer Guide.

Create and package a Lambda function

The example Python Lambda function in this module uses the AWS IoT Greengrass Core SDK for Python to publish MQTT messages.

In this step, you:

  • Download the AWS IoT Greengrass Core SDK for Python to your computer (not the AWS IoT Greengrass core device).

  • Create a Lambda function deployment package that contains the function code and dependencies.

  • Use the Lambda console to create a Lambda function and upload the deployment package.

  • Publish a version of the Lambda function and create an alias that points to the version.

To complete this module, Python 3.7 must be installed on your core device.



  1. From the AWS IoT Greengrass Core SDK downloads page, download the AWS IoT Greengrass Core SDK for Python to your computer.

  2. Unzip the downloaded package to get the Lambda function code and the SDK.

    The Lambda function in this module uses:

    • The greengrassHelloWorld.py file in examples\HelloWorld. This is your Lambda function code. Every five seconds, the function publishes one of two possible messages to the hello/world topic.

    • The greengrasssdk folder. This is the SDK.

  3. Copy the greengrasssdk folder into the HelloWorld folder that contains greengrassHelloWorld.py.

  4. To create the Lambda function deployment package, save greengrassHelloWorld.py and the greengrasssdk folder to a compressed zip file named hello_world_python_lambda.zip. The py file and greengrasssdk folder must be in the root of the directory.

    Screenshot showing zipped contents of hello_word_python_lambda.zip.

    On UNIX-like systems (including the Mac terminal), you can use the following command to package the file and folder:

    zip -r hello_world_python_lambda.zip greengrasssdk greengrassHelloWorld.py
    Note

    Depending on your distribution, you might need to install zip first (for example, by running sudo apt-get install zip). The installation command for your distribution might be different.

    Now you're ready to create your Lambda function and upload the deployment package.

  5. Open the Lambda console and choose Create function.

  6. Choose Author from scratch.

  7. Name your function Greengrass_HelloWorld, and set the remaining fields as follows:

    • For Runtime, choose Python 3.7.

    • For Permissions, keep the default setting. This creates an execution role that grants basic Lambda permissions. This role isn't used by AWS IoT Greengrass.

    Choose Create function.

    The "Basic information" section with the "Function name" field set to "Greengrass_HelloWorld" and the "Runtime" field set to "Python 3.7".

  8. Upload your Lambda function deployment package:

    1. On the Code tab, under Code source, choose Upload from. From the dropdown, choose .zip file.

      The Upload from dropdown with .zip file highlighted.

    2. Choose Upload, and then choose your hello_world_python_lambda.zip deployment package. Then, choose Save.

    3. On the Code tab for the function, under Runtime settings, choose Edit, and then enter the following values.

      • For Runtime, choose Python 3.7.

      • For Handler, enter greengrassHelloWorld.function_handler

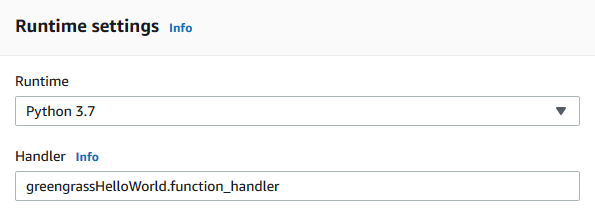

      The "Runtime settings" section with the "Runtime" field set to "Python 3.7" and the "Handler" field set to "greengrassHelloWorld.function_handler".

    4. Choose Save.

      Note

      The Test button on the AWS Lambda console doesn't work with this function. The AWS IoT Greengrass Core SDK doesn't contain modules that are required to run your Greengrass Lambda functions independently in the AWS Lambda console. These modules (for example, greengrass_common) are supplied to the functions after they are deployed to your Greengrass core.

  9. Publish the Lambda function:

    1. From the Actions menu at the top of the page, choose Publish new version.

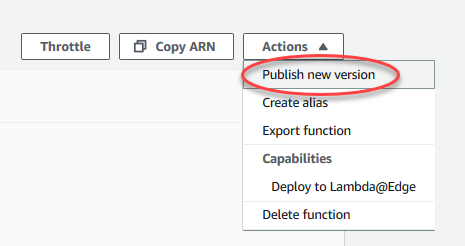

      Screenshot of the Actions menu with Publish new version highlighted.

    2. For Version description, enter First version, and then choose Publish.

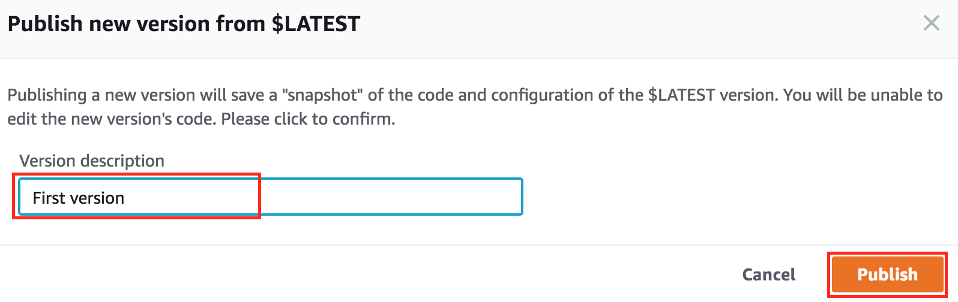

      Screenshot with the Version description field set to First version and the Publish button highlighted.

  10. Create an alias for the Lambda function version:

    Note

    Greengrass groups can reference a Lambda function by alias (recommended) or by version. Using an alias makes it easier to manage code updates because you don't have to change your subscription table or group definition when the function code is updated. Instead, you just point the alias to the new function version.

    1. From the Actions menu at the top of the page, choose Create alias.

      Screenshot of the Actions menu set to Create alias.

    2. Name the alias GG_HelloWorld, set the version to 1 (which corresponds to the version that you just published), and then choose Save.

      Note

      AWS IoT Greengrass doesn't support Lambda aliases for $LATEST versions.

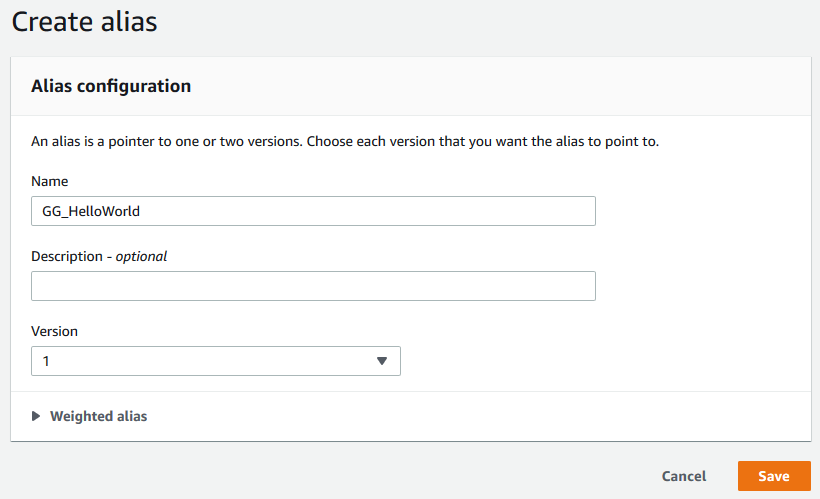

      Screenshot of Create a new alias with the Name field set to GG_HelloWorld, and the Version field set to 1.
