How to configure local resource access using the AWS Management Console

This feature is available for AWS IoT Greengrass Core v1.3 and later.

You can configure Lambda functions to securely access local resources on the host Greengrass core device. Local resources refer to buses and peripherals that are physically present on the host, or file system volumes on the host OS. For more information, including requirements and constraints, see Access local resources with Lambda functions and connectors.

This tutorial describes how to use the AWS Management Console to configure access to local resources that are present on an AWS IoT Greengrass core device. It contains the following high-level steps:

For a tutorial that uses the AWS Command Line Interface, see How to configure local resource access using the AWS command line interface.

Prerequisites

To complete this tutorial, you need:

  • A Greengrass group and a Greengrass core (v1.3 or later). To create a Greengrass group or core, see Getting started with AWS IoT Greengrass.

  • The following directories on the Greengrass core device:

    • /src/LRAtest

    • /dest/LRAtest

    The owner group of these directories must have read and write access to the directories. You might use the following command to grant access:

    sudo chmod 0775 /src/LRAtest

Step 1: Create a Lambda function deployment package

In this step, you create a Lambda function deployment package, which is a ZIP file that contains the function's code and dependencies. You also download the AWS IoT Greengrass Core SDK to include in the package as a dependency.

  1. On your computer, copy the following Python script to a local file named lraTest.py. This is the app logic for the Lambda function.

    # Demonstrates a simple use case of local resource access. # This Lambda function writes a file test to a volume mounted inside # the Lambda environment under destLRAtest. Then it reads the file and # publishes the content to the AWS IoT LRAtest topic. import sys import greengrasssdk import platform import os import logging # Setup logging to stdout logger = logging.getLogger(__name__) logging.basicConfig(stream=sys.stdout, level=logging.DEBUG) # Create a Greengrass Core SDK client. client = greengrasssdk.client('iot-data') volumePath = '/dest/LRAtest' def function_handler(event, context): try: client.publish(topic='LRA/test', payload='Sent from AWS IoT Greengrass Core.') volumeInfo = os.stat(volumePath) client.publish(topic='LRA/test', payload=str(volumeInfo)) with open(volumePath + '/test', 'a') as output: output.write('Successfully write to a file.') with open(volumePath + '/test', 'r') as myfile: data = myfile.read() client.publish(topic='LRA/test', payload=data) except Exception as e: logger.error('Failed to publish message: ' + repr(e)) return
  2. From the AWS IoT Greengrass Core SDK downloads page, download the AWS IoT Greengrass Core SDK for Python to your computer.

  3. Unzip the downloaded package to get the SDK. The SDK is the greengrasssdk folder.

  4. Zip the following items into a file named lraTestLambda.zip:

    • lraTest.py. App logic.

    • greengrasssdk. Required library for all Python Lambda functions.

    The lraTestLambda.zip file is your Lambda function deployment package. Now you're ready to create a Lambda function and upload the deployment package.

Step 2: Create and publish a Lambda function

In this step, you use the AWS Lambda console to create a Lambda function and configure it to use your deployment package. Then, you publish a function version and create an alias.

First, create the Lambda function.

  1. In the AWS Management Console, choose Services, and open the AWS Lambda console.

  2. Choose Functions.

  3. Choose Create function and then choose Author from scratch.

  4. In the Basic information section, use the following values.

    1. For Function name, enter TestLRA.

    2. For Runtime, choose Python 3.7.

    3. For Permissions, keep the default setting. This creates an execution role that grants basic Lambda permissions. This role isn't used by AWS IoT Greengrass.

  5. Choose Create function.

    The Create function page with Create function highlighted.



  6. Upload your Lambda function deployment package and register the handler.

    1. On the Code tab, under Code source, choose Upload from. From the dropdown, choose .zip file.

      The Upload from dropdown with .zip file highlighted.
    2. Choose Upload, and then choose your lraTestLambda.zip deployment package. Then, choose Save.

    3. On the Code tab for the function, under Runtime settings, choose Edit, and then enter the following values.

      • For Runtime, choose Python 3.7.

      • For Handler, enter lraTest.function_handler.

    4. Choose Save.

      Note

      The Test button on the AWS Lambda console doesn't work with this function. The AWS IoT Greengrass Core SDK doesn't contain modules that are required to run your Greengrass Lambda functions independently in the AWS Lambda console. These modules (for example, greengrass_common) are supplied to the functions after they are deployed to your Greengrass core.

    Next, publish the first version of your Lambda function. Then, create an alias for the version.

    Greengrass groups can reference a Lambda function by alias (recommended) or by version. Using an alias makes it easier to manage code updates because you don't have to change your subscription table or group definition when the function code is updated. Instead, you just point the alias to the new function version.

  7. From Actions, choose Publish new version.

  8. For Version description, enter First version, and then choose Publish.

  9. On the TestLRA: 1 configuration page, from Actions, choose Create alias.

  10. On the Create alias page, for Name, enter test. For Version, enter 1.

    Note

    AWS IoT Greengrass doesn't support Lambda aliases for $LATEST versions.

  11. Choose Create.

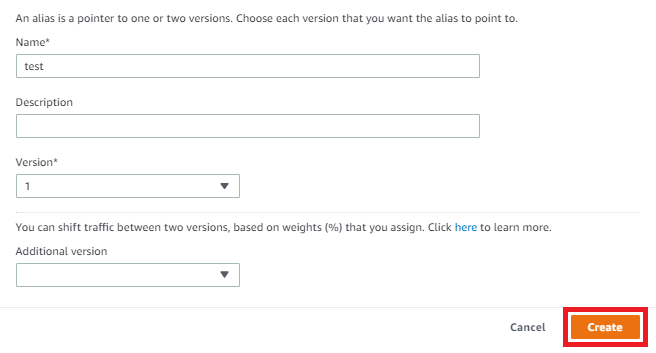

    The Create a new alias page with Create highlighted.

    You can now add the Lambda function to your Greengrass group.

Step 3: Add the Lambda function to the Greengrass group

In this step, you add the function to your group and configure the function's lifecycle.

First, add the Lambda function to your Greengrass group.

  1. In the AWS IoT console navigation pane, under Manage, expand Greengrass devices, and then choose Groups (V1).

  2. Choose the Greengrass group where you want to add the Lambda function.

  3. On the group configuration page, choose the Lambda functions tab.

  4. Under My Lambda functions section, choose Add.

  5. On the Add Lambda function page, choose the Lambda function. Select TestLRA.

  6. Choose the Lambda function version.

  7. In the Lambda function configuration section, select System user and group and Lambda function containerization.



    Next, configure the lifecycle of the Lambda function.

  8. For Timeout, choose 30 seconds.

    Important

    Lambda functions that use local resources (as described in this procedure) must run in a Greengrass container. Otherwise, deployment fails if you try to deploy the function. For more information, see Containerization.

  9. At the bottom of the page, choose Add Lambda function.

Step 4: Add a local resource to the Greengrass group

In this step, you add a local volume resource to the Greengrass group and grant the function read and write access to the resource. A local resource has a group-level scope. You can grant permissions for any Lambda function in the group to access the resource.

  1. On the group configuration page, choose the Resources tab.

  2. Under the Local resources section, choose Add.

  3. On the Add a local resource page, use the following values.

    1. For Resource name, enter testDirectory.

    2. For Resource type, choose Volume.

    3. For Local device path, enter /src/LRAtest. This path must exist on the host OS.

      The local device path is the local absolute path of the resource on the file system of the core device. This location is outside of the container that the function runs in. The path can't start with /sys.

    4. For Destination path, enter /dest/LRAtest. This path must exist on the host OS.

      The destination path is the absolute path of the resource in the Lambda namespace. This location is inside the container that the function runs in.

    5. Under System group owner and file access permission, select Automatically add file system permissions of the system group that owns the resource.

      The System group owner and file access permission option lets you grant additional file access permissions to the Lambda process. For more information, see Group owner file access permission.

  4. Choose Add resource. The Resources page displays the new testDirectory resource.

Step 5: Add subscriptions to the Greengrass group

In this step, you add two subscriptions to the Greengrass group. These subscriptions enable bidirectional communication between the Lambda function and AWS IoT.

First, create a subscription for the Lambda function to send messages to AWS IoT.

  1. On the group configuration page, choose the Subscriptions tab.

  2. Choose Add.

  3. On the Create a subscription page, configure the source and target, as follows:

    1. For Source type, choose Lambda function, and then choose TestLRA.

    2. For Target type, choose Service, and then choose IoT Cloud.

    3. For Topic filter, enter LRA/test, and then choose Create subscription.

  4. The Subscriptions page displays the new subscription.



    Next, configure a subscription that invokes the function from AWS IoT.

  5. On the Subscriptions page, choose Add Subscription.

  6. On the Select your source and target page, configure the source and target, as follows:

    1. For Source type, choose Lambda function, and then choose IoT Cloud.

    2. For Target type, choose Service, and then choose TestLRA.

    3. Choose Next.

  7. On the Filter your data with a topic page, for Topic filter, enter invoke/LRAFunction, and then choose Next.

  8. Choose Finish. The Subscriptions page displays both subscriptions.

Step 6: Deploy the AWS IoT Greengrass group

In this step, you deploy the current version of the group definition.

  1. Make sure that the AWS IoT Greengrass core is running. Run the following commands in your Raspberry Pi terminal, as needed.

    1. To check whether the daemon is running:

      ps aux | grep -E 'greengrass.*daemon'

      If the output contains a root entry for /greengrass/ggc/packages/1.11.6/bin/daemon, then the daemon is running.

      Note

      The version in the path depends on the AWS IoT Greengrass Core software version that's installed on your core device.

    2. To start the daemon:

      cd /greengrass/ggc/core/ sudo ./greengrassd start
  2. On the group configuration page, choose Deploy.

    Note

    Deployment fails if you run your Lambda function without containerization and try to access attached local resources.

  3. If prompted, on the Lambda function tab, under System Lambda functions, select IP detector, and then Edit, and then Automatically detect.

    This enables devices to automatically acquire connectivity information for the core, such as IP address, DNS, and port number. Automatic detection is recommended, but AWS IoT Greengrass also supports manually specified endpoints. You're only prompted for the discovery method the first time that the group is deployed.

    Note

    If prompted, grant permission to create the Greengrass service role and associate it with your AWS account in the current AWS Region. This role allows AWS IoT Greengrass to access your resources in AWS services.

    The Deployments page shows the deployment timestamp, version ID, and status. When completed, the deployment status is Completed.

    For troubleshooting help, see Troubleshooting AWS IoT Greengrass.

Test local resource access

Now you can verify whether the local resource access is configured correctly. To test, you subscribe to the LRA/test topic and publish to the invoke/LRAFunction topic. The test is successful if the Lambda function sends the expected payload to AWS IoT.

  1. From the AWS IoT console navigation menu, under Test, choose MQTT test client.

  2. Under Subscribe to a topic, for Topic filter, enter LRA/test.

  3. Under Additional information, for MQTT payload display, select Display payloads as strings.

  4. Choose Subscribe. Your Lambda function publishes to the LRA/test topic.

    The Subscriptions page with Subscribe to topic highlighted.
  5. Under Publish to a topic, in the Topic nameenter invoke/LRAFunction, and then choose Publish to invoke your Lambda function. The test is successful if the page displays the function's three message payloads.

    The Subscriptions page with the invoke/LRAFunction topic and Publish to topic highlighted, and test results with message data.

The test file created by the Lambda function is in the /src/LRAtest directory on the Greengrass core device. Although the Lambda function writes to a file in the /dest/LRAtest directory, that file is visible in the Lambda namespace only. You can't see it in a regular Linux namespace. Any changes to the destination path are reflected in the source path on the file system.

For troubleshooting help, see Troubleshooting AWS IoT Greengrass.
