Individual Participant Recording (Real-Time Streaming)

Introduction

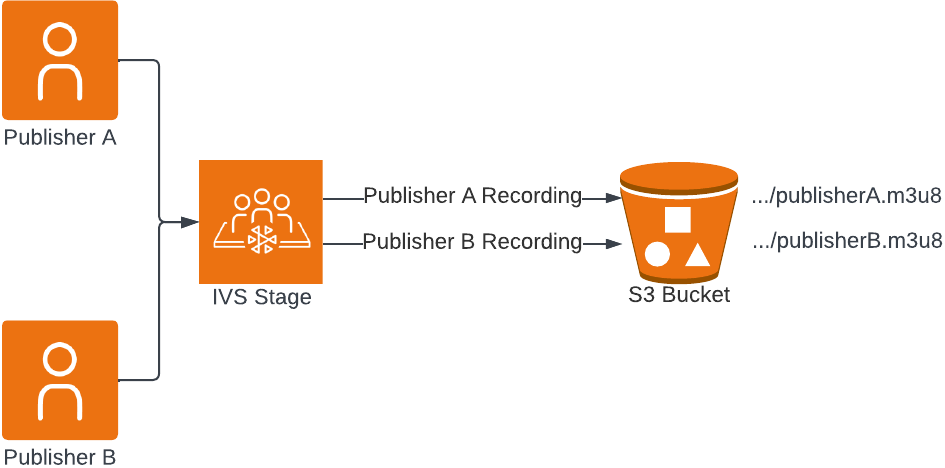

Individual participant recording allows IVS real-time streaming customers to record IVS stage publishers individually into S3 buckets. When individual participant recording is enabled for a stage, publisher content is recorded once they start publishing to the stage.

Note: If you need to have all stage participants mixed in a single video, the composite recording feature is a better fit. See Recording for a summary of recording IVS real-time-streaming content.

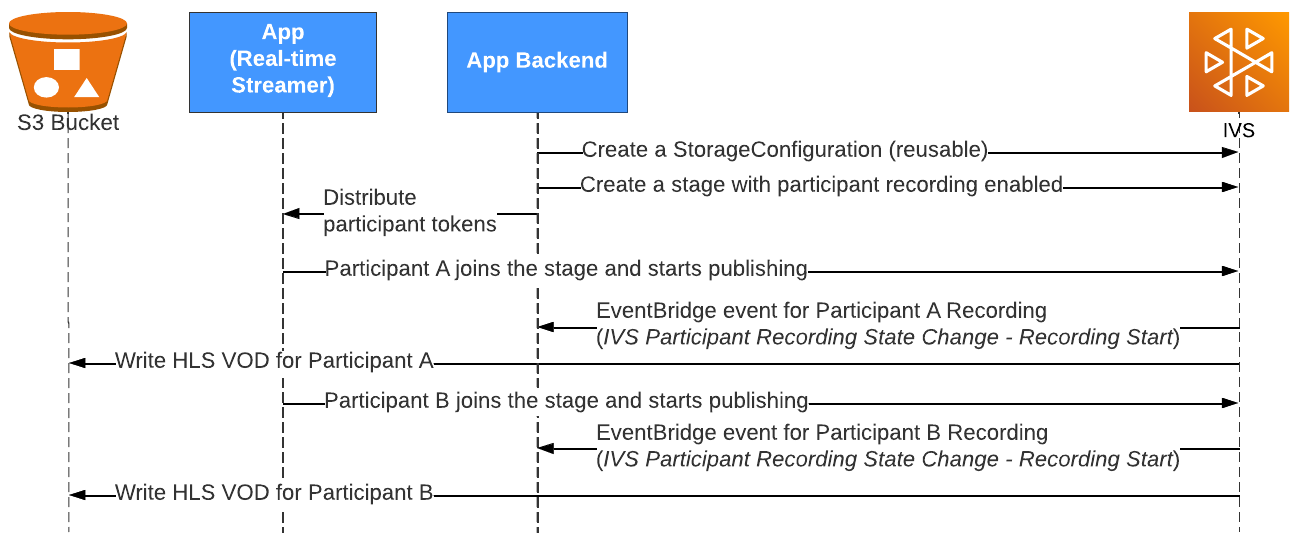

Workflow

1. Create an S3 Bucket

You will need an S3 bucket to write VODs. For details, see the S3 documentation on how to create buckets. Note that for individual participant recording, the S3 buckets must be created in the same AWS region as the IVS stage.

2. Create a StorageConfiguration Object

After creating a bucket, call the IVS real-time streaming API to create a StorageConfiguration object. Once the storage configuration is successfully created, IVS will have permission to write to the provided S3 bucket. You can re-use this StorageConfiguration object on multiple stages.

3. Create a Stage with Participant Tokens

Now you need to create an IVS stage with individual participant recording enabled (by setting the AutoParticipantRecordingConfiguration object), as well as participant tokens for each publisher.

The request below creates a stage with two participant tokens and individual participant recording enabled.

POST /CreateStage HTTP/1.1
Content-type: application/json

{
   "autoParticipantRecordingConfiguration": {
      "mediaTypes": ["AUDIO_VIDEO"],
      "storageConfigurationArn": "arn:aws:ivs:us-west-2:123456789012:storage-configuration/AbCdef1G2hij"
   },
   "name": "TestStage",
   "participantTokenConfigurations": [
      {
         "capabilities": ["PUBLISH", "SUBSCRIBE"],
         "duration": 20160,
         "userId": "1"
      },
      {
         "capabilities": ["PUBLISH", "SUBSCRIBE"],
         "duration": 20160,
         "userId": "2"
      }
   ]
}

4. Join the Stage as an Active Publisher

Distribute the participant tokens to your publishers, and have them join the stage and start publishing to it.

When they join the stage and start publishing to it using one of IVS real-time streaming broadcast SDKs, the participant-recording process starts automatically and sends you an EventBridge event indicating that the recording started. (The event is IVS Participant Recording State Change - Recording Start.) Concurrently, the participant-recording process starts writing the VOD and metadata files to the configured S3 bucket. Note: Participants connected for extremely short durations (less than 5s) are not guaranteed to be recorded.

There are two ways to get the S3 prefix for each recording:

• Listen to the EventBridge event:

  {
     "version": "0",
     "id": "12345678-1a23-4567-a1bc-1a2b34567890",
     "detail-type": "IVS Participant Recording State Change",
     "source": "aws.ivs",
     "account": "123456789012",
     "time": "2024-03-13T22:19:04Z",
     "region": "us-east-1",
     "resources": ["arn:aws:ivs:us-west-2:123456789012:stage/AbCdef1G2hij"],
     "detail": {
        "session_id": "st-ZyXwvu1T2s",
        "event_name": "Recording Start",
        "participant_id": "xYz1c2d3e4f",
        "recording_s3_bucket_name": "ivs-recordings",
        "recording_s3_key_prefix": "<stage_id>/<session_id>/<participant_id>/2024-01-01T12-00-55Z"
     }
  }

• Use the GetParticipant API endpoint — The response includes the S3 bucket and prefix to where a participant is being recorded. Here is the request:

  POST /GetParticipant HTTP/1.1
  Content-type: application/json
  {
     "participantID": "xYz1c2d3e4f",
     "sessionId": "st-ZyXwvu1T2s",
     "stageArn": "arn:aws:ivs:us-west-2:123456789012:stage/AbCdef1G2hij"
  }

  And here is the response:

  Content-type: application/json
  {
     "participant": {
        ...
        "recordingS3BucketName": "ivs-recordings",
        "recordingS3Prefix": "<stage_id>/<session_id>/<participant_id>",
        "recordingState": "ACTIVE",
        ...
     }
  }

5. Play Back the VOD

After the recording is finalized, you can watch it using the IVS player. See Playback of Recorded Content from Private Buckets for instructions on setting up CloudFront distributions for VOD playback.

Audio-Only Recording

When setting up individual participant recording, you can choose to have only audio HLS segments written to your S3 bucket. To use this feature, choose the AUDIO_ONLY mediaType when creating the stage:

POST /CreateStage HTTP/1.1
Content-type: application/json

{
   "autoParticipantRecordingConfiguration": {
      "storageConfigurationArn": "arn:aws:ivs:us-west-2:123456789012:storage-configuration/AbCdef1G2hij",
      "mediaTypes": ["AUDIO_ONLY"]
   },
   "name": "TestStage",
   "participantTokenConfigurations": [
      {
         "capabilities": ["PUBLISH", "SUBSCRIBE"],
         "duration": 20160,
         "userId": "1"
      },
      {
         "capabilities": ["PUBLISH", "SUBSCRIBE"],
         "duration": 20160,
         "userId": "2"
      }
   ]
}

Recording Contents

When individual participant recording is active, you will start to see HLS video segments and metadata files being written to the S3 bucket that was provided when the stage was created. These contents are available for post-processing or playback as on-demand video.

Note that after a recording is finalized, an IVS Participant Recording State Change - Recording End event is sent through EventBridge. We recommend that you play back or process recorded streams only after this event is received. For details, see Using EventBridge with IVS Real-Time Streaming.

The following is a sample directory structure and contents of a recording of a live IVS session:

s3://mybucket/stageId/stageSessionId/participantId/timestamp
   events
      recording-started.json
      recording-ended.json
   media
      hls
	 multivariant.m3u8
         high
            playlist.m3u8
            1.mp4

The events folder contains the metadata files corresponding to the recording event. JSON metadata files are generated when recording starts, ends successfully, or ends with failures:

• events/recording-started.json

• events/recording-ended.json

• events/recording-failed.json

A given events folder contains recording-started.json and either recording-ended.json or recording-failed.json. These contain metadata related to the recorded session and its output formats. JSON details are given below.

The media folder contains the supported media contents. The hls subfolder contains all media and the manifest files generated during the recording session and is playable with the IVS player

JSON Metadata Files

This metadata is in JSON format. It comprises the following information:

Field	Type	Required	Description
stage_arn	string	Yes	ARN of the stage being used as the source of the recording.
session_id	string	Yes	String representing the stage's session_id where the participant is recorded.
participant_id	string	Yes	String representing the identifier of the recorded participant.
recording_started_at	string	Conditional	RFC 3339 UTC timestamp when the recording started. This is unavailable when recording_status is RECORDING_START_FAILED. Also, see the note below for recording_ended_at.
recording_ended_at	string	Conditional	RFC 3339 UTC timestamp when the recording ended. This is available only when recording_status is "RECORDING_ENDED" or "RECORDING_ENDED_WITH_FAILURE". Note: recording_started_at and recording_ended_at are timestamps when these events are generated and may not exactly match the HLS video-segment timestamps. To accurately determine the duration of a recording, use the duration_ms field.
recording_status	string	Yes	Status of the recording. Valid values: "RECORDING_STARTED", "RECORDING_ENDED", "RECORDING_START_FAILED", "RECORDING_ENDED_WITH_FAILURE".
recording_status_message	string	Conditional	Descriptive information on the status. This is available only when recording_status is "RECORDING_ENDED" or "RECORDING_ENDED_WITH_FAILURE".
media	object	Yes	Object that contains the enumerated objects of media content available for this recording. Valid value: "hls".
hls	object	Yes	Enumerated field that describes the Apple HLS format output.
duration_ms	integer	Conditional	Duration of the recorded HLS content in milliseconds. This is available only when recording_status is "RECORDING_ENDED" or "RECORDING_ENDED_WITH_FAILURE". If a failure occurred before any recording was done, this is 0.
path	string	Yes	Relative path from the S3 prefix where HLS content is stored.
playlist	string	Yes	Name of the HLS master playlist file.
renditions	object	Yes	Array of renditions (HLS variants) of metadata objects. There always is at least one rendition.
path	string	Yes	Relative path from the S3 prefix where HLS content is stored for this rendition.
playlist	string	Yes	Name of the media playlist file for this rendition.
version	string	Yes	The version of the metadata schema.

Example: recording-started.json

{
   "version": "v1",
   "stage_arn": "arn:aws:ivs:us-west-2:aws_account_id:stage/AbCdef1G2hij",
   "session_id": "st-ZyXwvu1T2s",
   "participant_id": "xYz1c2d3e4f",
   "recording_started_at": "2024-03-13T13:17:17Z",
   "recording_status": "RECORDING_STARTED",
   "media": {
      "hls": {
         "path": "media/hls",
         "playlist": "multivariant.m3u8",
         "renditions": [
            {
               "path": "high",
               "playlist": "playlist.m3u8"
            }
         ]
      }
   }
}

Example: recording-ended.json

{
   "version": "v1",
   "stage_arn": "arn:aws:ivs:us-west-2:aws_account_id:stage/AbCdef1G2hij",
   "session_id": "st-ZyXwvu1T2s",
   "participant_id": "xYz1c2d3e4f",
   "recording_started_at": "2024-03-13T19:44:19Z",
   "recording_ended_at": "2024-03-13T19:55:04Z",
   "recording_status": "RECORDING_ENDED",
   "media": {
      "hls": {
         "duration_ms": 645237,
         "path": "media/hls",
         "playlist": "multivariant.m3u8",
         "renditions": [
            {
               "path": "high",
               "playlist": "playlist.m3u8"
            }
         ]
      }
   }
}

Example: recording-failed.json

{
   "version": "v1",
   "stage_arn": "arn:aws:ivs:us-west-2:aws_account_id:stage/AbCdef1G2hij",
   "session_id": "st-ZyXwvu1T2s",
   "participant_id": "xYz1c2d3e4f",
   "recording_started_at": "2024-03-13T19:44:19Z",
   "recording_ended_at": "2024-03-13T19:55:04Z",
   "recording_status": "RECORDING_ENDED_WITH_FAILURE",
   "media": {
      "hls": {
         "duration_ms": 645237,
         "path": "media/hls",
         "playlist": "multivariant.m3u8",
         "renditions": [
            {
               "path": "high",
               "playlist": "playlist.m3u8"
            }
         ]
      }
   }
}
