Create and package the Lambda function - AWS IoT Greengrass

You are viewing the documentation for AWS IoT Greengrass Version 1. AWS IoT Greengrass Version 2 is the latest major version of AWS IoT Greengrass. For more information about using AWS IoT Greengrass V2, see the AWS IoT Greengrass Version 2 Developer Guide.

Create and package the Lambda function

In this step, you:

  • Create a Lambda function deployment package that contains the function code and dependencies.

  • Use the Lambda console to create a Lambda function and upload the deployment package.

  • Publish a version of the Lambda function and create an alias that points to the version.

  1. On your computer, go to the AWS IoT Greengrass Core SDK for Python that you downloaded and extracted in Create and package a Lambda function in Module 3-1.

    The Lambda function in this module uses:

    • The greengrassHelloWorldCounter.py file in examples\HelloWorldCounter. This is your Lambda function code.

    • The greengrasssdk folder. This is the SDK.

  2. Create a Lambda function deployment package:

    1. Copy the greengrasssdk folder into the HelloWorldCounter folder that contains greengrassHelloWorldCounter.py.

    2. Save greengrassHelloWorldCounter.py and the greengrasssdk folder to a zip file named hello_world_counter_python_lambda.zip. The py file and greengrasssdk folder must be in the root of the directory.

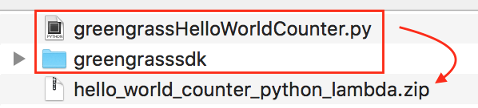

                                    Screenshot showing zipped contents of
                                        hello_word_counter_python_lambda.zip.

      On UNIX-like systems (including the Mac terminal) that have zip installed, you can use the following command to package the file and folder:

      zip -r hello_world_counter_python_lambda.zip greengrasssdk greengrassHelloWorldCounter.py

    Now you're ready to create your Lambda function and upload the deployment package.

  3. Open the Lambda console and choose Create function.

  4. Choose Author from scratch.

  5. Name your function Greengrass_HelloWorld_Counter, and set the remaining fields as follows:

    • For Runtime, choose Python 3.7.

    • For Permissions, keep the default setting. This creates an execution role that grants basic Lambda permissions. This role isn't used by AWS IoT Greengrass. Or, you can reuse the role that you created in Module 3-1.

    Choose Create function.


                            The "Basic information" section with the "Function name" field
                                set to "Greengrass_HelloWorld_Counter" and the "Runtime" field set
                                to "Python 3.7".
  6. Upload your Lambda function deployment package.

    1. On the Code tab, under Code source, choose Upload from. From the dropdown, choose .zip file.


                The Upload from dropdown with .zip file highlighted.
    2. Choose Upload, and then choose your hello_world_counter_python_lambda.zip deployment package. Then, choose Save.

    3. On the Code tab for the function, under Runtime settings, choose Edit, and then enter the following values.

      • For Runtime, choose Python 3.7.

      • For Handler, enter greengrassHelloWorldCounter.function_handler

    4. Choose Save.

      Note

      The Test button on the AWS Lambda console doesn't work with this function. The AWS IoT Greengrass Core SDK doesn't contain modules that are required to run your Greengrass Lambda functions independently in the AWS Lambda console. These modules (for example, greengrass_common) are supplied to the functions after they are deployed to your Greengrass core.

  7. Publish the first version of the function.

    1. From the Actions menu at the top of the page, choose Publish new version. For Version description, enter First version.

    2. Choose Publish.

  8. Create an alias for the function version.

    1. From the Actions menu at the top of the page, choose Create alias.


                                    Screenshot of the Actions menu set to Create
                                        alias.
    2. For Name, enter GG_HW_Counter.

    3. For Version, choose 1.

    4. Choose Save.

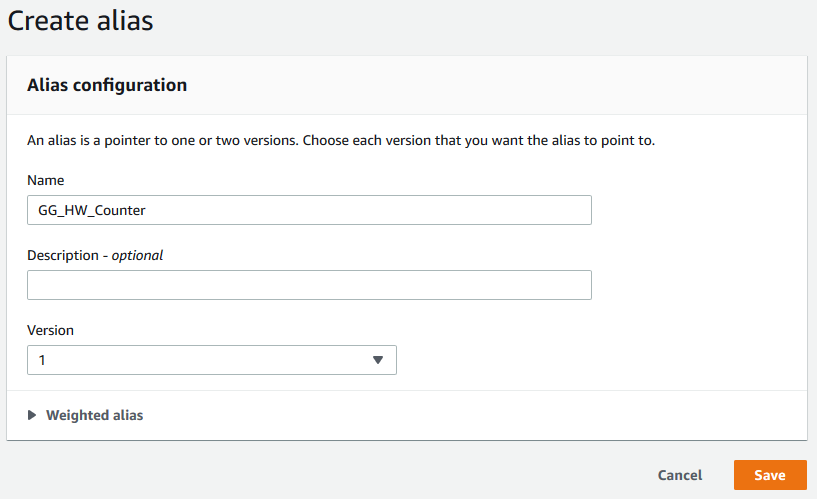

                                    Create alias screenshot with the Name field set to
                                        GG_HW_Counter and the Version field set to 1.

    Aliases create a single entity for your Lambda function that Greengrass devices can subscribe to. This way, you don't have to update subscriptions with new Lambda function version numbers every time the function is modified.
