AWS IoT TwinMaker Matterport integration

Matterport provides a variety of capture options to scan real-world environments and create immersive 3D models, also known as Matterport digital twins. These models are called Matterport spaces. AWS IoT TwinMaker supports Matterport integration, allowing you to import your Matterport digital twins into your AWS IoT TwinMaker scenes. By pairing Matterport digital twins with AWS IoT TwinMaker, you can visualize and monitor your digital twin system in a virtual environment.

For more information about using Matterport, read Matterport's documentation on AWS IoT TwinMaker and Matterport page.

Integration overview

This integration enables you to do the following:

• Use your Matterport tags and spaces in the AWS IoT TwinMaker app kit.

• View your imported matterport data in your AWS IoT TwinMaker Grafana dashboard. For more information on using AWS IoT TwinMaker and Grafana, read the Grafana dashboard integration documentation.

• Import your Matterport spaces into your AWS IoT TwinMaker scenes.

• Select and import your Matterport tags that you'd like to bind to data in your AWS IoT TwinMaker scene.

• Automatically surface your Matterport space and tag changes in your AWS IoT TwinMaker scene and approve which to synchronize.

The integration process is comprised of 3 critical steps.

1. Generate and record your Matterport credentials

2. Store your Matterport credentials in AWS Secrets Manager

3. Import Matterport spaces into AWS IoT TwinMaker scenes

You start your integration in the AWS IoT TwinMaker console. In the console's Settings page, under 3rd party resources, open Matterport integration to navigate between the different resources required for the integration.

Matterport integration prerequisites

Before integrating Matterport with AWS IoT TwinMaker please make sure you meet the following prerequisites:

• You have purchased an Enterprise-level Matterport account and the Matterport products necessary for the AWS IoT TwinMaker integration.

• You have an AWS IoT TwinMaker workspace. For more information, see Getting started with AWS IoT TwinMaker.

• You have updated your AWS IoT TwinMaker workspace role. For more information on creating a workspace role, see Create and manage a service role for AWS IoT TwinMaker.

  Add the following to your workspace role:

  {
    "Effect": "Allow",
    "Action": "secretsmanager:GetSecretValue",
    "Resource": [
     "AWS Secrets Manager secret ARN"
    ]
  }

• You must contact Matterport to configure the necessary licensing for enabling the integration. Matterport will also enable a Private Model Embed (PME) for the integration.

  If you already have a Matterport account manager, contact them directly.

  Use the following procedure to contact Matterport and request an integration if you don’t have a Matterport point of contact:

  1. Open the Matterport and AWS IoT TwinMaker page.

  2. Press the Contact us button, to open the contact form.

  3. Fill out the required information on the form.

  4. When you're ready, choose SAY HELLO to send your request to Matterport.

  Once you have requested integration, you can generate the required Matterport SDK and Private Model Embed (PME) credentials needed to continue the integration process.

  Note

  This may involve you incurring a fee for purchasing new products or services.

Generate and record your Matterport credentials

To integrate Matterport with AWS IoT TwinMaker, you must provide AWS Secrets Manager with Matterport credentials. Use the following procedure to generate the Matterport SDK credentials.

1. Log in to your Matterport account.

2. Navigate to your account settings page.

3. Once in the settings page, select the Developer tools option.

4. On the Developer tools page, go to the SDK Key Management section.

5. Once in the SDK Key Management section, select the option to add a new SDK key.

6. Once you have the Matterport SDK key, add domains to the key for AWS IoT TwinMaker and your Grafana server. If you are using the AWS IoT TwinMaker app kit, then make sure to add your custom domain as well.

7. Next, find the Application integration Management section, you should see your PME application listed. Record the following information:

   • The Client ID

   • The Client Secret

   Note

   Since the Client Secret is only presented to you once, we strongly recommend that you record your Client Secret. You must present your Client Secret in the AWS Secrets Manager console to continue with the Matterport integration.

   These credentials are automatically created when you have purchased the necessary components and the PME for your account has been enabled by Matterport. If these credentials do not appear, contact Matterport. To request contact, see the Matterport and AWS IoT TwinMaker contact form.

For more information on Matterport SDK credentials, see Matterport's official SDK documentation SDK Docs Overview.

Store your Matterport credentials in AWS Secrets Manager

Use the following procedure to store your Matterport credentials in AWS Secrets Manager.

Note

You need the Client Secret created from the procedure in the Generate and record your Matterport credentials topic to continue with the Matterport integration.

1. Log in to the AWS Secrets Manager console.

2. Navigate to the Secrets page and select Store a new secret.

3. For the Secret type, select Other type of secret.

4. In the Key/value pairs section, add in the following key-value pairs, with your Matterport credentials as the values:

   • Create a key-value pair, with Key: application_key, and Value: <your Matterport credentials>.

   • Create a key-value pair, with Key: client_id, and Value: <your Matterport credentials>.

   • Create a key-value pair, with Key: client_secret, and Value: <your Matterport credentials>.

   When completed, you should have a configuration similar to the following example:



5. For the Encryption key, you can leave the default encryption key aws/secretsmanager selected.

6. Choose Next to move on to the Configure secret page.

7. Fill out the field for Secret name and the Description.

8. Add a tag to this secret in the Tags section.

   When creating the tag, assign the key as AWSIoTTwinMaker_Matterport as shown in the following screenshot:



   Note

   You must add a tag. Tags are required when adding 3rd party secrets into AWS Secrets Manager, despite Tags being listed as optional.

   The Value field is optional. Once you have provided a Key, you can select Add to move on to the next step.

9. Choose Next to move on to the Configure rotation page. Setting up a secret rotation is optional. If you wish to finish adding your secret and don’t need a rotation, choose Next again. For more information on secret rotation, see Rotate AWS Secrets Manager secrets.

10. Confirm your secret configuration on the Review page. Once you're ready to add your secret, choose Store.

For more information about using AWS Secrets Manager, see the following AWS Secrets Manager documentation:

• Create and manage secrets with AWS Secrets Manager

• What is AWS Secrets Manager?

• Rotate AWS Secrets Manager secrets

Now you are ready to import your Matterport assets into AWS IoT TwinMaker scenes. See the procedure in the following section, Import Matterport spaces into AWS IoT TwinMaker scenes

Import Matterport spaces into AWS IoT TwinMaker scenes

Add Matterport scans to your scene by selecting the connected Matterport account from within the scene settings page. Use the following procedure to import your Matterport scans and tags:

1. Log in to the AWS IoT TwinMaker console.

2. Create or open an existing AWS IoT TwinMaker scene in which you want to use a Matterport space.

3. Once the scene has opened, navigate to the Settings tab.

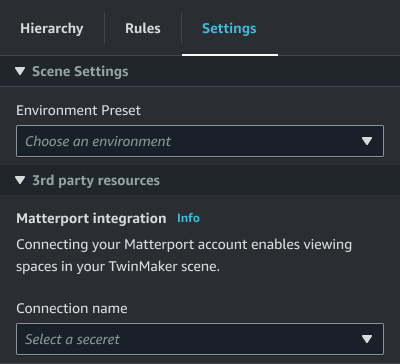

4. In Settings, under 3rd party resources, find the Connection name and enter the secret you created in the procedure from Store your Matterport credentials in AWS Secrets Manager.



   Note

   If you see a message that states No connections, navigate to the AWS IoT TwinMaker console settings page to begin the process for Matterport integration.



5. Next, choose the Matterport space you'd like to use in your scene by selecting it in the Matterport space drop-down.



6. After selecting a space, you can import your Matterport tags and convert them to AWS IoT TwinMaker scene tags by pressing the Import tags button.



   After you have imported Matterport tags, the button is replaced by an Update tags button. You can continually update your Matterport tags in AWS IoT TwinMaker so that they always reflect the most recent changes in your Matterport account.



7. You have successfully integrated AWS IoT TwinMaker with Matterport, and now your AWS IoT TwinMaker scene has both your imported Matterport space and tags. You can work within this scene as you would with any other AWS IoT TwinMaker scene.

For more information on working with AWS IoT TwinMaker scenes, see Creating and editing AWS IoT TwinMaker scenes.

Use Matterport spaces in your AWS IoT TwinMaker Grafana dashboard

Once you have imported your Matterport space into an AWS IoT TwinMaker scene, you can view that scene with the Matterport space in your Grafana dashboard. If you have already configured Grafana with AWS IoT TwinMaker, then you can simply open the Grafana dashboard to view your scene with the imported Matterport space.

If you have not configured AWS IoT TwinMaker with Grafana yet, complete the Grafana integration process first. You have two choices when integrating AWS IoT TwinMaker with Grafana. You can use a self-managed Grafana instance or you can use Amazon Managed Grafana.

See the following documentation to learn more about the Grafana options and integration process:

• AWS IoT TwinMaker Grafana dashboard integration.

• Amazon Managed Grafana.

• Self-managed Grafana.

Use Matterport spaces in your AWS IoT TwinMaker web application

Once you have imported your Matterport space into an AWS IoT TwinMaker scene, you can view that scene with the Matterport space in your AWS IoT app kit web application.

See the following documentation to learn more about using the AWS IoT application kit:

• To learn more about using AWS IoT TwinMaker with the AWS IoT app kit, see Create a customized web application using AWS IoT TwinMaker UI Components.

• To learn more about using AWS IoT application kit, please visit AWS IoT Application kit Github page.

• For instructions on how to start a new web application using AWS IoT application kit, please visit the official IoT App Kit documentation page.
