Getting started tutorial

In this tutorial, you create a fleet metric to monitor your sensors' temperatures to detect potential anomalies. When creating the fleet metric, you define an aggregation query that detects the number of sensors with temperatures exceeding 80 degrees Fahrenheit. You specify the query to run every 60 seconds and the query results are emitted to CloudWatch, where you can view the number of sensors that have potential high-temperature risks, and set alarms. To complete this tutorial, you'll use AWS CLI.

In this tutorial, you'll learn how to:

This tutorial takes about 15 minutes to complete.

Prerequisites

Set up

To use fleet metrics, enable fleet indexing. To enable fleet indexing for your things or thing groups with specified data sources and associated configurations, follow the instructions in Managing thing indexing and Managing thing group indexing.

To set up
  1. Run the following command to enable fleet indexing and specify the data sources to search from.

    aws iot update-indexing-configuration \ --thing-indexing-configuration "thingIndexingMode=REGISTRY_AND_SHADOW,customFields=[{name=attributes.temperature,type=Number},{name=attributes.rackId,type=String},{name=attributes.stateNormal,type=Boolean}],thingConnectivityIndexingMode=STATUS" \

    The preceding example CLI command enables fleet indexing to support searching registry data, shadow data, and thing connectivity status using the AWS_Things index.

    The configuration change can take a few minutes to complete. Verify that your fleet indexing is enabled before you create fleet metrics.

    To check if your fleet indexing has been enabled, run the following CLI command:

    aws --region us-east-1 iot describe-index --index-name "AWS_Things"

    For more information, see Enable thing indexing.

  2. Run the following bash script to create ten things and describe them.

    # Bash script. Type `bash` before running in other shells. Temperatures=(70 71 72 73 74 75 47 97 98 99) Racks=(Rack1 Rack1 Rack2 Rack2 Rack3 Rack4 Rack5 Rack6 Rack6 Rack6) IsNormal=(true true true true true true false false false false) for ((i=0; i < 10; i++)) do thing=$(aws iot create-thing --thing-name "TempSensor$i" --attribute-payload attributes="{temperature=${Temperatures[@]:$i:1},rackId=${Racks[@]:$i:1},stateNormal=${IsNormal[@]:$i:1}}") aws iot describe-thing --thing-name "TempSensor$i" done

    This script creates ten things to represent ten sensors. Each thing has attributes of temperature, rackId, and stateNormal as described in the following table:

    Attribute Data type Description
    temperature Number Temperature value in Fahrenheit
    rackId String ID of the server rack that contains sensors
    stateNormal Boolean Whether the sensor's temperature value is normal or not

    The output of this script contains ten JSON files. One of the JSON file looks like the following:

    { "version": 1, "thingName": "TempSensor0", "defaultClientId": "TempSensor0", "attributes": { "rackId": "Rack1", "stateNormal": "true", "temperature": "70" }, "thingArn": "arn:aws:iot:region:account:thing/TempSensor0", "thingId": "example-thing-id" }

    For more information, see Create a thing.

Create fleet metrics

To create a fleet metric
  1. Run the following command to create a fleet metric named high_temp_FM. You create the fleet metric to monitor the number of sensors with temperatures exceeding 80 degrees Fahrenheit in CloudWatch.

    aws iot create-fleet-metric --metric-name "high_temp_FM" --query-string "thingName:TempSensor* AND attributes.temperature >80" --period 60 --aggregation-field "attributes.temperature" --aggregation-type name=Statistics,values=count

    --metric-name

    Data type: string. The --metric-name parameter specifies a fleet metric name. In this example, you're creating a fleet metric named high_temp_FM.

    --query-string

    Data type: string. The --query-string parameter specifies the query string. In this example, the query string means to query all the things with names starting with TempSensor and with temperatures higher than 80 degrees Fahrenheit. For more information, see Query syntax.

    --period

    Data type: integer. The --period parameter specifies the time to retrieve the aggregated data in seconds. In this example, you specify that the fleet metric you're creating retrieves the aggregated data every 60 seconds.

    --aggregation-field

    Data type: string. The --aggregation-field parameter specifies the attribute to evaluate. In this example, the temperature attribute is to be evaluated.

    --aggregation-type

    The --aggregation-type parameter specifies the statistical summary to display in the fleet metric. For your monitoring tasks, you can customize the aggregation query properties for the different aggregation types (Statistics, Cardinality, and Percentile). In this example, you specify count for the aggregation type and Statistics to return the count of devices that have attributes that match the query, in other words, to return the count of the devices with names starting with TempSensor and with temperatures higher than 80 degrees Fahrenheit. For more information, see Querying for aggregate data.

    The output of this command looks like the following:

    { "metricArn": "arn:aws:iot:region:111122223333:fleetmetric/high_temp_FM", "metricName": "high_temp_FM" }
    Note

    It can take a moment for the data points to display in CloudWatch.

    To learn more about how to create a fleet metric, read Managing fleet metrics.

    If you can't create a fleet metric, read Troubleshooting fleet metrics.

  2. (Optional) Run the following command to describe your fleet metric named high_temp_FM:

    aws iot describe-fleet-metric --metric-name "high_temp_FM"

    The output of this command looks like the following:

    { "queryVersion": "2017-09-30", "lastModifiedDate": 1625249775.834, "queryString": "*", "period": 60, "metricArn": "arn:aws:iot:region:111122223333:fleetmetric/high_temp_FM", "aggregationField": "registry.version", "version": 1, "aggregationType": { "values": [ "count" ], "name": "Statistics" }, "indexName": "AWS_Things", "creationDate": 1625249775.834, "metricName": "high_temp_FM" }

View fleet metrics in CloudWatch

After creating the fleet metric, you can view the metric data in CloudWatch. In this tutorial, you will see the metric that shows the number of sensors with names starting with TempSensor and with temperatures higher than 80 degrees Fahrenheit.

To view data points in CloudWatch
  1. Open the CloudWatch console at https://console.aws.amazon.com/cloudwatch/.

  2. On the CloudWatch menu on the left panel, choose Metrics to expand the submenu and then choose All metrics. This opens the page with the upper half to display the graph and the lower half containing four tabbed sections.

  3. The first tabbed section All metrics lists all the metrics that you can view in groups, choose IoTFleetMetrics. This contains all of your fleet metrics.

  4. On the Aggregation type section of the All metrics tab, choose Aggregation type to view all the fleet metrics you created.

  5. Choose the fleet metric to display graph on the left of the Aggregation type section. You will see the value count to the left of your Metric name, and this is the value of the aggregation type that you specified in the Create fleet metrics section of this tutorial.

  6. Choose the second tab named Graphed metrics to the right of the All metrics tab to view the fleet metric you chose from the previous step.

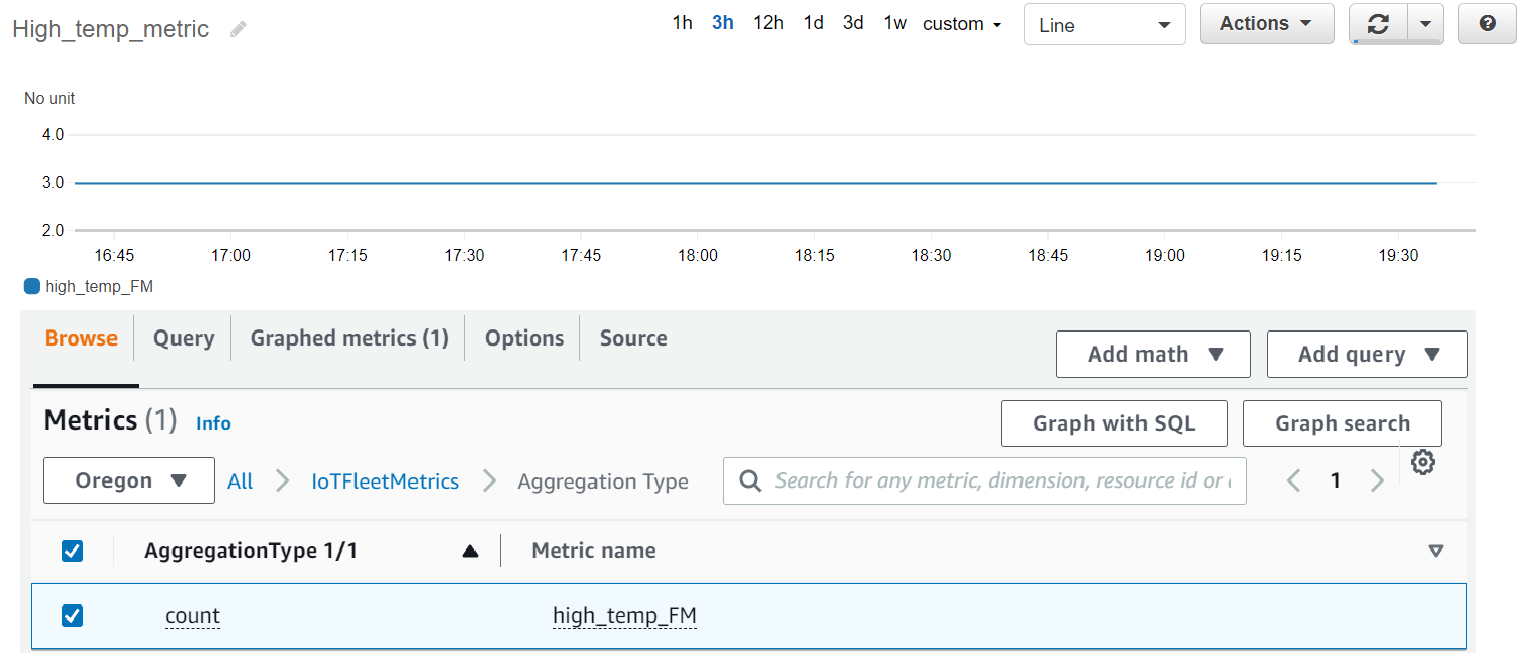

    You should be able to see a graph that displays the number of sensors with temperatures higher than 80 degrees Fahrenheit like the following:

    AWS IoT fleet metrics
    Note

    The Period attribute in CloudWatch defaults to 5 minutes. It's the time interval between data points displaying in CloudWatch. You can change the Period setting based on your needs.

  7. (Optional) You can set a metric alarm.

    1. On the CloudWatch menu on the left panel, choose Alarms to expand the submenu and then choose All alarms.

    2. On the Alarms page, choose Create alarm on the upper right corner. Follow the Create alarm instructions in console to create an alarm as needed. For more information, see Using Amazon CloudWatch alarms.

To learn more, read Using Amazon CloudWatch metrics.

If you can't see data points in CloudWatch, read Troubleshooting fleet metrics.

Clean up

To delete fleet metrics

You use the delete-fleet-metric CLI command to delete fleet metrics.

To delete the fleet metric named high_temp_FM, run the following command.

aws iot delete-fleet-metric --metric-name "high_temp_FM"

To clean up things

You use the delete-thing CLI command to delete things.

To delete the ten things that you created, run the following script:

# Bash script. Type `bash` before running in other shells. for ((i=0; i < 10; i++)) do thing=$(aws iot delete-thing --thing-name "TempSensor$i") done

To clean up metrics in CloudWatch

CloudWatch doesn't support metrics deletion. Metrics expire based on their retention schedules. To learn more, Using Amazon CloudWatch metrics.
