Cost-effective resources

GAMECOST01 - How are you choosing the right compute solution for your game servers?

One of most unique aspects of a game workload compared to other types of workloads is the game server, which is critical to the player experience. Because players connect to game servers from their game client to play a game session, it is also one of the biggest drivers of cost for operating a multiplayer game so it is important to make sure that you optimize how you utilize the compute infrastructure for your game to reduce costs.

GAMECOST_BP01: Benchmark your game server on multiple compute types.

During the initial planning and testing phase of game development, you should perform benchmarking to determine the appropriate type of compute to use for your game. Typically, session-based multiplayer and other types of low-latency games will use Amazon EC2 Instances for hosting game servers. Each EC2 instance type provides a mixture of compute resources that are optimized for different workload profiles. You should perform benchmarking of your game server code to determine what resources such as CPU, Memory or Network bandwidth that your game session utilizes and select the option that provides the right balance of performance at the lowest cost. Most of the popular commercially available game engines such as Unreal Engine, Unity, and Lumberyard provide performance profiling utilities that you can allow in the engine editor so that your game server builds will emit log and/or metric data to help you benchmark performance and resource utilization. This telemetry can help you evaluate and select the appropriate EC2 Instance types to use.

As part of benchmarking your game server across multiple EC2 instance types, you should determine what type of operating system and processor requirements are needed to run your game. For best cost optimization, it is recommended to run your game compute infrastructure on Linux instances to eliminate the licensing costs that is incurred with Windows. Additionally, Graviton instances are 64-bit Arm-based EC2 instances that can be used to run your game servers, including Unreal Engine dedicated servers.

GAMECOST_BP02. Optimize the number of game sessions hosted on each game server Instance to reduce costs.

Optimize the number of game sessions hosted per server instance in order to achieve better compute utilization and reduce compute infrastructure costs.

To reduce costs, game developers should maximize the number of game sessions hosted on the same physical or virtual server, also known as the packing density of their game servers. This is achieved by increasing the number of game server processes that can be simultaneously hosted on an EC2 instance. A single game server process should not usually require the use of the entire resources available on the EC2 instance. This is one of the most important ways to reduce compute costs for a game and requires the use of software that can spawn and manage multiple server processes on the EC2 instance on separate ports. For example, Amazon GameLift has a quota on the maximum number of game server processes per instance, which you should strive to utilize so that you can reduce hosting costs. Refer to the documentation for Amazon GameLift for details on the current quota for maximum game server processes per instance.

As an alternative to deploying game server processes on virtual machines such as EC2 instances, it is becoming popular for game developers to run their game servers as container-based applications using container orchestration platforms such as Amazon Elastic Container Service (Amazon ECS) or Amazon Elastic Kubernetes Service (Amazon EKS), or by hosting the game server using Fargate. Container platforms provide job scheduling functionality that can automatically find an available container instance in the cluster to host your game server container based on resource requirements and other placement logic that you specify. However, as discussed in the reliability pillar of this lens, it is important to consider how you will manage the scaling and player placement behavior in way that doesn't disrupt active player sessions.

GAMECOST_BP03. Select the appropriate compute pricing option to reduce costs.

Run performance tests of your game server software across a variety of instance types and compute options to determine which option is most cost-effective for your game.

In addition to efficiently utilizing the right EC2 instance types for your workload, consider which of the available compute pricing options is most suitable for your cost optimization goals. There are several pricing options available, including On-Demand Instances, Spot Instances, Reserved Instances, and Savings Plans.

Spot Instances are ideal for running game servers because they offer the largest compute discounts, do not require usage commitments, and they provide flexibility for unpredictable and spiky workload types. However, Spot Instances can be interrupted, so they are best suited for game server workloads with short game session durations or situations where the tolerance for interruption is higher. For example, the Running Your Game Servers at Scale for up to 90% lower compute cost blog post provides guidance for running game servers using Kubernetes on Amazon EKS with EC2 Spot Instances. When using Spot, it is also recommended to run game server workloads across multiple EC2 instance types and Availability Zones in an AWS Region to diversify your usage of capacity and reduce interruption risk. It is also recommended to use Spot Instances in combination with On-Demand Instances to minimize the impact of potential disruptions to active game sessions, and to consider using capacity optimized allocations strategy to further reduce the risk of interruption. Refer to the Best Practices for EC2 Spot for additional best practices. Amazon EC2 Auto Scaling Capacity Rebalancing can be used to proactively monitor and add additional capacity when Spot Instances are at increased risk of interruption. Amazon GameLift FleetIQ integrates with Spot Instances to optimize the use of low-cost Spot Instances while reducing the risk of interruptions. If you are hosting your game using GameLift, you should review the GameLift documentation for choosing computing resources.

EC2 Reserved Instances allow you to receive a discount for compute by making usage commitment to a particular Region and instance type, and as an alternative to Reserved Instances (RIs), Savings Plans provide discounts similar to RIs with flexibility to apply the discounts across Regions, instance family, operating system, tenancy, and can be applied to other compute services such as Fargate and Lambda. Because Savings Plans provide regional flexibility, they are particularly ideal in situations where your game has unpredictable usage across geographies such as with new game launches. This provides a significant discount compared to On-Demand pricing and is ideal for scenarios when you can forecast your expected usage for a 1-year or 3-year period.

The flexibility to apply the discount across different compute services can be a useful benefit to allow you to apply your commitment-based usage discount across the infrastructure for your game servers running on EC2 instances, and your game backend services which may be operating on other services such as Lambda. Unlike Spot Instances which can be interrupted, Savings Plans and Reserved Instances are simply a billing benefit and provide access the same usage characteristics as On-Demand capacity. Typically, in game server workloads, Reserved Instances are introduced after a game has been running in production for an extended period of time, at least several weeks or months, where daily usage patterns are well understood. Since Reserved Instances and Savings Plans require a usage commitment, it is recommended to maximize the utilization of pre-purchased Reserved Instances and Savings Plans. They can be augmented with other purchase options that provide more flexibility for unpredictable game server usage spikes, such as On-Demand and Spot Instances.

For example, if your daily player usage pattern always requires at least 20 servers to support your player base, but periodically requires up to 40 servers, then you should consider purchasing 20 Reserved Instances or an equivalent Savings Plan commitment, because that usage demand is predictable and consistent, and will result in maximum utilization of the usage commitment that you have purchased. The additional capacity that is required to support your players can be hosted using Spot and On-Demand Instances.

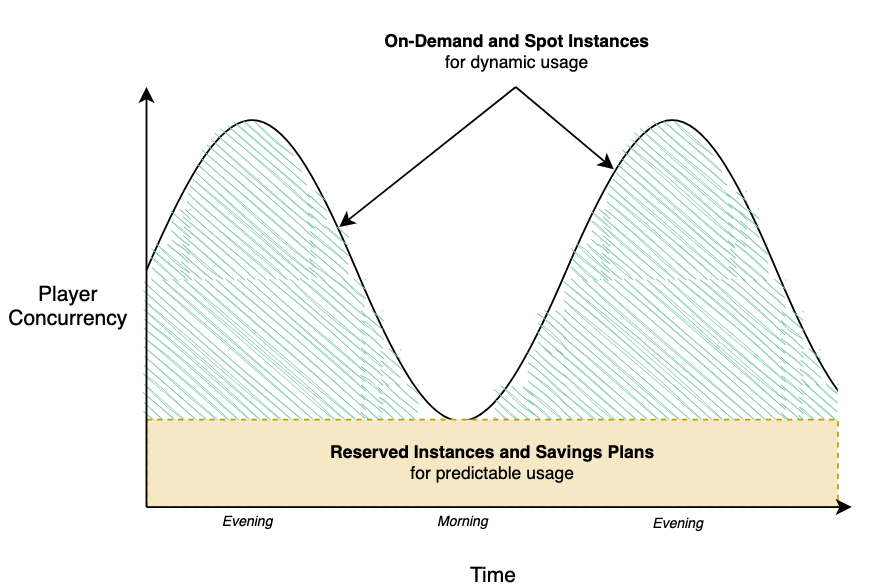

The following diagram provides an example to illustrate the use of multiple compute pricing options for game server workloads.


              Diagram showing On-Demand and Spot Instances scaling over time.
Hosting game servers with multiple EC2 pricing options

In the diagram, the player concurrency fluctuates over time which makes it difficult to manage utilization and achieve cost optimization. To address this fluctuation, consider adopting a mixture of different compute pricing options, using Reserved Instances and EC2 Savings Plans to meet the needs of your minimum usage requirements while relying on EC2 On-Demand and EC2 Spot Instances for dynamic usage.

GAMECOST02 - How are you optimizing the data transfer costs for your game infrastructure?

Games can transfer a significant amount of data across the internet between your players’ game client devices and your game infrastructure to provide the gameplay experience, as well as between the components of your game infrastructure. For example, data transfer occurs when players download game content updates to their game clients, save their game progress state to the cloud, engage in real-time multiplayer game sessions with their friends, and when your game infrastructure transfers data between Regions and Availability Zones. It is important to understand where the data transfer occurs in your game workload so that you can optimize your architecture choices to reduce this data transfer cost. To optimize the data transfer costs for your game, consider the following best practices.

GAMECOST_BP04: Optimize the cost of data transfer across the internet.

Implement solutions that reduce the cost of transferring data from your game backend to your players.

Use CloudFront to reduce the cost of content delivery and heavily used public-facing web applications. Game content and assets that are stored in the cloud are typically stored in Amazon S3 and delivered to the game client either directly from S3 or from web servers hosted in Amazon EC2 that retrieve the content from Amazon S3 and deliver it to clients. To reduce the data transfer costs of content downloads, consider using Amazon CloudFront in front of your cloud storage to deliver content to users. Using CloudFront can reduce the cost of data transfer because it costs less to deliver your content from CloudFront points-of-presence than directly from Regions, and CloudFront does not charge origin retrieval fees for AWS-based origins, such as Amazon EC2 and Amazon S3. If your content is cacheable, CloudFront can be used to cache content closer to users which can further reduce costs. CloudFront is also beneficial for placement in front of public-facing web applications and services, even if caching is not used, since the cost of data transfer between your servers and clients can be reduced by routing traffic through the CloudWatch network. CloudWatch can be used to monitor your Amazon CloudFront usage. For use cases where you use multiple content delivery networks (CDN), CloudFront Origin Shield can provide an additional layer of caching to consolidate and reduce the number of origin requests from different providers. For more best practices for content delivery, refer to the Content Delivery for Games whitepaper.

VPC Flow Logs can be used to monitor the network traffic in your environment and help you to identify the sources and destinations of traffic to help you optimize your data transfer costs.

GAMECOST_BP05: Optimize costs to reduce data transfer between services, Availability Zones, and Regions.

In addition to optimizing the data transfer between your game infrastructure and the internet, you should also optimize the data transfer between the internal components of your game infrastructure to reduce the amount of traffic sent between Availability Zones in the same Region, and between Regions, which each incur data transfer costs.

Prioritize keeping internal traffic in the same Availability Zone as the application. To optimize data transfer in your game backend services, you can deploy your database and cache clusters with instances into multiple Availability Zones in a Region and configure your applications to prioritize reading data from instances that are in the same Availability Zone as the application server. Although this setup still incurs data transfer costs for the data replication between Availability Zones, this is recommended in use cases where applications heavily utilize databases and caches, such as read-heavy workloads that can achieve cost benefits from having local copies of the data in the same availability zone.

You should replicate copies of data to other Regions if there are applications in those regions that require regular access to the data. It is more cost-effective to replicate the data across Regions so that applications can access a local copy of data as much as frequently as needed, rather than relying on those applications to access data across regions which is not cost-effective at scale, less performant, and requires more complex cross-Region networking configurations in order to provide appropriate security controls.

For example, your game backend services might be deployed in the N. Virginia Region with game servers deployed globally into multiple Regions closest to your players to reduce gameplay latency. If your game servers need to access objects that are stored in an S3 bucket or cache data in Amazon ElastiCache for Redis that is hosted in N. Virginia, it is more cost effective to replicate the cache data to the Regions where the game servers are located to reduce the ongoing data transfer cost for those servers to retrieve the data. AWS offers features that make it easier to set up multi-Region replication of data, such as Amazon Aurora global databases, Amazon ElastiCache Global Datastore for Redis, and Amazon DynamoDB Global Tables. For use cases where objects stored in Amazon S3 needs to be frequently accessed by applications that are hosted in another Region, consider using Amazon S3 Cross-Region Replication (CRR) to reduce cost. CRR can reduce costs by automatically replicating copies of objects to destination buckets hosted in one or more Regions where your applications are deployed. This configuration would still incur the cost of replicating the object to another Region, but it would eliminate the data transfer costs that would otherwise be incurred each time the cross-region application retrieves the object from S3, since it would retrieve it from an S3 destination bucket in the same Region.

It is recommended to use VPC endpoints to integrate with services to reduce data traffic and processing charges through NAT Gateways. Similarly, for public facing applications hosted in Public Subnets, traffic may not need to traverse a NAT Gateway and can be configured to send outbound traffic directly to an internet gateway to avoid the data processing and transfer costs of the NAT Gateway where it isn’t needed.

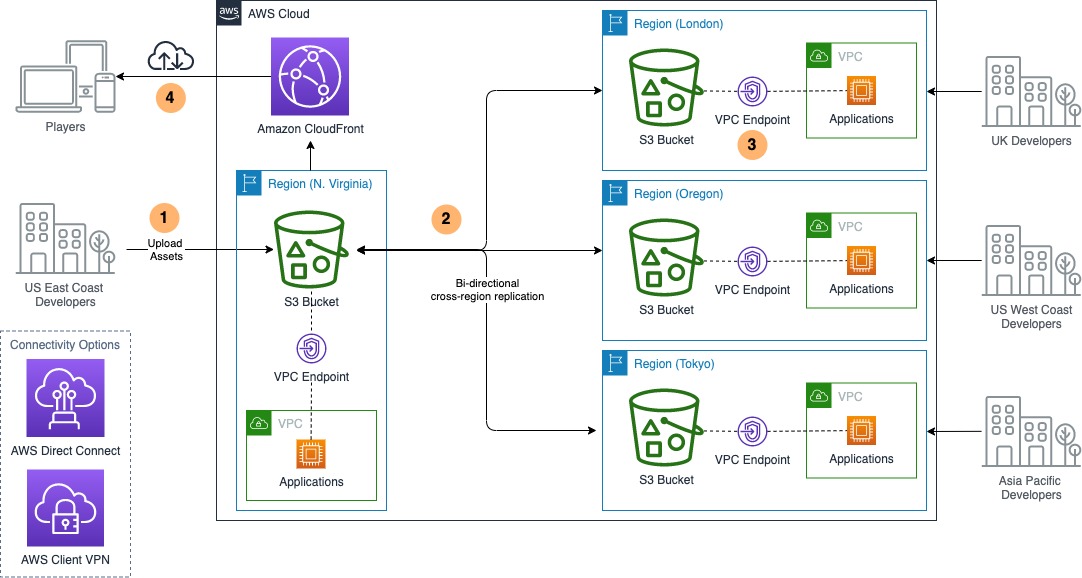

The following diagram illustrates an architecture that can be used to reduce the cost of accessing data from applications hosted in other Regions that require low latency access to shared datasets.


              Diagram showing a reference architecture that can be used to reduce the cost
                of accessing data from applications hosted in other Regions that require low latency
                access to shared datasets.
Optimizing costs for accessing latency-sensitive game content from global users
  1. Your game development teams may be globally distributed and require access to copies of the same content in Amazon S3. In this scenario, a game developer located in US East Coast can upload content to an Amazon S3 bucket either directly or from an application they are hosting in that Region.

  2. S3 Cross-Region Replication is configured to replicate copies of objects to buckets in other Regions so that applications hosted in those Regions can retrieve objects from the local Region without needing to send requests across regions to access them. Replication can be configured to be bi-directional so that updates made in any of the other Regions can be updated in the rest of the Regions.

  3. VPC Endpoints provides private access to Amazon S3 from your VPC so that applications do not need to route traffic through a NAT Gateway, which could be used by other high throughput application traffic and can cause congestion. Game development teams such as other global studios, remote and contract workers can access copies of datasets by connecting to the region that is most performant for them. Use Direct Connect to set up a dedicated connection between your studio locations or data centers and Regions. Use Client VPN to provide remote workers with secure remote access to your VPCs.

  4. Player game clients and other internet-based applications integrate with CloudFront, which provides content caching for objects stored in S3 and reduces the cost of data transfer for static and dynamic content over the internet.

Multi-Region Access Points in Amazon S3 can be used to simplify this access pattern for applications hosted in Regions where you do not host S3 buckets. Applications can interact with a multi-Region access point which can determine the lowest-latency bucket location to serve their request. Multi-Region Access Points have an additional cost.

GAMECOST03 - How are you optimizing the data storage costs for your game infrastructure?

Games can generate large amounts of data that needs to be stored and made available to developers, players, and to the game itself. For example, you may be constantly generating new source code, game content, and assets that need to be stored, your players may be generating new user generated content, and your game clients and servers may be generating game analytics telemetry data that needs to be stored in a data lake and made available to analytics teams. Your game also generates structured data.

GAMECOST_BP06. Choose the appropriate type of storage to reduce costs.

Each type of data that you generate and store has unique characteristics that you should consider when determining the right storage solution to use for your workload.

Use S3 Object Lifecycle Management to store object data in the most cost-effective storage class. Amazon S3 provides multiple storage classes and object lifecycle management to make it easy to setup simple and fine-grained policies to automatically transition data between storage tiers to reduce costs. Instead of simply storing all data in S3 standard storage class by default, consider setting up a lifecycle configuration to transition data between tiers automatically over time, or use S3 Intelligent-Tiering storage class for unknown or changing access patterns. Alternatively, S3 Intelligent-Tiering can cost-effectively and automatically transition data between tiers and is recommended as a default storage class since it provides cost optimization without the need to manually setup lifecycle policies, and is now the best choice for small and short-lived objects. Common use cases for Amazon S3 include storage of game assets, static content, game logs, data lake storage, and backups. For use cases where file systems are required, such for attaching shared file systems to workstations during development, consider using Amazon Elastic File System (Amazon EFS), which provides different storage classes and automatically grows and shrinks as you add and remove files with no need for manage the infrastructure.
